CAD GXLIEM Overview
The CAD GXLIEM Single-Mix Mono In-Ear Wireless Monitoring System provides musicians and actors with a cost-effective and easy-to-use solution for hearing themselves clearly, enhancing their performance during live shows. Added benefits to in-ear monitoring include consistent sound from venue to venue or wherever the performers go on stage, increased freedom of movement, and less feedback when working with quiet vocalists.
Single-Mix Transmitter, Great for the Whole Band
- The system comes with a GXLIEM base transmitter, one bodypack receiver, and one pair of MEB1 earsets. The GXLIEM transmits a mono mix to the performer wearing the bodypack receiver.
- For shows with more than one performer, you can add as many receivers as needed to your system (additional receivers available separately).
Fast to Set Up and Easy to Use

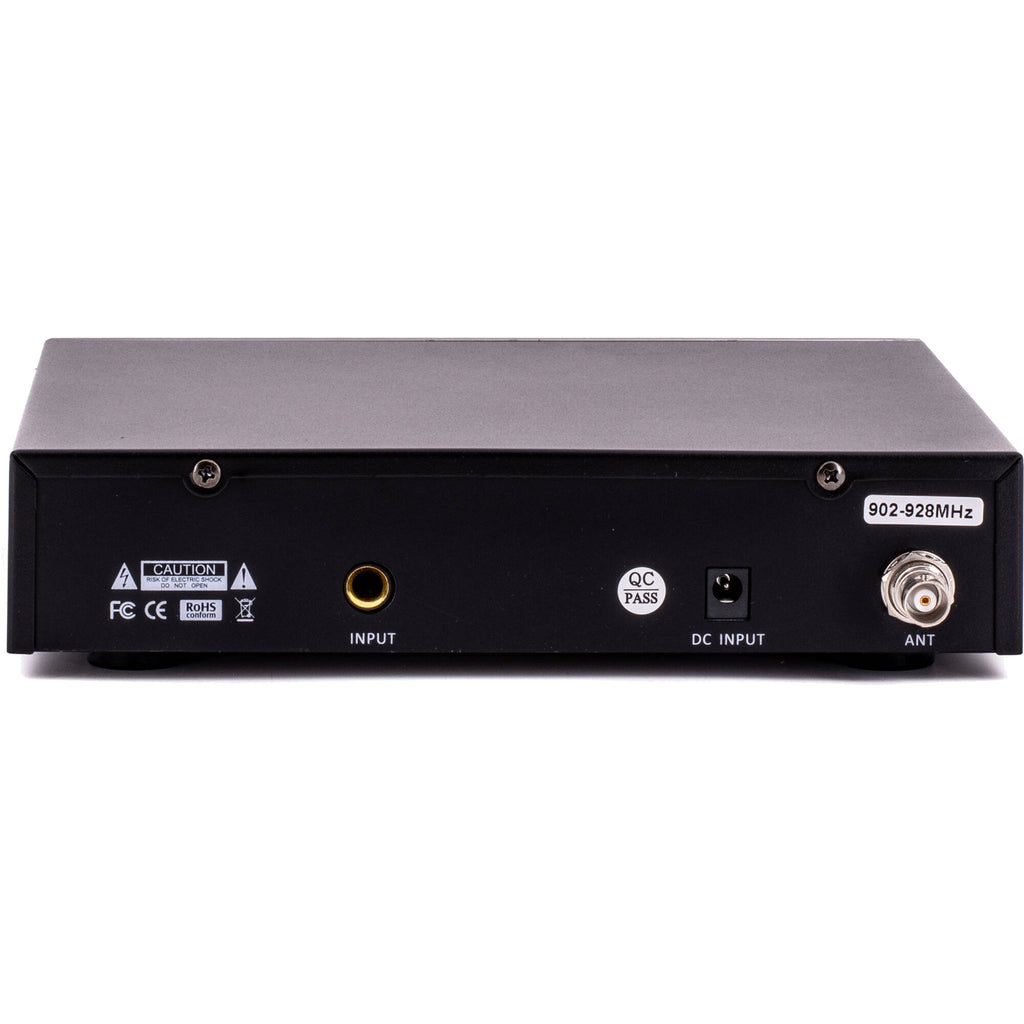

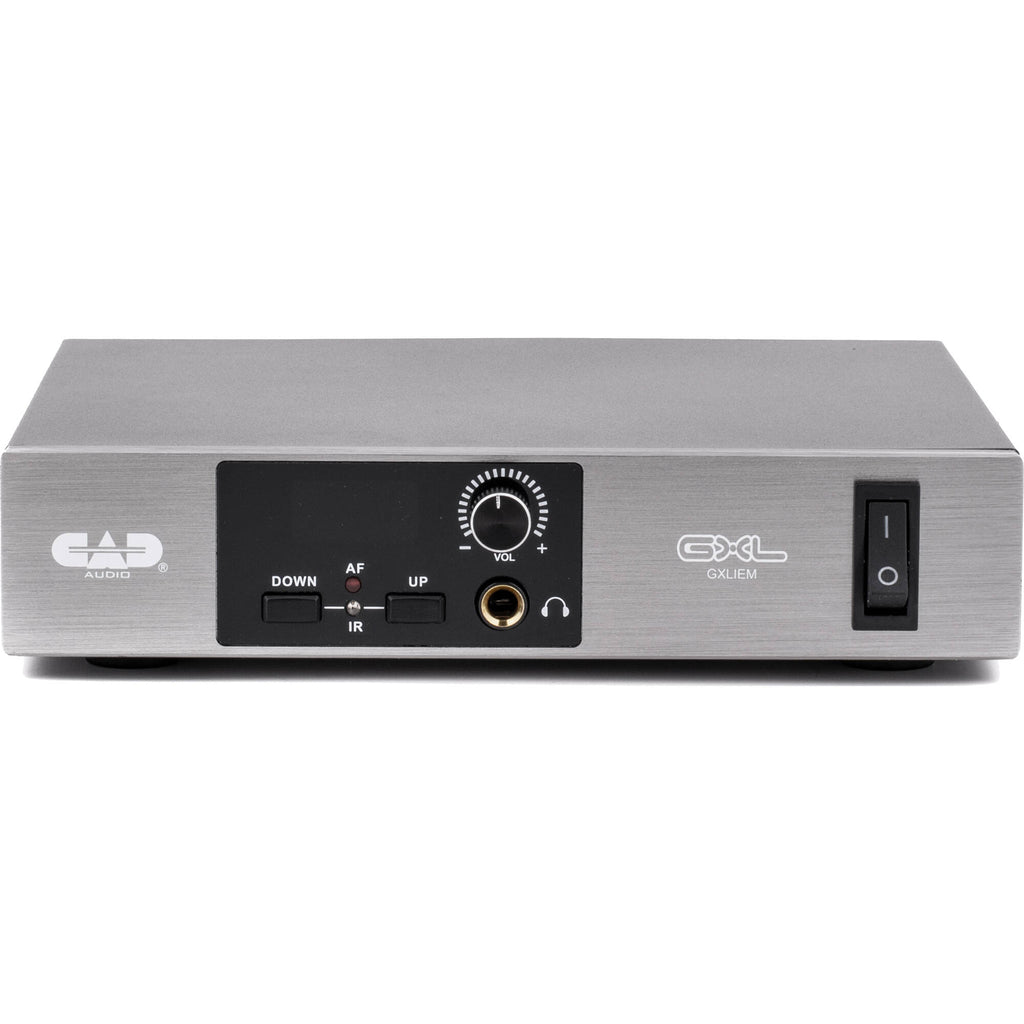

- The robust, all-metal 1/2 rack transmitter features removable antennas and can be rackmounted in flight cases or permanent installations using the included hardware.
- ScanLink technology with infrared transmitter setup precisely scans 16 frequencies and selects the cleanest channel for clear audio at a range up to 100'. Quickly pair the transmitter and receiver at the press of a button.
- The system operates in the 900 MHz band, free from TV signal interference.
- High-contrast LCD displays on both the transmitter base and the receiver show frequency channel and battery level.

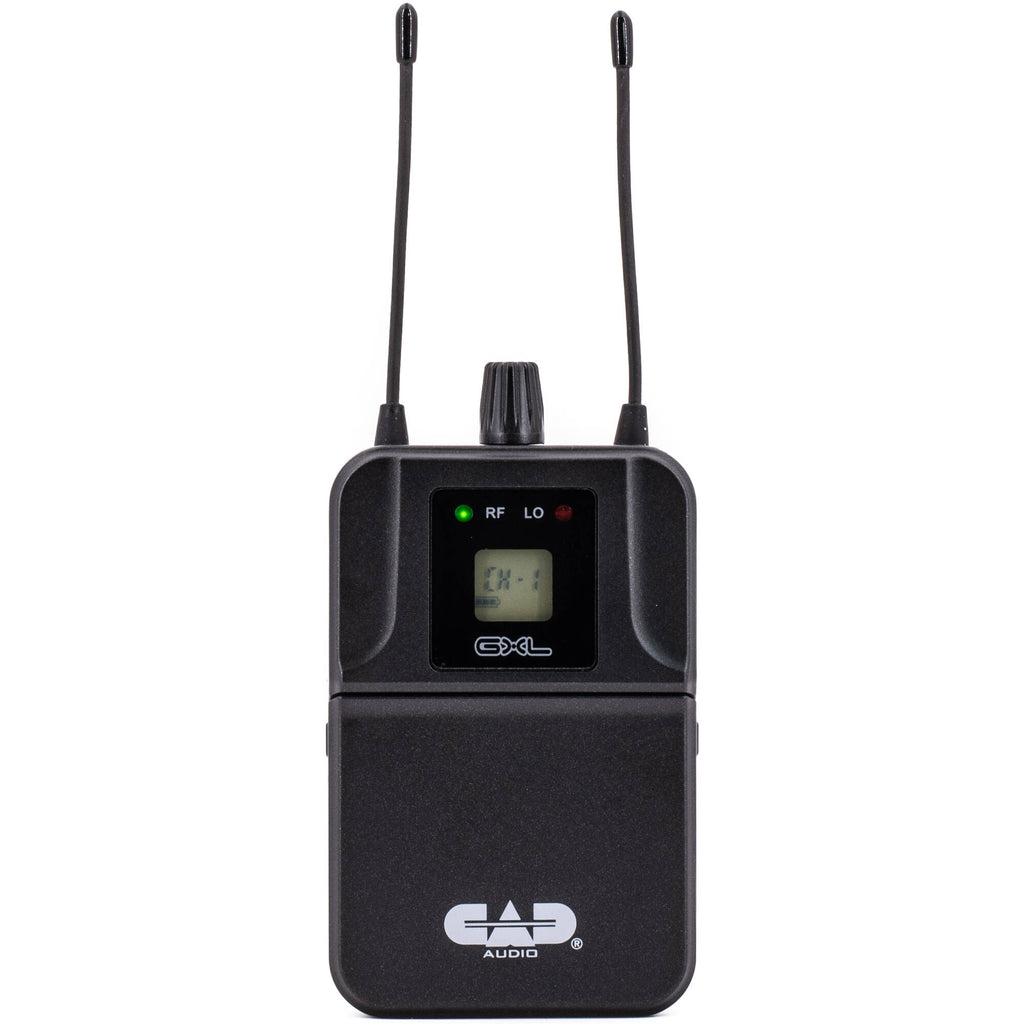

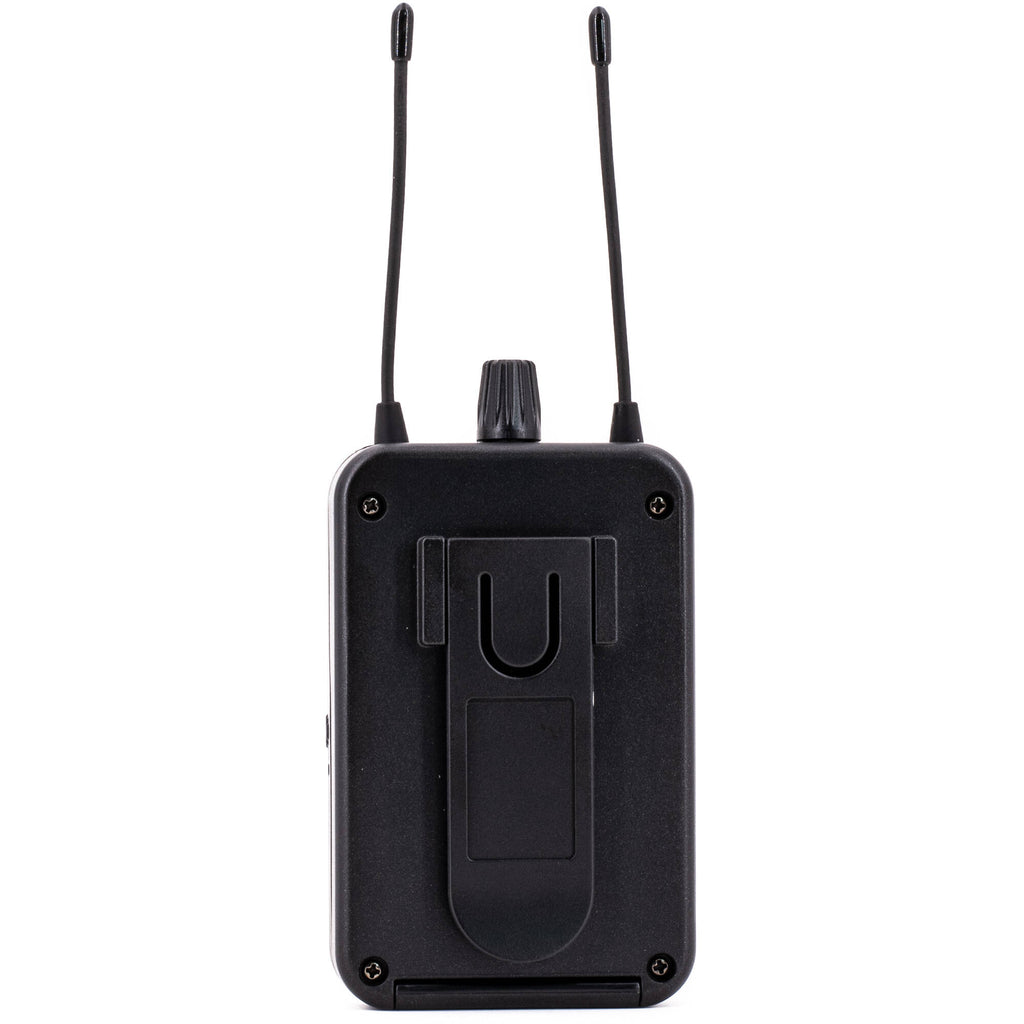

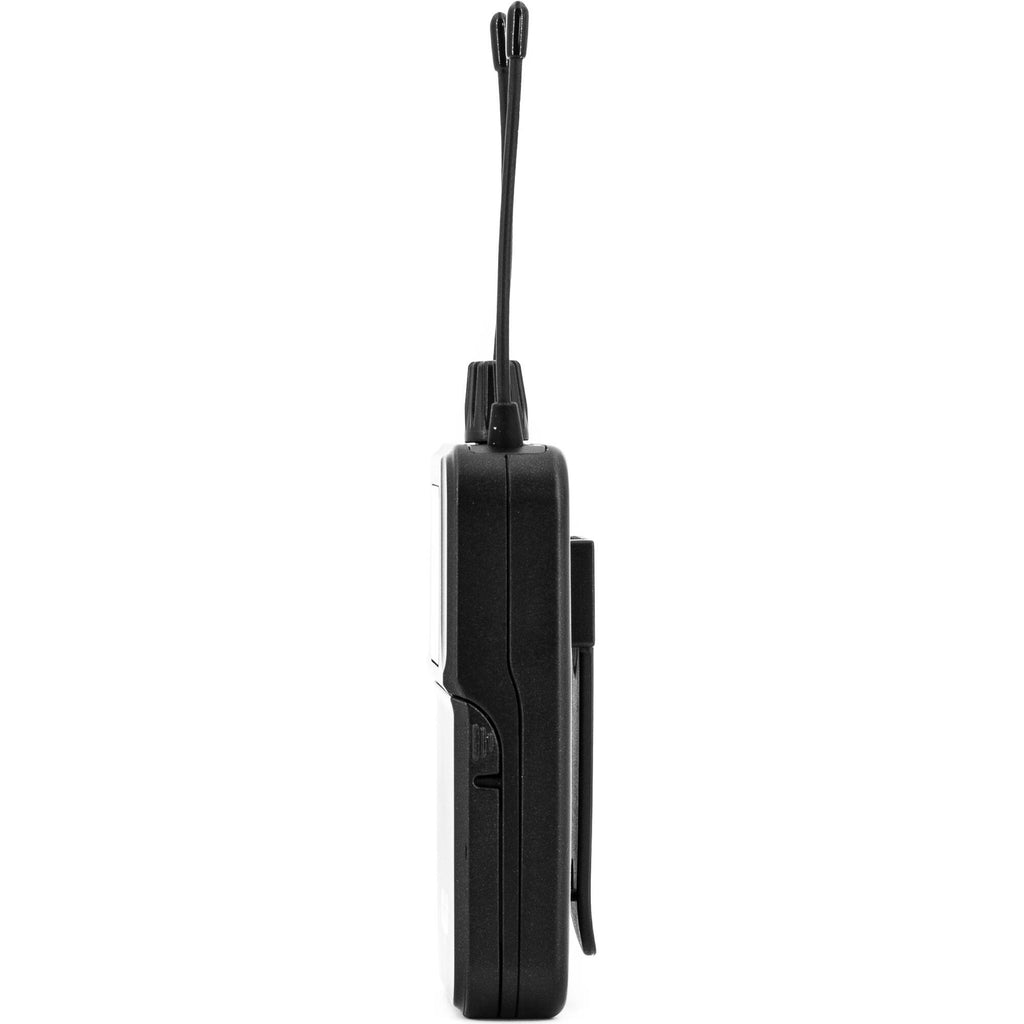

- The bodypack receiver is equipped with a volume knob for comfortable listening and operates for up to 10 hours on two AA batteries. The auto-lock feature prevents settings from being altered accidentally.
UPC: 631922109177

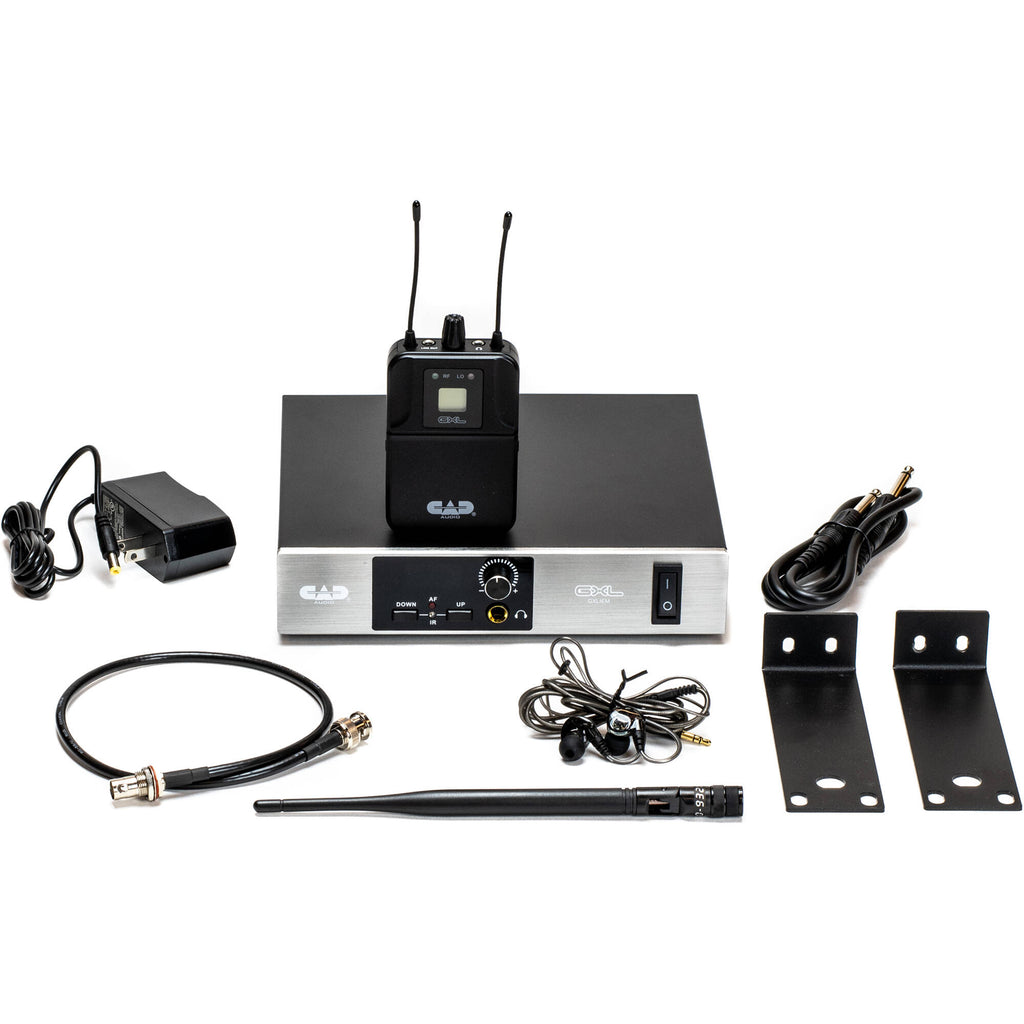

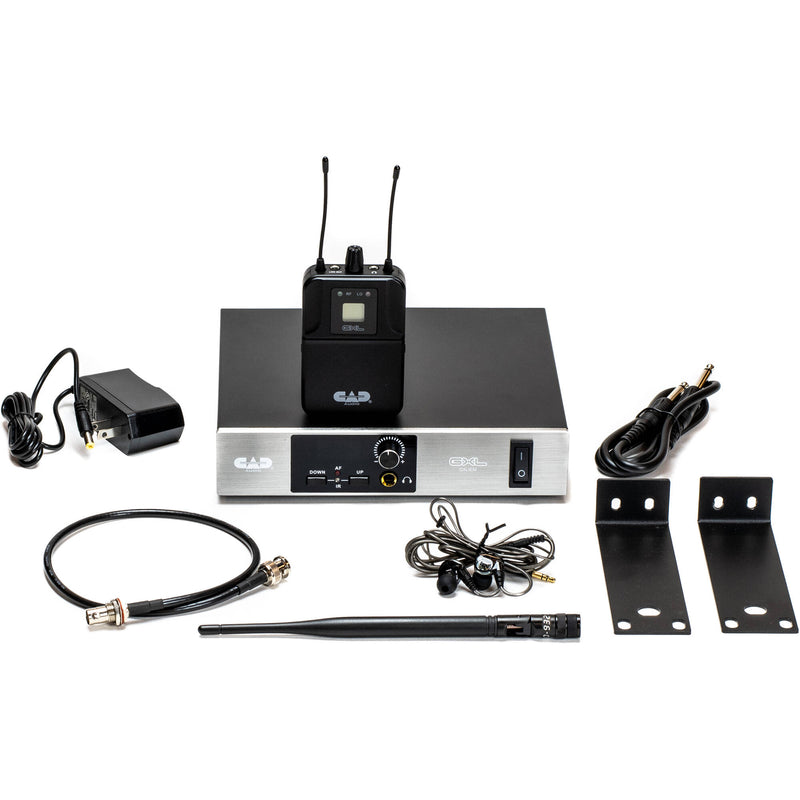

In the Box
- CAD GXLIEM Single-Mix In-Ear Wireless Monitoring System (T: 902 to 928 MHz)
- GXLIEM Transmitter Base
- CAD GXLIEMBP Bodypack Receiver with MEB1 Earbuds
- 2 x Antennas
- Rackmount Hardware
- AC Power Adapter
- Limited 2-Year Warranty
CAD GXLIEM Specs
System
Frequency Band |
T: 902 to 928 MHz |
Channel Frequencies |
16 |
Transmission Range |
100' / 30.5 m |
Frequency Response |
20 Hz to 20 kHz |
Dynamic Range |
>110 dB |
Transmitter
Type |
Rackmount |
Configuration |
Single-Mix |
Display |
High-Contrast LCD Display |
Antennas |
2 x 1/2 Wave Antennas, Detachable |
Construction |
Metal |
Power |
AC Power Adapter (Included) |
AC Input Power Voltage |
110 V |
Dimensions |
4 x 12 x 12" / 10.1 x 30.4 x 30.4 cm |
Weight |
5 lb / 2.3 kg |
Receiver
Type |
Bodypack |
Audio Output |
1/8" / 3.5 mm Headphone Output Jack |
Display |
High-Contrast LCD Display |
Transmitting Power |
30 W |
Antenna |
Dipole Antenna |
Power |
2 x AA Batteries |
Operating Time |
Up to 10 Hours |
Packaging Info
Package Weight |
4.185 lb |
Box Dimensions (LxWxH) |
16.5 x 12.4 x 3" |
