CAD WXGTS Overview

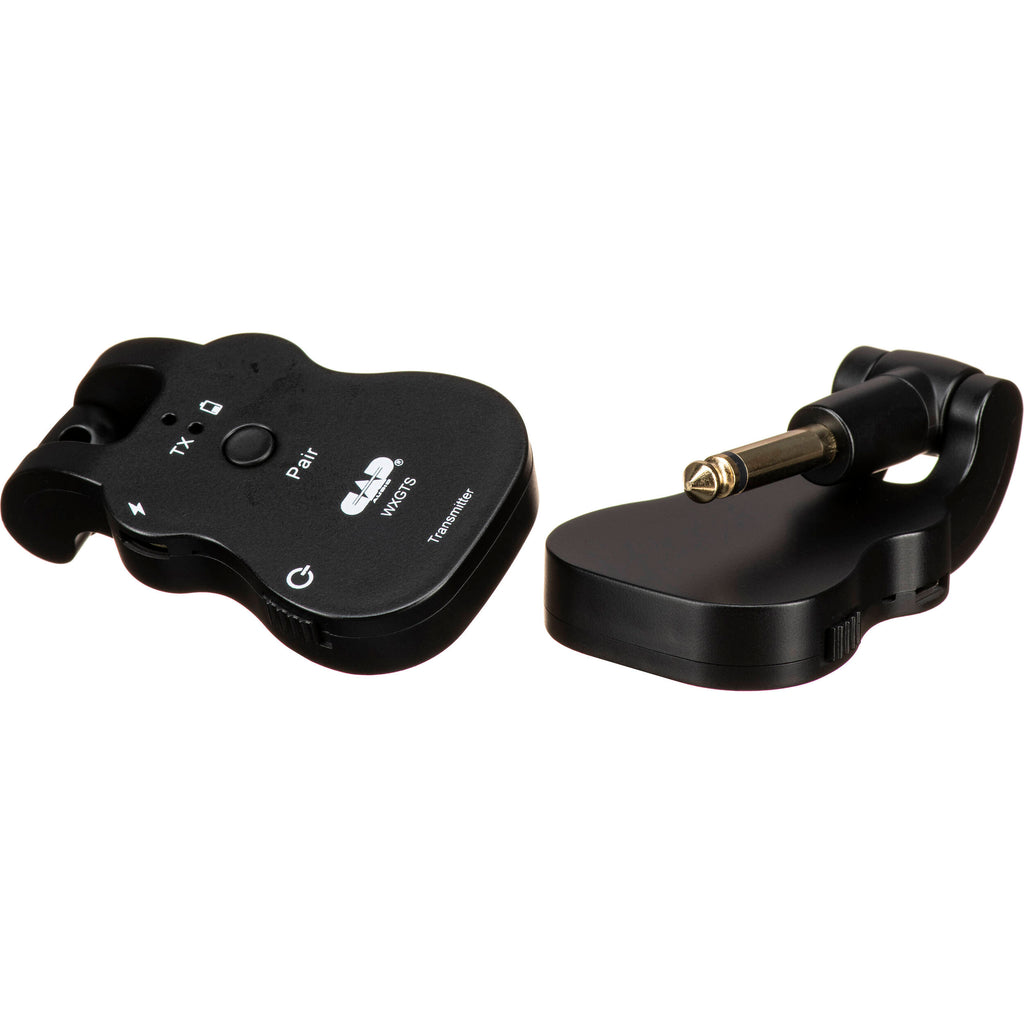

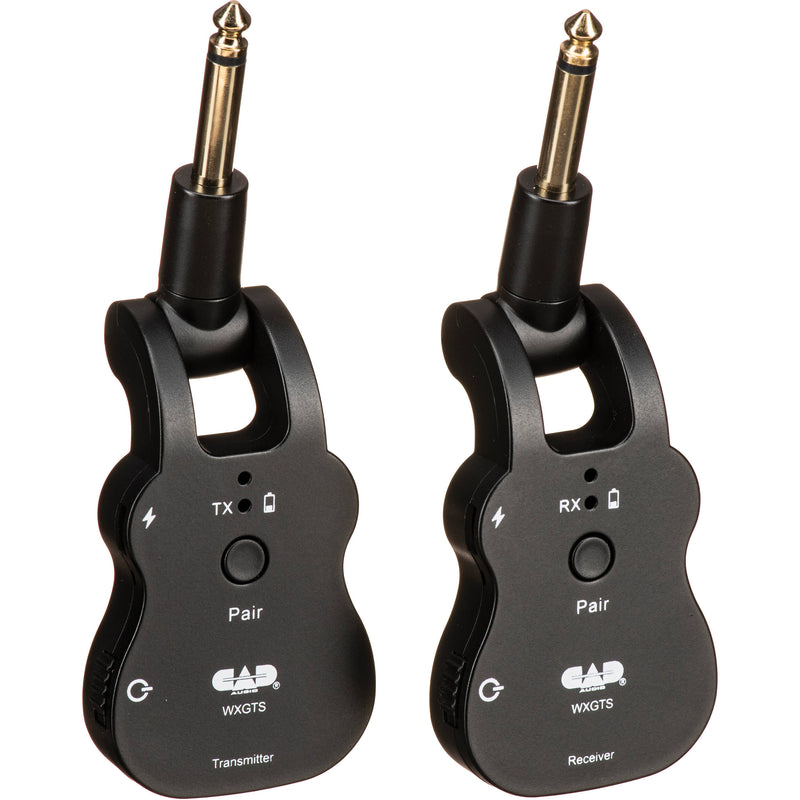

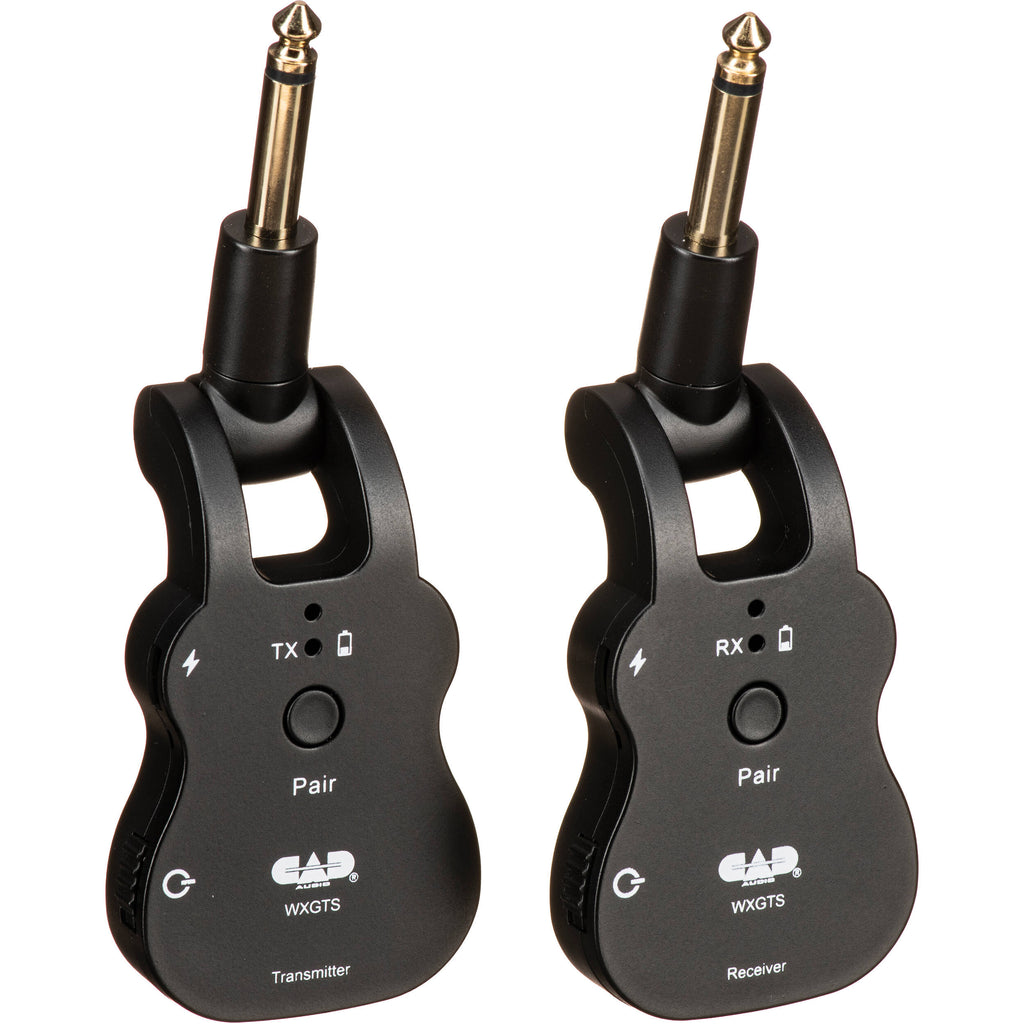

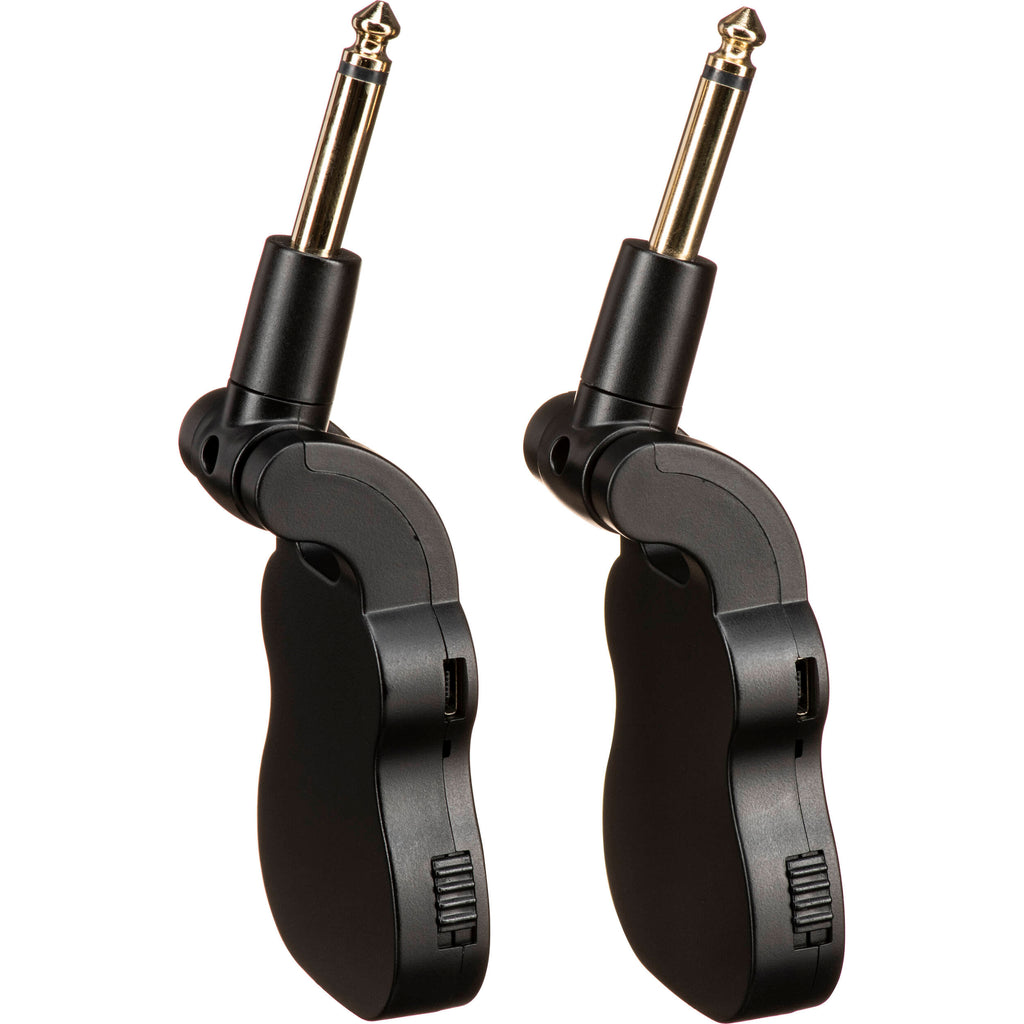

Guitarists looking for an affordable wireless system for their axe will appreciate the CAD Audio WXGTS, a digital wireless guitar system that makes it easy to cut the cord, while providing high-quality wireless audio in an easy to use, compact design.
The WXGTS operates in the 2.4GHz frequency band and supports up to 6 receivers at the same time. With a range of 100' and up to 5 hours of use from the integrated rechargeable battery, the WXGTS provides maximum freedom of movement for the entire gig. The compact design negates the need for bodypacks or wires, making the changing of instruments mid-show easier than ever before.
- 2.4 GHz operating frequency allows for license-free use worldwide
- 24-bit / 48 kHz uncompressed digital conversion
- Up to 100� range
- Built for guitars, but compatible with a wide range of electronic instruments
- 280° rotating body fits most instrument body styles
- Built-in rechargeable batteries last up to 5 hours per charge
In the Box
- CAD Digital Wireless Guitar System
- Dual USB Charging Cable
CAD WXGTS Specs
System
Wireless Technology |
Digital UHF (2.4 GHz) |
Included Transmitters |
1 x Plug-On |
RF Bandwidth |
2.4 GHz |
Max Operating Range |
100' / 30.5 m |
Max Transmitters per Band |
6 |
Bluetooth |
Not Specified by Manufacturer |
Sample Rate/Resolution |
48 kHz / 24-Bit |
Latency |
< 12 ms |
Dynamic Range |
105 dBA |
SNR |
87 dB |
THD |
<0.13 % |
Receiver
Receiver Type |
Plug-In |
Number of Audio Channels |
6 |
Audio I/O |
1 x 1/4" TS Male Unbalanced Input |
Dimensions |
4.7 x 3.3 x 2.6" / 11.9 x 8.4 x 6.6 cm |
Weight |
0.4 lb / 0.2 kg |
Transmitter
Transmitter Type |
Plug-On |
RF Output Power |
Not Specified by Manufacturer |
Audio I/O |
1 x 1/4" TS Male Output |
Included Cable Connector |
None |
Battery Type |
1 x Built-In Rechargeable |
Approx. Battery Life |
5 Hours |
Dimensions |
4.7 x 3.3 x 2.6" / 11.9 x 8.4 x 6.6 cm |
Weight |
0.4 lb / 0.2 kg |
Packaging Info
Package Weight |
0.295 lb |
Box Dimensions (LxWxH) |
6.4 x 4.4 x 2.1" |
