Description

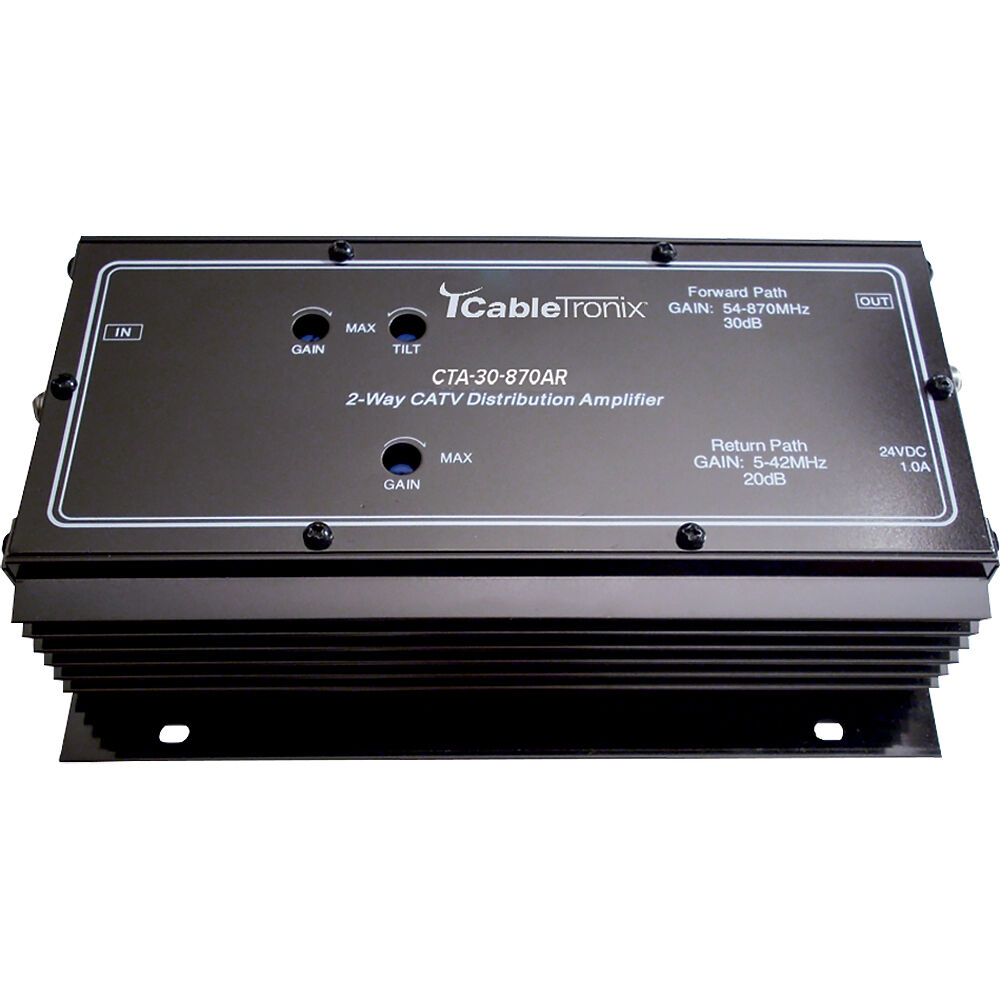

CableTronix RF Amplifier with Active Return Overview
The Two-Way Wall Mount RF Distribution Amplifier with Active Return from CableTronix offers 30 dB forward gain across a bandwidth of 54 to 870 MHz and 20 dB of reverse gain across 5 to 42 MHz. Designed for the indoor amplification of CATV and UHF/VHF signals, the unit is equipped with F-type connectors, and it has forward gain and slope control with 10 dB of forward gain control range and separate controls for forward and reverse gain.
UPC: 819210012556
- CableTronix Two-Way Wall Mount RF Distribution Amplifier with Active Return
- Power Supply
- Limited 1-Year Manufacturer Warranty
No additional resources available
CableTronix RF Amplifier with Active Return Specs
General
| Frequency Range |
Forward: 54-870 MHz
Reverse: 5-42 MHz |
| Specifications |
Forward Path
Gain: 31 dB Flatness: +/- 1.0 dB @ 54-870 MHz Gain Control Range: 10 dB Tilt Control Range: 10 dB Noise Figure: 6 dB @ 54-550 MHz, 4 dB @ 551-870 MHz Return Loss: -14 dB @ 54-550 MHz, -12 dB @ 551-870 MHz Return Path Gain: 20 dB Flatness: +/- 0.5 dB Gain Control Range: 10 dB Return Loss:: -15 dB @ 5-42 MHz |
| Impedance |
75 Ohms
|
Power
| Power Source |
AC Adapter with Power Brick (Included)
|
| AC Input Power |
117 VAC, 60 Hz
|
| DC Input Power |
24 VDC at 1 A
|
Physical
| Color |
Black
|
| Dimensions |
8.9 x 5.3 x 2" / 225 x 135 x 52 mm
|
| Weight |
3.02 lb / 1.37 kg
|
Packaging Info
| Package Weight |
2.705 lb
|
| Box Dimensions (LxWxH) |
9.5 x 6.1 x 4.7"
|
