Description

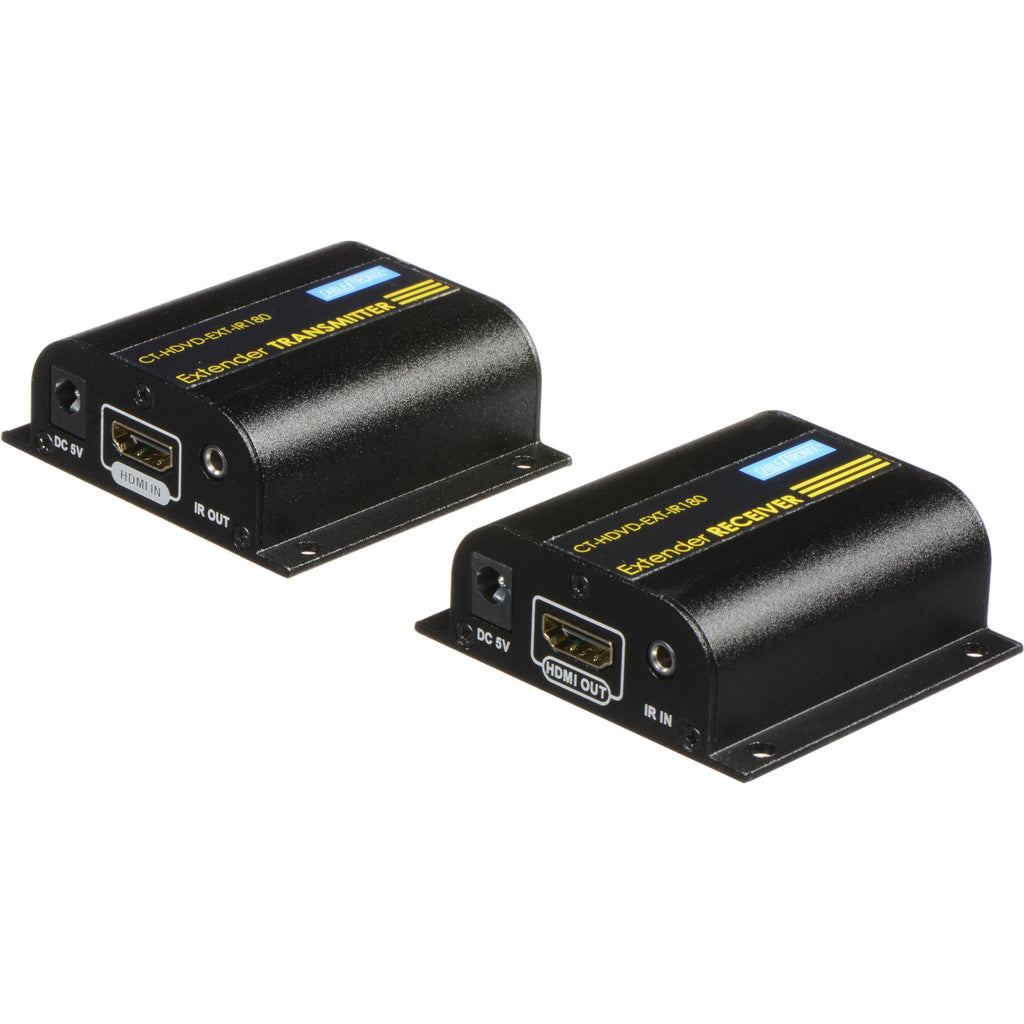

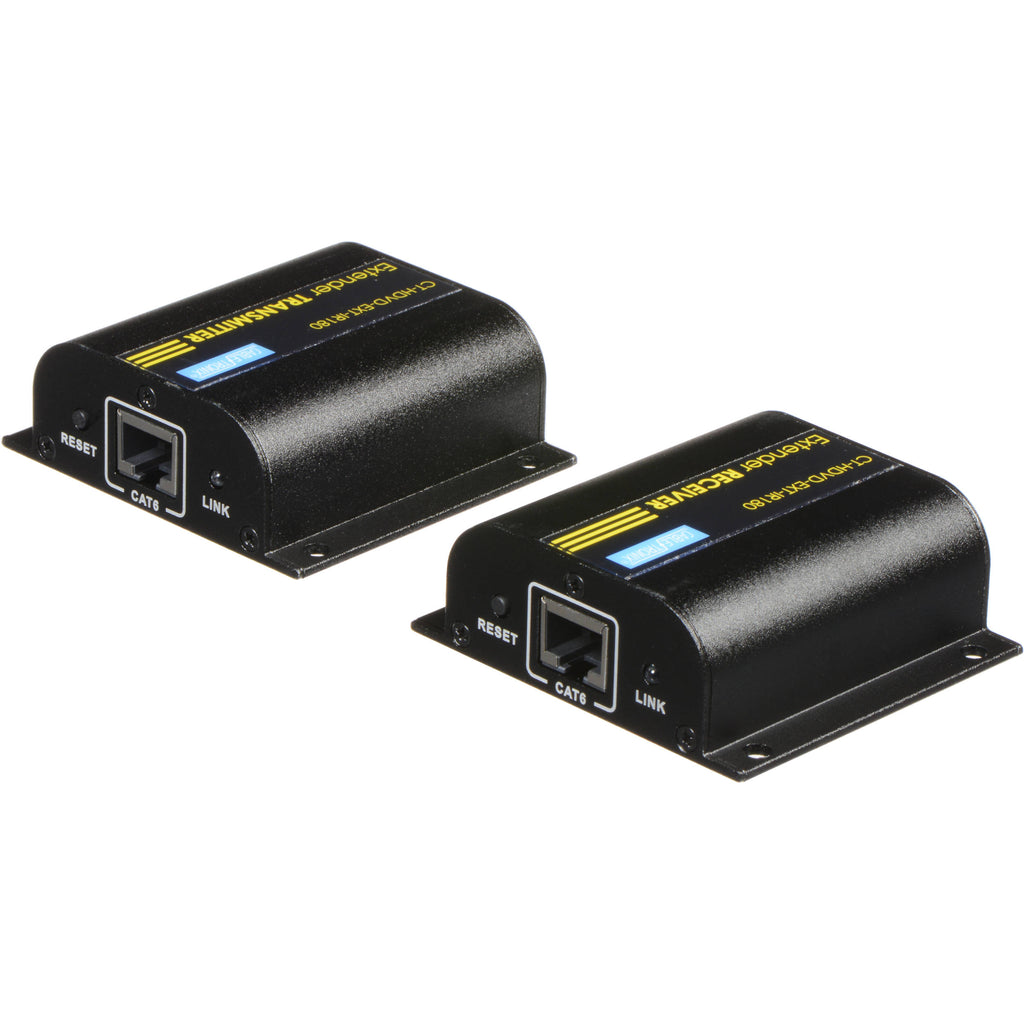

CableTronix CT-HDVD-EXT-IR180 Overview
Extend HDMI transmission distances with the HDMI Extender Transmitter and Receiver Kit from CableTronix. This kit includes a transmitter unit and a receiver unit to allow HDMI signals to be transmitted over a Cat5e or Cat6 4-pair cable. An IR blaster and an IR receiver provide IR control. This kit is designed to provide extended range when using an HDMI-enabled device, such as a computer, gaming console, or video recorder, and an HDMI display. Two 5 VDC power adapters are included to power to the transmitter and receiver units.
Extends HDMI signals over RJ45 Ethernet up to 180'
Extends IR control range
Supports HDMI V1.3, HDCP-compliant
LED indicators for power and video signal status
Internal ESD protection
Plug-and-play for quick setup
Compatible with Cat5e and Cat6 cable
Multiple units can be cascaded (additional units available separately)
UPC: 819210012006
In the Box
- CableTronix HDMI Extender Transmitter and Receiver Kit
- Base Transmission Unit
- Base Receiver Unit
- 2 x 5 VDC Power Supplies
- IR Emitter Cable
- IR Target Cable
- Limited 1-Year Manufacturer Warranty
CableTronix CT-HDVD-EXT-IR180 Specs
| Input Video Signal |
0.5 to 1.0 V p-p
|
| Input DDC Signal |
5 V p-p (TTL)
|
| Video Format Support |
480i at 60 Hz, 480p at 60 Hz, 576i at 50 Hz, 576p at 50 Hz, 720p at 50/60 Hz, 1080i at 50/60 Hz, 1080p at 50/60 Hz
DTV/HDTV: 1080p/1080i |
| Output Video |
HDMI 1.3+ HDCP
|
| Output Audio Format |
Support DTS-HD, Dolby HD
|
| Maximum Transmission Distance |
Up to 180' (55 m) using Cat6
|
| Power Supply |
5 VDC, 1A
|
| Maximum Power Consumption |
Transmitter: 2 W
Receiver: 2 W |
| Operating Temperature |
32 to 140°F (0 to 60°C)
|
| Operating Humidity |
5 to 90% RH, non-condensing
|
| Network Cables |
Cat5e, 6, 6a, 7
Low resistance and consumption oxygen-free copper core |
| IR Remote |
Support 20 to 60 kHz wide frequency IR remote control
|
| Dimensions |
Transmitter: 2.85 x 1 x 2.65" (7.2 x 2.5 x 6.7 cm)
Receiver: 2.85 x 1 x 2.65" (7.2 x 2.5 x 6.7 cm) |
| Weight |
Transmitter: 0.4 lb (0.2 kg)
Receiver: 0.4 lb (0.2 kg) |
Packaging Info
| Package Weight |
0.85 lb
|
| Box Dimensions (LxWxH) |
7.402 x 5.984 x 2.835"
|
