Description
- 35 dB Forward Gain
- 54-1,000 MHz Forward Bandwidth
- 5-42 MHz Reverse Bandwidth
- Passive Return Path
- Forward Gain and Slope Control
- 16 dB Forward Gain Control Range

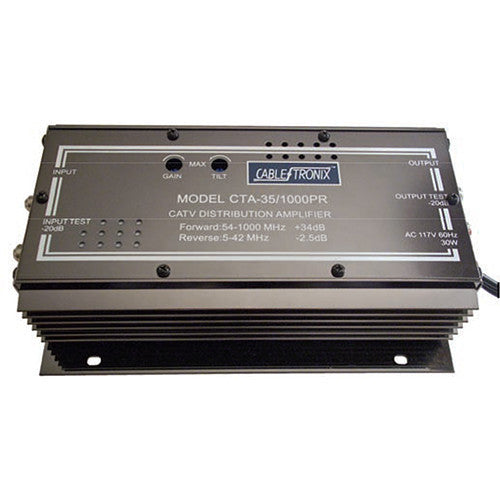

The CableTronix CTA-35/1000PR CATV Distribution Amplifier is a wall-mountable amplifier with a 16 dB gain-control range. In addition to CATV signals, this amplifier is also compatible with UHF and VHF signals. Built-in input and output test ports ensure that you can adjust the amplifier to fine-tune performance without disconnecting it from your infrastructure.
| Frequency Range | Forward: 54 - 1,000 MHz Reverse: 5 - 42 MHz |
| Power Requirement | 117 VAC, 60 Hz |
| Forward Path | Gain: 35 dB @ 54-550 MHz, 34 dB @ 551-1,000 MHz Flatness: ±1.0 dB @ 54-870 MHz Gain Control Range: 16 dB Tilt Control Range: 15 dB Noise Figure: 6 dB @ 54-1,000 MHz Return Loss: -10 dB Input, -10 dB Output Composite Triple Beat: -60 dBc Composite Second Order: -60 dBc Input Test Point: -20 dB ±3 dB Output Test Point -20 dB ±3 dB |
| Return Path | Gain: -2.5 dB Flatness: ±1.0 dB Noise Figure: 6 dB Return Loss: -10 dB Input/Output |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Connectors | F Type female |
| Impedance | 75 Ohms |
| Dimensions | 8.9 x 5.3 x 2.1" / 225 x 135 x 52 mm |
| Weight | 3 lb / 1.4 kg |
| Packaging Info | |
|---|---|
| Package Weight | 3.7 lb |
| Box Dimensions (LxWxH) | 9.5 x 6.0 x 2.3" |
In the Box
CableTronix CTA-35/1000PR CATV Distribution Amplifier
- Limited 1-Year Warranty
