Description
- Resolutions up to QXGA (2048 x 1536)
- CMG Rated Jacket
- Supports DDC2 (E-DDC) and EDID Signals
- Aluminum Foil 100% Shielding
- Black PBT Housing Material
- 85mm Minimum Bend Radius

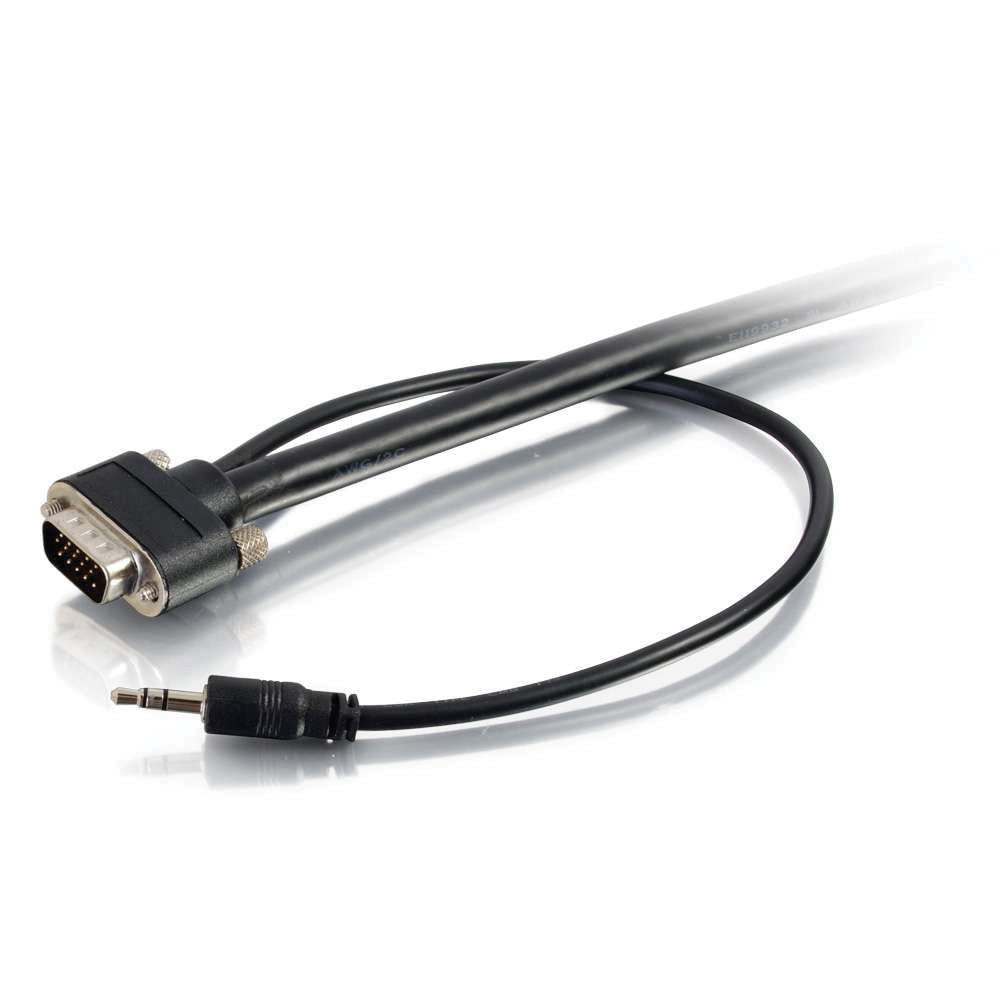

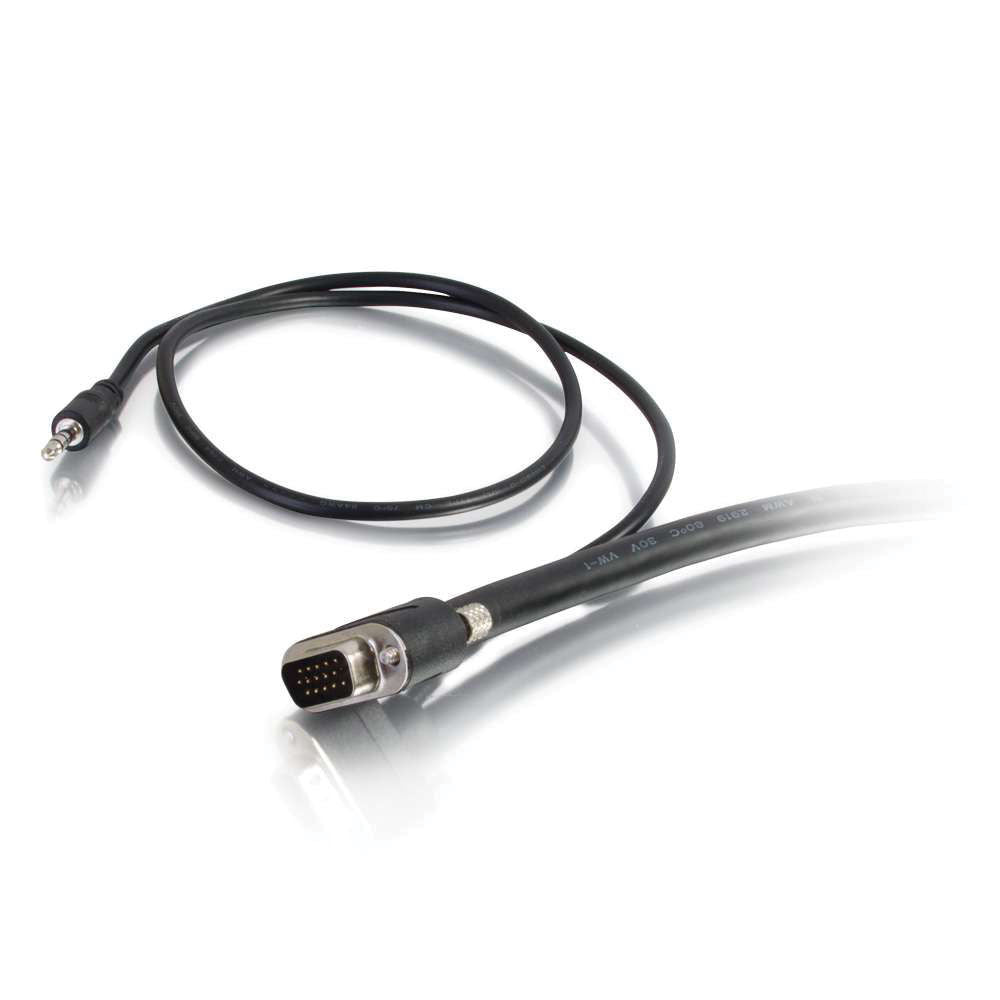

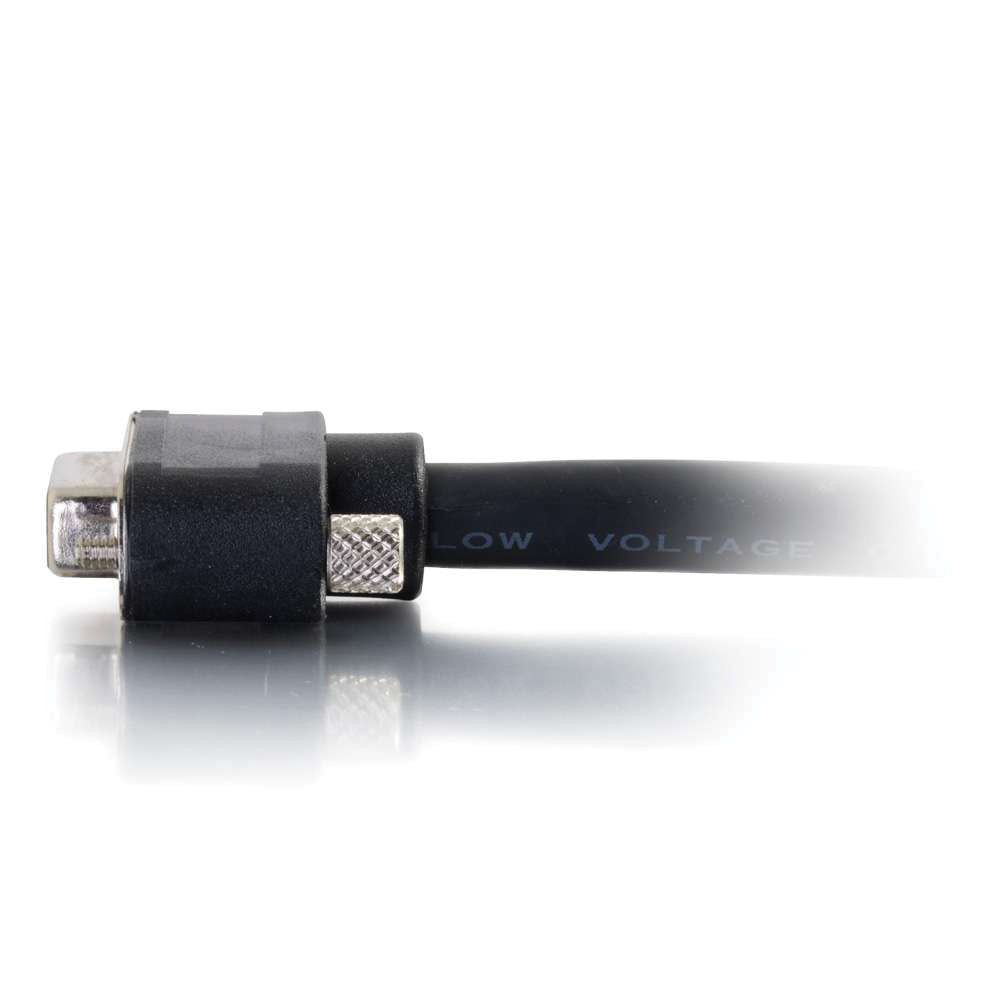

The 15', black Select 15-pin VGA + 3.5mm Male to Male Audio/Video Cable from C2G is designed for source-to-display connectivity for both in-home desktop and in-wall commercial applications requiring support for video resolutions up to QXGA (2048 x 1536) and stereo audio. The CMG-rated jacket can withstand the rigors of in-wall applications, while the low profile, rounded connectors ease installation in compact spaces, such as a projector mount pole.
This cable is designed to transmit video over distances of up to 150'. The 3.5mm mini audio pigtail on the source side of the cable extends 24" away from the VGA connector. This allows for audio connectivity on laptops or other computer platforms where VGA video and 3.5mm audio outputs are placed on opposite sides. The audio pigtail on the display side of the cable extends 10" away from the VGA connector, providing easy connectivity without excess cabling. All 15 pins are wired, with support for DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals, providing communication of the display capabilities and ensuring that source content is sent at the optimal resolution for the display.
- The Audio/Video cable is constructed using a CMG jacket for in-wall applications
- Supports resolutions up to QXGA (2048 x 1536)
- Supports the video applications over long distances up to 150'
- The 3.5mm audio pigtail on the source side of the cable allows for audio connectivity on laptops or other computer platforms
- All 15 pins are wired to support DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals
- Limited Lifetime Warranty
| Connector Specifications | |
|---|---|
| Connector 1 | 15-pin VGA, 3.5 mm mini stereo male |
| Connector 2 | 15-pin VGA, 3.5 mm mini stereo male |
| Plating | Nickel |
| Housing Material | Black PBT |
| Electrical Characteristics | |
|---|---|
| Maximum Resolution Supported | 2048 x 1536 |
| Impedance | 75 � 5 ? |
| Capacitance | 58 pF/m |
| Dielectric Strength | 500 VAC/1 minute |
| Resistance | Conductor 30 AWG - 376.96 ?/km 28 AWG - 237.25 ?/km 24 AWG - 98.25 ?/km at 68�F (20�C) Insulation: 10 M?/km 500 VDC at 68�F (20�C) |
| Conductors | Three-Conductors: Conductor Type: 30 AWG (7/0.127) Tinned Copper (OFC) Insulation: Foamed PE Covering: PVC Drain Wire: 26 AWG (7/0.20TC) Tinned Copper (OFC) Shield: Aluminum foil (100% coverage) Nine-Conductors: Conductor Type: 28 AWG (7/0.127) Tinned Copper (OFC) Insulation: SR-PVC Two-Conductors: Conductor Type: 24 AWG (7/0.20) Tinned Copper (OFC) Insulation: Foamed PE Covering: PVC Drain Wire: 24 AWG (7/0.20) Tinned Copper(OFC) Braided Shield: Aluminum foil (100% coverage) |
| Construction | |
|---|---|
| Drain Wire | 26 AWG (7/0.20), Tinned Copper (OFC) |
| Foil Shield | Aluminum foil, 100% coverage |
| Braided Shield | 16/7/0.12�0.008 mm , Tinned Copper (OFC) |
| Jacket | CMG |
| General | |
|---|---|
| Voltage Rating | 30 V |
| Minimum Bend Radius | 3.34" (85 mm) |
| Breakout Length | 3.5 mm Breakout Length: Source: 24"(609 mm) Display: 10" (254 mm) |
| Length | 15' (4.57 m) |
| Approvals | CE |
| Dimensions | VGA Connector: 0.5 x 1.2 x 1.3" (13.1 x 31.2 x 34.0 mm) |
| Weight | 1.2 lb (0.5 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 1.2 lb |
| Box Dimensions (LxWxH) | 6.1 x 5.7 x 2.0" |
