Description
C2G Cat 6 Slim Snagless Overview
- 1Description
- 2Fast 10 Gb/s Speeds
- 3Maximum Length Recommendations
- 4Additional Features

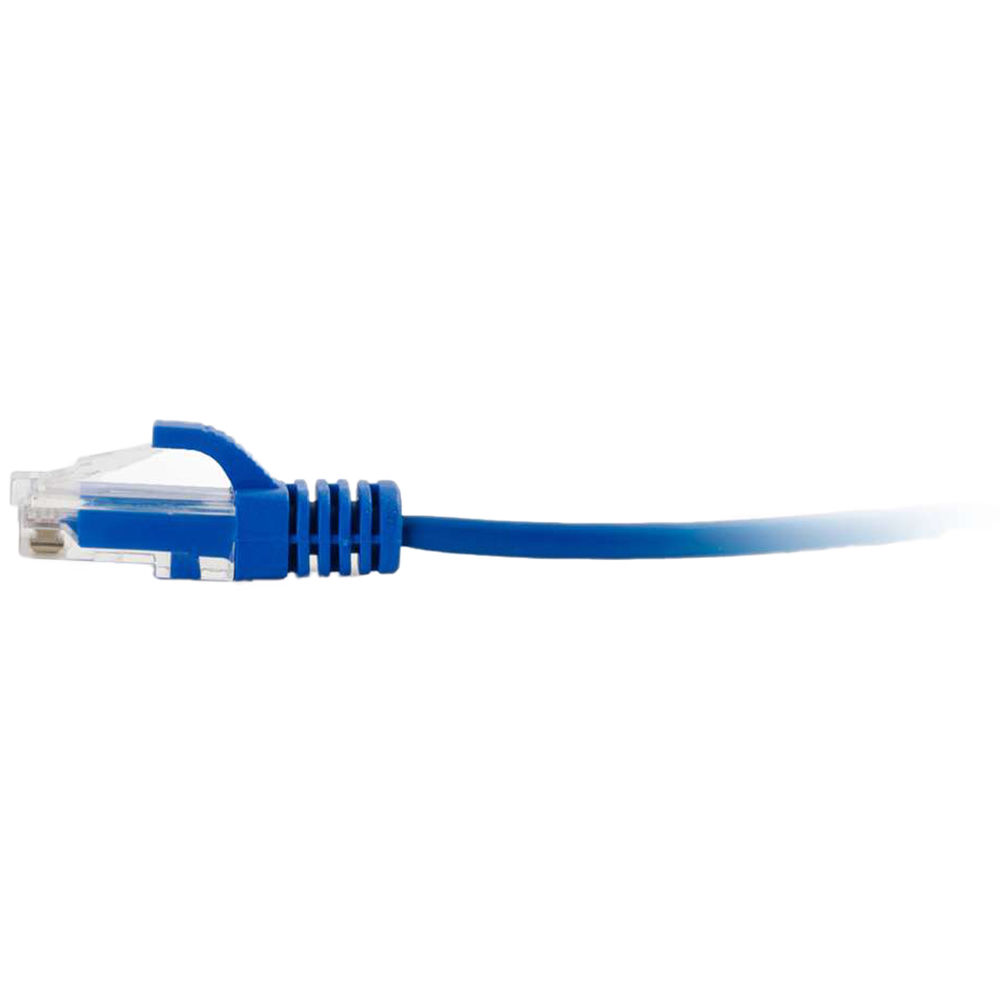

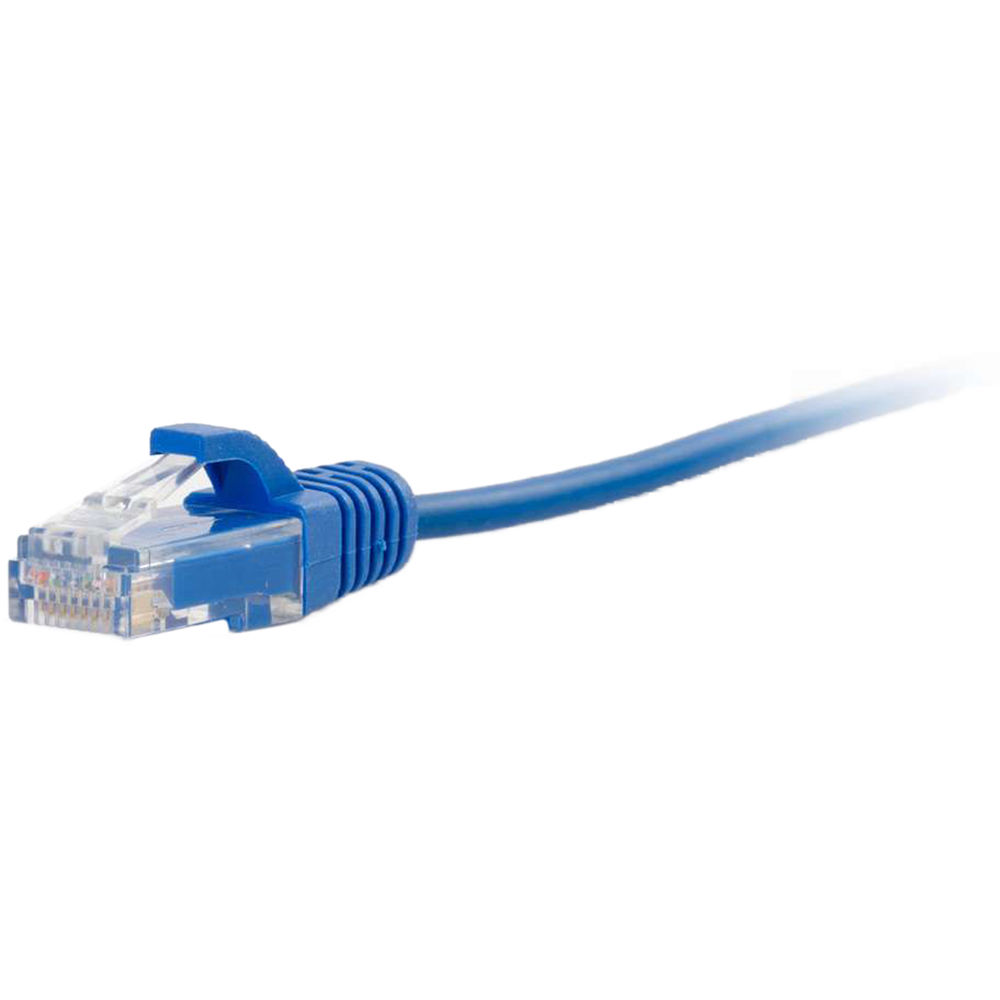

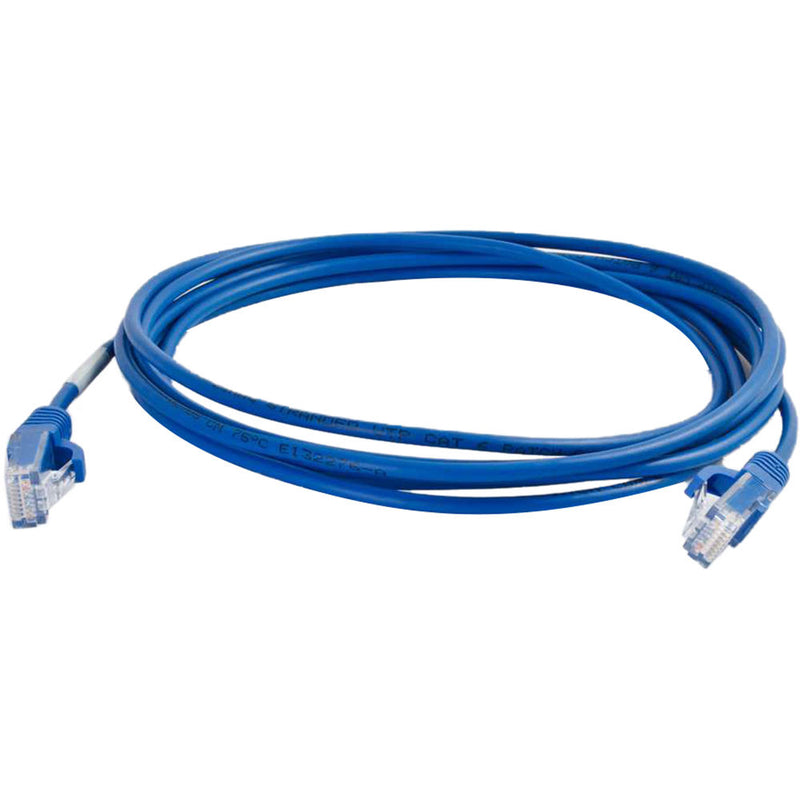

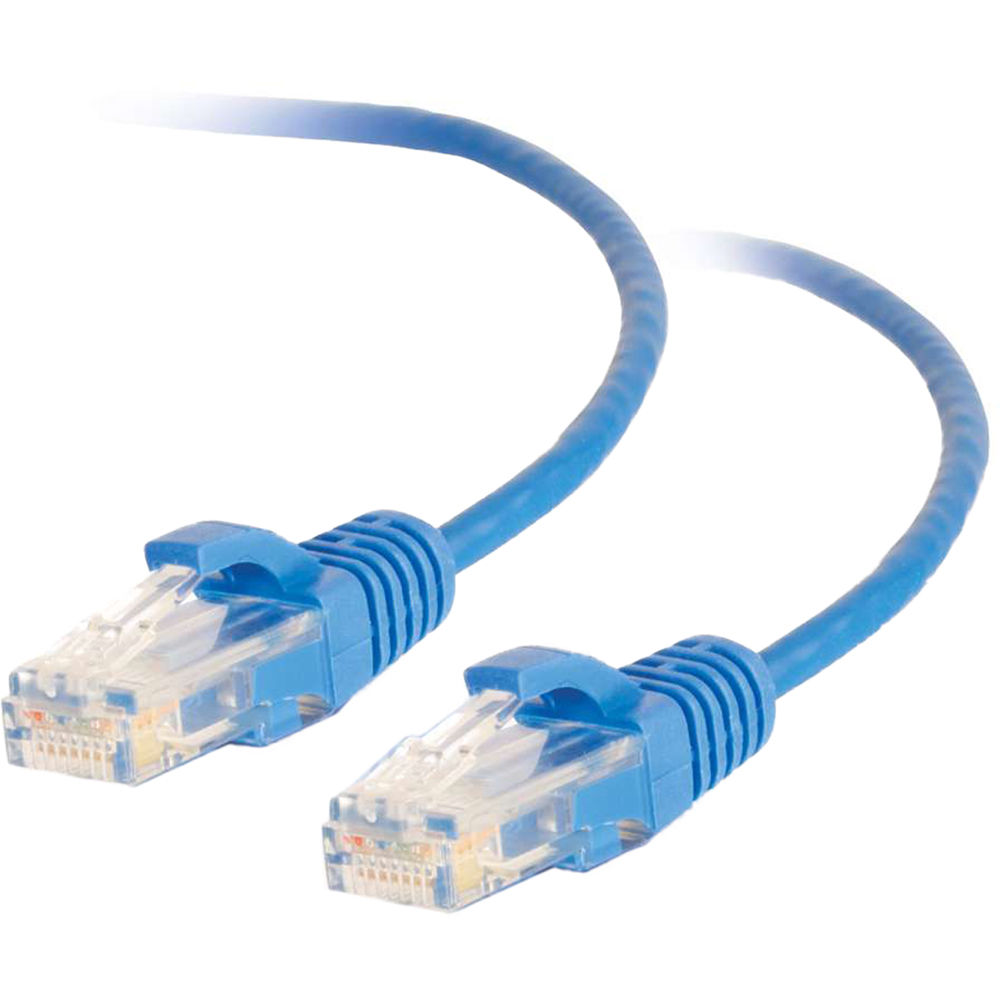

Ideal for high-density server and data center environments, this 5' long RJ45 Male to RJ45 Male Slim Cat 6 Patch Cable from C2G features 28 AWG conductors for a small diameter. The slim size and small bend radius allow you to more easily route cable through smaller spaces while still enjoying improved airflow. Snagless RJ45 connectors help to reduce frustration, wasted time, and connector strain when running cable.
Fast 10 Gb/s Speeds
Supporting the Cat 6 standard, this cable is well suited for bandwidth-intensive applications, such as voice, data, or video. It provides support for throughput speeds of up to 10 Gb/s.
Maximum Length Recommendations
Due to the 28 AWB size, signal attenuation is increased to limit the distance of installations. There are also bundle limits based on heat dissipation.
315' / 96 m channel: up to 19.7' of slim cable with 295.3' of horizontal cable
305' / 93 m channel: up to 32.8' of slim cable with 272.3' of horizontal cable
POE/POE+: bundle limit of 40 cables due to heat dissipation
315' / 96 m channel: up to 19.7' of slim cable with 295.3' of horizontal cable
305' / 93 m channel: up to 32.8' of slim cable with 272.3' of horizontal cable
POE/POE+: bundle limit of 40 cables due to heat dissipation
Additional Features
Meets the ANSI/TIA-568-C.2 standard
Copper construction to minimize NEXT (Near-End Crosstalk) levels
Copper construction to minimize NEXT (Near-End Crosstalk) levels
UPC: 757120010784
In the Box
- C2G RJ45 Male to RJ45 Male Slim Cat 6 Patch Cable (5', Blue)
- Limited Lifetime Manufacturer Warranty
Table of Contents
- Description
- Fast 10 Gb/s Speeds
- Maximum Length Recommendations
- Additional Features
C2G Cat 6 Slim Snagless Specs
Key Specs
| Cable Length |
5' / 152.4 cm
|
| Ethernet Standards |
Cat 6
|
| Connector 1 |
RJ45 Male
|
| Connector 2 |
RJ45 Male
|
General
| Cable Length |
5' / 152.4 cm
|
| Ethernet Standards |
Cat 6
|
| Connector 1 |
RJ45 Male
|
| Connector 2 |
RJ45 Male
|
| Compatibility |
10GbE
|
Electrical
| Bandwidth Rating |
500 MHz
|
| Conductor DC Resistance |
9.38 Ohms/ft (Up to 328.08' / 100 m)
|
| Capacitance |
5600 pF/ft
|
| Impedance |
100 Ohms
|
Physical
| Pin Assignment |
T568B
|
| Boot Type |
Snagless
|
| Wire Gauge |
28 AWG
|
| Jacket Type |
Polyvinyl Chloride (PVC)
|
| Conductor |
Copper
|
| Contact Plating |
Gold
|
| Insulation |
HDPE
|
| Environmental Protection |
No
|
| Certifications |
CE
|
Packaging Info
| Package Weight |
0.07 lb
|
| Box Dimensions (LxWxH) |
7.5 x 6.3 x 1"
|
