Description
- Extends Mini DisplayPort Cables
- Meets DisplayPort 1.2 Standards

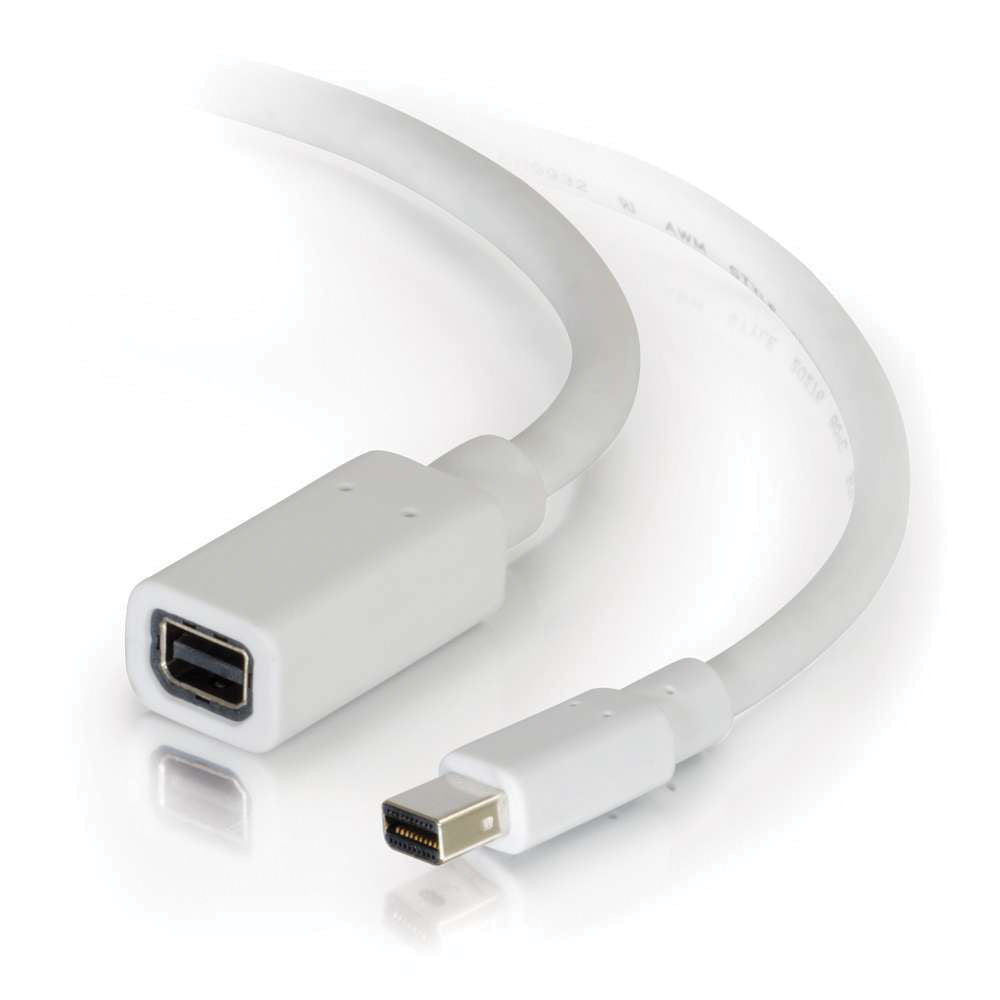

The white C2G Mini DisplayPort Male to Female Extension Cable lets you extend existing Mini DisplayPort cables by 10 ft. It carries a digital audio/video signal and is built to DisplayPort 1.2 standards.
Note: This extension cable is not designed to be used with a Mini DisplayPort adapter converter or a Mini DisplayPort adapter cable.
UPC: 757120544159
In the Box
C2G Mini DisplayPort Extension Cable, Male to Female (10', White)
- Limited Lifetime Warranty
Note: MDC writer
| Electrical Specifications | |
|---|---|
| Voltage Rating | 30 V |
| Conductor Resistance | @ 68�F (20�C) max |
| Insulation Resistance | 10 m?/km |
| Time Delay | 5.2 ns/m (max) |
| Attenuation | 5.02 dB @ 100-450 MHz 7.69 dB @ 1 GHz 12.595 dB @ 2 GHz 17.495 dB @ 3 GHz 22.395 dB @ 4 GHz 27.295 dB @ 5 GHz 32.195 dB @ 6 GHz 37.095 dB @ 7 GHz |
| Physical Specifications | |
|---|---|
| Minimum Bend Radius | 2.1" (52 mm) |
| Approvals | CE |
| Conductor (2 Conductors, 5 Pair) | |
|---|---|
| Conductor | 32 AWG (7/0.08 TC) |
| Insulation | FM-PE, ID:0.62�0.05 mm |
| Color | White/Black, White/Brown, White/Red, White/Green, White/Blue |
| Drain | 32 AWG (7/0.08 TC) |
| Shield | Aluminum foil wrap, transparent wrap |
| Conductor (5 Conductors) | |
|---|---|
| Conductor | 32 AWG (7/0.08 TC) |
| Insulation | PP, ID:�0.5�0.05 mm |
| Color | Red/Blue/Purple/White/Gray |
| Overall Cable | |
|---|---|
| Jacket | PVC |
| Shield | Aluminum foil wrap, braid, 85% min coverage |
| Drain | 2:30 AWG (7/0.10 BC) |
| OD | 5.2�0.15 |
| General | |
|---|---|
| Length | 10' (3.05 m) |
| Weight | 0.24 lb (108.86 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 8.74 x 5.118 x 0.315" |
