Description
- Supports Full HD, 4K, 3D
- CL2-Rated Cable Jacket
- Aluminum Foil Shielding
- Gold-Plated Connectors
- Foam Polyethylene Insulation

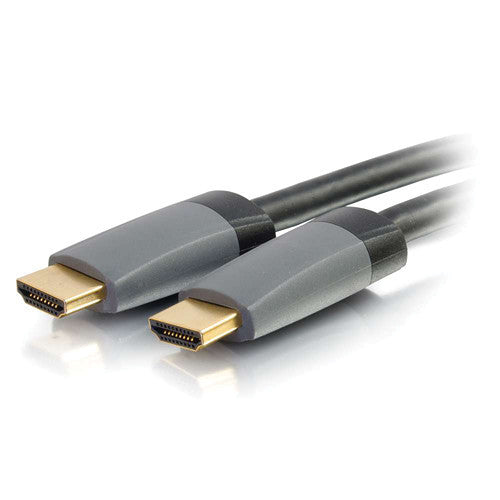

The black C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male HDMI Cable with Ethernet is a 23' cable that connects multimedia source devices in home theater, desktop or commercial audio video applications requiring high speed HDMI features. The CL2 rated cable jacket is designed to meet the requirements for in-wall installations. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection.
This cable supports Ultra HD, 4K at 50/60 Hz (2160p), up to 32 audio channels and wide angle theatrical 21:9 video aspect ratio.
Note: both the source device and display must support an HDMI feature in order to pass that feature through this cable.
- 4K @ 50/60 Hz (2160p), which is 4 times the clarity of 1080p/60 video resolution
- 3D video, Deep Color and x.v. Color
- Dolby True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
- Up to 1536kHz audio sample frequency for the highest audio fidelity
- Simultaneous delivery of dual video streams to multiple users on the same screen
- Simultaneous delivery of multi-stream audio to multiple users (up to 4)
- Support for the wide angle theatrical 21:9 video aspect ratio
- Dynamic synchronization of video and audio streams
- CEC extensions for control of consumer electronics devices through a single control point
- Limited Lifetime Warranty
| General | |
|---|---|
| Resolution Supported | Up to 4K @ 50/60 Hz (2160p) |
| Support | 3D video, Deep Color and x.v. Color Dolby True HD, DTS-HD Master Audio and up to 32 audio channels 1536 kHz audio sample frequency 21:9 video aspect ratio |
| Connector Plating | Gold |
| Connector 1 | 19-pin HDMI male |
| Connector 2 | 19-pin HDMI male |
| Length | 23' (7 m) |
| Dimensions | 0.51 x 0.82 x 1.5" (13 x 21 x 39 mm) |
| Weight | 1.75 lb (0.79 kg) |
| Electrical | |
|---|---|
| Bandwidth | 10.2 Gbps |
| Nominal Impedance | With Tolerance: 100 ? |
| Nominal Capacitance | 95.2 pF/m |
| Dielectric Strength | 2.1 |
| Insulation Resistance | 10 M? |
| Nominal Attenuation | 300 KHz - 825 MHz: < 8 dB 825 MHz - 2.475 GHz: < 21 dB 2.457-4.125 GHz: < 30 dB |
| Physical | |
|---|---|
| Bend Radius | 2.87" (73 mm) |
| Temperature Rating | 176�F (80�C) |
| Operating Temperature | -4-176�F (-20-80�C) |
| Storage Temperature | -4-176�F (-20-80�C) |
| Approvals | CMG, CE |
| Construction | |
|---|---|
| Drain Wire | 28 AWG (7/0.127) bare copper |
| Foil Shield | Aluminum foil and Mylar 25% minimum overlapped |
| Braided Shield | 16/10/0.12 CCAM 70% coverage |
| Jacket | CMG (PVC, UL/CL2) |
| Outer Diameter | 0.28 +/- 0.007" (7.3 +/- 0.2 mm) |
| Inner Diameter | Conductor 1: 0.04 +/- 0.002" (1.05 +/- 0.05 mm) Conductor 2: 0.02 +/- 0.002" (0.7 +/- 0.05 mm) |
| Insulation | Conductor 1: foamed PE Conductor 2: HDPE |
| Packaging Info | |
|---|---|
| Package Weight | 1.8 lb |
| Box Dimensions (LxWxH) | 9.0 x 8.0 x 2.0" |
