Description
- Connects DisplayPort to DVI-D Devices
- DisplayPort, Male
- DVI-D, Female
- Supports Resolutions up to 1920 x 1200
The C2G DisplayPort Male to DVI-D Female Adapter Converter� lets�you connect a DisplayPort-enabled device, such as a desktop or laptop, to a DVI-D compliant display. This adapter carries a digital video signal, and supports resolutions up to 1920 x 1200.
UPC: 757120543213
In the Box

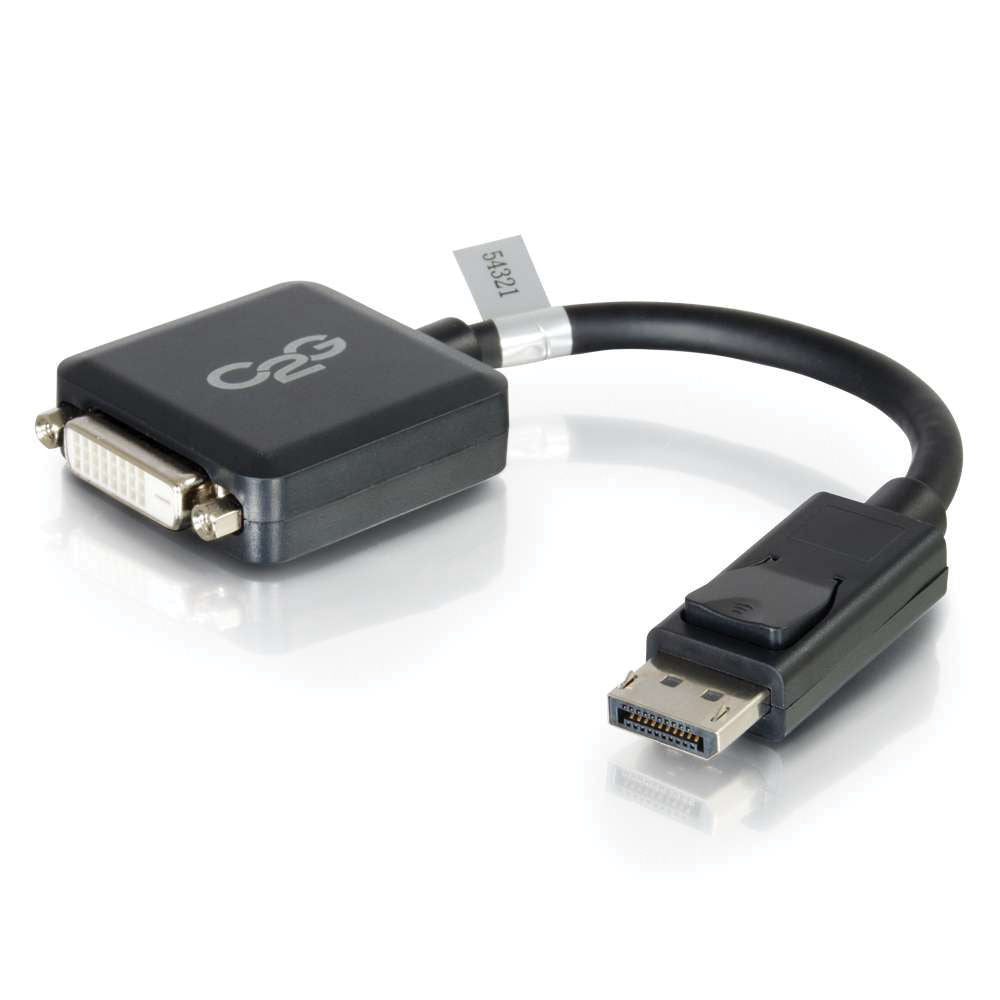

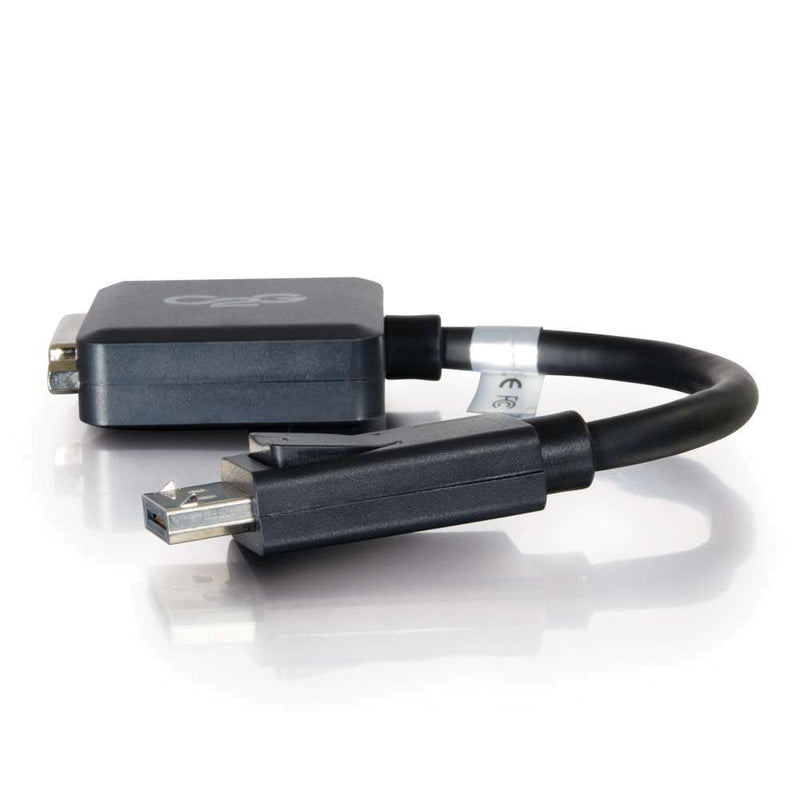

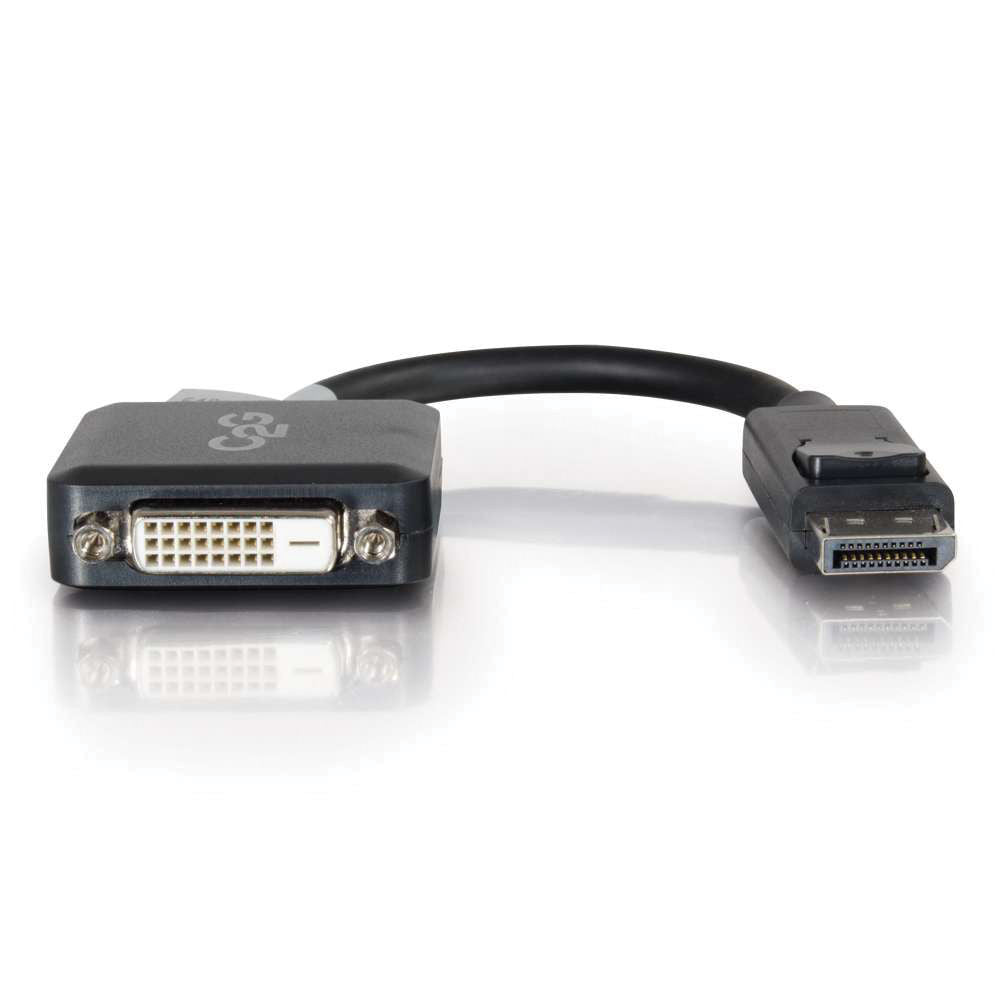

C2G DisplayPort Male to DVI-D Female Adapter Converter (Black, 8")
- Limited 3-Year Warranty
| Electrical | |
|---|---|
| Voltage Rating | 30 V |
| Conductor Resistance | @ 20�C Maximum |
| Insulation Resistance | 10 M ?/km |
| Time | Delay: 5.2 ns/m Maximum |
| Attenuation | 5.02 dB @ 100-450 MHz 7.69 dB @ 1 GHz 12.595 dB @ 2 GHz 17.495 dB @ 3 GHz 22.395 dB @ 4 GHz 27.295 dB @ 5 GHz 32.195 dB @ 6 GHz 37.095 dB @ 7 GHz |
| Physical | |
|---|---|
| Operating Temperature | 32 to 122�F (0 to 50�C) |
| Storage Temperature | -13 to 158�F (-25 to 70�C) |
| Approvals | CE |
| Conductor | Two Conductor, Five Pair: Conductor: 30 AWG (7/0.1 TC) Insulation: FM-PE, ID: 0.8 � 0.05 mm Color: White/brown, white/red, white/orange, white/green, white/blue Drain: 30 AWG (7/0.1 TC), HD-PE ID: 0.56 � 0.05 mm Shield: AL-Mylar wrap Coverage: 100% Five Conductors: Conductor: 30 AWG (7/0.1 TC) Insulation: HD-PE, ID: 0.56 � 0.05 mm Color: Red/orange/yellow/green/white |
| General | |
|---|---|
| Connector 1 | DisplayPort, male |
| Connector 2 | DVI-D, female |
| Jacket | PVC |
| Cable | Shield: AL-Mylar / 100% coverage / Braid: 16/9/0.12 |
| Drain Wire | 30 AWG (7/0.10 BC) |
| Outer Diameter | 6.5 � 0.2 mm |
| Length | 8" (20.3 cm) |
| Weight | 0.12 lb (0.05 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 10.9 x 6.0 x 0.8" |
