Description

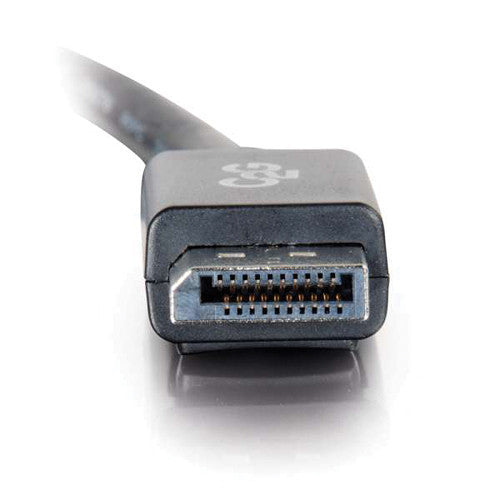

- DisplayPort Male Connector

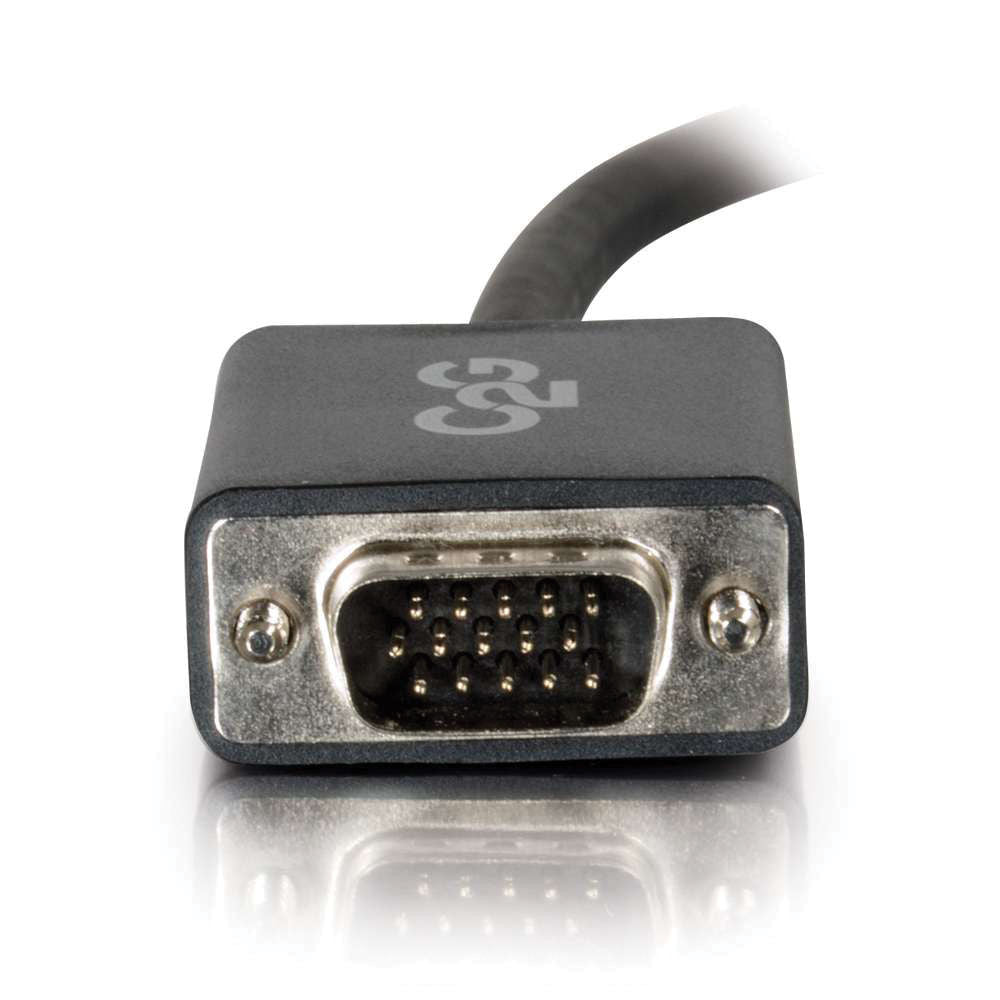

- 15-Pin VGA Male Connector
- Supports up to 1920 x 1200 Resolution
- PVC Jacket
- AL-Mylar Shielded

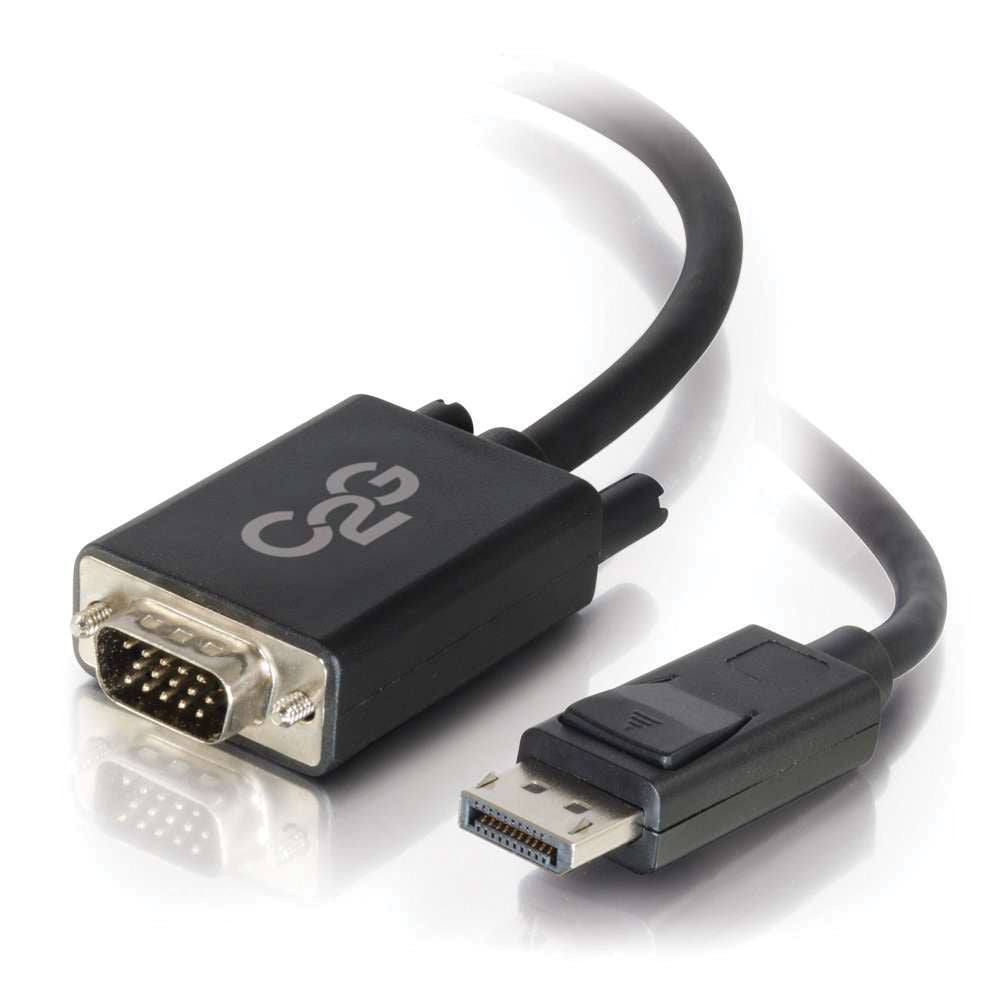

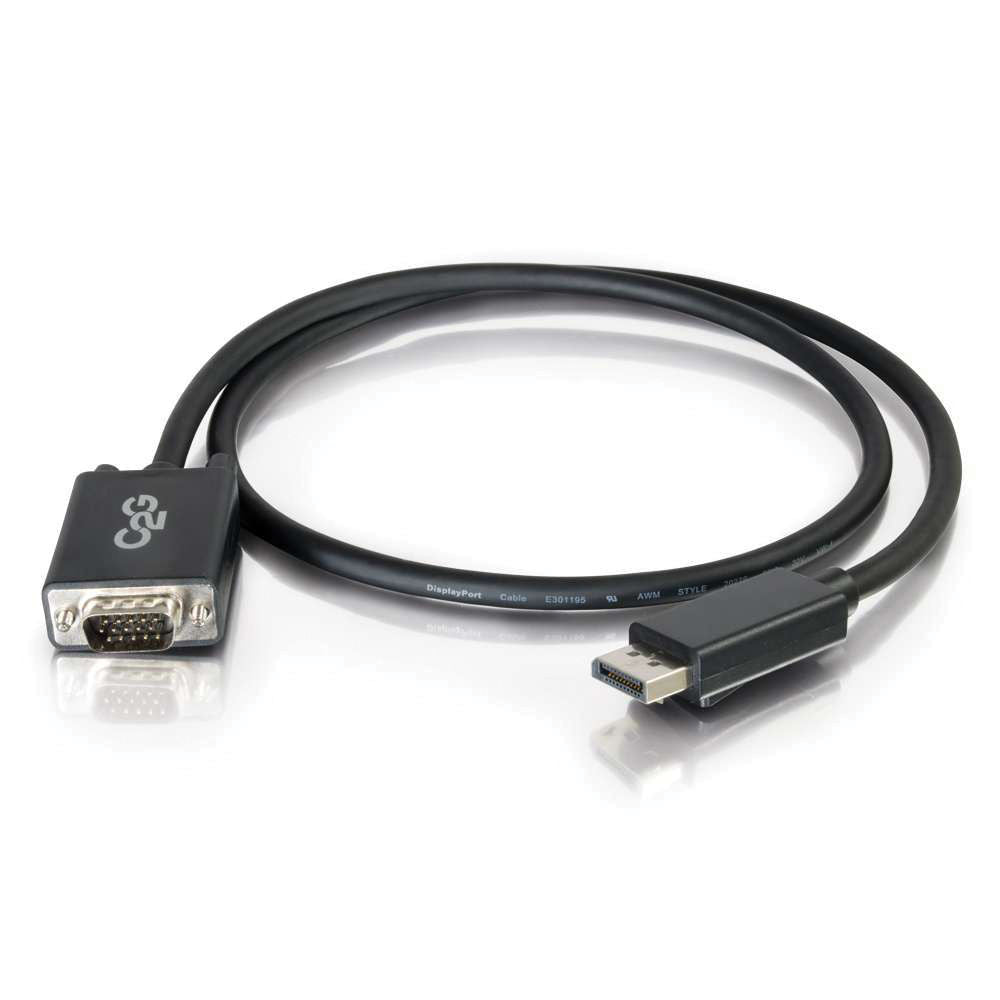

Connect your DisplayPort-enabled device to VGA monitors, televisions, and projectors with the 3' C2G DisplayPort Male to 15-Pin VGA Male Active Adapter Cable . This analog cable supports resolutions up to 1920 x 1200.
UPC: 757120543312
Connectors | |
---|---|
Connector 1 | DisplayPort Male |
Connector 2 | 15-Pin VGA Male |
Electrical Specifications | |
---|---|
Voltage Rating | 30 V |
Conductor Resistance | 68°F / 20°C (Maximum) |
Insulation Resistance | 10 M ?/km |
Time Delay | 5.2 ns/m (Maximum) |
Attenuation | 5.02 dB @ 100-450 MHz 7.69 dB @ 1 GHz 12.595 dB @ 2 GHz 17.495 dB @ 3 GHz 22.395 dB @ 4 GHz 27.295 dB @ 5 GHz 32.195 dB @ 6 GHz 37.095 dB @ 7 GHz |
Physical Specifications | |
---|---|
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -13 to 158°F / -25 to 70°C |
Approvals | CE |
Conductor | Two Conductors, Five Pair �Conductor: 30 AWG (7/0.1 TC) �Insulation: FM-PE, ID:0.8±0.05 mm �Color: White/Brown, White/Red, White/Orange, White/Green, White/Blue �Drain: 30 AWG (7/0.1 TC) HD-PE ID:0.56±0.05 �Shield: AL-Mylar Wrap, Coverage-100% Five Conductors �Conductor: 30 AWG (7/0.1 TC) �Insulation: HD-PE, ID:0.56±0.05 mm �Color: Red/Orange/Yellow/Green/White |
Overall Cabling Separator Material | �Jacket: PVC �Shield: AL-Mylar, Coverage 100%, Braid-16/9/0.12 �Drain: 2:30 AWG (7/0.08 BC) �OD: 6.5±0.2 |
Dimensions & Weight | |
---|---|
Cable Length | 3 ft / 0.91 m |
Weight | 3.6 oz / 103 g |
Packaging Info | |
---|---|
Package Weight | 0.2 lb |
Box Dimensions (LxWxH) | 6.378 x 4.961 x 0.63" |
In the Box
C2G DisplayPort Male to 15-Pin VGA Male Active Adapter Cable (3')
- Limited 3-Year Warranty
