- For Voice/Data/Video Distribution
- For Network Adapters, Hubs, and Switches
- For Routers, DSL/Cable, Patch Panels
- Protects 10 Gigabit Network from EMI
- Minimizes Near End Crosstalk (NEXT)

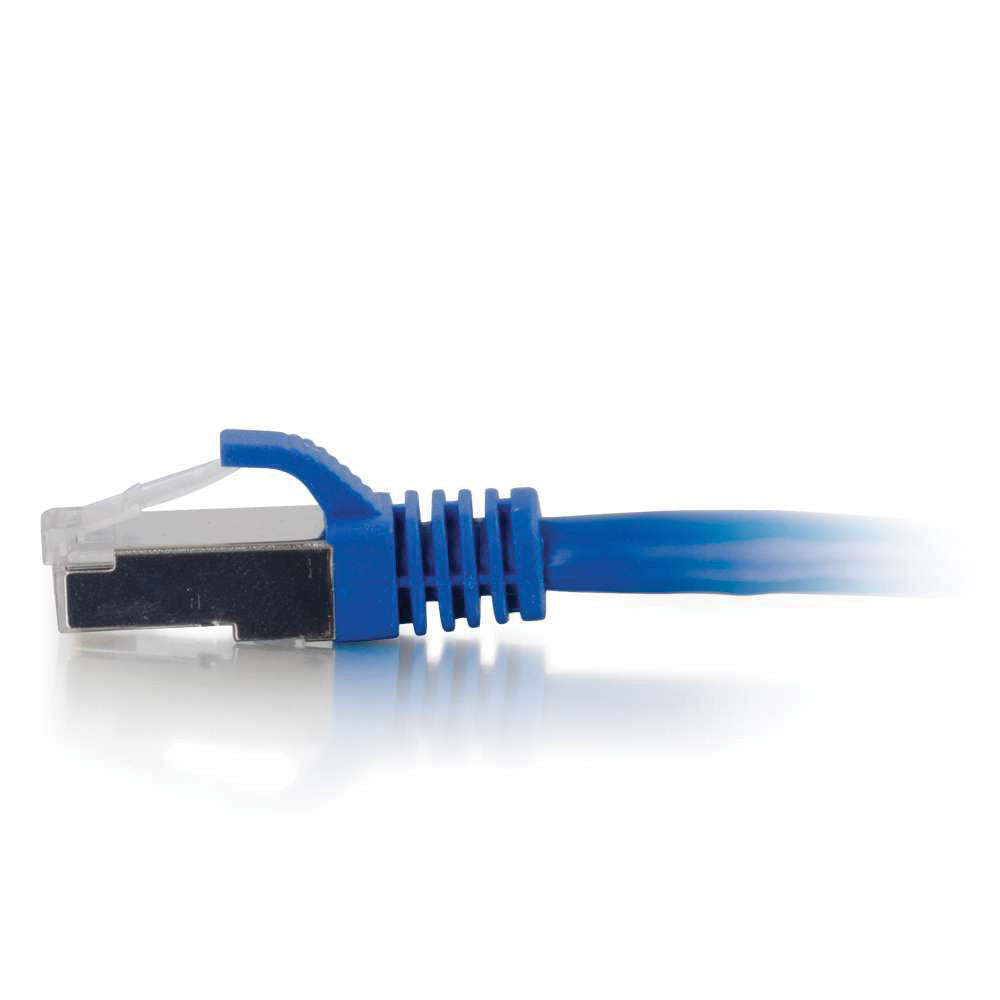

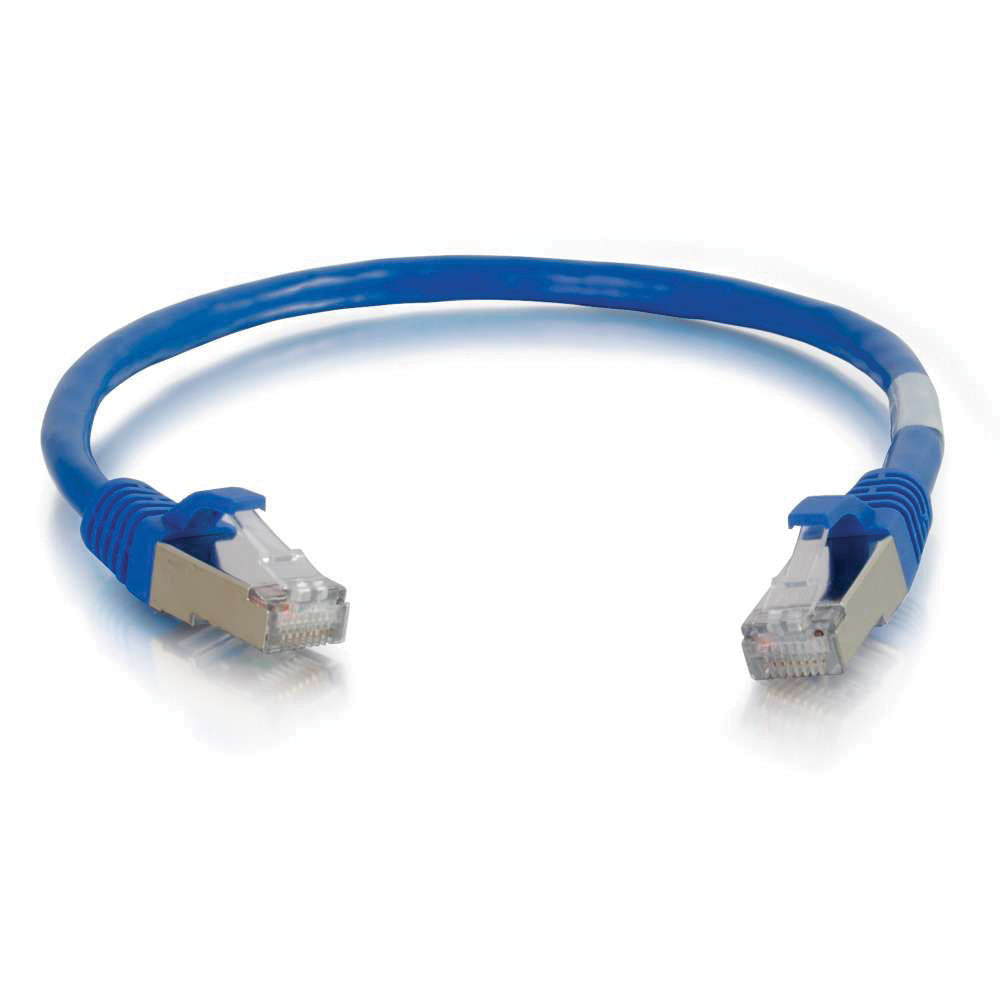

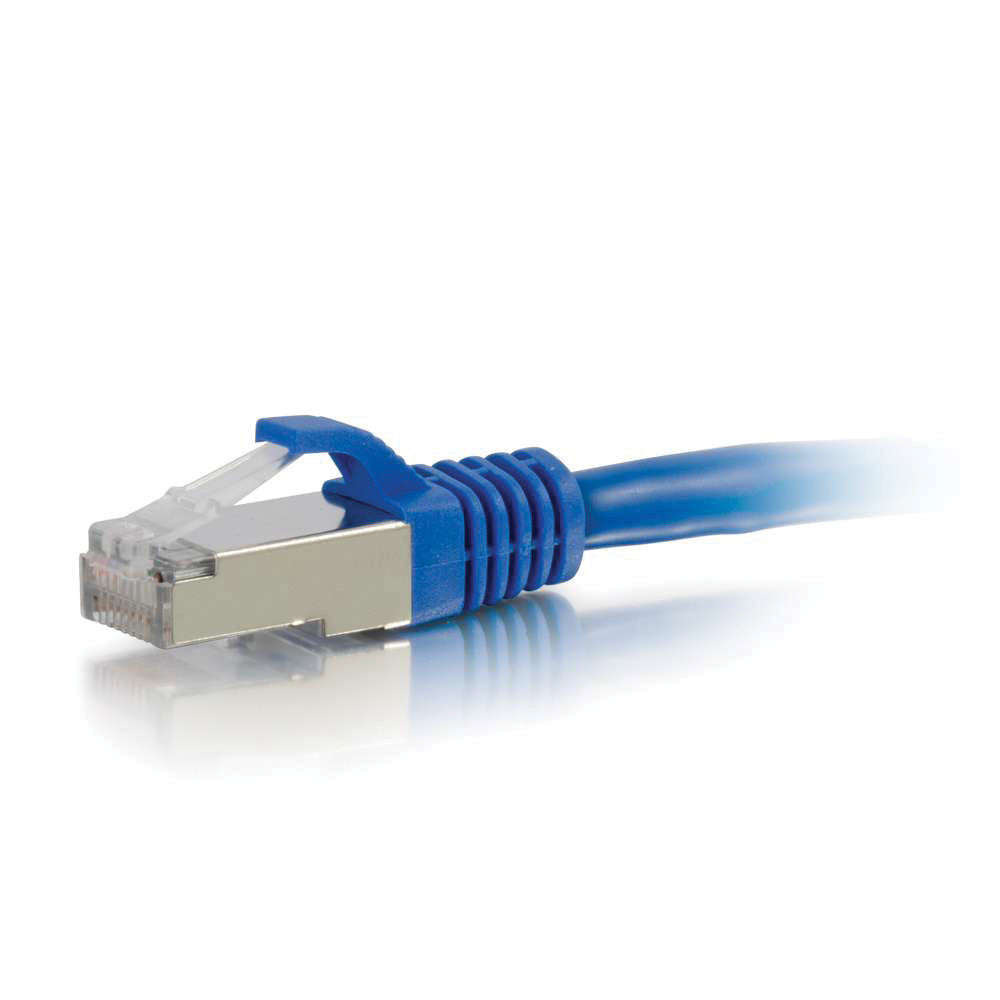

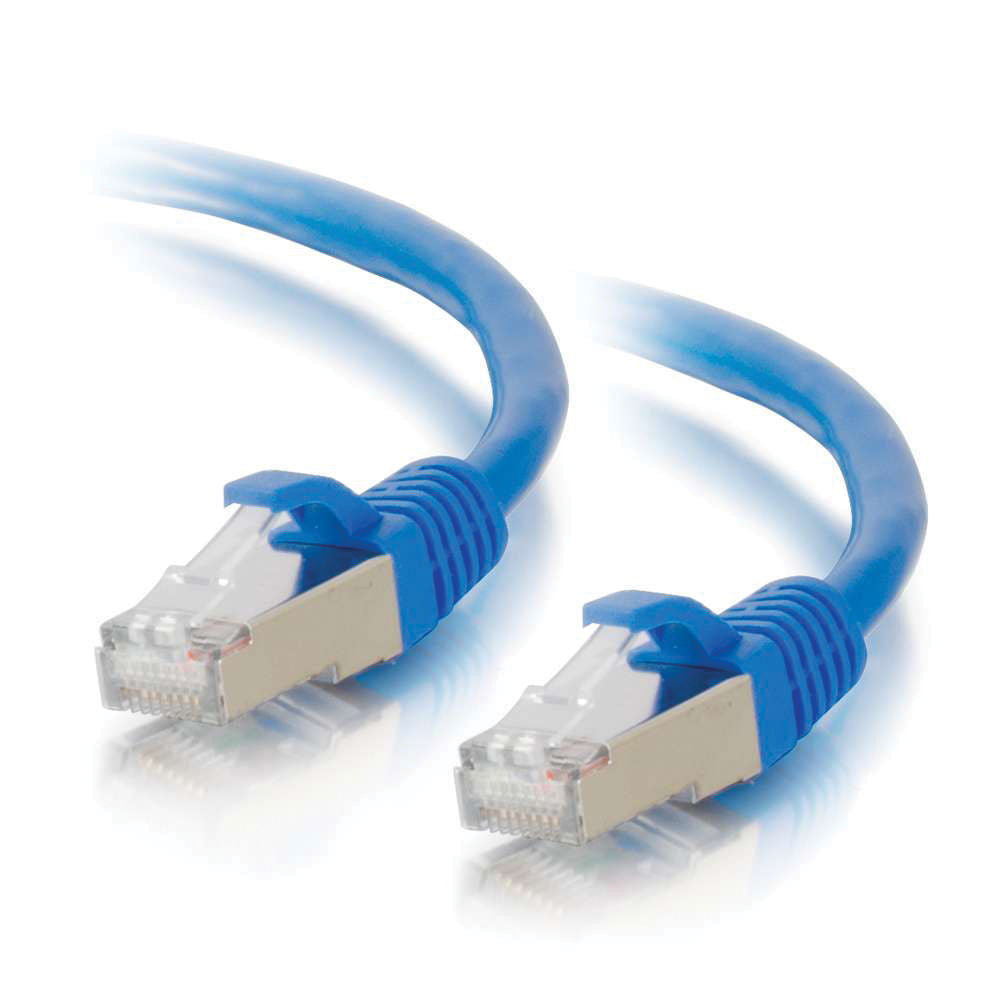

The blue C2G 5' Cat6A Snagless Shielded (STP) Network Patch Cable from C2G is designed to work with 10GBase-T ports and equipment like routers, hubs, switches, network adapters, DSL/cable modems, and patch panels. It will protect high speed 10 Gigabit network connection from electromagnetic interference and noise. The cable can handle high bandwidth applications and reduce both structural return loss and impedance for voice/data/video distribution.
Each of the cable pairs is bonded to maintain the twist spacing from connector to connector. The cable is designed to minimize Near-End Crosstalk (NEXT) levels. The cable is tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
UPC: 757120006763
Cable Type | Stranded SSTP |
Wiring Scheme | 568B |
Temperature Rating | 167°F (75.0°C) |
Testing Types | ANSI/TIA 568 C.2 Cat6a component tested |
Conductor (4 Pair) | Type: 26 AWG (7/0.16) (bare copper) Insulation: FM-PE Twist Pair: Orange, White/Orange, Blue, White/Blue, Green, White/Green, Brown, White/Brown |
Electrical Specifications |
Conductor DC Resistance | 9.38 ? |
Impedance | 100 ? |
Capacitance | 5600 pf / 100 m |
Propogation Delay | 545 ns / 100 m (maximum) |
Delay Skew | 45 ns / 100 m (maximum) |
Overall Cable |
Foil Shield | Aluminum foil (100% coverage) |
Braided Shield | Copper braid (40% coverage) |
Jacket | PVC |
OD | 6.2 ± 0.20 |
Connectors |
Connector 1 | 8P8C (RJ-45) Male |
Connector 2 | 8P8C (RJ-45) Male |
Shell | Nickel plated for shielding |
Housing | Polycarbonate, UL94V-0 |
Contacts | 50 µm Gold Plated |
Hood | Molded Snagless PVC, UL94V-0 |
Length | 5' / 1.5 m |
Dimensions | 1.5 x 0.5 x 0.6" / 38.2 x 11.6 x 15.1 mm |
Packaging Info |
Package Weight | 0.2 lb |
Box Dimensions (LxWxH) | 9.1 x 4.7 x 0.8" |
In the Box
C2G 5' Cat6A Snagless Shielded (STP) Network Patch Cable (Blue)
- Limited Lifetime Warranty
