Description
C2G 33165 Overview

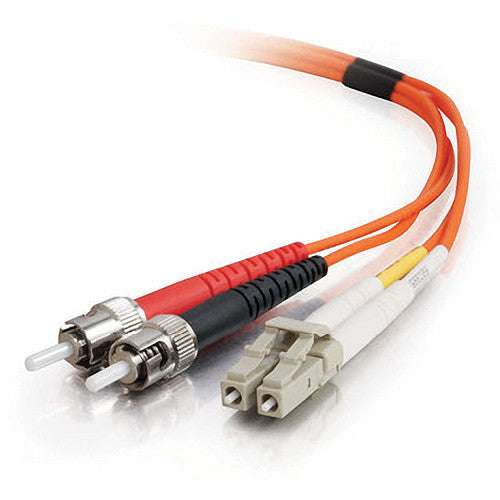

The 3M LC/ST Duplex 62.5/125 Multimode Fiber Patch Cable (Orange) from CablesToGo is a high-quality fiber optic patch cable specifically designed for fast ethernet, fiber channel, ATM and gigabit ethernet applications.
The small LC connectors satisfy the need for higher port density both in the telecom room and the work area. It offers twice the port density of traditional SC and ST fiber connectors.
The LC connector with its RJ-style latch clip design is easy to engage & disengage and gives each connection greater durability in resisting pulls, strains, snags and impacts during cabling installs and maintenance.
Fiber optic patch cable
Left connector type LC-multimode male
Right connector type ST-multimode male
Right connector type ST-multimode male
Applications
Fast ethernet
ATM and gigabit ethernet for subsystems
Telecommunications closets
Equipment rooms and work areas
ATM and gigabit ethernet for subsystems
Telecommunications closets
Equipment rooms and work areas
UPC: 757120331650
C2G 33165 Specs
General
| Connector 1 | LC Male |
| Connector 2 | ST Male |
| Cable Length | 9' / 2.7 m |
| Fiber Type | Multimode |
| Return Loss | 0.5 dB |
| Attenuation | 1 dB/km @ 1300 nm 3.5 dB/km @ 850 nm |
Physical and Environmental
| Outer Diameter | 0.071" / 1.8 mm |
| Jacket Type | Polyvinyl Chloride (PVC) |
| Maximum Tensile Load | 750 N |
| Operating Temperature | -4 to 158°F / -20 to 70°C |
| Safety Certification | OFNR |
| Connector Dimensions | 1.96 x 0.49 x 0.42" / 50 x 12.5 x 10.75 mm (LC) 2.32 x 0.77 x 0.38" / 59 x 19.6 x 9.8 mm (SC) |
| Weight | 0.08 lb / 36.2 g |
Packaging Info
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 12.8 x 7.8 x 0.7" |
