Description
BZBGear UPTZ Overview
Add a high-quality, multifunction PTZ camera to your conference room, event space, education environment, or house of worship with the white Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom from BZB Gear. The camera features a 1/2.8" CMOS sensor and simultaneously outputs up to 1080p60 video over HDMI, SDI, and USB 3.0 ports, using the NDI|HX protocol that works with any NDI network, or it uses RSMP/RTSP protocols to stream video and audio to the Internet.
The camera supports uncompressed video transmission over MJPEG, H.265, and H.264 compression formats. Equipped with a 30x optical zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look, and it has a wide field of view for capturing large meeting rooms. It features an RJ45 Ethernet output that can transmit up to 1080p video to any RTSP/RTMP streaming network so you can broadcast live directly to internet streaming sites. The camera also supports 3.5mm stereo audio input, allowing you to capture and embed AAC, MP3, or PCM audio with the video signal. The camera streams are compatible with any NDI network and tools such as the NDI Studio Monitor, Scan Converter, and Virtual Input, so you can utilize the high-quality, low-bandwidth NDI|HX streams.
When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems. You can also manage the unit via IP using ONVIF or by using its RS-232 or RS-485 serial ports with a separately available serial PTZ controller, and the RS-232 serial ports support cascading. You can power the camera with the included power adapter, or you can utilize your existing PoE (Power-over-Ethernet) LAN to save cable runs.
In the Box
- BZBGear Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (White)
- Power Adapter
- IR Remote Control
- RS-232 Cable
BZBGear UPTZ Specs
| Sensor Type | 1/2.8"-Type CMOS Sensor |
| Sensor Resolution | Effective: 2.07 Megapixel (1920 x 1080) |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux |
| White Balance | 2400 to 7100K Presets: Auto, Manual, One Push |
| Focal Length | 4.3 to 129mm |
| Optical Zoom Ratio | 30x |
| Max Digital Zoom | 10x |
| Maximum Aperture | f/1.6 to 4.7 |
| External Recording Modes | SDI/BNC / HDMI / RJ45 / USB 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps |
| Broadcast Output | NTSC |
| IP Streaming | H.264, H.265, NDI, NDI|HX, ONVIF, RTMP, RTSP, SRT, TCP 1920 x 1080 1280 x 720 |
| Presets | 255 via IP, RS-232, VISCA 10 via IR |
| Move Speed | Pan: 0.1 to 60°/sec Tilt: 0.1 to 30°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP Pelco-D Pelco-P RS-232 RS-485 VISCA |

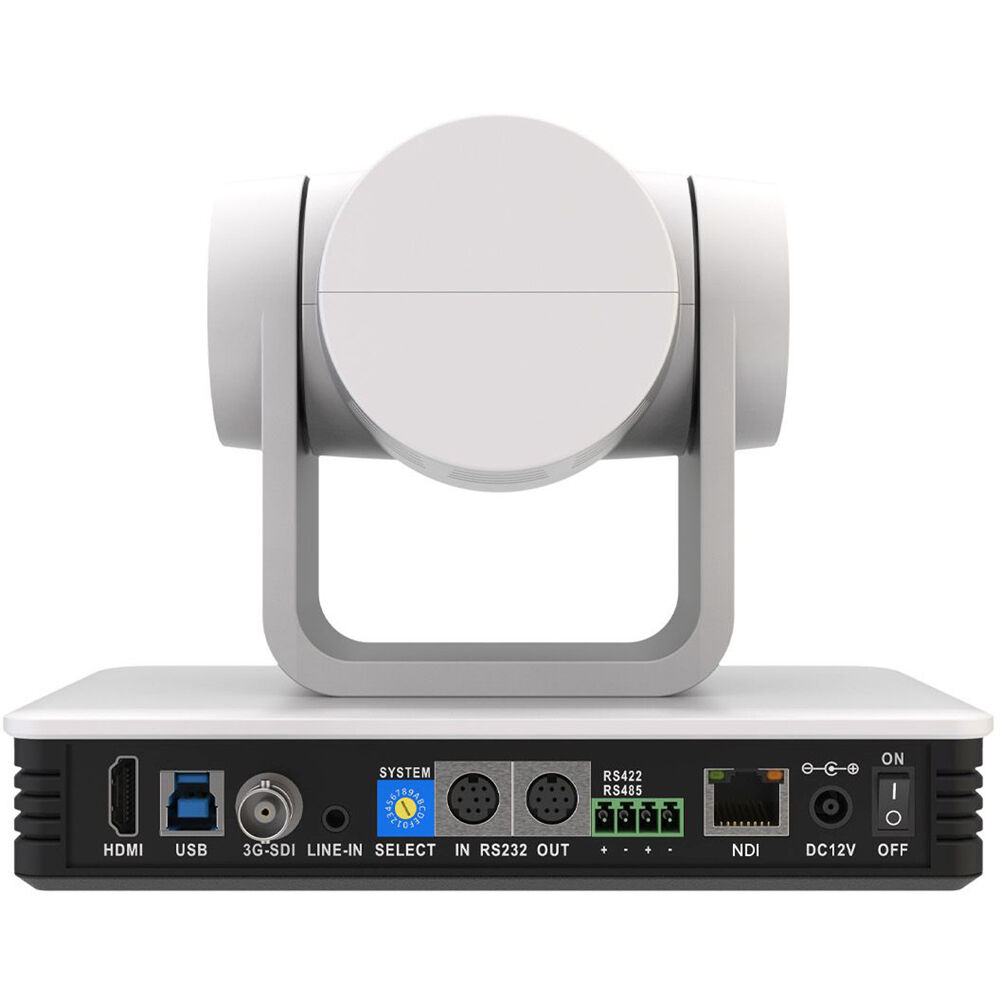

| Video I/O | 1 x HDMI Output 1 x BNC (3G-SDI) Output 1 x USB-B 3.0 / 3.1/3.2 Gen 1 Output 1 x RJ45 (NDI) Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1 x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Input 1 x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Output 1 x Block (RS-485) Input 1 x RJ45 (LAN) Input/Output |
| PoE Support | PoE 802.3af |
| Power I/O | 1 x Barrel (12VDC up to 1 A) Input |
| Power Consumption | Power Supply: 12 VDC 12 to 30 W |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 95% |
| Mounting | 1 x 1/4"-20 Female |
| OS Compatibility | Windows macOS 11 or Later *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| App Compatible | Yes: iOS Only App Name: BZBGEAR Cameras Control Functionality: Adjust Settings, Remote Control, View Live Feed *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Dimensions (W x H x D) | 7 x 5.9 x 4.55" / 17.8 x 15.1 x 11.55 cm |
| Weight | 3.04 lb / 1.38 kg |
| Package Weight | 5.51 lb |
| Box Dimensions (LxWxH) | 14.1 x 9.9 x 7.3" |
