Description

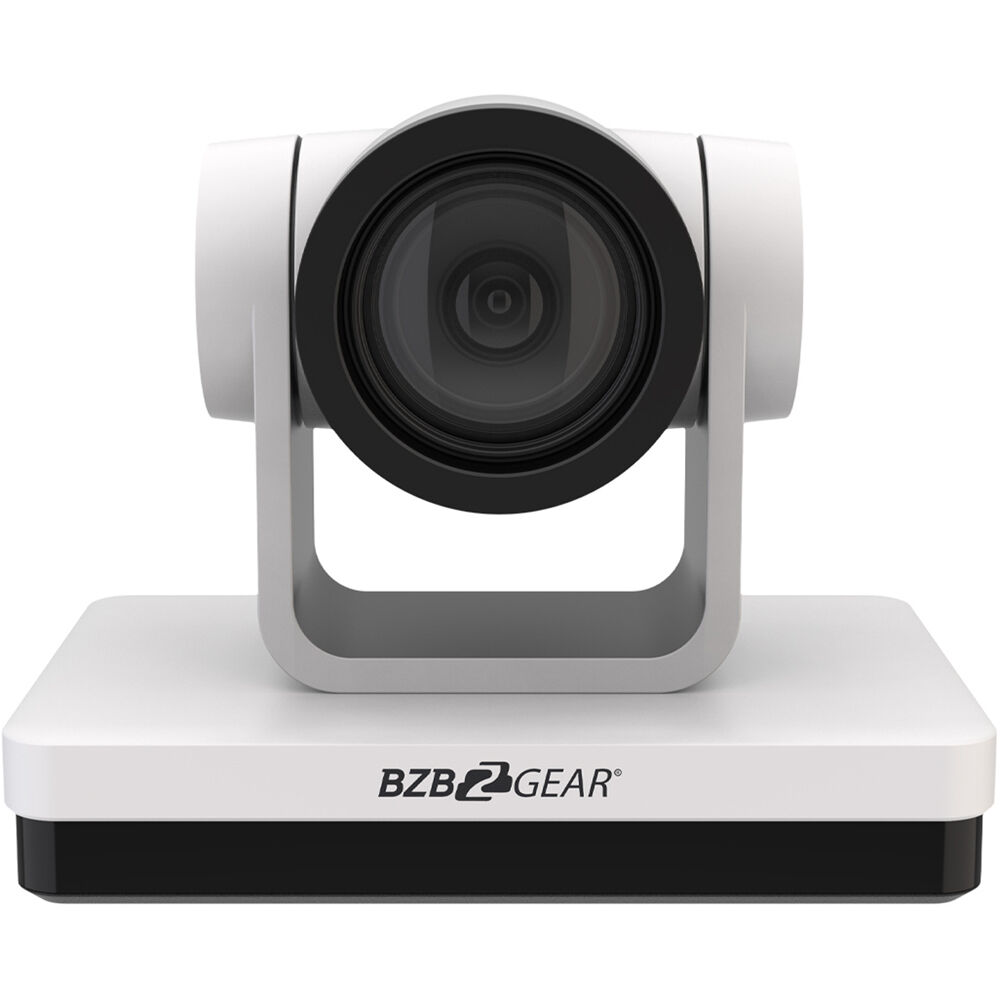

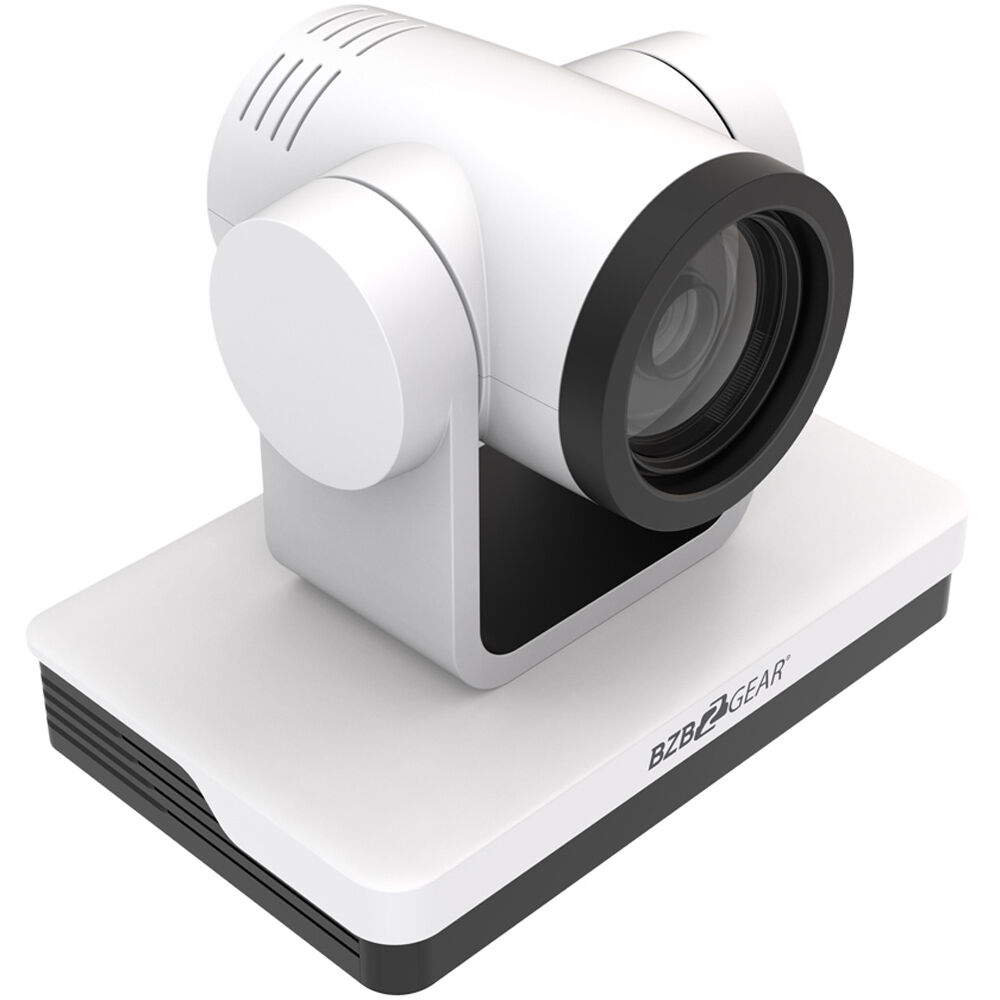

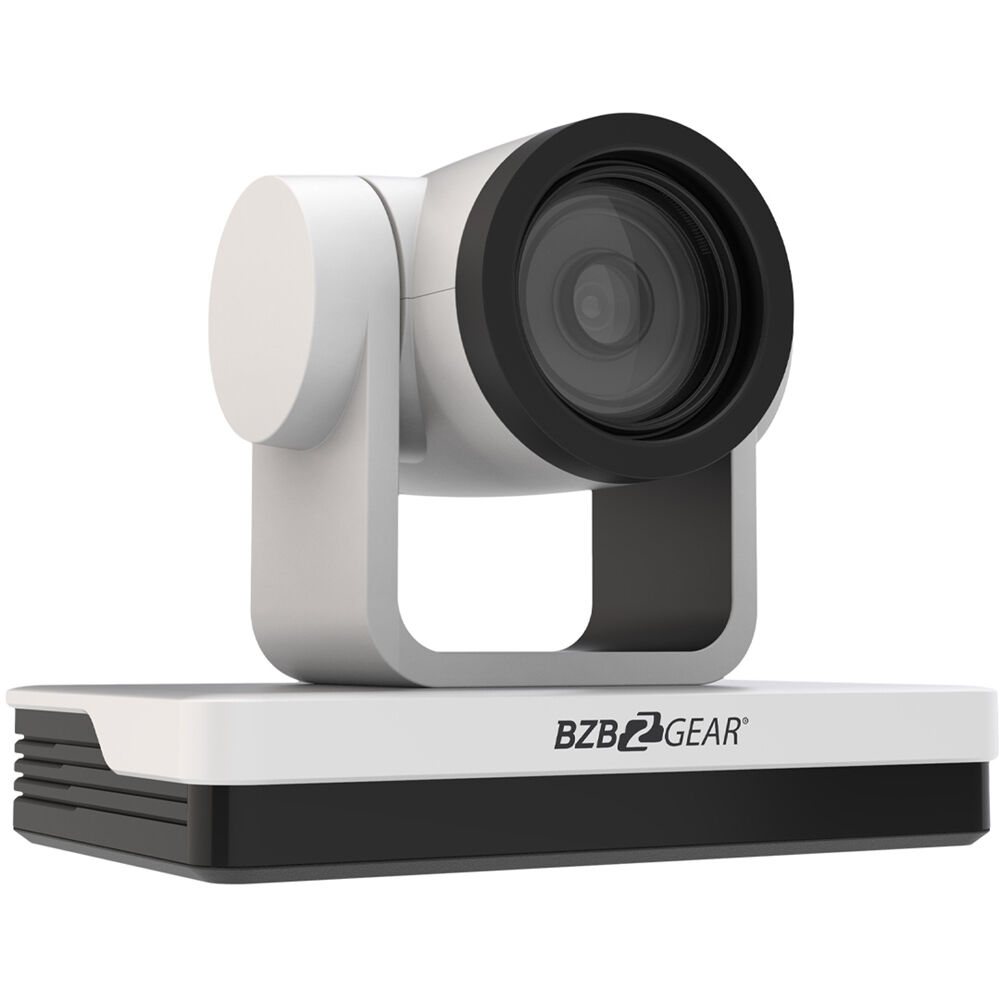

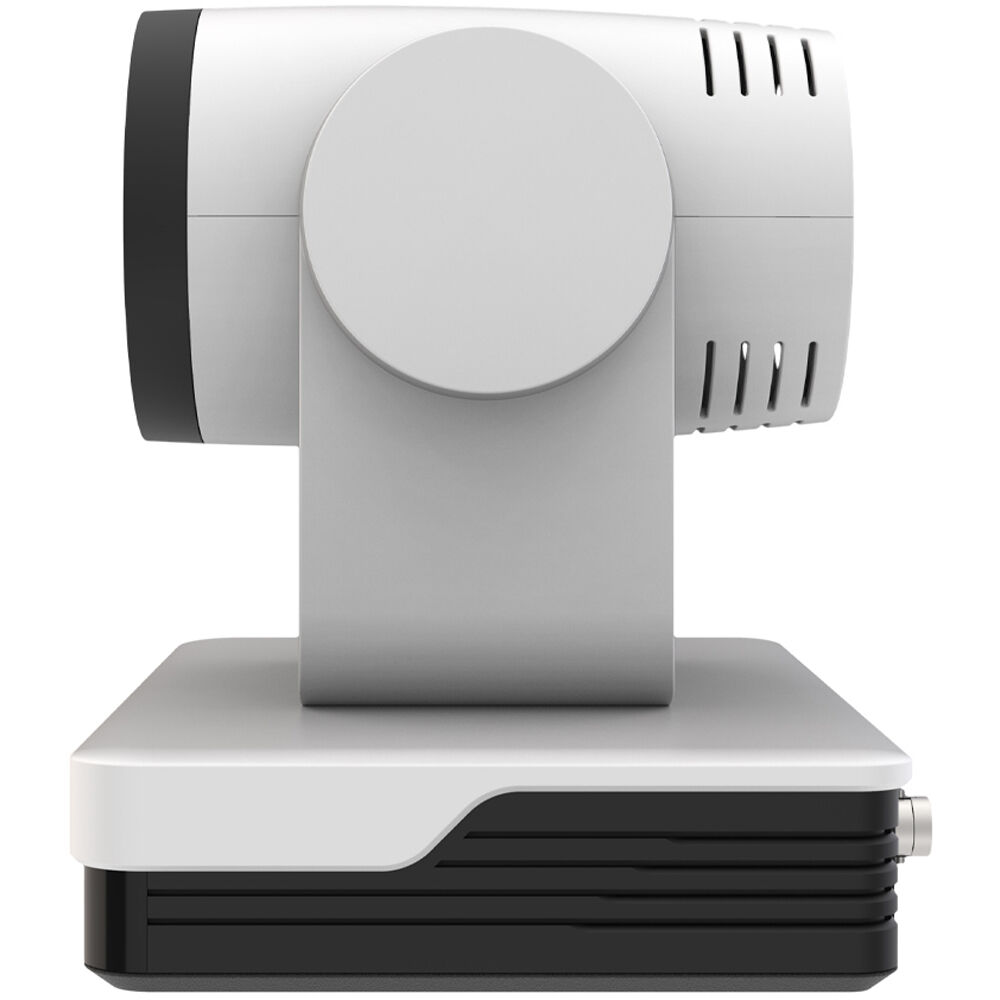

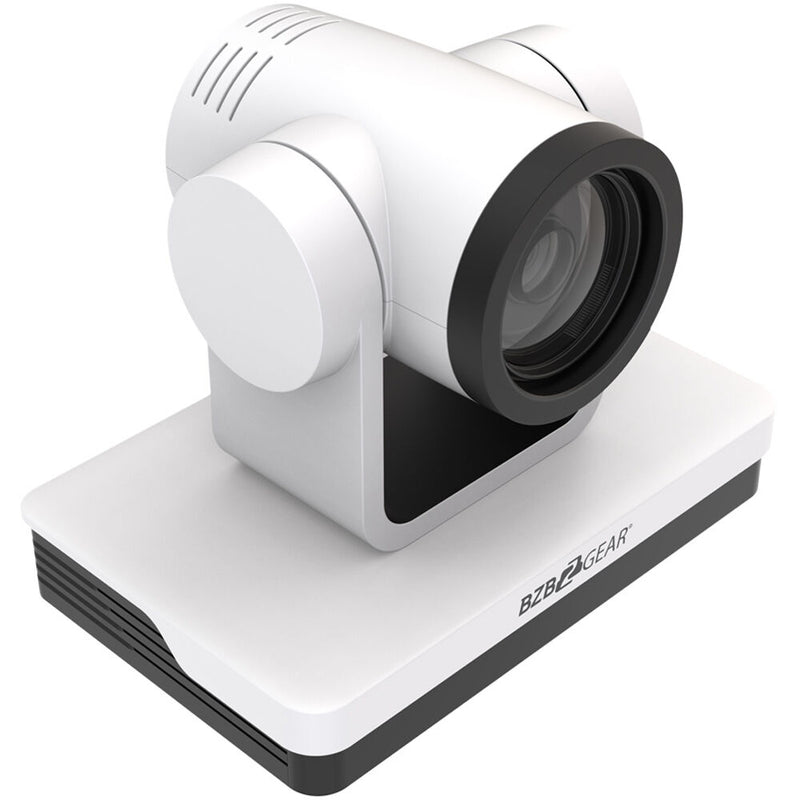

BZBGear UPTZ Overview
Add a high-quality, multifunction PTZ camera to your conference room, event space, education environment, or house of worship with the white Universal HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom from BZB Gear. The camera features a 1/2.8" CMOS sensor and outputs up to 1080p video over HDMI, SDI, USB 3.0, or uses RSMP/RTSP protocols to stream video and audio to the Internet.
The camera supports uncompressed video transmission over MJPEG, H.265, and H.264 compression formats. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems. You can also manage the unit via IP using ONVIF or by using its RS-232 or RS-485 serial ports with a separately available serial PTZ controller, and the RS-232 serial ports support cascading. You can power the camera with the included power adapter, or you can utilize your existing PoE (Power-over-Ethernet) LAN to save cable runs.
Equipped with a 30x optical zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look, and it has a wide field of view for capturing large meeting rooms. It features an RJ45 Ethernet output that can transmit up to 1080p video to any RTSP/RTMP streaming network so you can broadcast live directly to internet streaming sites. The camera also supports 3.5mm stereo audio input, allowing you to capture and embed AAC, MP3, or PCM audio with the video signal.
In the Box
- BZBGear Universal HDMI/SDI/USB Live Streaming PTZ Camera with 30x Zoom (White)
- Power Adapter
- IR Remote Control
- RS-232 Cable
- Limited 3-Year Warranty
BZBGear UPTZ Specs
| Sensor Type | 1/2.8"-Type CMOS Sensor |
| Sensor Resolution | Effective: 2.07 Megapixel (1920 x 1080) |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/10000 to 1 Second |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | 2400 to 7100K |
| Focal Length | 4.3 to 129mm |
| Optical Zoom Ratio | 30x |
| Max Digital Zoom | 10x |
| Field of View | 2.34 to 65.1° |
| Maximum Aperture | f/1.6 to 4.7 |
| External Recording Modes | SDI/BNC / HDMI / RJ45 / USB 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps |
| Broadcast Output | NTSC |
| IP Streaming | H.264, H.265, MJPEG, ONVIF, RTMP, RTSP 1920 x 1080 at 30p 1280 x 720 at 30p 1024 x 576 at 30p 960 x 540 at 30p 800 x 448 at 30p 720 x 480 at 30p 640 x 360 at 30p 640 x 480 at 30p 320 x 176 at 30p |
| Presets | 255 via IP, RS-232, VISCA 10 via IR |
| Move Speed | Pan: 0.1 to 180°/sec Tilt: 0.1 to 80°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP Pelco-D Pelco-P RS-232 RS-485 VISCA |

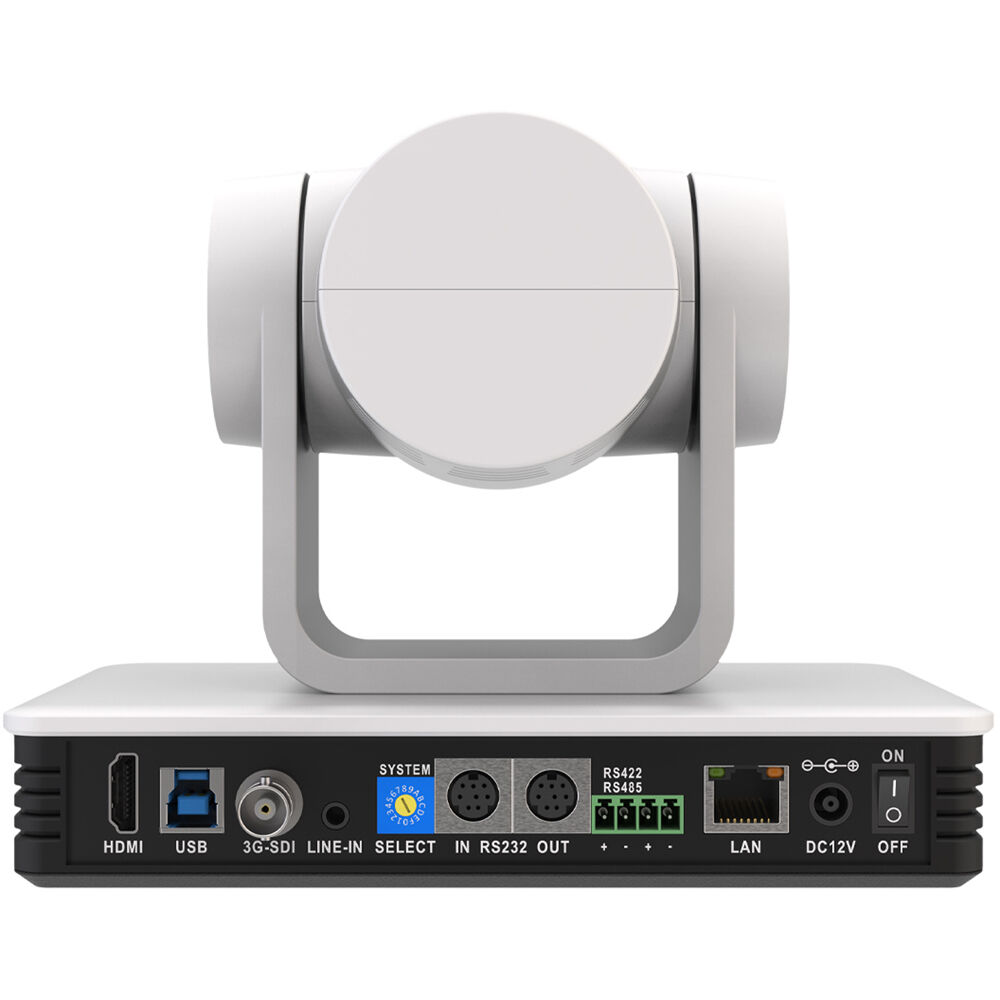

| Video I/O | 1 x HDMI Output 1 x BNC (3G-SDI) Output 1 x USB-B 3.0 / 3.1/3.2 Gen 1 Output 1 x RJ45 Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1 x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Input 1 x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Output 1 x Block (RS-485) Input 1 x RJ45 (LAN) Input/Output |
| PoE Support | PoE 802.3af |
| Power I/O | 1 x Barrel (12VDC up to 1 A) Input |
| Power Consumption | Power Supply: 12 VDC at 1.5 A (12 W) |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| OS Compatibility | Windows macOS 11.0 or Later *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| App Compatible | Yes: iOS Only App Name: BZBGEAR Cameras Control Functionality: Adjust Settings, Remote Control, View Live Feed *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Dimensions (W x H x D) | 7 x 5.9 x 4.5" / 178 x 150.9 x 115.5 mm |
| Weight | 3.04 lb / 1.38 kg |
| Package Weight | 5.495 lb |
| Box Dimensions (LxWxH) | 13.5 x 9.8 x 7.5" |
BZBGear UPTZ Reviews
