Description
BZBGear UPTZ Overview

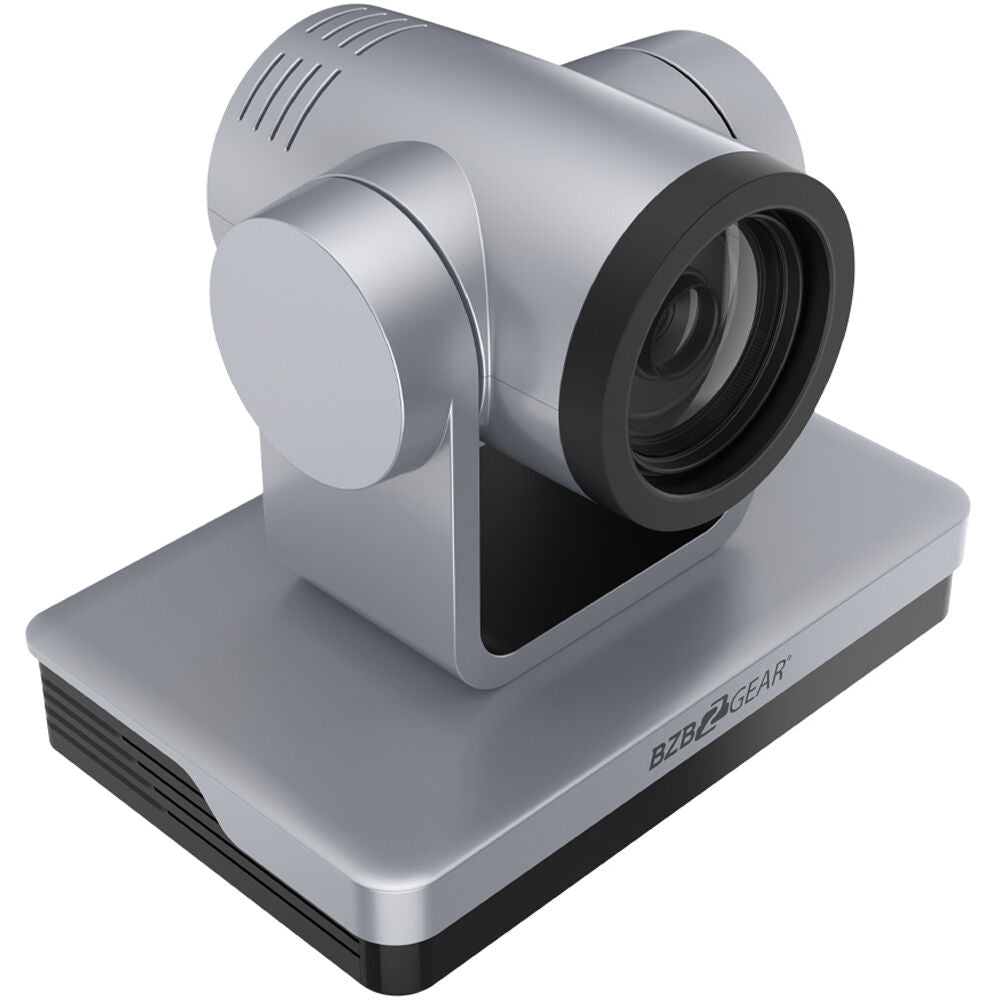

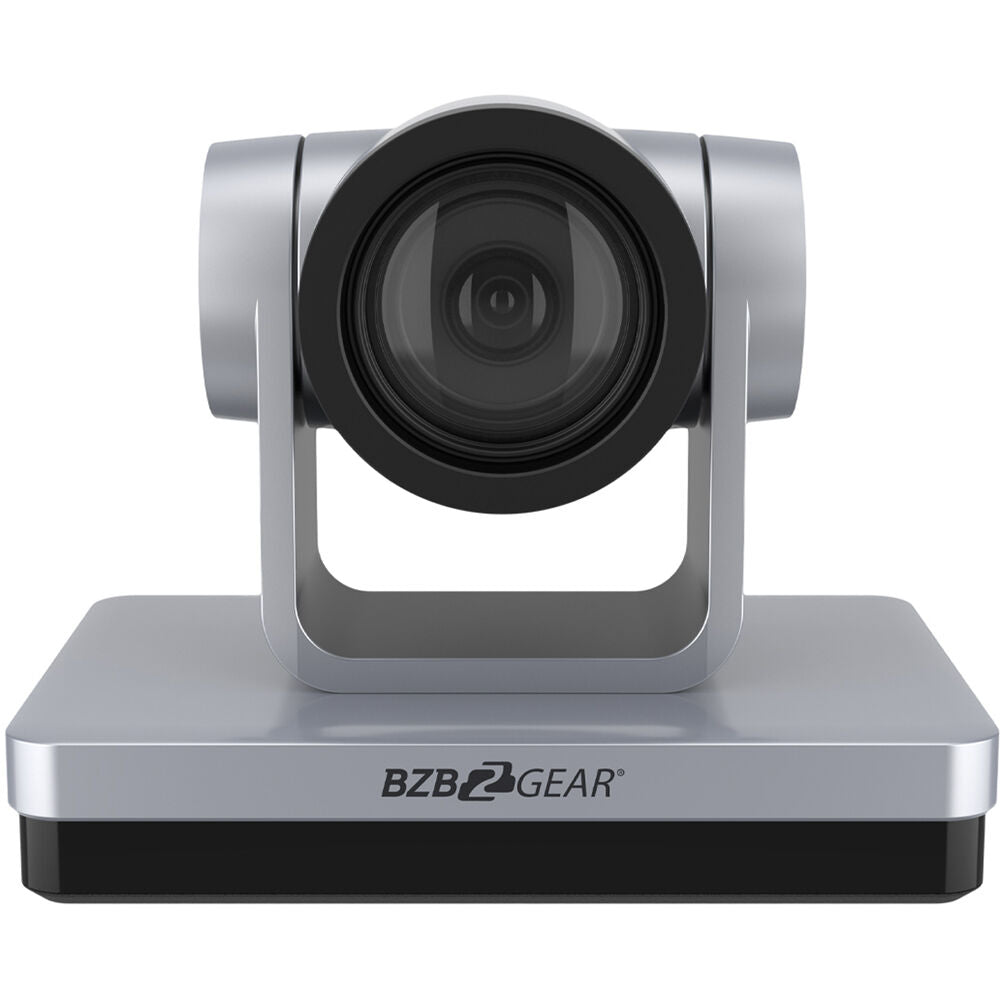

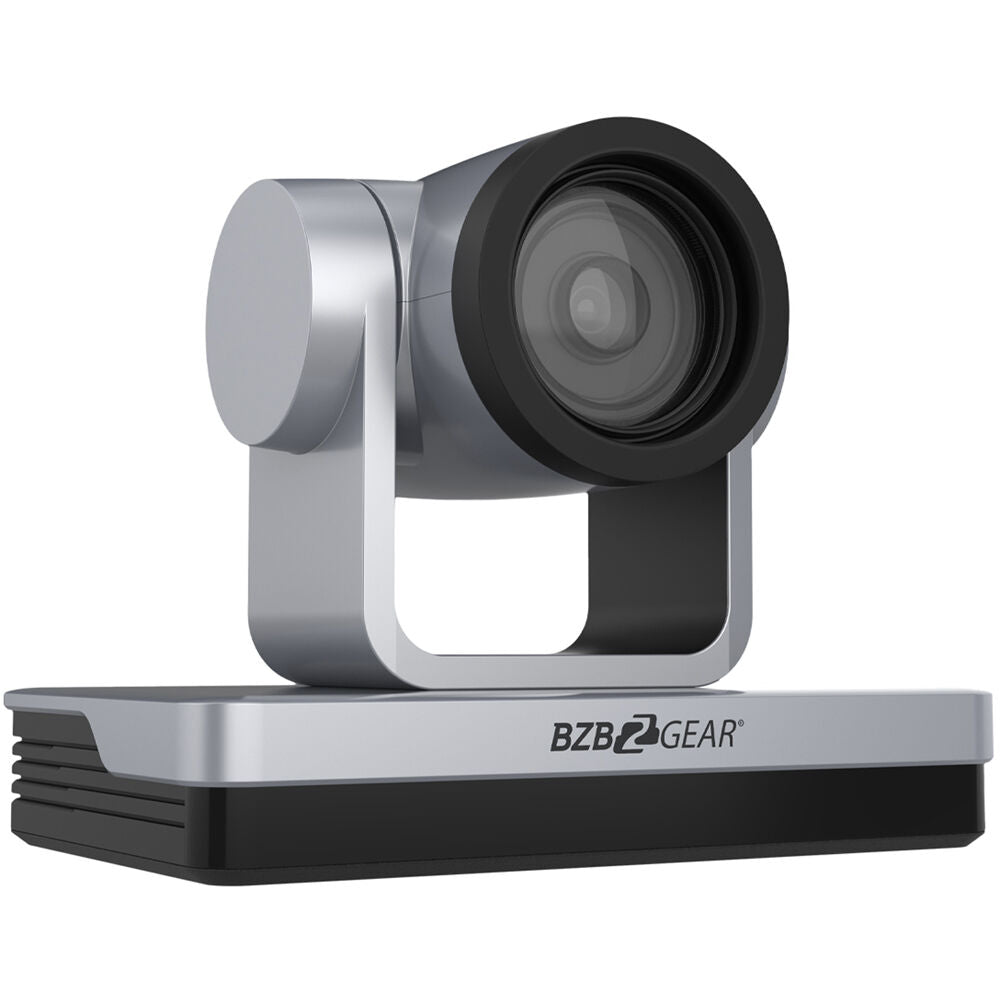

Add a high-quality, multifunction PTZ camera to your conference room, event space, education environment, or house of worship with the silver Universal HDMI/SDI/USB Live Streaming PTZ Camera with 12x Zoom from BZB Gear. The camera features a 1/2.8" CMOS sensor and outputs up to 1080p video over HDMI, SDI, USB 3.0, or uses RSMP/RTSP protocols to stream video and audio to the Internet.
The camera supports uncompressed video transmission over MJPEG, H.265, and H.264 compression formats. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems. You can also manage the unit via IP using ONVIF or by using its RS-232 or RS-485 serial ports with a separately available serial PTZ controller, and the RS-232 serial ports support cascading. You can power the camera with the included power adapter, or you can utilize your existing PoE (Power-over-Ethernet) LAN to save cable runs.
Equipped with a 12x optical zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look, and it has a wide field of view for capturing large meeting rooms. It features an RJ45 Ethernet output that can transmit up to 1080p video to any RTSP/RTMP streaming network so you can broadcast live directly to internet streaming sites. The camera also supports 3.5mm stereo audio input, allowing you to capture and embed AAC, MP3, or PCM audio with the video signal.
Key Features
Wide Applications
Audio/Video Compression
High-Definition Image
Autofocus
Low Noise and High SNR
Advanced 2D/3D Noise Reduction Technology
Silent PTZ
Multi-Format Video Outputs
Control Options
Network Protocols
Low-Power Sleep Function
Multiple Control Protocols
RS-232 Cascade Function
Multiple Presets
Audio Input Interface
Power Options
In the Box
- BZBGear Universal HDMI/SDI/USB Live Streaming PTZ Camera with 12x Zoom (Silver)
- Power Adapter
- IR Remote Control
- RS-232 Cable
- Limited 3-Year Warranty
BZBGear UPTZ Specs
| Image Sensor | 1-Chip 1/2.8" CMOS Sensor |
| Sensor Resolution | Effective: 2.07 Megapixel (1920 x 1080) |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux |
| White Balance | 2400 to 7100K |
| Max Digital Zoom | 10x |
| Flip / Mirror Support | Image Flip |
| Optical Zoom Ratio | 12x |
| Focal Length | 3.9 to 46.8mm |
| Field of View | Horizontal: 6.3 to 72.5° |
| Maximum Aperture | f/1.8 to 2.4 |
| Focus Control | Autofocus Manual Focus |
| Output Formats | SDI, HDMI, RJ45, USB: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps |
| Embedded Audio | HDMI/SDI: 2-Channel |
| IP Streaming | H.264, H.265, ONVIF, RTMP, RTSP: 1080p, 720p at 25p, 29.97p, 30p, 50p, 59.94p, 60p |
| IP Multi-Stream Support | Yes |
| Audio Recording | None |
| Presets | 255 via IP, RS-232, VISCA 10 via IR |
| Move Speed | Pan: 0.1 to 180°/sec Tilt: 0.1 to 80°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP Pelco-D Pelco-P RS-232 RS-485 VISCA |

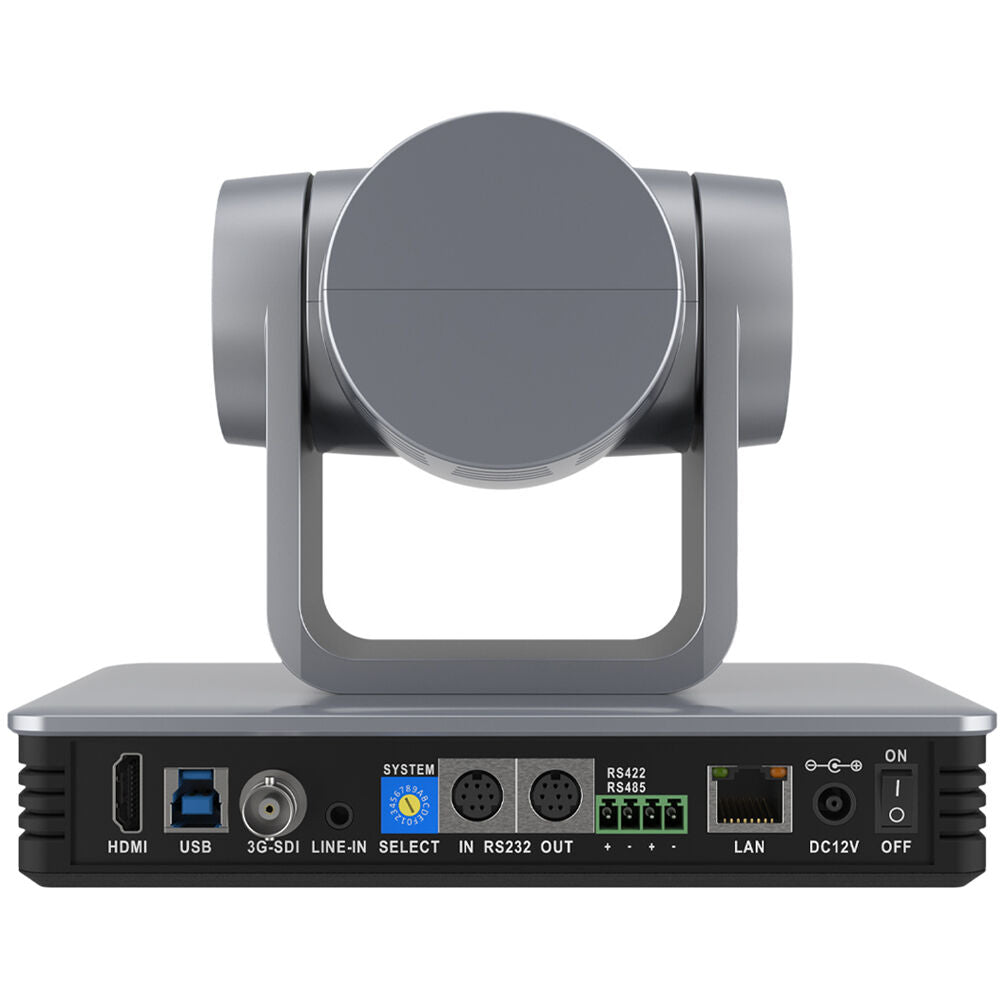

| Video Output Connectors | 1 x HDMI Type A Female 1 x BNC (3G-SDI) Female 1 x USB 3.0 Type-B (USB Video) Female 1 x RJ45 Female |
| Audio I/O | 1 x 1/8" / 3.5 mm Stereo Line Level Input |
| Control Interface | 1 x 8-Pin Mini-DIN (Pelco-D, Pelco-P, RS-232, VISCA) Input 1 x 8-Pin Mini-DIN (Pelco-D, Pelco-P, RS-232, VISCA) Output 1 x Terminal Block (RS-485) Input |
| Other I/O | 1 x RJ45 (LAN) Input/Output |
| PoE Support | Yes |
| Power Connectors | 1 x Barrel / Coaxial (12 VDC up to 1 A) |
| Power Consumption | Power Supply: 12 VDC at 1.5 A (12 W) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 7 x 5.9 x 4.5" / 178 x 150 x 115.5 mm |
| Weight | 3.04 lb / 1.38 kg |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
