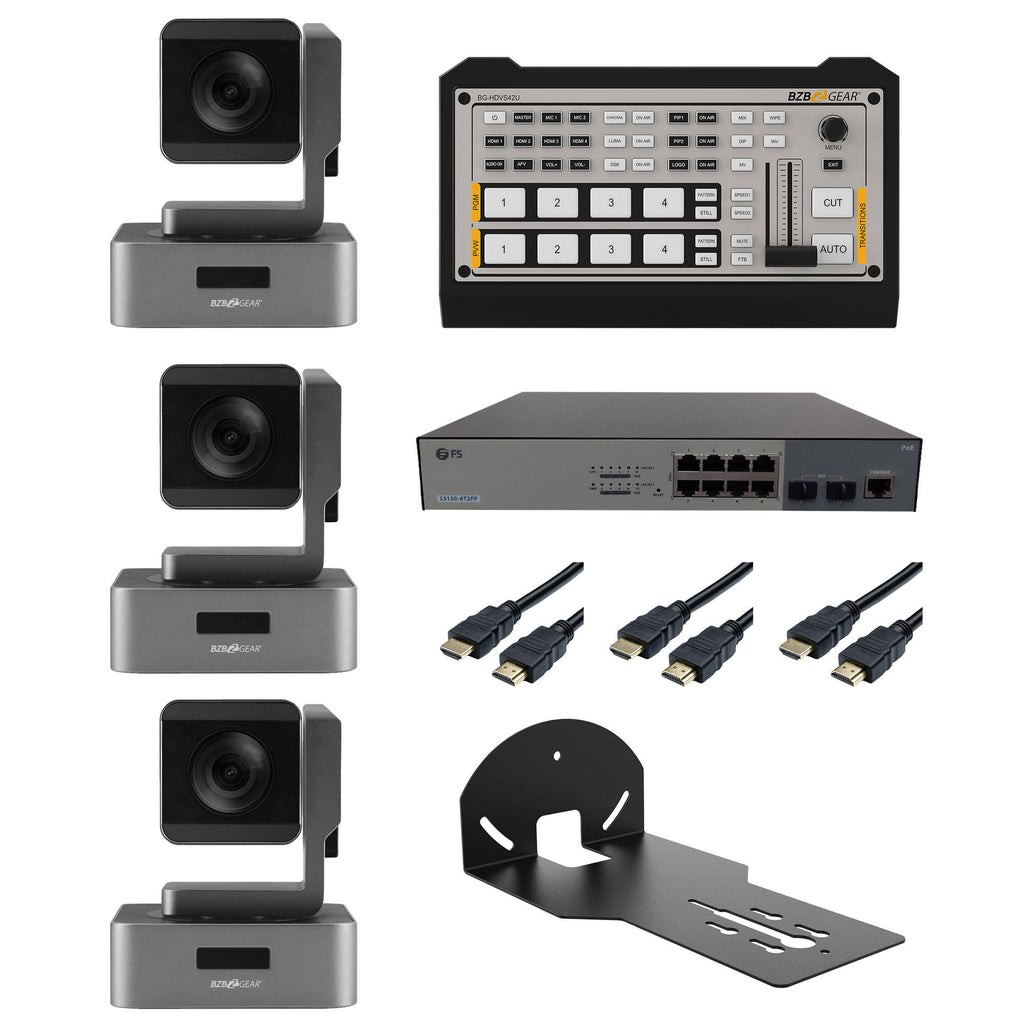

BZBGear Podcast Kit with 3 x 20x PTZ Cameras/Mixer/PoE Switch/Wall Mount/Cable

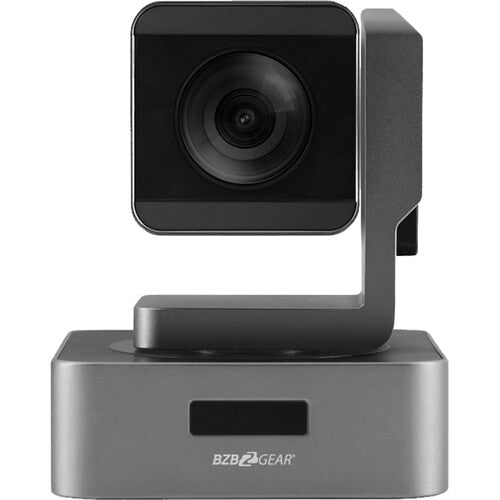

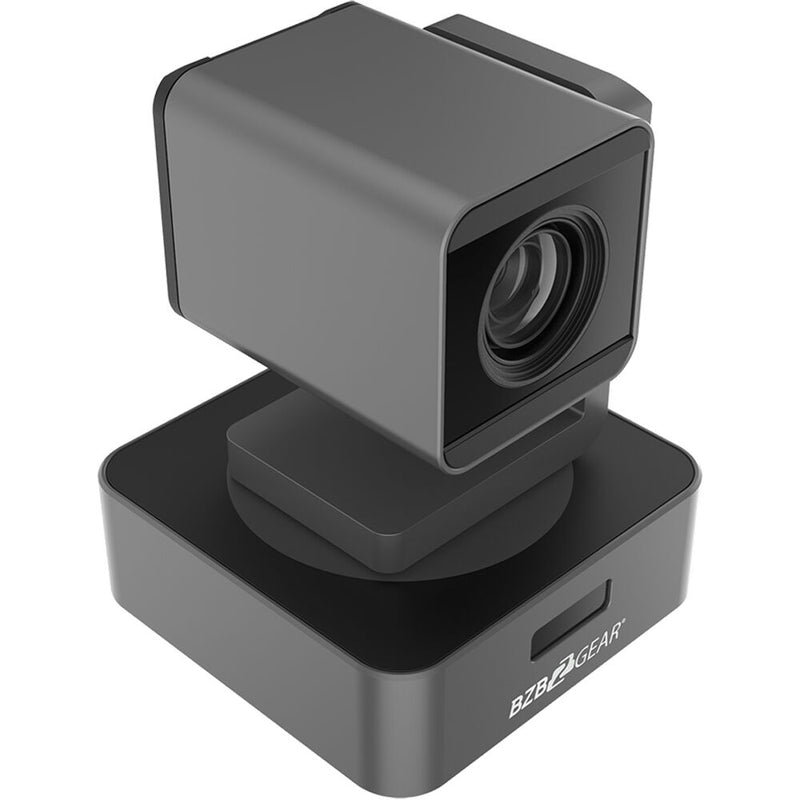

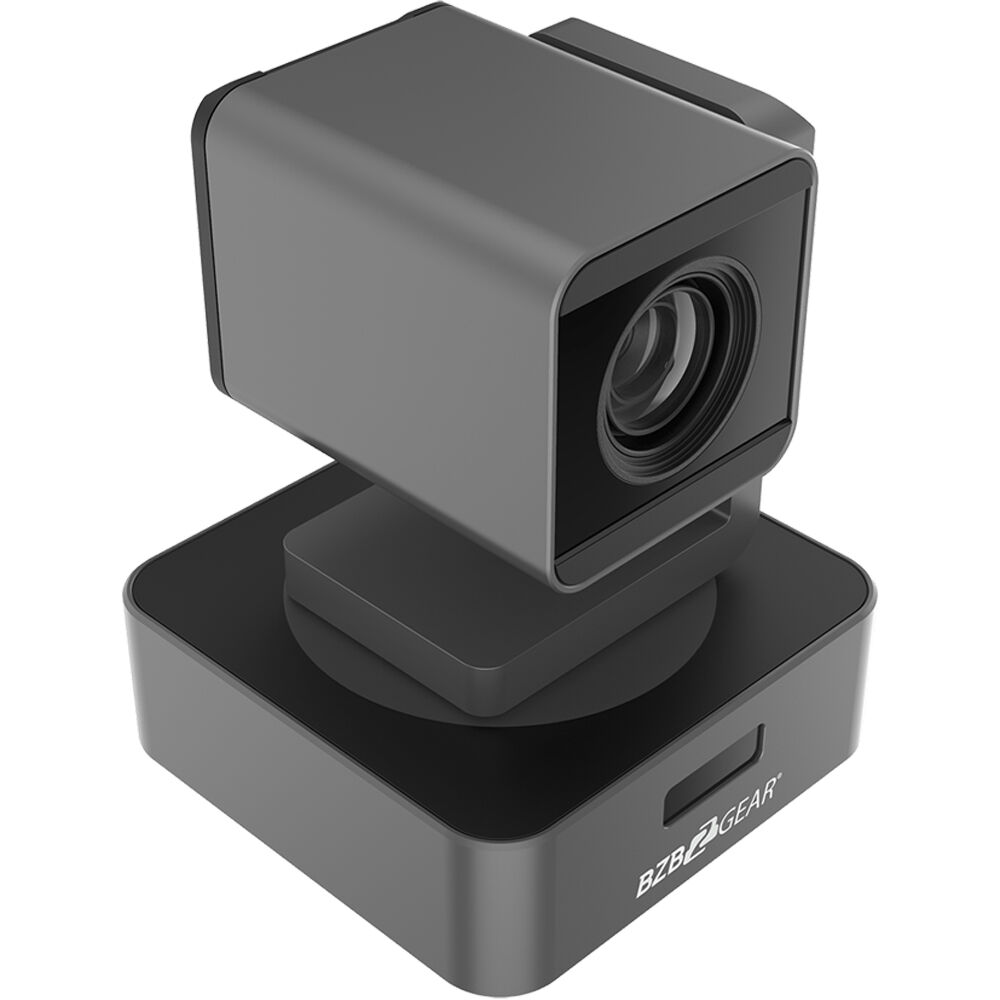

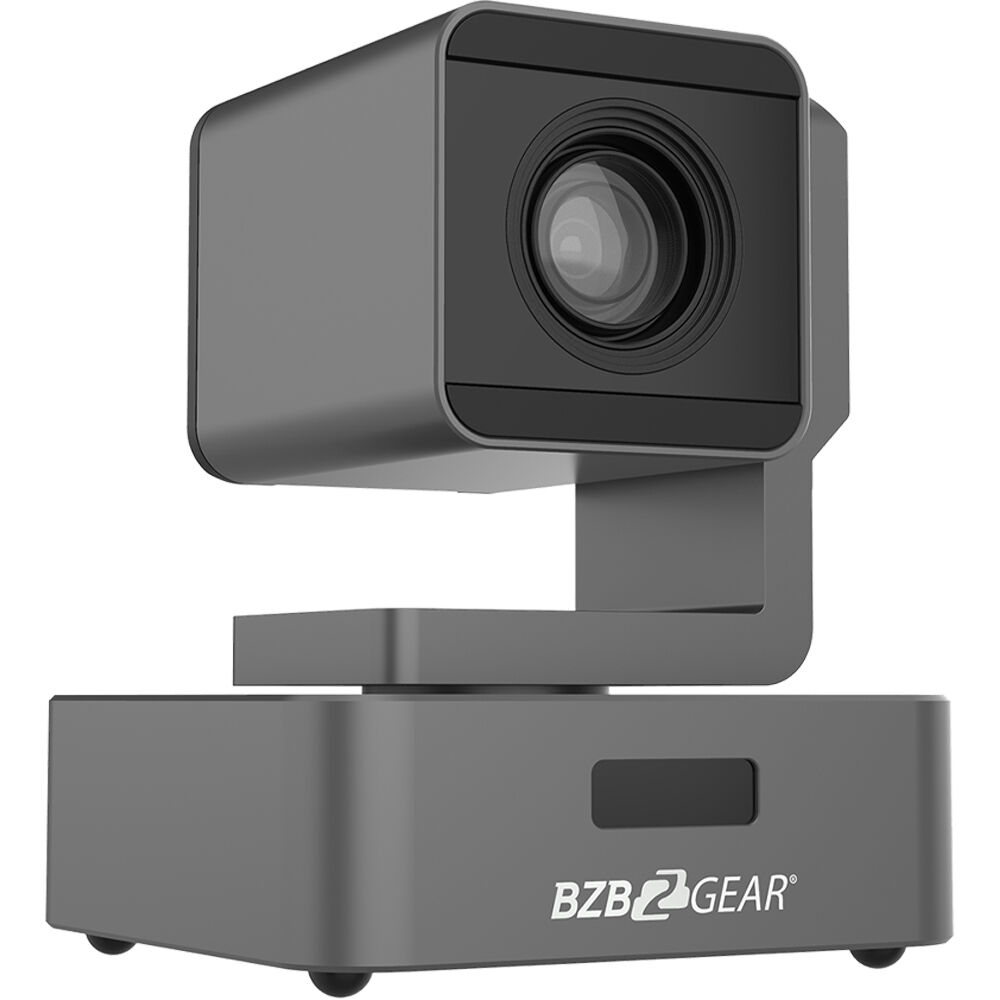

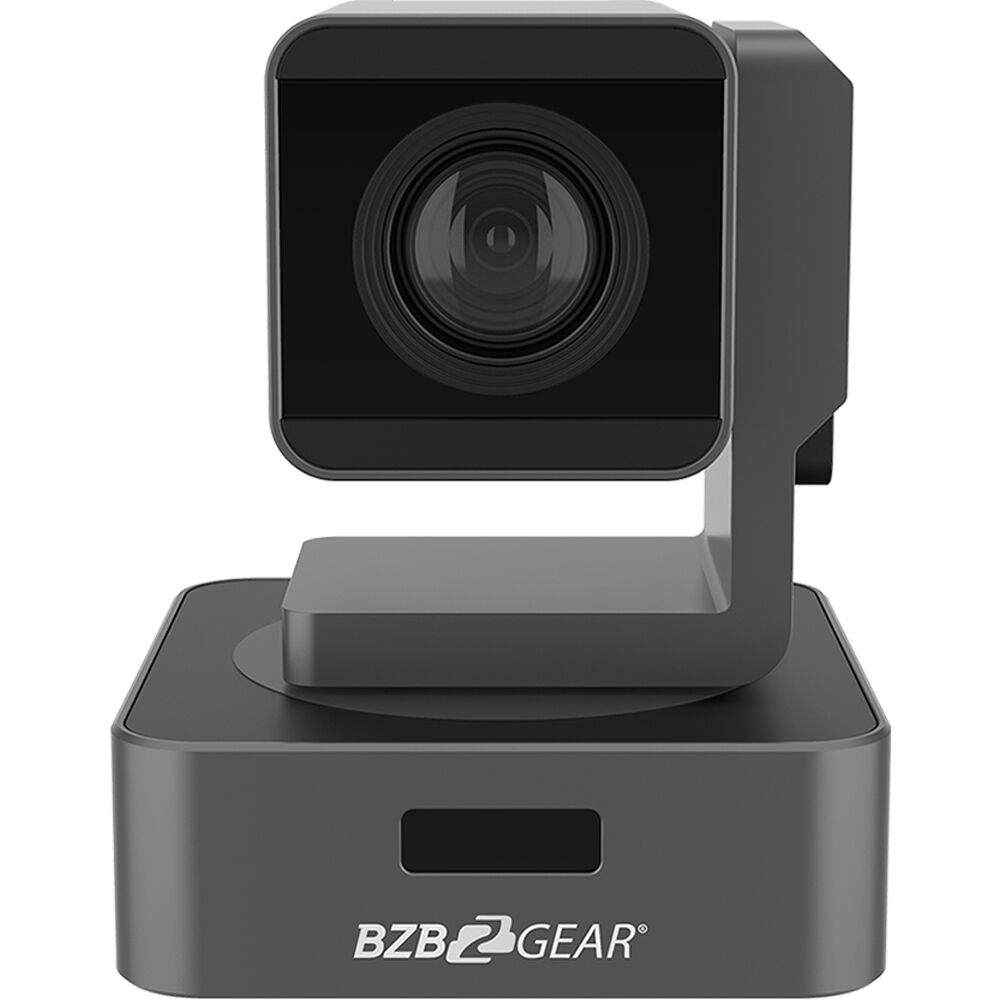

Add a high-quality, multifunction PTZ camera to your conference room, event space, education environment, or house of worship with the gray 1080p HDMI/SDI/USB Live Streaming PTZ Camera with 20x Zoom & PoE from BZB Gear. The camera features a 1/2.8" CMOS sensor and outputs up to 1080p video over HDMI, SDI, USB 3.0, USB 2.0, or uses RSMP/RTSP protocols to stream video and audio to the Internet.

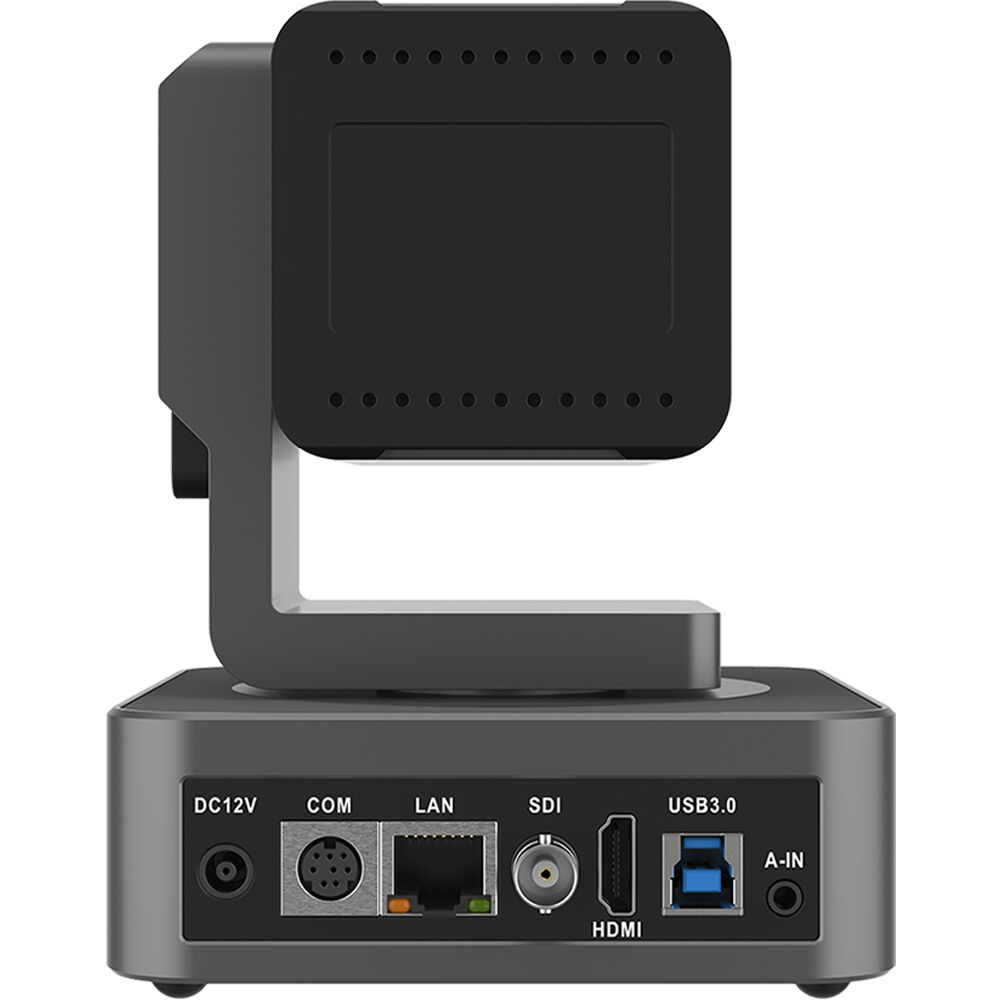

The camera supports uncompressed video transmission over MJPEG, H.265, and H.264 compression formats. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems. You can also manage the unit via IP using VISCA-over-IP/ONVIF or by using its RS-232/RS-485 serial port with a separately available serial PTZ controller. You can power the camera with the included power adapter, or you can utilize your existing PoE (Power-over-Ethernet) LAN to save cable runs.

Equipped with a 20x optical zoom and a 12x digital zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look, and it has a wide field of view for capturing large meeting rooms. It features an RJ45 Ethernet output that can transmit up to 1080p video to any RTSP/RTMP streaming network so you can broadcast live directly to internet streaming sites. The camera also supports 3.5mm stereo audio input, allowing you to capture and embed AAC or G711 audio with the video signal.

Switch up to four different HDMI video inputs while monitoring the program feed with the 4-Channel Live Streaming Video Switcher/Audio Mixer from BZBGear. Concert productions, events, houses of worship, virtual studios, educational institutions, and live sports programming are some use cases where the switcher could be utilized. Its portable form factor makes it a TV studio you can take anywhere and set up with minimal effort or additional equipment.

You can output the four HDMI inputs via one HDMI multiview and one HDMI program output using scaling features, allowing you to view them all on the same screen with configurable PiP functionality. You can also output program video via the USB Type-C port to a computer for video capture and streaming applications. The switcher features four HDMI inputs that can connect to cameras or other consumer or professional sources for switching up to 1080p60 video with embedded audio. You can also mix the audio using the two analog stereo 3.5mm mic/line inputs and output along with the embedded audio. You can also remotely control the switcher via IP using software using the LAN port.

Its interface features source and destination buttons and a T-bar for transitions and cuts, as well as mix, fade, and wipe effects. It also features upstream luma key, chroma key, picture-in-picture (PiP), and picture-over-picture (PoP), as well as downstream keying and logo overlay. You can capture up to 16 screenshots and store up to 16 images using the USB Type-A input, and it supports external disks up to 256GB in capacity. It also features two color generators and one pattern generator.

The switcher features a tally interface that supports GPIO, mute, still frame, and fade-to-black (FTB) functionality. A power supply, USB Type-A to Type-C cable, and a DB-15 tally connector are included.

BZBGear 1080p HDMI/SDI/USB Live Streaming PTZ Camera with 20x Zoom & PoE (Gray) Specs
