Description
BZBGEAR NET-M4250-26G4XFTAA-POE+PC Overview

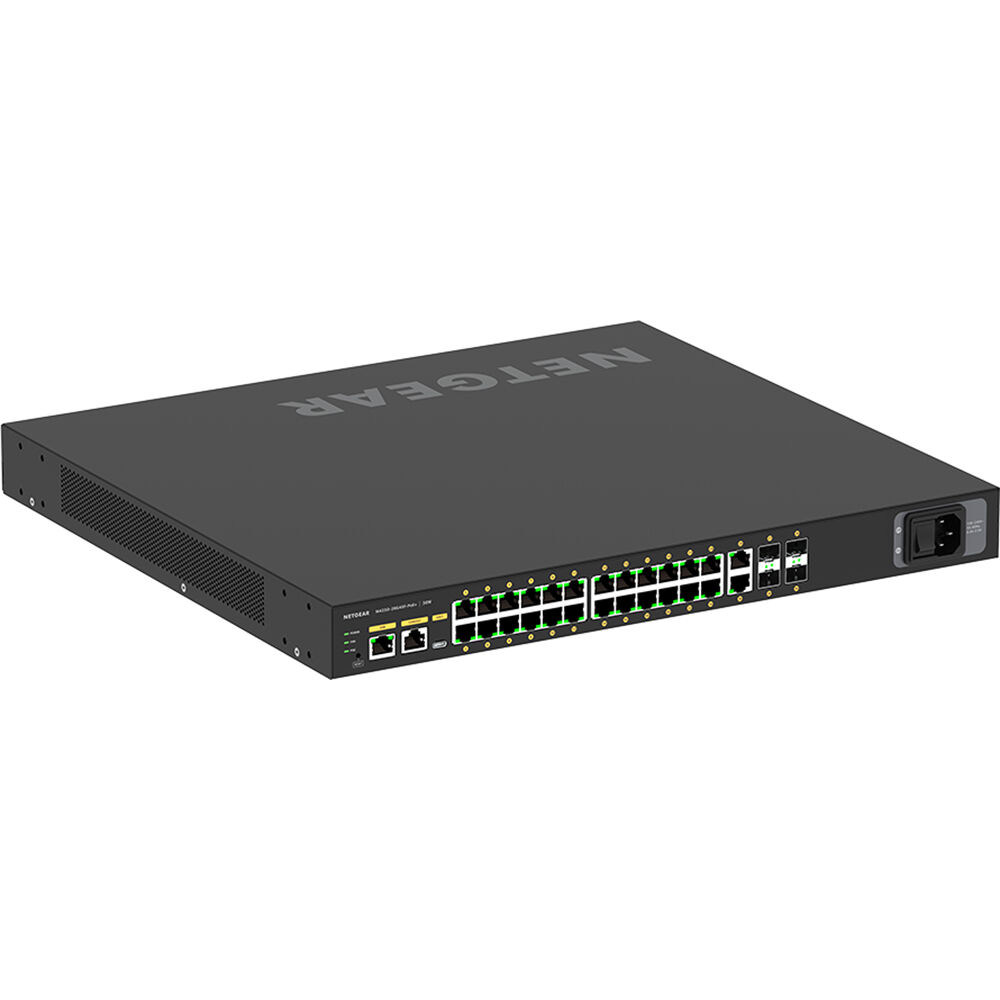

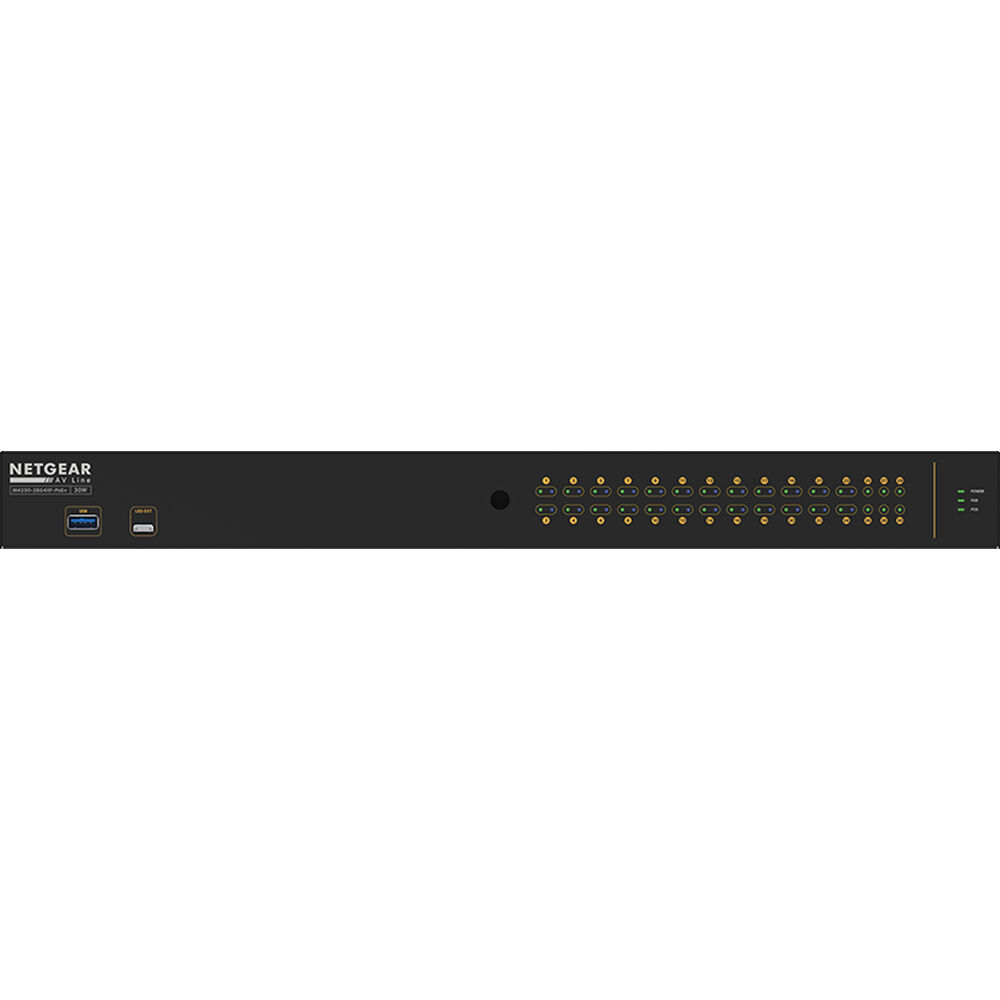

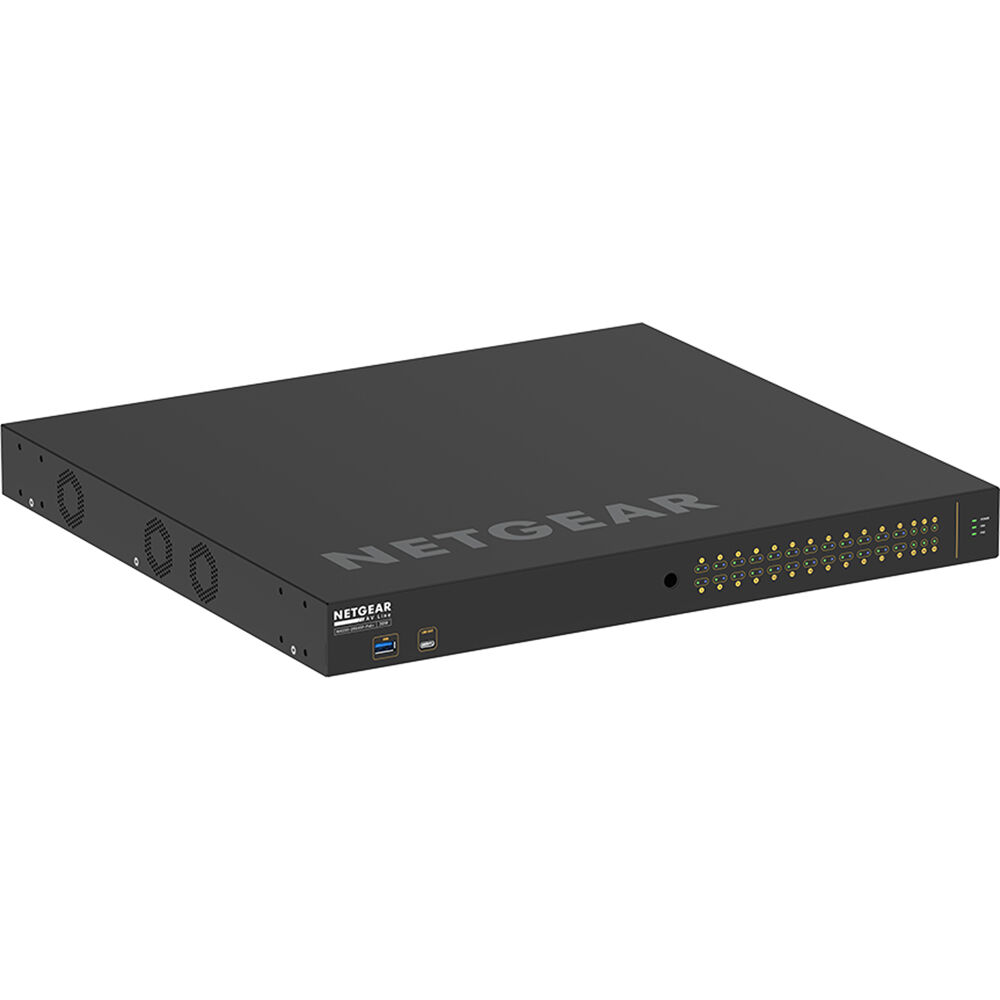

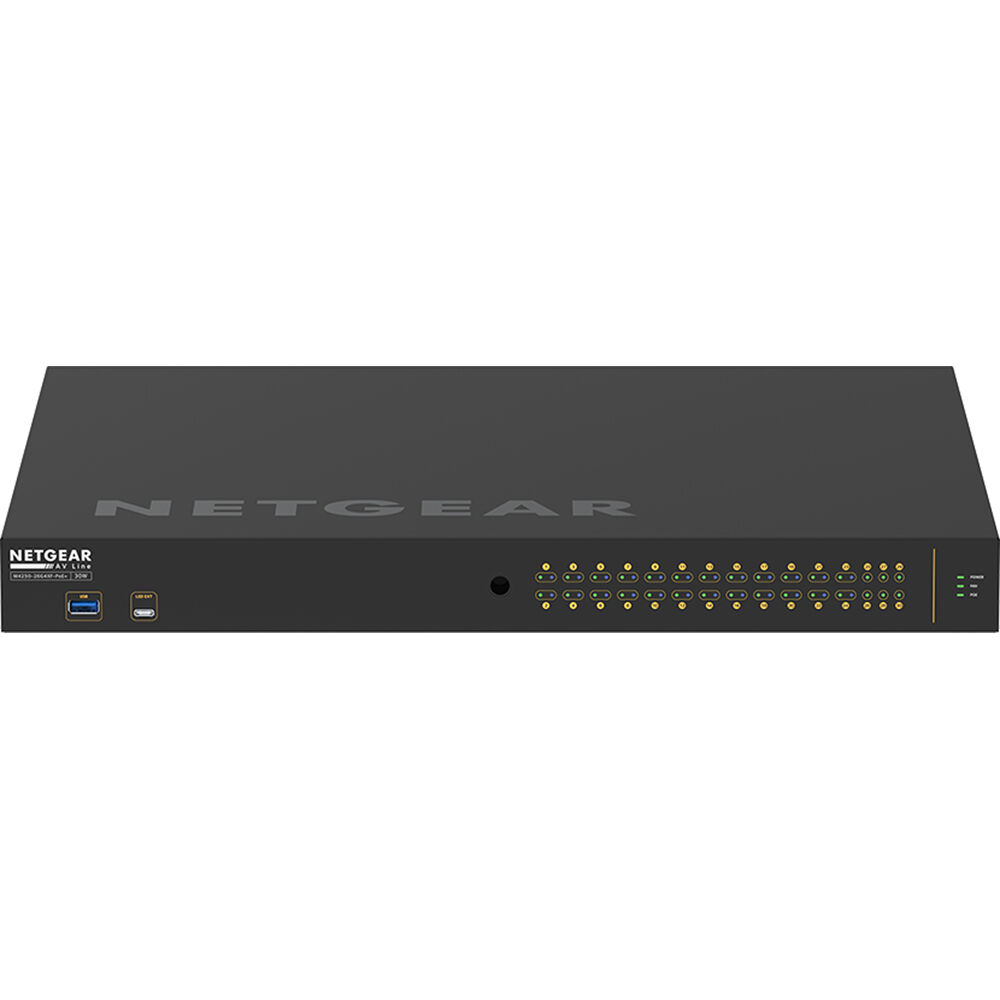

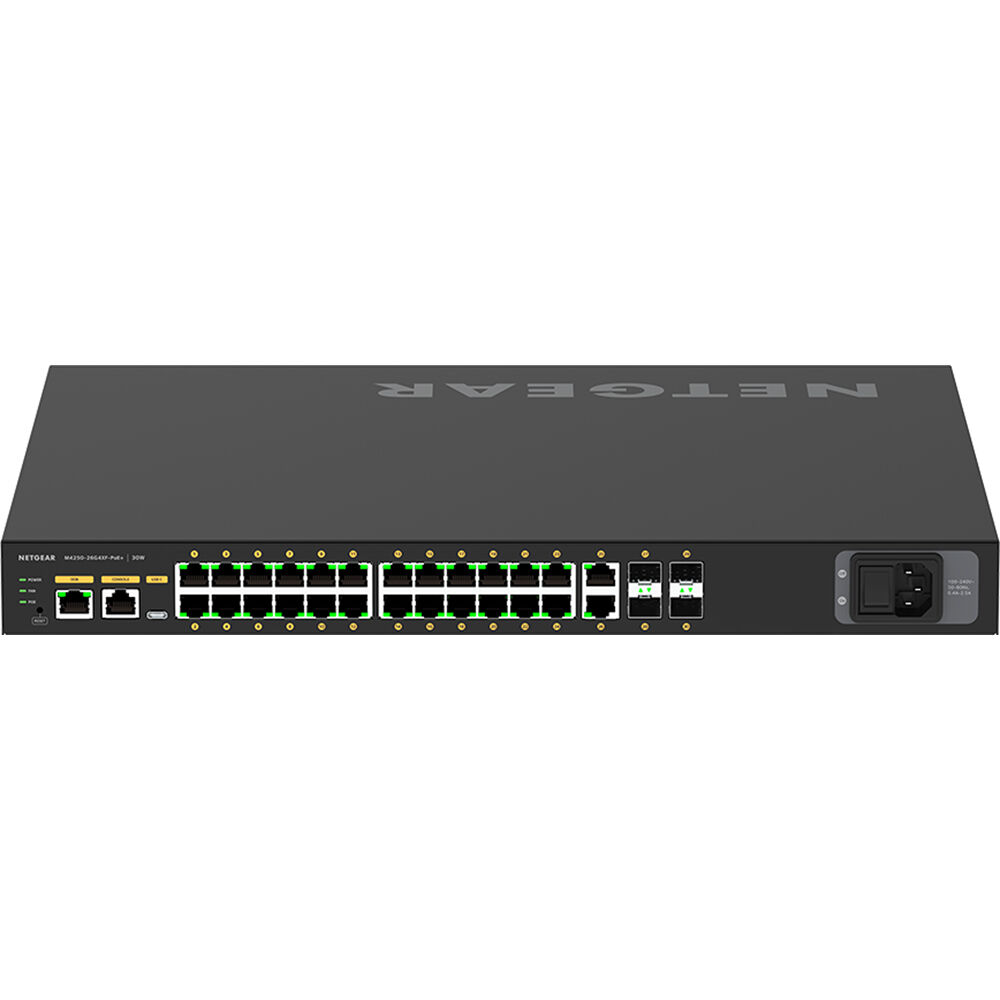

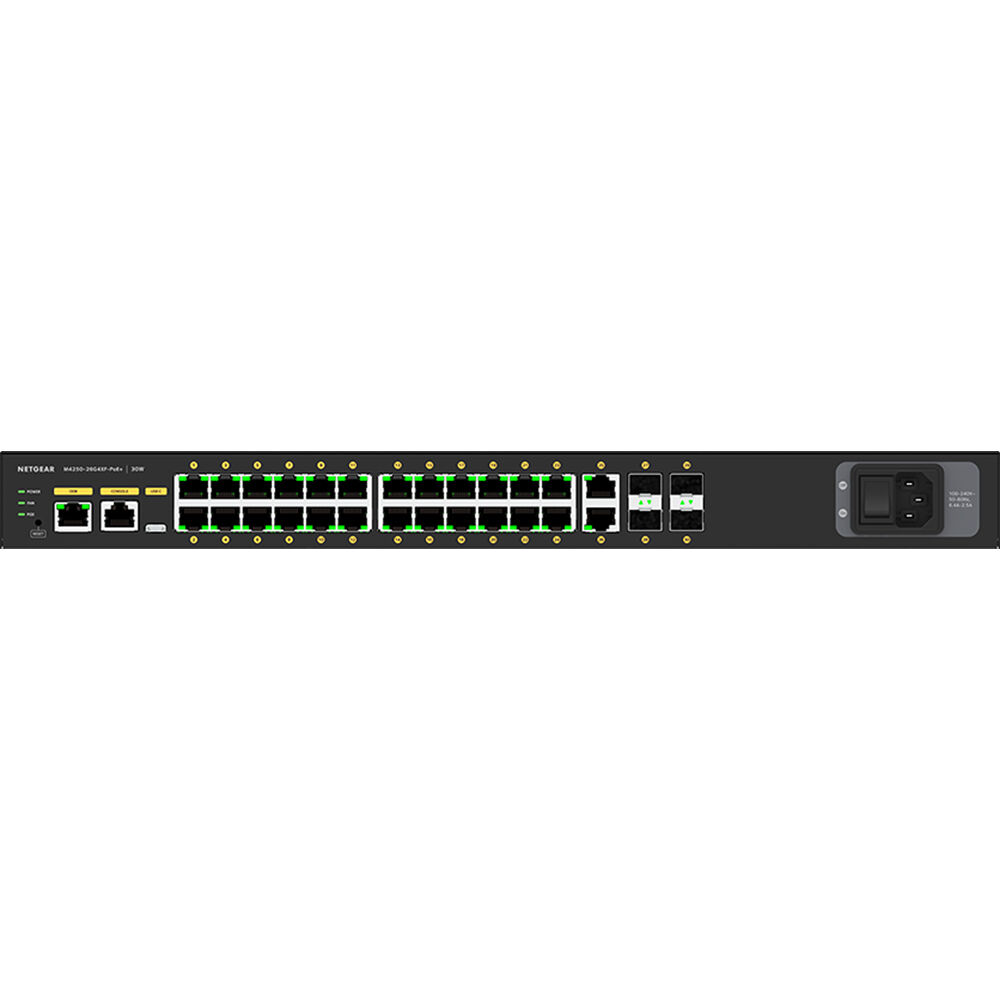

Designed for industry professionals, the Netgear AV Line M4250-26G4XF-POE+ 26-Port Gigabit PoE+ Compliant Managed Switch from BZBGEAR is engineered for 1G AV over IP. This managed rack mountable switch features 24 rear-facing RJ45 Gigabit Ethernet PoE+ ports with a 480W power budget. There are also two non-PoE Gigabit RJ45 Ethernet ports alongside two 10G SFP+ uplink fiber slots that ensure a clean integration in AV racks and pre-configuration for out-of-the-box functionality.
Built for AV over IP
Preconfigured
This switch is preconfigured to work with:
Audio AES67
Audio Dante
BZBGEAR IPGEAR Series
BZBGEAR DANTE AV-H & NDI
NDI5 with Dante
NVX, AMX, ZeeVee, Aurora, Kramer, Atlona, LibAV, Visionary, Dante Video, SDVoE, and other devices.
Multicast in an Instant
Netgear IGMP Plus enables instant multicast functionality for most AV over IP installations.
Dedicated AV Web-Based Interface
Unique interface designed for the AV professional with color-coded, port-based profiles.
Profiles for Common Audio Protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations.
Video Profiles Built-In
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed.
Mounting Flexibility
Rackmount Versatility
1 RU, 15.7" deep rackmount with all power and Ethernet ports on the back.
Reversed Mounting Possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cables.
Universal Mounting Availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holes.
Advanced Features
Layer 2 / Layer 3 Switching
Common Layer 2 and Layer 3 switching engine across all M4250 models.
Control Methods
Built-in IT web GUI, console, telnet, and SSH.
Standard Network Features
Feature set includes static, RIP and PIM routing, DHCP Server, and PTPv2.
UPC: 606449168754
- BZBGEAR Netgear AV Line M4250-26G4XF-POE+ 26-Port Gigabit PoE+ Compliant Managed Switch (TAA Compliant)
- Power Cable
- Console USB-C and RJ45-DB9 Cables
- 2 x Rack-Mounting Standard Bracket & Screw
- 2 x Recessed Mounting Bracket & Screw
- Rubber footpads for Tabletop Installation
- Limited Lifetime Warranty (with 90-Day Technical Support)
BZBGEAR NET-M4250-26G4XFTAA-POE+PC Specs
Key Specs
| Networking I/O |
31 Total Connections Supporting up to 10 GbE
|
| Stackable |
No
|
| Switching Bandwidth |
132 Gb/s (Non-Blocking)
|
| PoE Power Budget |
480 W
|
| Networking I/O |
24x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
2x RJ45 Gigabit Ethernet 4x SFP+ 10 GbE 1x RJ45 Gigabit Ethernet |
| Other I/O |
1x USB-C
1x USB-A |
| Stackable |
No
|
Protocols
| Layer Services Supported |
Layer 2, Layer 3
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server IGMP Snooping IPv4 IPv6 Link Aggregation |
| Queuing |
Deficit Weighted Round Robin (DWRR), Strict Priority
|
| Jumbo Frames Support |
12,000 Bytes
|
| MAC Address Table Size |
16K
|
Security
| Security Features |
DoS Attack Prevention
RADIUS Authentication Storm Control |
Performance
| Forwarding Rate |
98.21 Mpps
|
| Switching Bandwidth |
132 Gb/s (Non-Blocking)
|
| Packet Buffer |
16 Mb
|
Computer
| CPU |
Quad-Core: Up to 1.8 GHz Cortex A57
|
| Memory |
2 GB
|
Electrical
| PoE Power Budget |
480 W
|
| Power Supply Type |
Internal
|
General
| Cooling System |
Fan
|
| Mean Time Between Failures (MTBF) |
0.5 Million Hours
|
| Indicator Lights |
Yes
|
| Rack Mountable |
Yes 1 U
|
| Dimensions |
17.3 x 15.7 x 1.7" / 440 x 400 x 43.2 mm
|
| Weight |
12.02 lb / 5.45 kg
|
Packaging Info
| Package Weight |
16.62 lb
|
| Box Dimensions (LxWxH) |
20.9 x 18.8 x 4.8"
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
