Description
BZBGEAR BG-ADAMO-JR 30x Overview
By Photo's
Jennifer Hahn

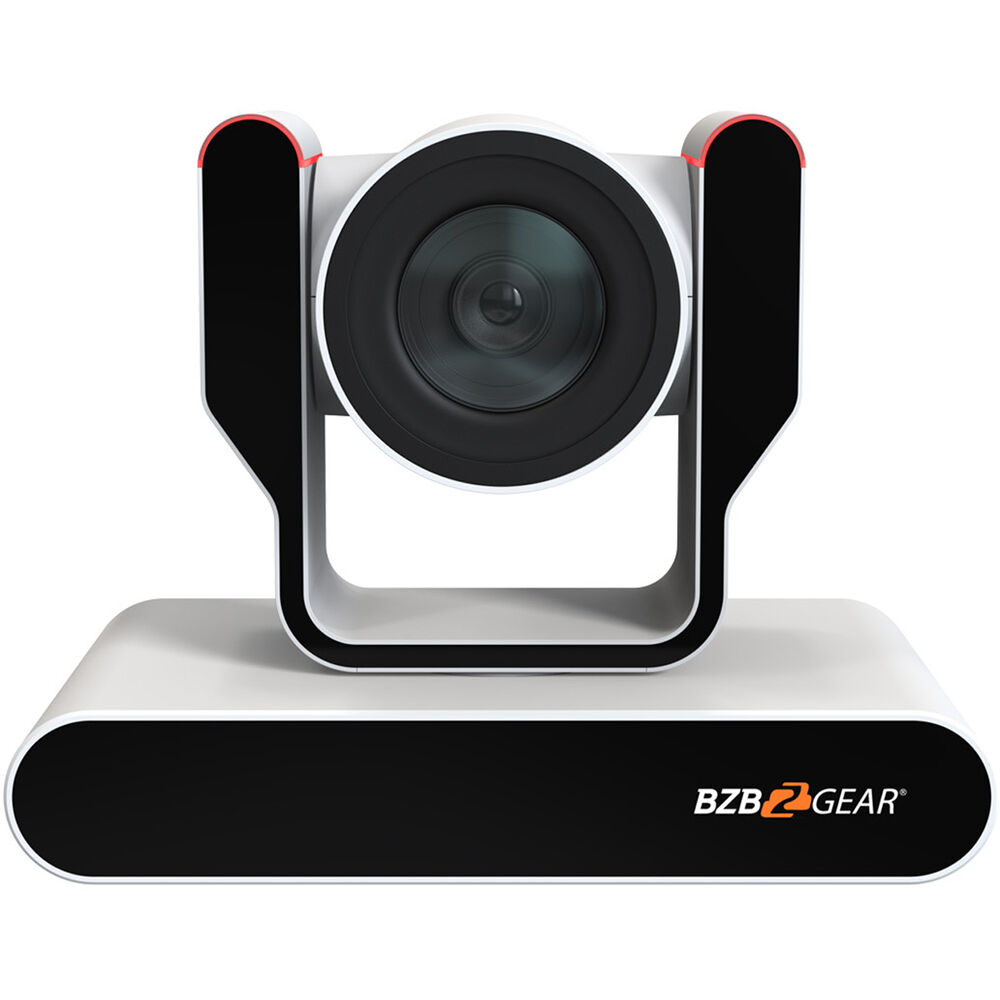

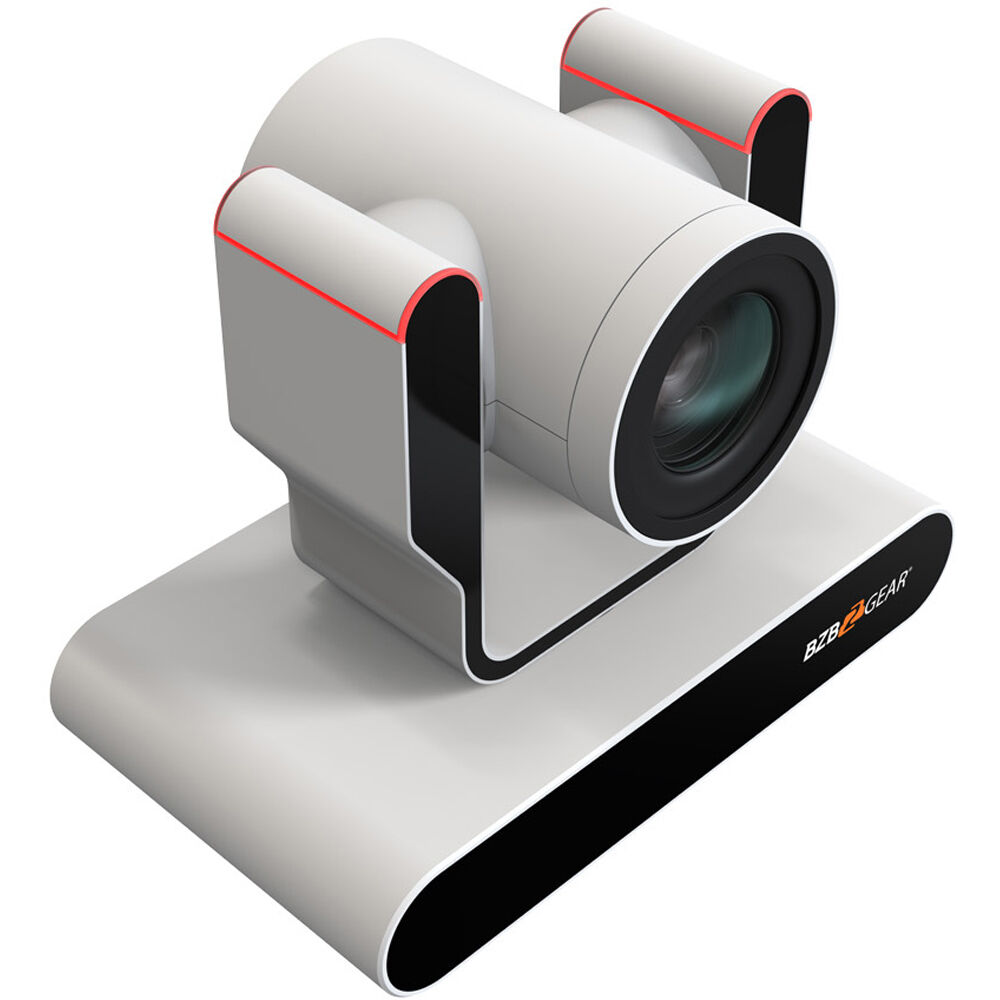

Capture high-resolution 1080p60 imagery in your conference room, event space, or house of worship with the white Live Streaming HD PTZ Camera with Auto-Tracking, Tally & 30x Zoom from BZBGear. This camera features a 1/2.8" 2.07MP CMOS sensor, a 30x optical zoom, accurate autofocus, subject auto-tracking, and simultaneous output via HDMI, 3G-SDI, USB 3.0, USB 2.0, and IP streaming with SRT support. You can embed analog audio into your video using the 3.5mm audio input.

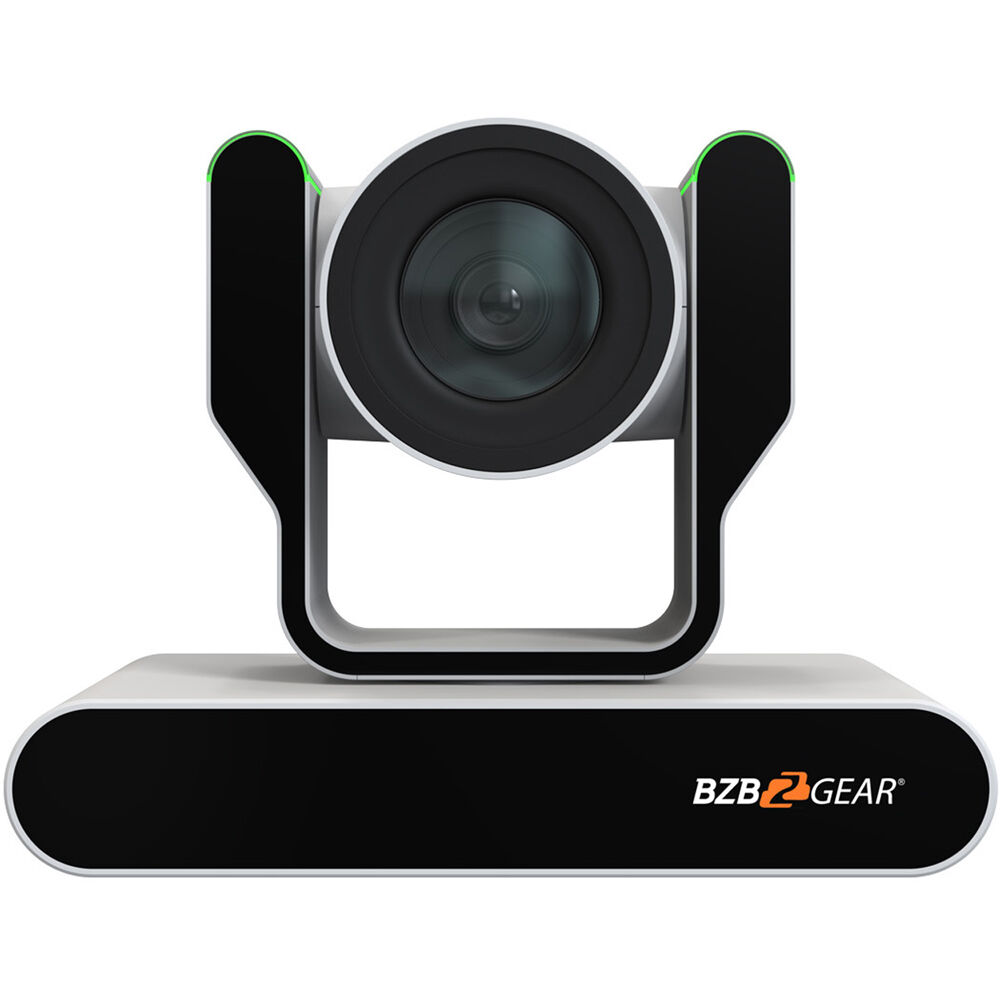

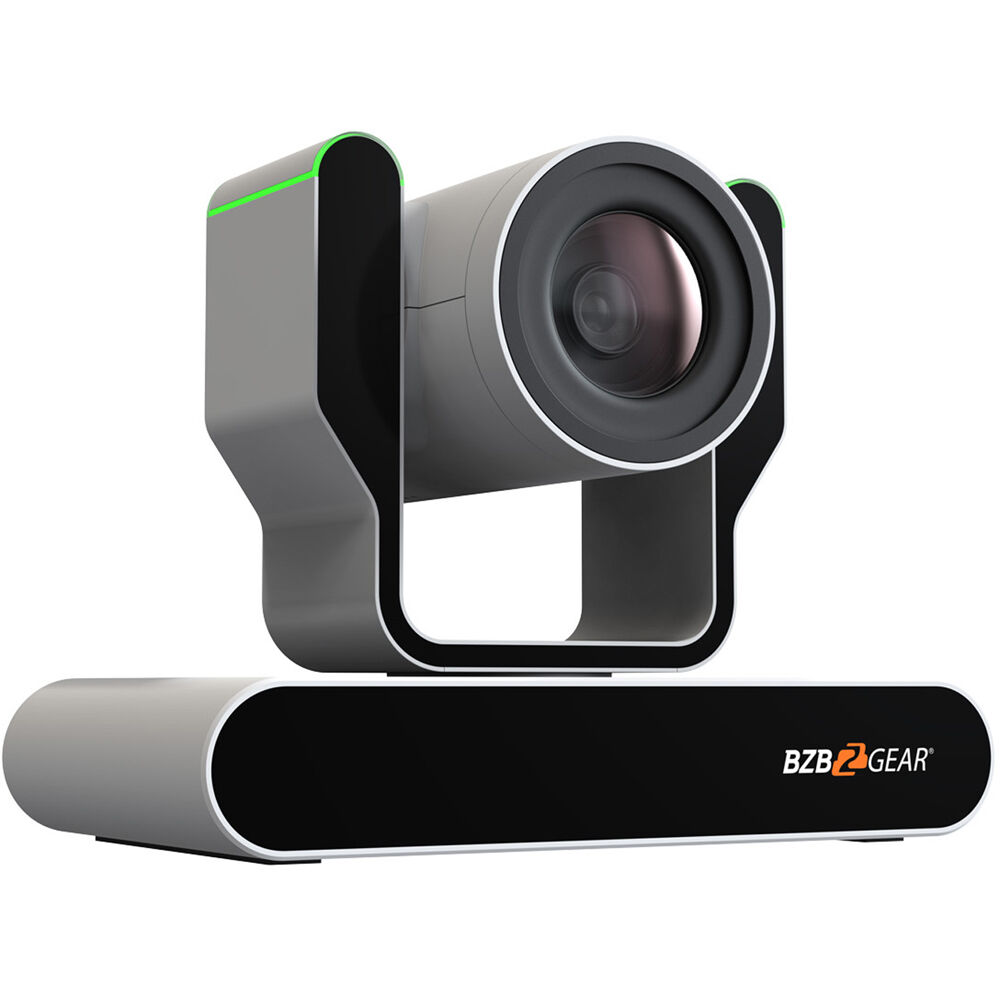

You can record the camera's capture up to 1080p60 resolution onto an optional microSD card up to 1TB. The camera features LED tally lights to indicate the camera is on or idle. The camera supports PoE (Power-over-Ethernet), so it can be controlled, powered, and can stream over one connector, and it also supports RS-232 and RS-422 serial control.
Key Features
30x optical zoom lens
1080p60 resolutions provide fluid motion, clear image, and accurate colors
Auto focusing algorithms resulting in quick, accurate, and stable focus
Web interface control via RS-232 or RS-422, Web GUI, control app, or IR remote control
Supports UVC, VISCA-over-IP, and serial control protocols including ONVIF, Pelco-P/D, VISCA
microSD card for recording; supports up to 1TB cards
Free BG-PTZ-Control app/program for macOS and Windows
Supports RTSP, RTMP, RTMPS, ONVIF, and GB/T28181
3G-SDI, HDMI, USB 2.0/3.0, IP LAN streaming
Two Mode Auto-Tracking Software features a presenter mode that continuously tracks keeping the subject, keeping them framed, and zone mode holds the frame in predetermined zones
Stream to your choice of platform directly from the camera, no capture card needed
Configure up to 255 presets using the Web GUI or 10 presets via the IR remote control
H.264/H.265 video compression formats provide excellent image quality; H.264/H.265 video compression is supported by the LAN interface; USB 3.0 supports YUY2; USB 2.0 supports MJPG, H.264, YUY2, NV12, H.265; USB 3.0 supports YUY2.
3.5mm input for embedding audio into your live stream
Compatible with live streaming software and online platforms such as vMix, Wirecast, Echo360, Zoom, Skype, Meet, GoToMeeting, YouTube, Facebook, Linkedin, Instagram, Twitter, Twitch, and more
UPC: 850050134053
In the Box
- BZBGEAR Live Streaming HD PTZ Camera with Auto-Tracking, Tally & 30x Zoom (White)
- IR Remote Control
- Power Adapter
- RS-232 Control Cable
- USB 2.0 Cable
- USB 3.0 Cable
-
Limited 3-Year Manufacturer Warranty
Registration Extension: 2-Year
BZBGEAR BG-ADAMO-JR 30x Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1/25 Seconds
|
| Optical Zoom Ratio |
30x
|
| External Recording Modes |
SDI/BNC / HDMI
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps USB 1920 x 1080p up to 30.00 fps 1280 x 720 up to 30.00 fps 1024 x 576 up to 30.00 fps 960 x 540 up to 30.00 fps 800 x 448 up to 30.00 fps 640 x 480p up to 30.00 fps 640 x 360 up to 30.00 fps 320 x 176 up to 30.00 fps 432 x 240 up to 30.00 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, MJPEG
1920 x 1080 at 60p |
| Supported Control Protocols |
IP
IR Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA |
| PoE Support |
PoE 802.3af
|
Imaging
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1/25 Seconds
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.05 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: Auto, Color Temperature, Manual, One Push
|
Lens
| Focal Length |
5.2 to 148.4mm
|
| Optical Zoom Ratio |
30x
|
| Field of View |
Horizontal: 58.1 to 2.14°
Vertical: 33.8 to 1.2° |
| Maximum Aperture |
f/1.3 to 4.8
|
Video Capture
| External Recording Modes |
SDI/BNC / HDMI
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps USB 1920 x 1080p up to 30.00 fps 1280 x 720 up to 30.00 fps 1024 x 576 up to 30.00 fps 960 x 540 up to 30.00 fps 800 x 448 up to 30.00 fps 640 x 480p up to 30.00 fps 640 x 360 up to 30.00 fps 320 x 176 up to 30.00 fps 432 x 240 up to 30.00 fps |
| Embedded Audio |
HDMI/LAN (RJ45)/SDI/USB
|
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, MJPEG
1920 x 1080 at 60p |
Control
| Presets |
255 via IP, RS-232, VISCA
10 via IR |
| Move Speed |
Pan: 1.4 to 100°/sec
Tilt: 2.9 to 30°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°) |
| Tally Light |
Yes
|
| Supported Control Protocols |
IP
IR Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA |
Interface
| Media/Memory Card Slot |
Single Slot: microSDXC Only
|

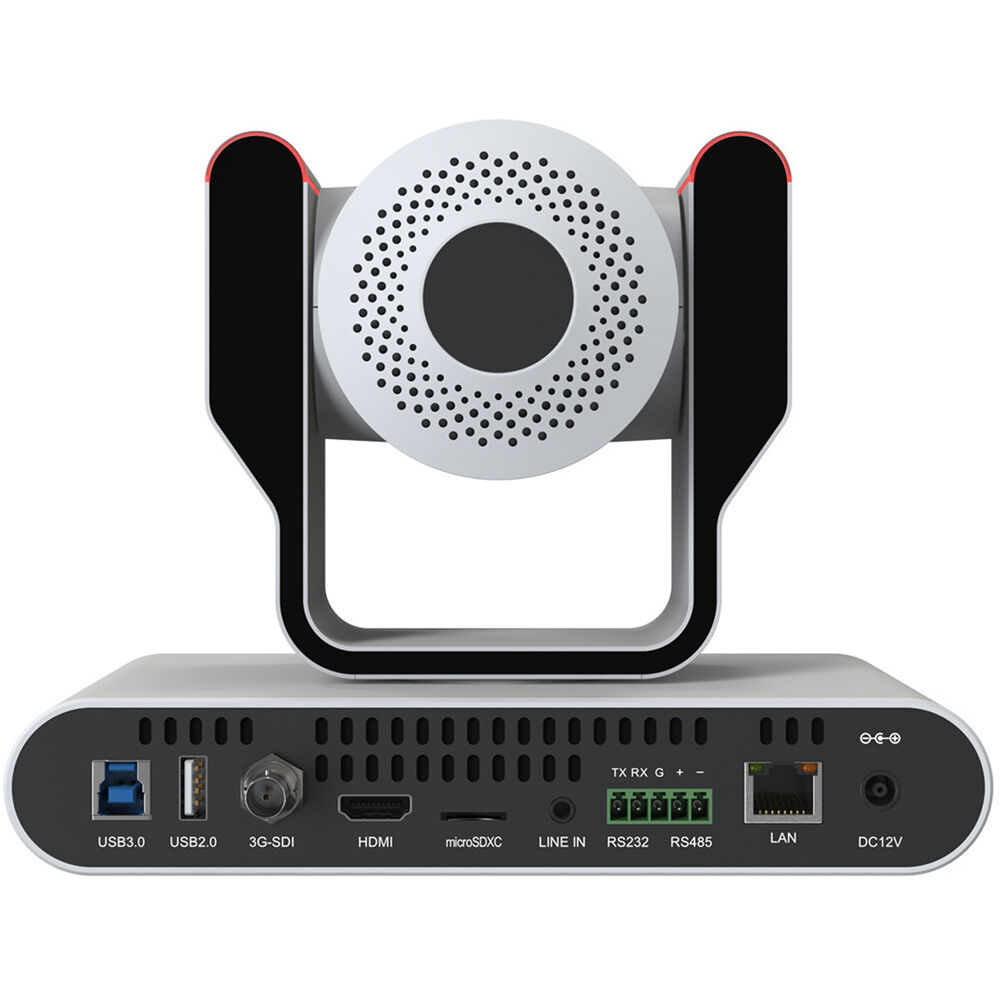

| Video I/O |
1x USB-B 3.0 / 3.1/3.2 Gen 1 Output
1x USB-A 2.0 Output 1x HDMI Output 1x BNC (12G-SDI) Output 1x RJ45 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1x Block (RS-422, RS-485) Input
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x Barrel (12VDC at 1.5 A) Input
|
| Power Consumption |
Power Supply: 110 to 220 VAC at 1.5 A (12 W)
|
Environmental
| Operating Temperature |
14 to 122°F / -10 to 50°C
|
| Storage Temperature |
14 to 140°F / -10 to 60°C
|
| Operating Humidity |
20 to 80%
|
| Storage Humidity |
20 to 95%
|
General
| OS Compatibility |
Windows
macOS 11 or Later |
| Mobile App Compatible |
Yes: iOS Only
App Name: BZBGEAR Cameras Control Functionality: Adjust Settings, Remote Control, View Live Feed |
| Weight |
4 lb / 1.8 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
