Description
BZBGEAR BG-ADAMO-4K 25x Overview

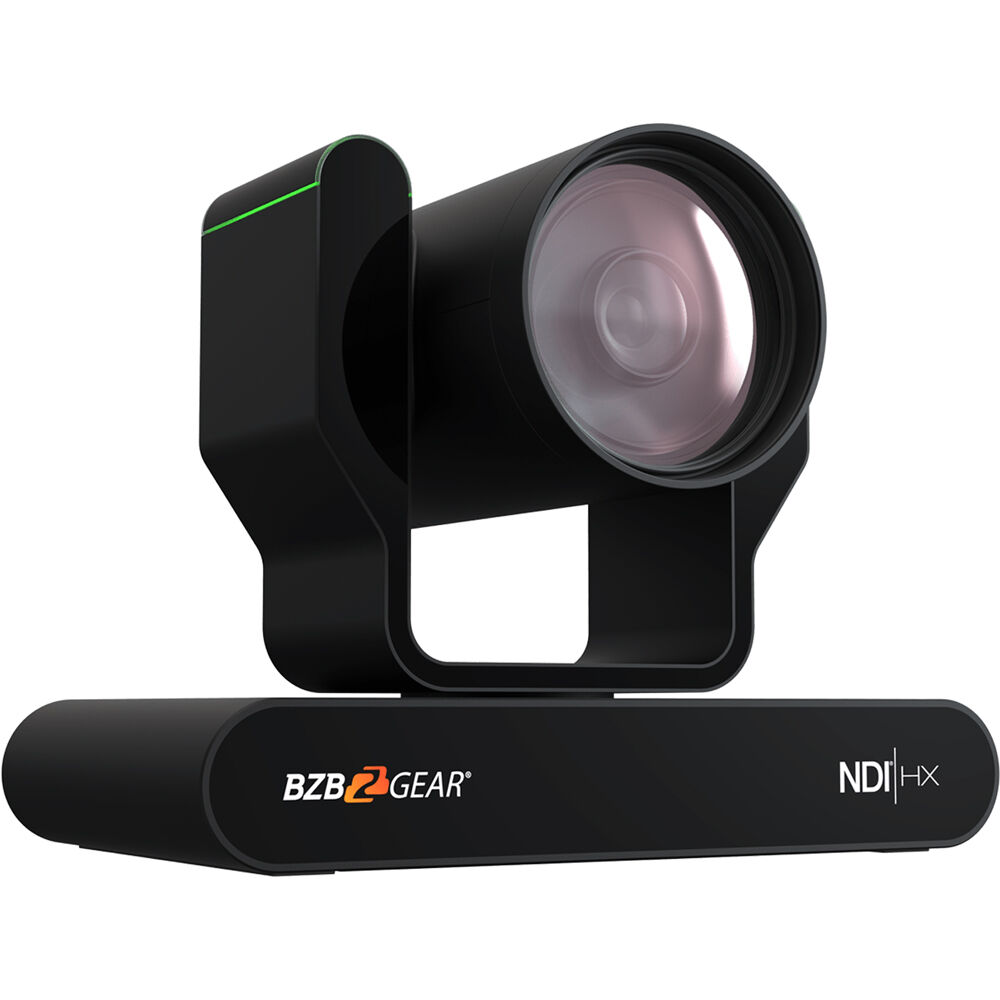

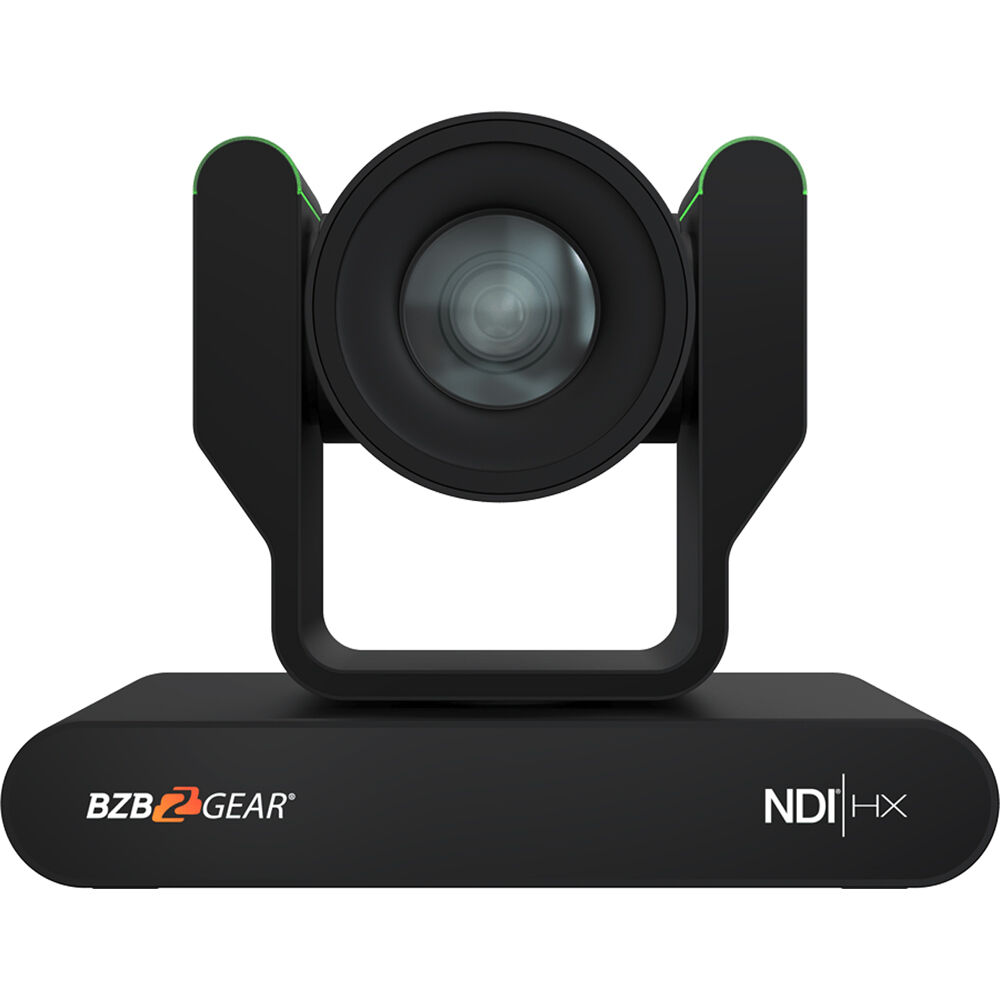

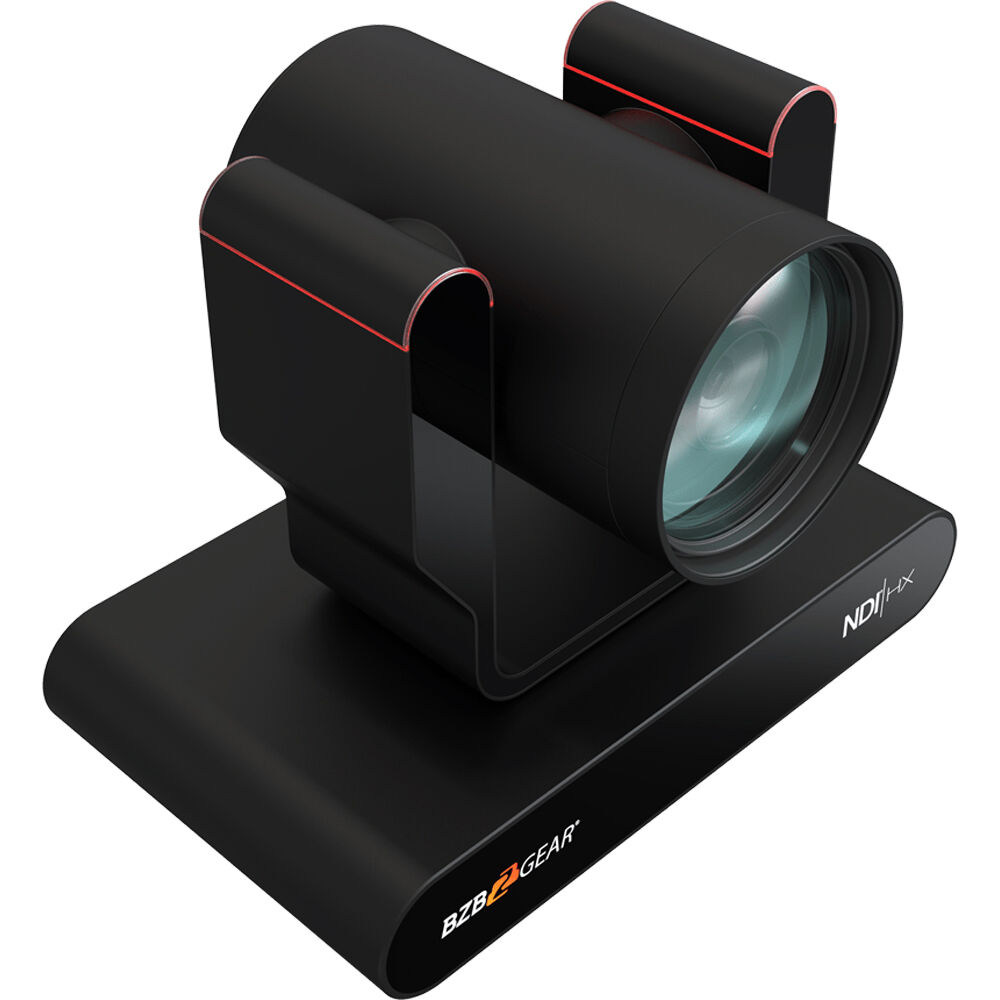

BZBGEAR BG-ADAMO-4K 4K UHD 12G-SDI/HDMI2.0/USB 2.0/USB 3.0/IP PTZ Camera Exclusive Preview!
BZBGEAR BG-ADAMO 4K UHD HDMI 2.0/12G-SDI/USB 2.0/USB 3.0/NDI PTZ CAMERA with Tally Lights
By Photo's
Jennifer Hahn
Capture high-resolution UHD 4K imagery in your conference room, event space, or house of worship with the black Live Streaming 4K NDI PTZ Camera with Tally Lights & 25x Optical Zoom from BZBGear. This camera features a 1/1.8" Sony 4K CMOS sensor, a 25x optical zoom, accurate autofocus, and simultaneous output via HDMI, 12G-SDI, USB 3.0, USB 2.0, NDI|HX and IP streaming with SRT support. The NDI protocol, NewTek's innovative IP technology, gives you low-latency access to audio and video devices anywhere on your network for various A/V applications. You can embed analog audio into your video using the 3.5mm audio input.
You can record the camera's capture up to 4K resolution onto an optional microSD card up to 1TB. The camera features LED tally lights to indicate the camera is on or idle. The camera supports PoE (Power-over-Ethernet) so it can be controlled, powered, and can stream over one connector, and it also supports RS-232 and RS-422 serial control.
Key Features
25x optical zoom lens
4K60 resolutions provide fluid motion, clear image, and accurate colors
NDI|HX support
Auto focusing algorithms resulting in quick, accurate, and stable focus
Web interface control via the IP address; camera preview access
IR remote control
Supports IP and serial control protocols (VISCA IP, ONVIF / Pelco-P/D, VISCA)
Free BG-PTZ-Control app/program for macOS and Windows
Supports RTSP, RTMP, RTMPS, ONVIF, and GB/T28181
12G-SDI, HDMI, USB 2.0/3.0, LAN / Power-over-Ethernet
H.264/H.265 video compression formats provide excellent image quality
3.5mm input for embedding audio into your live stream
Compatible with live streaming software and online platforms such as vMix, Wirecast, Echo360, Zoom, Skype, Meet, GoToMeeting, YouTube, Facebook, Linkedin, Instagram, Twitter, Twitch, and more
UPC: 850033687354
In the Box
- BZBGEAR Live Streaming 4K NDI PTZ Camera with Tally Lights & 25x Optical Zoom (Black)
- IR Remote Control
- Power Adapter
- Limited 5-Year Manufacturer Warranty
Guides & Manuals
BZBGEAR BG-ADAMO-4K 25x Specs
Key Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.51 Megapixel
|
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1/25 Second
|
| Optical Zoom Ratio |
25x
|
| External Recording Modes |
SDI/BNC / HDMI / RJ45
3840 x 2160 at 25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps USB 3840 x 2160 at 29.97 fps 1920 x 1080p at 29.97 fps 1280 x 720 at 29.97 fps 1024 x 576 at 29.97 fps 960 x 540 at 29.97 fps 800 x 448 at 29.97 fps 640 x 480p at 29.97 fps 640 x 360 at 29.97 fps 320 x 176 at 29.97 fps 432 x 240 at 29.97 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264, H.265, MJPEG, NDI|HX, ONVIF, RTMP, RTSP
3840 x 2160 at 30p 1920 x 1080 at 25p, 30p, 50p, 60p 1280 x 720 at 25p, 30p, 50p, 60p 1024 x 768 at 30p 1024 x 576 at 30p 960 x 540 at 30p 800 x 600 at 30p 800 x 448 at 25p 720 x 576 at 30p, 50p 720 x 480 at 25p, 30p, 60p 704 x 576 at 30p 640 x 480 at 30p 640 x 360 at 30p 432 x 240 at 30p 352 x 288 at 30p 320 x 240 at 30p |
| Supported Control Protocols |
IP
Pelco-D Pelco-P RS-232 RS-422 VISCA |
| PoE Support |
PoE 802.3af
|
Imaging
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.51 Megapixel
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1/25 Second
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.5 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
3000 to 7000K
Presets: Auto, Manual, One Push |
Lens
| Focal Length |
7.1 to 171.9mm
|
| Optical Zoom Ratio |
25x
|
| Field of View |
Horizontal: 59.2 to 2.5°
Vertical: 34.6 to 1.4° |
| Maximum Aperture |
f/1.61 to 5.19
|
Video Capture
| External Recording Modes |
SDI/BNC / HDMI / RJ45
3840 x 2160 at 25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps USB 3840 x 2160 at 29.97 fps 1920 x 1080p at 29.97 fps 1280 x 720 at 29.97 fps 1024 x 576 at 29.97 fps 960 x 540 at 29.97 fps 800 x 448 at 29.97 fps 640 x 480p at 29.97 fps 640 x 360 at 29.97 fps 320 x 176 at 29.97 fps 432 x 240 at 29.97 fps |
| Audio Recording |
AAC Audio
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264, H.265, MJPEG, NDI|HX, ONVIF, RTMP, RTSP
3840 x 2160 at 30p 1920 x 1080 at 25p, 30p, 50p, 60p 1280 x 720 at 25p, 30p, 50p, 60p 1024 x 768 at 30p 1024 x 576 at 30p 960 x 540 at 30p 800 x 600 at 30p 800 x 448 at 25p 720 x 576 at 30p, 50p 720 x 480 at 25p, 30p, 60p 704 x 576 at 30p 640 x 480 at 30p 640 x 360 at 30p 432 x 240 at 30p 352 x 288 at 30p 320 x 240 at 30p |
Control
| Presets |
255 via IP, RS-232, VISCA
10 via IR |
| Move Speed |
Pan: 0.1 to 120°/sec
Tilt: 0.1 to 80°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°) |
| Tally Light |
Yes
|
| Supported Control Protocols |
IP
Pelco-D Pelco-P RS-232 RS-422 VISCA |

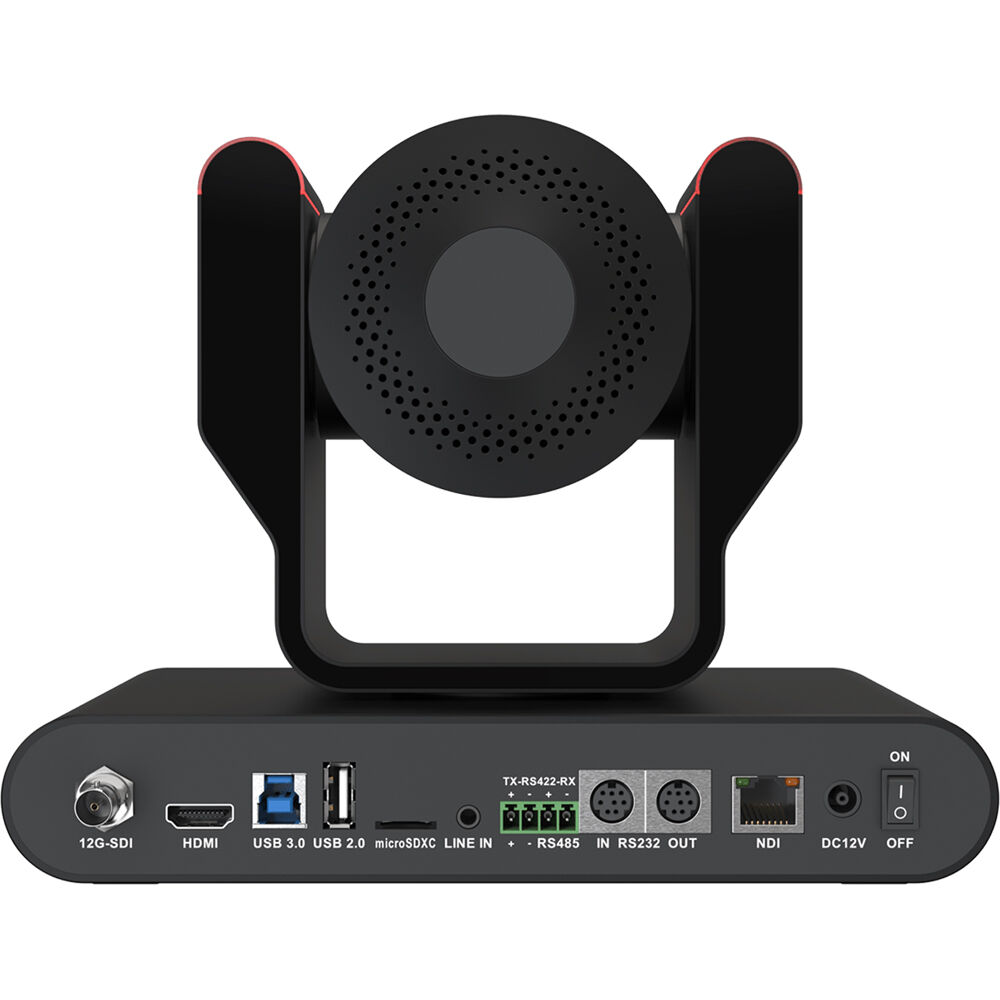

Interface
| Media/Memory Card Slot |
Single Slot: microSDXC Only
|
| Video I/O |
1 x USB-B 3.0 / 3.1/3.2 Gen 1 Output
1 x USB-A 2.0 Output 1 x HDMI Output 1 x BNC (12G-SDI) Output 1 x RJ45 (NDI) Output |
| Audio I/O |
1 x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1 x Block (RS-422, RS-485) Input
1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output |
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1 x Barrel (12VDC at 2.5 A) Input
|
| Power Consumption |
Power Supply: 110 to 220 VAC at 1.5 A (12 W)
|
Environmental
| Operating Temperature |
22 to 82°F / -10 to 50°C
|
| Storage Temperature |
14 to 140°F / -10 to 60°C
|
| Operating Humidity |
20 to 80%
|
| Storage Humidity |
20 to 95%
|
General
| Mobile App Compatible |
Yes: iOS Only
App Name: BZBGEAR Cameras Control Functionality: Adjust Settings, Remote Control, View Live Feed *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Dimensions (W x H x D) |
5.9 x 7 x 7.9" / 150.2 x 177.5 x 200 mm
|
| Weight |
4 lb / 1.8 kg
|
Packaging Info
| Package Weight |
7.14 lb
|
| Box Dimensions (LxWxH) |
11.7 x 10.2 x 9.5"
|
