Description
BZBGear BG-KIT2CAM4KBROADCASTER Overview

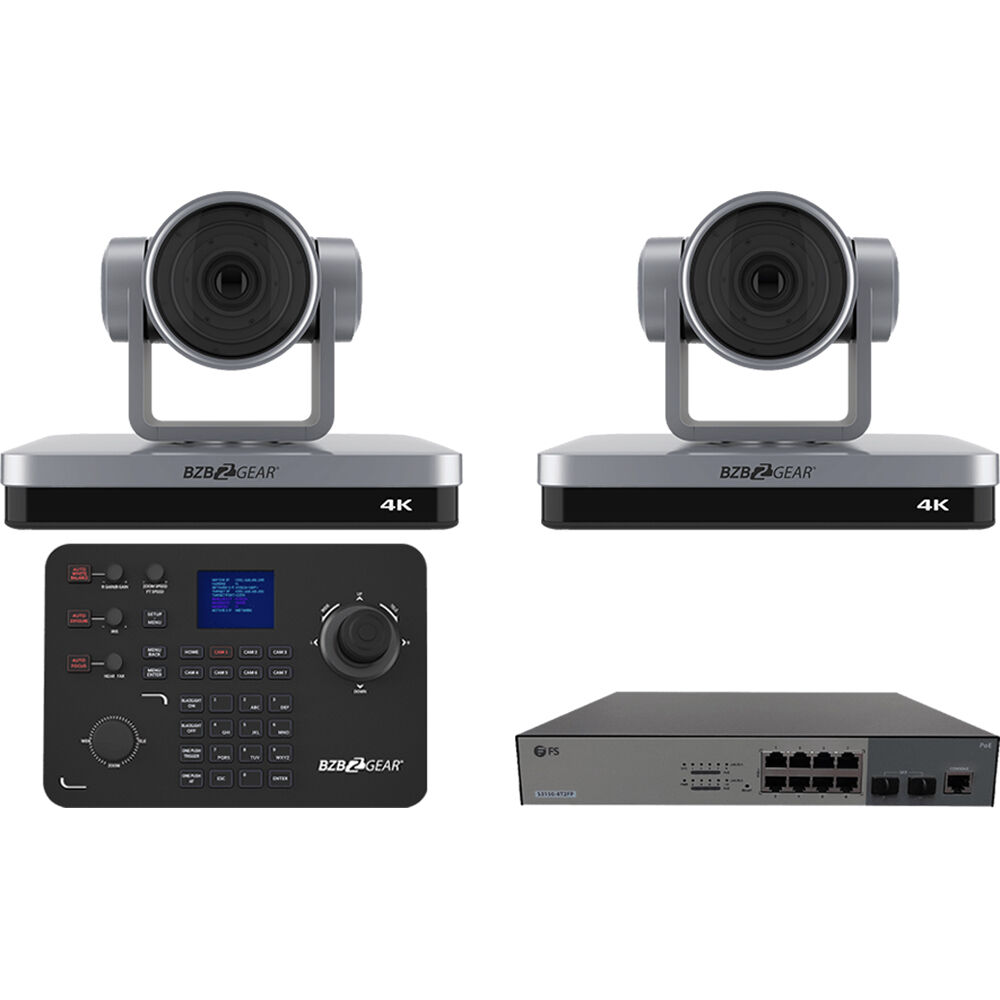

Set up a compact broadcast environment in your classroom, meeting room, or house of worship with this Broadcast Kit with 2 x 12x Zoom 4K NDI PTZ Cameras, Joystick Controller & PoE Switch from BZBGear. The kit includes two silver 4K NDI/HDMI/USB 3.0 live streaming PTZ cameras with 12x zoom, an 8-Port 1G Ethernet PoE+ Switch with eight PoE+ ports and two 1Gb SFP uplinks, and the third-gen BG-Commander Universal Advanced IP/RS-232/RS-422 PTZ controller with joystick.
The kit provides the main components you'll need to get started with a PoE network with cameras and remote IP/serial control. Read more below about the items in this kit.
Add a high-quality, multi-function PTZ camera to your conference room, event space, or house of worship with the silver 4K NDI/HDMI/USB 3.0 Live Streaming PTZ Camera with 12x Zoom from BZB Gear. The camera features a 1/2.5" Sony 4K CMOS sensor and outputs over HDMI, or you can use the NDI or NDI|HX protocols to stream video and audio, control (IP), and tally.
The camera supports uncompressed video transmission over NDI and MJPEG, H.265, H.264, and NDI|HX compression formats. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems. You can also control the unit via its RS-422 serial input with a separately available serial PTZ controller.
Equipped with a 12x optical zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look. The lens also has a wide 80.4° field of view for capturing large meeting rooms. It features HDMI and USB 3.0/2.0 outputs as well as its RJ45 Ethernet output that can transmit up to 4K video on any NDI network, and the low-latency NDI|HX compression maintains high quality without any degradation. The RTMP/RTMPS streaming protocols are also supported so you can broadcast live directly to internet streaming sites. The camera also supports 3.5mm audio input, allowing you to capture and embed audio within the video signal.
Remotely control up to four PTZ cameras from a single location in a house of worship, corporate conference room, event setting, or studio production with the Universal Advanced PTZ IP/RS-232/422 Controller with Joystick from BZBGear. The plug-and-play controller offers joystick and button control for your PTZ cameras with support for VISCA-over-IP and ONVIF protocols over IP and serial RS-232/422 communication using VISCA and Pelco-P/D protocols. It enables you to control the speed of your pan, tilt, zoom, and lock moves, and it incorporates a bright LCD screen.
The controller also offers presets including white balance, gain, iris, focus, backlight, and speed control settings to control the finer settings on the PTZ camera. The unit can be powered with a 12 VDC power supply or using Power-over-Ethernet (PoE) on a supported LAN.
In the Box
- 2 x BZBGear 4K NDI/HDMI/USB 3.0 Live Streaming PTZ Camera with 12x Zoom (Silver)
- Power Adapter
- IR Remote
- RS-232 Cable
- USB 3.0 Cable
- Limited 2-Year Warranty
- BZBGear 8-Port 1G Ethernet PoE+ Switch with 8 x PoE+ Ports and 2 x 1Gb SFP Uplinks
- BZBGear Universal Advanced PTZ IP/RS-232/422 Controller with Joystick (3rd Gen)
- 12 VDC Power Adapter

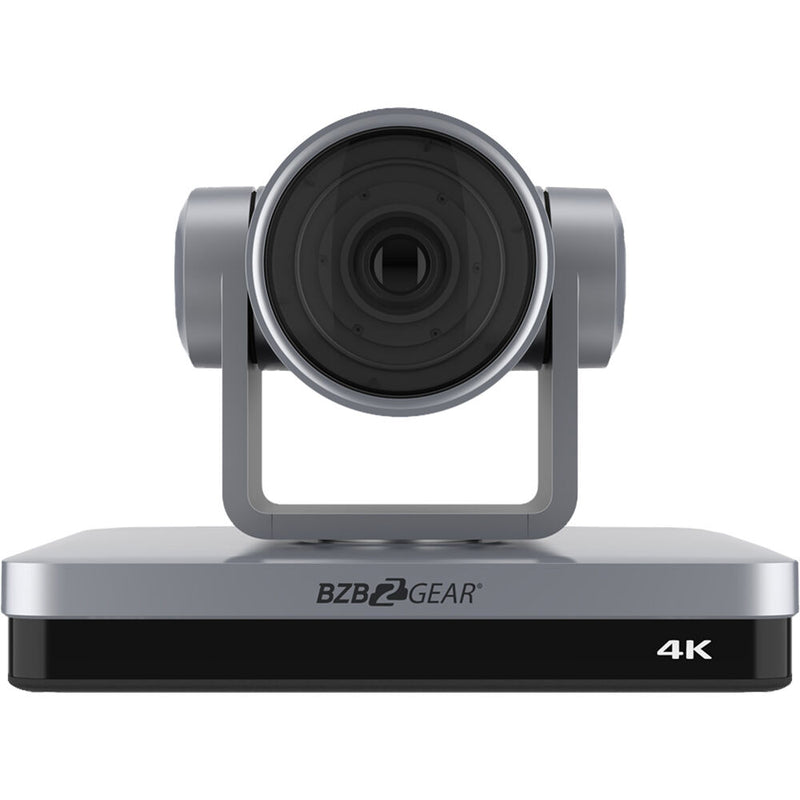

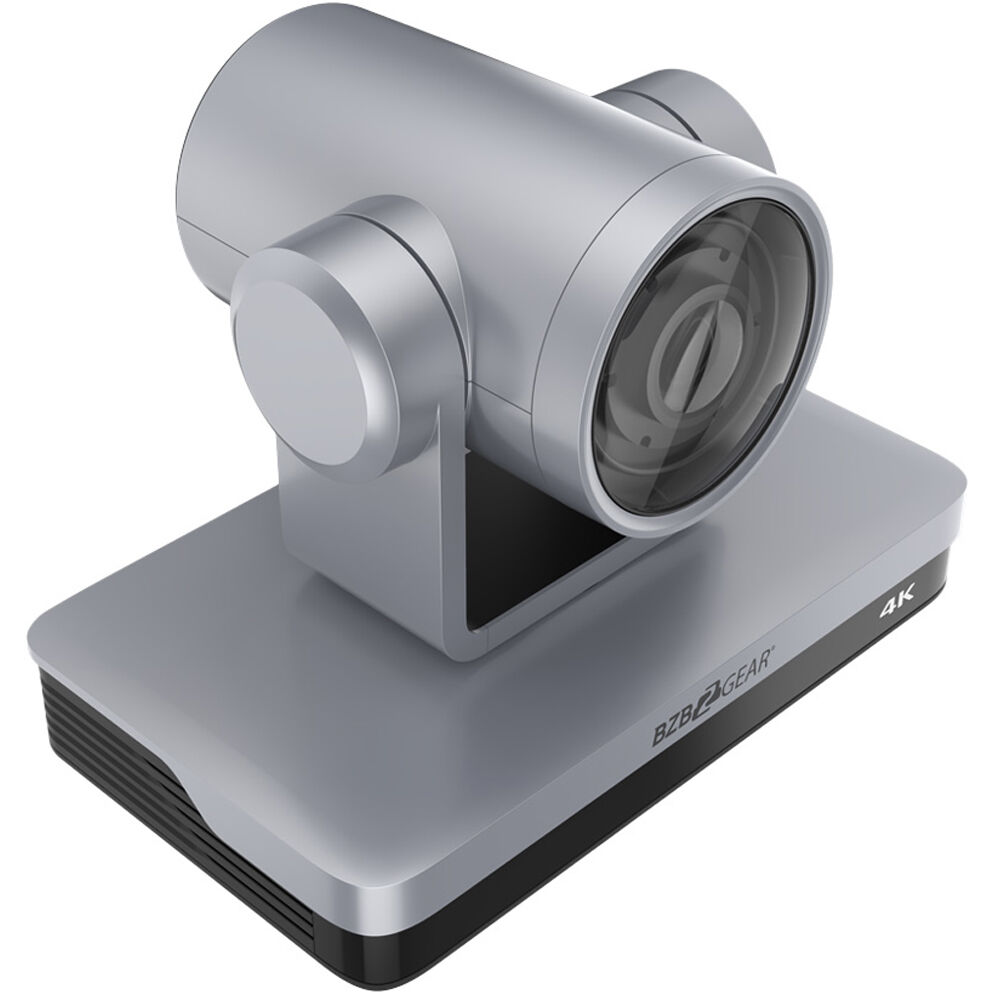

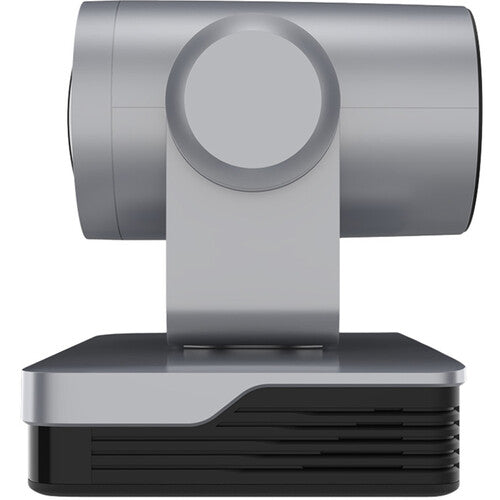

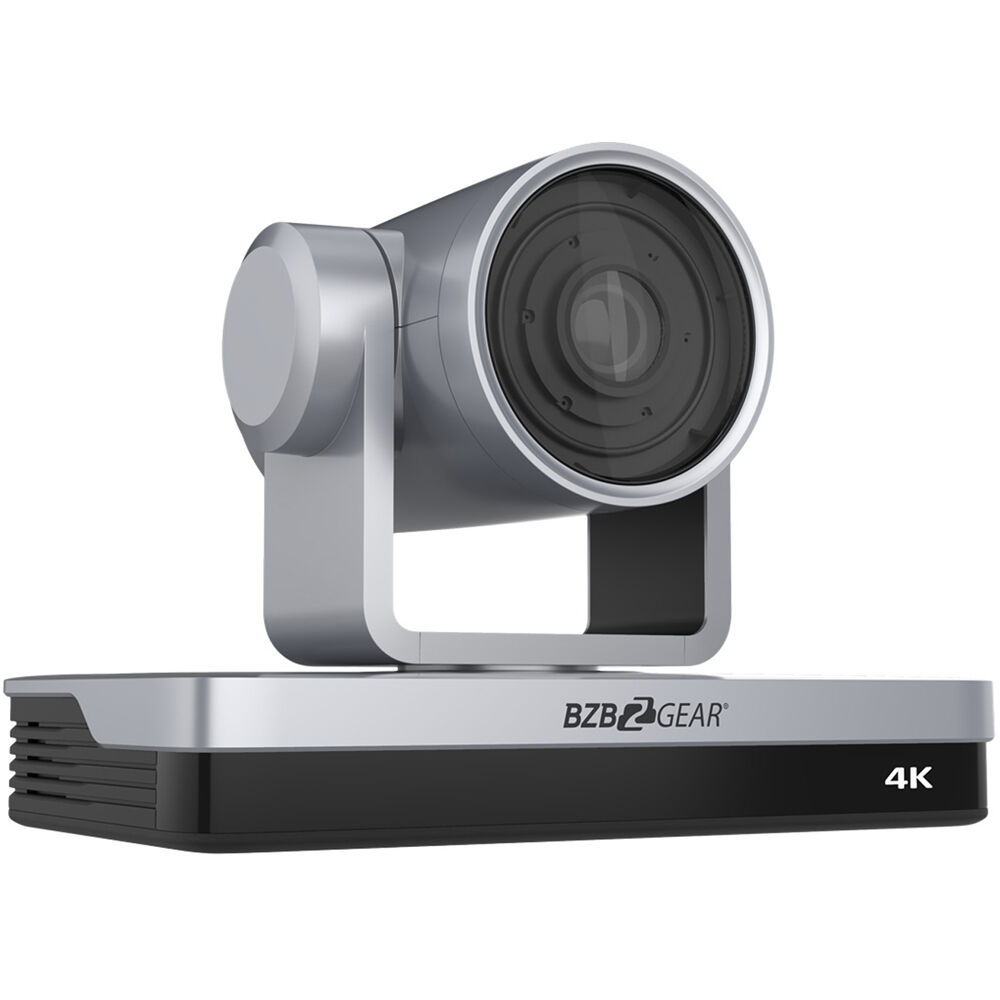

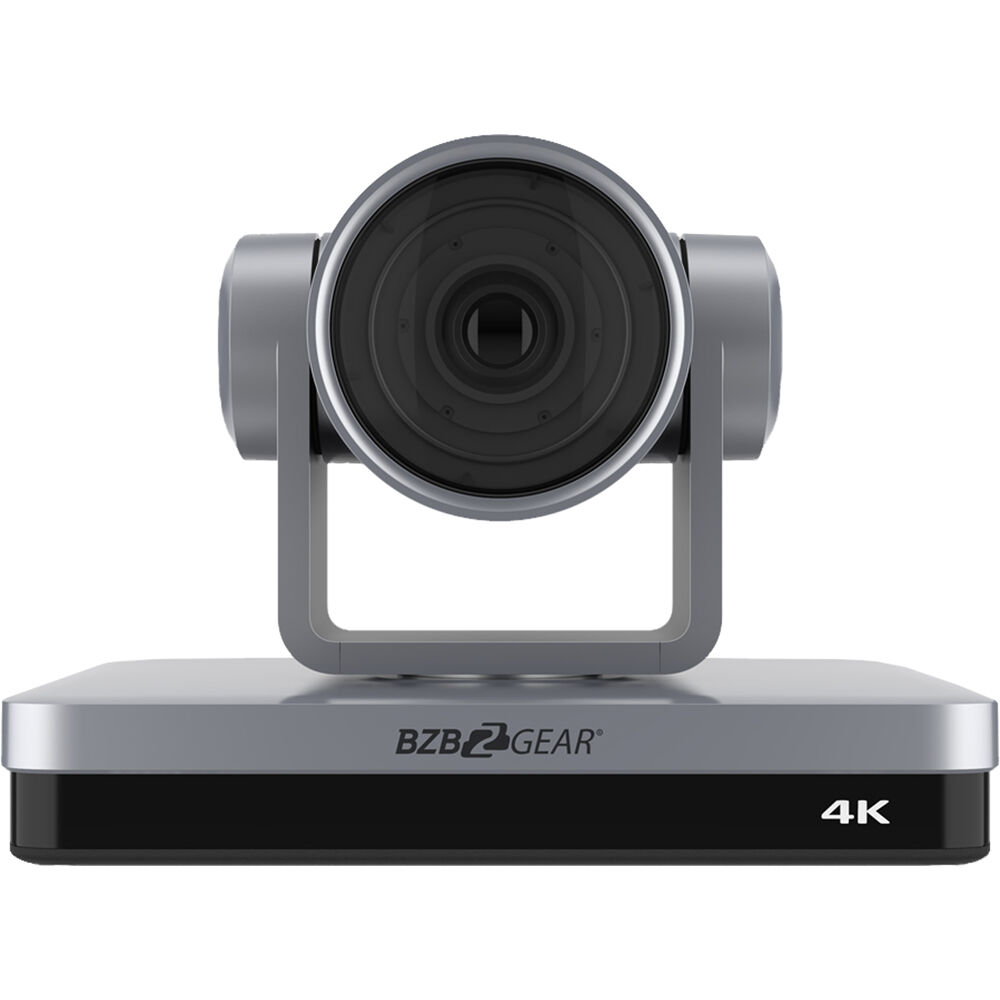

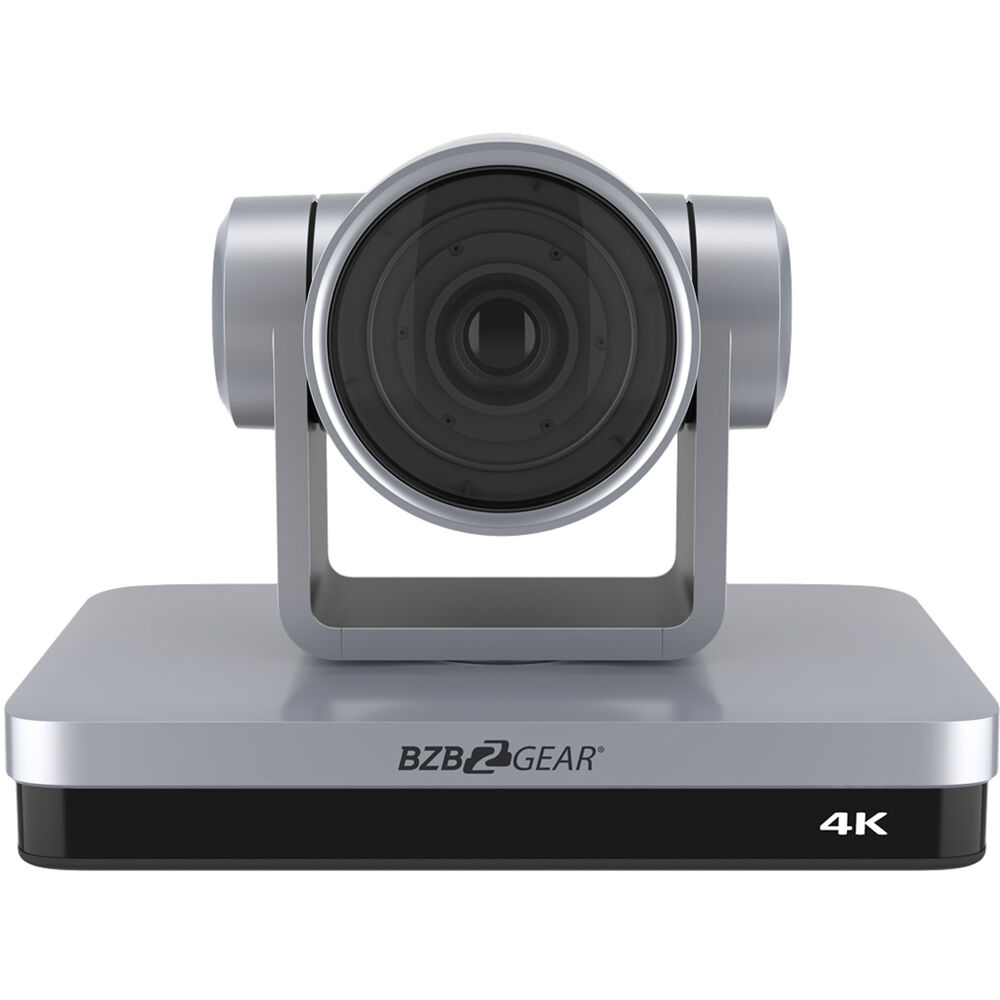

BZBGear 4K NDI/HDMI/USB 3.0 Live Streaming PTZ Camera with 12x Zoom (Silver) Specs
| Sensor Type | 1/2.5"-Type CMOS Sensor |
| Sensor Resolution | Effective: 8.51 Megapixel |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/10000 to 1/25 Second |
| Precise Scan Rate Control | Yes |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| Focal Length | 3.8 to 43mm |
| Optical Zoom Ratio | 12x |
| Field of View | Horizontal: 7.59 to 80.4° Vertical: 4.6 to 50° |
| Maximum Aperture | f/1.8 to 3.56 |
| External Recording Modes | HDMI 3840 x 2160 at 25/29.97/50/59.94 fps 1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080PsF at 23.98/25/29.97 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps USB 3840 x 2160 at 30.00 fps 1920 x 1080p at 30.00 fps 1280 x 720 at 30.00 fps 1024 x 576 at 30.00 fps 960 x 540 at 30.00 fps 800 x 448 at 30.00 fps 640 x 360 at 30.00 fps 640 x 480p at 30.00 fps 320 x 176 at 30.00 fps |
| Broadcast Output | NTSC |
| IP Streaming | H.264, H.265, MJPEG 3840 x 2160 2592 x 1944 2304 x 1296 1920 x 1080 1280 x 720 640 x 480 640 x 380 320 x 240 320 x 180 |
| Presets | 255 via IP, RS-232, VISCA 10 via IR |
| Move Speed | Pan: 0.1 to 120°/sec Tilt: 0.1 to 80°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP RS-422 |
| Video I/O | 1 x USB-B 3.0 / 3.1/3.2 Gen 1 Output 1 x HDMI Output 1 x RJ45 (NDI) Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1 x Block (RS-422, RS-485) Input 1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output |
| PoE Support | PoE 802.3af |
| Power I/O | 1 x Barrel (12VDC up to 2.5 A) Input |
| Power Consumption | Power Supply: 110 to 220 VAC at 1 A (12 W) |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 95% |
| OS Compatibility | Windows macOS 11 or Later *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| App Compatible | Yes: iOS Only App Name: BZBGEAR Cameras Control = Functionality: Adjust Settings, Remote Control, View Live Feed *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Dimensions (W x H x D) | 6.2 x 7.4 x 7.9" / 157.5 x 189 x 201 mm |
| Weight | 5.7 lb / 2.6 kg |
| Package Weight | 7.355 lb |
| Box Dimensions (LxWxH) | 13.9 x 10.9 x 10.2" |
BZBGear Universal Advanced PTZ IP/RS-232/422 Controller with Joystick (3rd Gen) Specs
| Number of Supported Cameras | 7 Channels |
| Supported Control Protocols | IP Pelco-D Pelco-P RS-232 RS-422 VISCA |
| Control I/O | 1 x RJ45 (LAN) 1 x Block (RS-422) 1 x DE-15/DB-15 (RS-232) |
| Controls | 1 x Pan/Tilt, Zoom Joystick 1 x Iris Adjustment Knob 1 x Gain Knob 1 x Focus Knob 1 x Auto-Focus Button 2 x Programmable Buttons 7 x Camera Selection Buttons 8 x Multifunction Buttons |
| Touchscreen | No |
| PoE Support | Yes |
| Power Connectors | 1 x Barrel / Coaxial |
| Power Consumption | 0.6 W |
| DC Input Power | 12 VDC at 1 A |
| Operating Temperature | 22 to 87°F / -10 to 55°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Security Lock Support | None |
| Dimensions | 13.4 x 10.6 x 5.5" / 34 x 26.8 x 14 cm |
| Weight | 7 lb / 3.2 kg |
| Package Weight | 5.165 lb |
| Box Dimensions (LxWxH) | 13.4 x 10.7 x 5.9" |
