Description
BZBGEAR BG-STREAM-DE Overview
Versatile Encoding/Decoding/Streaming Device
The
BG-STREAM-DE 1-Channel SDI/HDMI Encoder/Decoder/Recorder from
BZBGEAR is a powerful unit supporting up to 1080p60 input and UHD 4K60 output. It offers live streaming via RTSP, RTMP, HLS, SRT, and TS, and is Dante AV-H ready for use with a separate license. This compact device features USB-A 3.0 output for recording and both 3.5mm audio input and output.
Advanced Video Capabilities

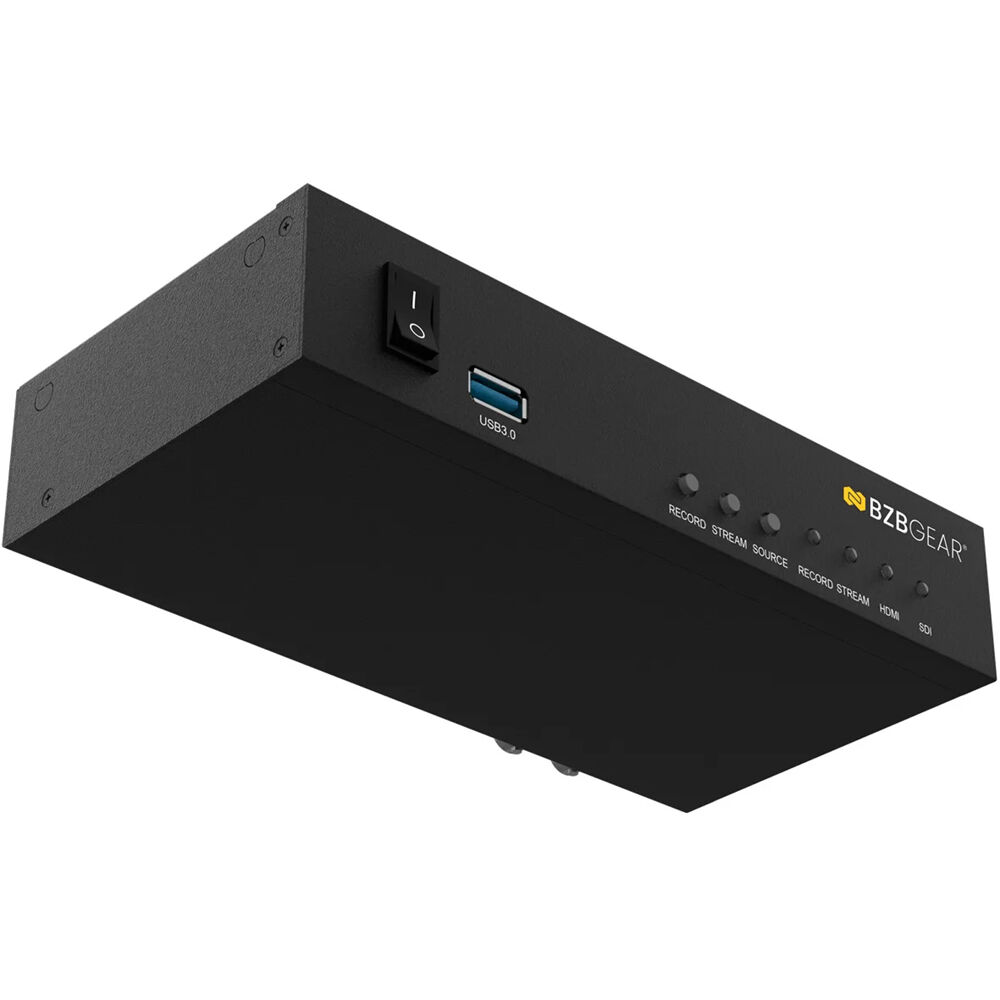

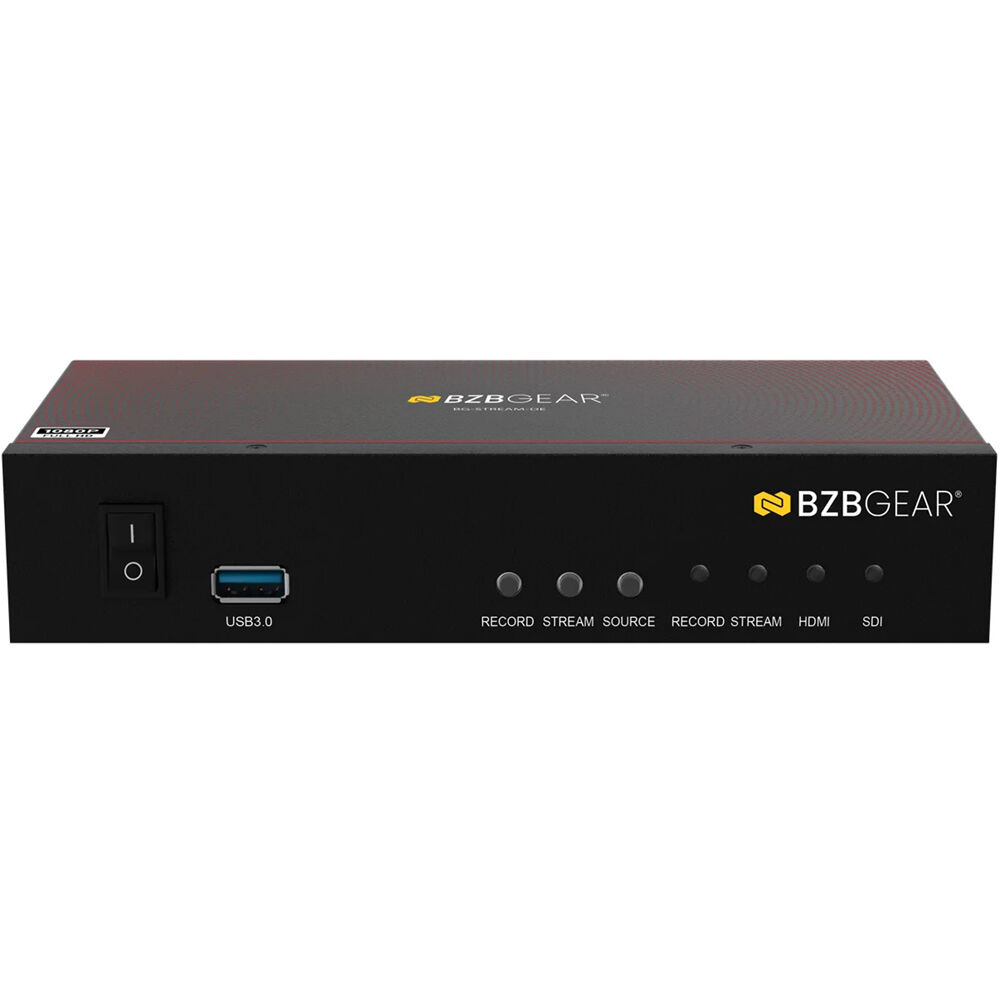

The BG-STREAM-DE offers advanced video features like H.265, H.264, and A/V encoding with Baseline, Main, and High-Profile options, AAC audio input, and a range of output resolutions to suit different applications. Its user-friendly design incorporates front panel Record, Stream, and Source select buttons and two USB-A 2.0 ports for peripheral devices like keyboards.
Streaming Options
The RJ45 GbE Ethernet port supports multiple streaming protocols including HLS, RTMP (Publish), RTSP over HTTP/TCP/UDP (RTSP elementary stream), and TS over UDP (unicast and multicast). This BG-STREAM-DE version is ready for Dante AV-H use with a separately available license.
Video Resolutions
Encoder mode (streaming):
HDMI in: Up to 4K60 / HDMI loop out: 4K60
SDI: 1080p60
IP (RTMP, SRT, NDI, DANTE AV-H): 1080p60
Decoder mode:
HDMI out: 1080p60
SDI: 1080p60
USB: 1080p60
HDMI in: Up to 4K60 / HDMI loop out: 4K60
SDI: 1080p60
IP (RTMP, SRT, NDI, DANTE AV-H): 1080p60
Decoder mode:
HDMI out: 1080p60
SDI: 1080p60
USB: 1080p60
USB 3.0 Recording
Use the USB-A 3.0 output to record up to UHD 4K60 video in MP4, TS, or MOV formats.
Control Options
Control the BG-STREAM-DE via the user-friendly web GUI or using a keyboard and mouse configuration.
UPC: 850050134831
- BZBGEAR BG-STREAM-DE 1-Channel SDI/HDMI Encoder/Decoder/Recorder with USB 3.0 (Dante AV-H Ready)
- 12 VDC Power Adapter
- Limited 5-Year Manufacturer Warranty
BZBGEAR BG-STREAM-DE Specs
Key Specs
| Video I/O |
Input
1x HDMI 2.0 Female 1x BNC (12G-SDI) Output 1x HDMI 2.0 Female (Program) 1x HDMI 2.0 Female (Loop Output) 1x BNC (12G-SDI) Female (Loop Output) |
| Embedded Audio |
HDMI/LAN (RJ45)/SDI Input
HDMI/LAN (RJ45)/SDI Output |
| Max Recording Modes |
No
|
| IP Video |
Encoding via H.264/H.265/MP4/TS
1920 x 1080p to 4096 x 2160 at 50/60fps Decoding via H.264/H.265/MP4/TS 1920 x 1080p at 50/60fps |
| IP Audio |
Encoding, Decoding
AAC |
| Media/Memory Card Slot |
No
|
Inputs/Outputs
| Video I/O |
Input
1x HDMI 2.0 Female 1x BNC (12G-SDI) Output 1x HDMI 2.0 Female (Program) 1x HDMI 2.0 Female (Loop Output) 1x BNC (12G-SDI) Female (Loop Output) |
| Audio I/O |
Input
1x 1/8" / 3.5 mm TRS Output 1x 1/8" / 3.5 mm TRS |
| Other I/O |
Input/Output
1x RJ45 (10/100/1000 Ethernet) 2x USB-A 2.0 Output 1x USB-A 3.0 / 3.1/3.2 Gen 1 |
Format Support
| Embedded Audio |
HDMI/LAN (RJ45)/SDI Input
HDMI/LAN (RJ45)/SDI Output |
| Internal Recording |
No
|
Standards
| HDCP Support |
Yes
|
| Broadcast System Compatibility |
NTSC, PAL
|
IP Streaming
| IP Video |
Encoding via H.264/H.265/MP4/TS
1920 x 1080p to 4096 x 2160 at 50/60fps Decoding via H.264/H.265/MP4/TS 1920 x 1080p at 50/60fps |
| IP Audio |
Encoding, Decoding
AAC |
| Transport Protocols |
HLS, RTMP, RTSP, TS-MPEG, UDP
|
Hardware
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Cellular Support |
No
|
Power
| Power I/O |
1x Barrel (12 VDC ) Input
|
General
| Certifications |
TAA
|
| Dimensions |
8 x 3.9 x 1.6" / 203 x 100 x 41 mm
|
Packaging Info
| Package Weight |
2.135 lb
|
| Box Dimensions (LxWxH) |
10.4 x 7.7 x 3.6"
|
