Description
BZBGear BG-UM88 Overview

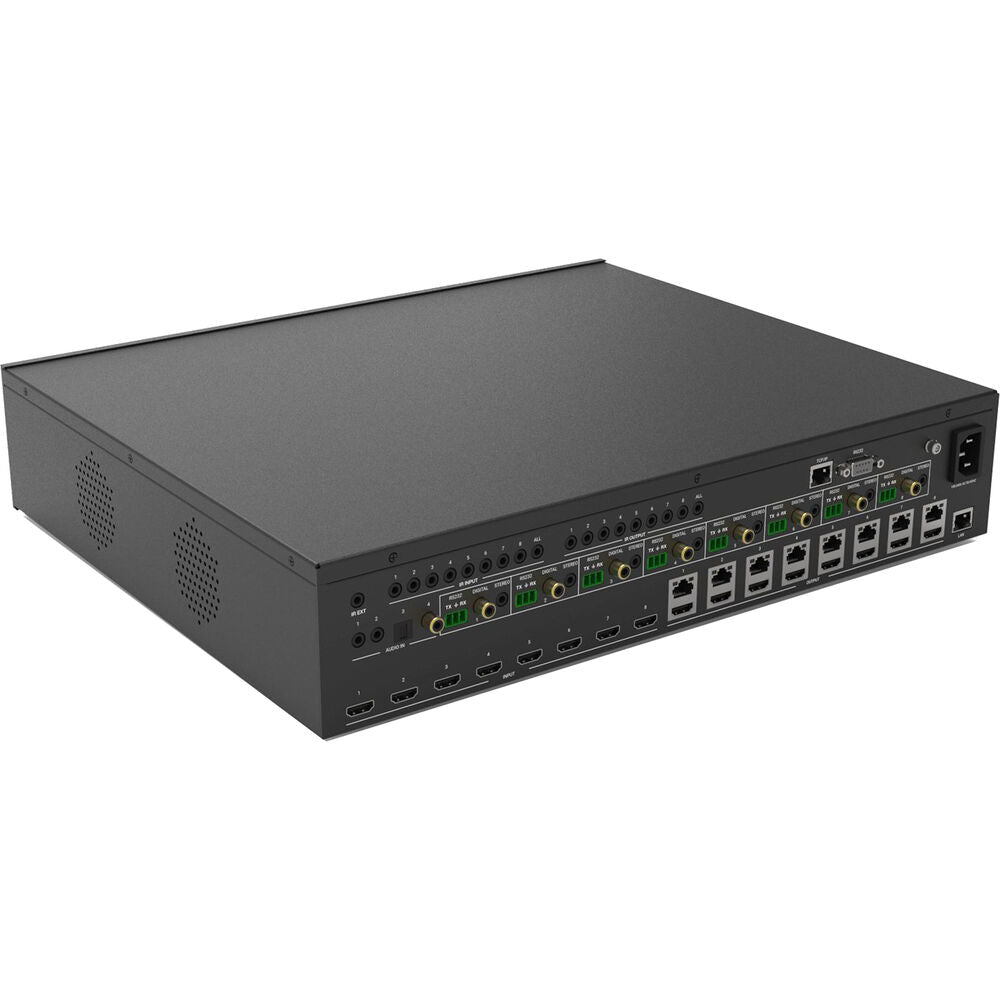

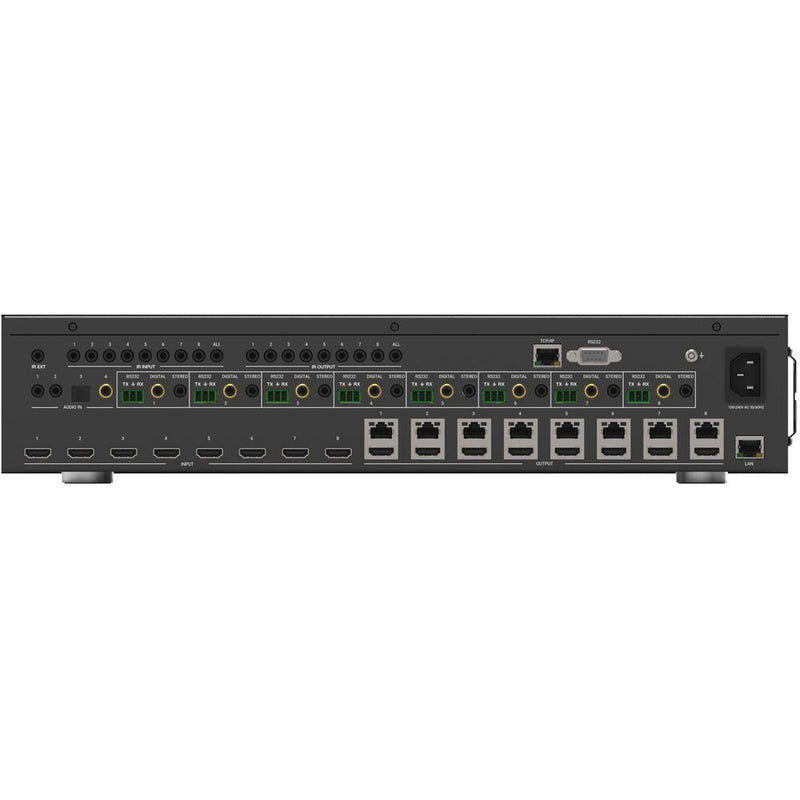

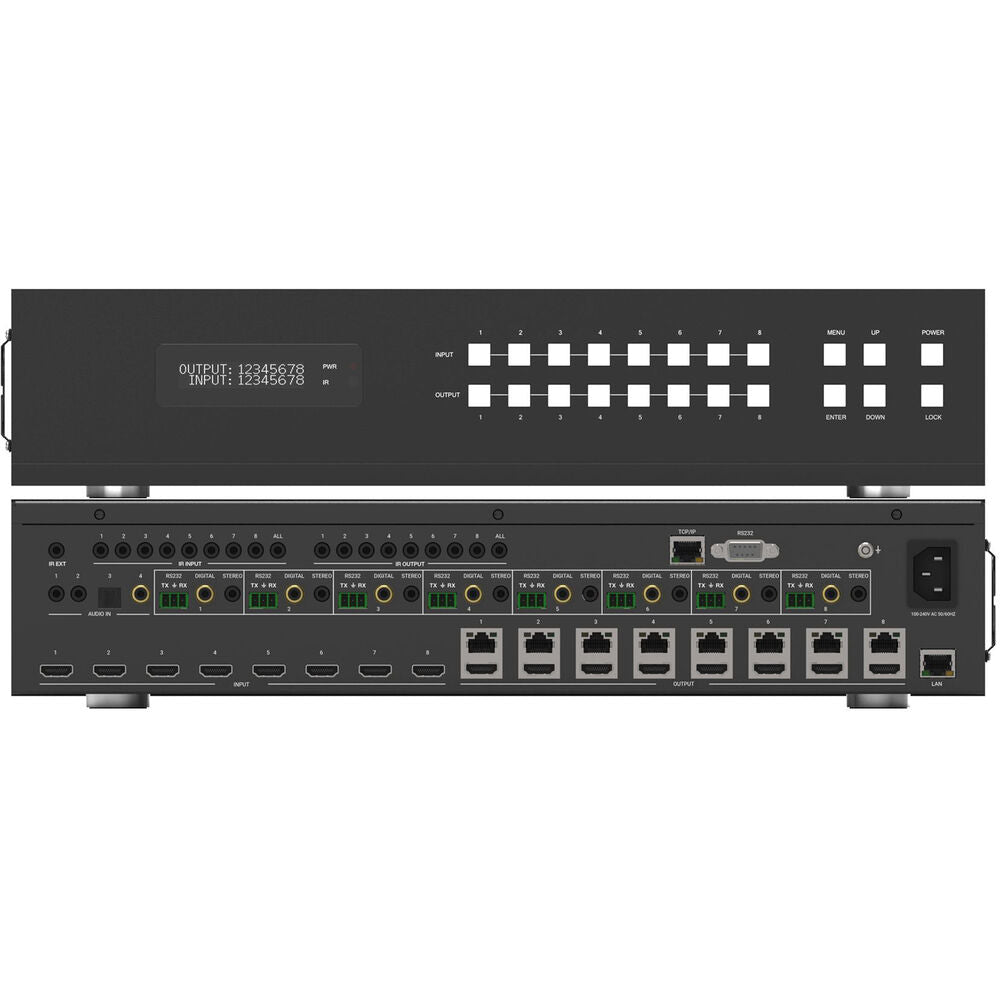

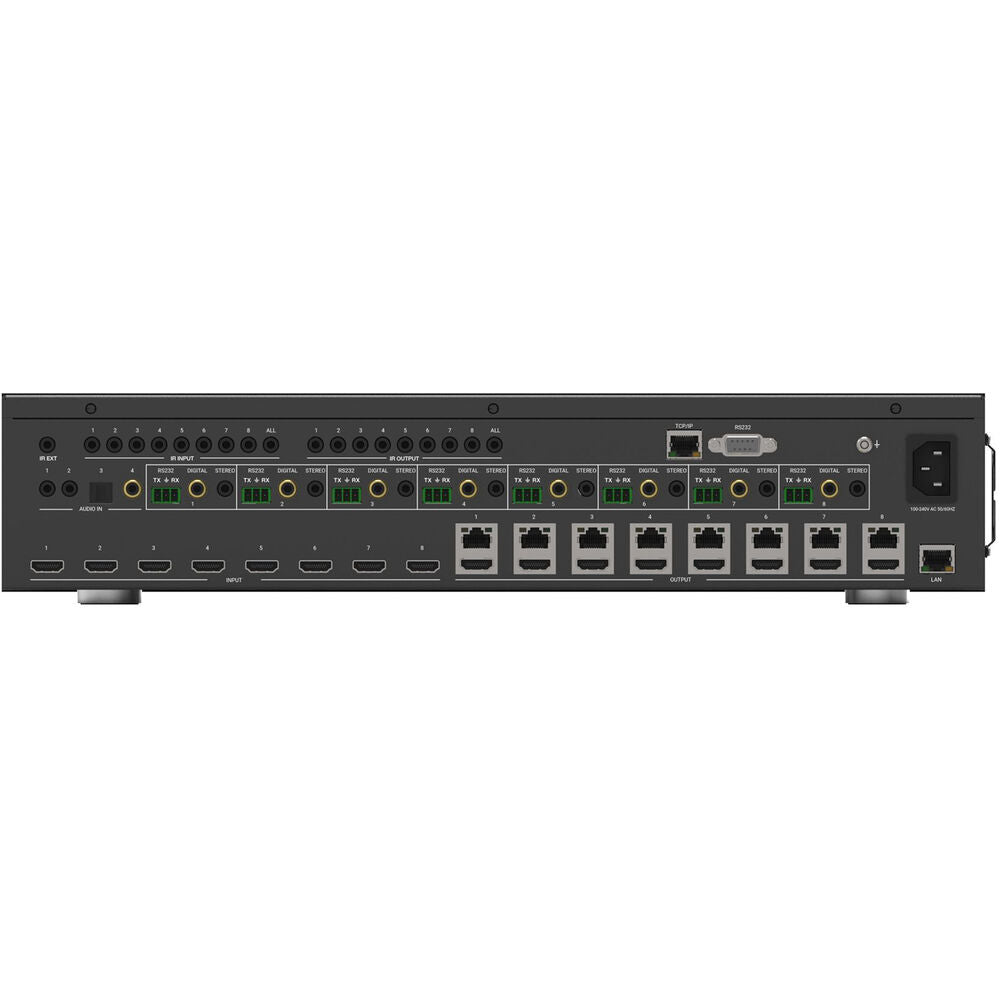

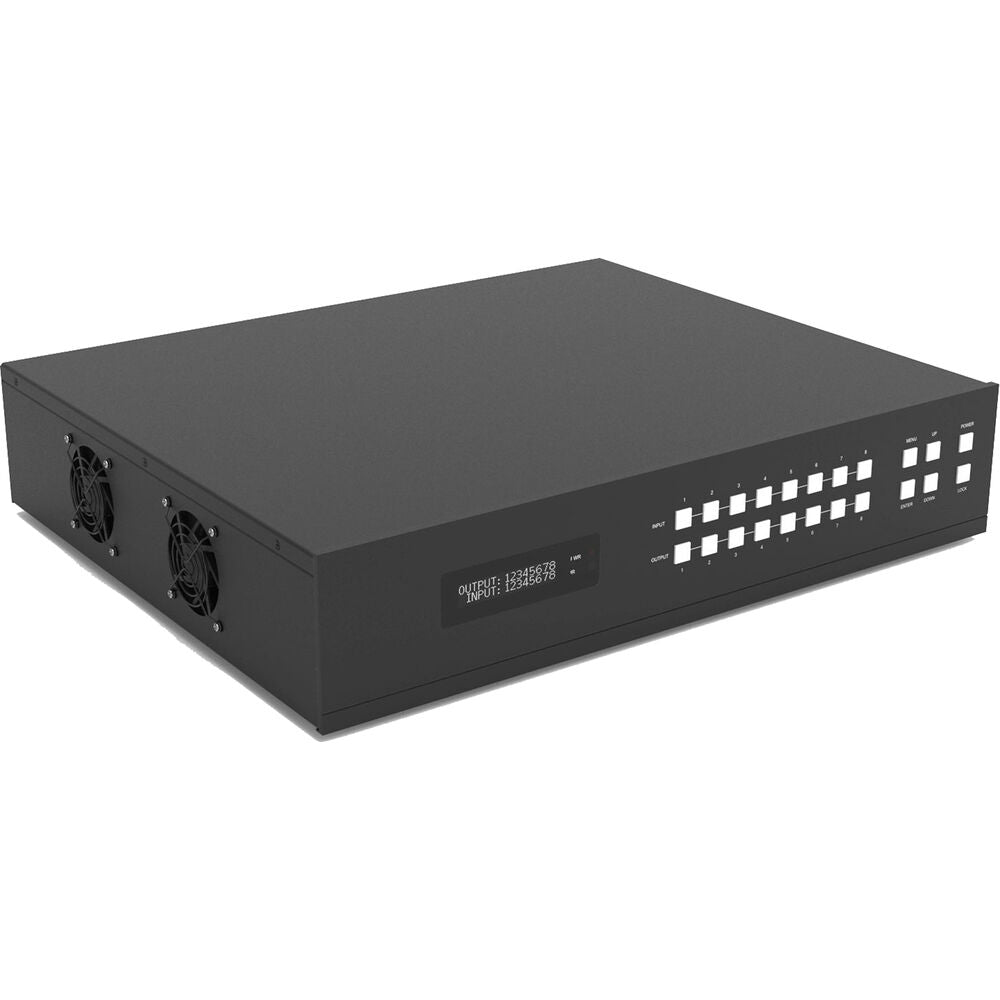

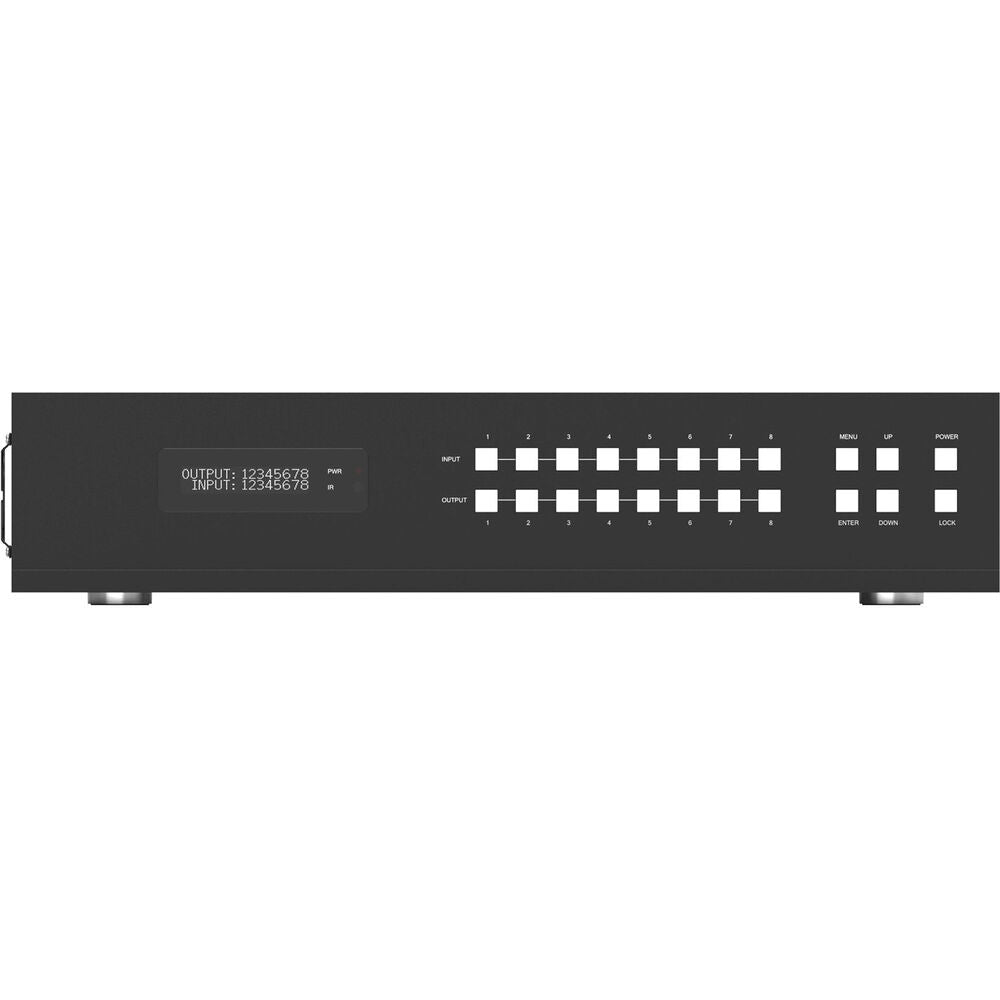

Add a matrix switcher to your video wall, event space, or video distribution environment with this 8x8 HDMI & HDBaseT Matrix Switch Kit with Bidirectional IR & ARC from BZB Gear. The matrix allows you to connect between up to eight HDMI sources with up to UHD 4K60 resolution to eight individual 4K displays, and you can mirror those outputs to the eight included receivers over HDBaseT to extend your output up to 328' from the source for a total of 16 display outputs.
This unit supports HDCP 2.2, EDID management, and can be controlled via IR remote as well as via RS-232 or IP WebGUI control over a LAN. There are also S/PDIF and 3.5mm analog audio inputs and outputs to insert and extract audio to and from your HDMI signal. The switcher also supports 4K to 1080p scaling, ARC return audio, bidirectional IR signaling, audio mixing, and DTS and Dolby Digital audio. The eight receivers are powered via HDBaseT cable from the main transmitter switch.
Key Features
In the Box
- BZBGear 8x8 HDMI & HDBaseT Matrix Switch Kit with Bidirectional IR & ARC (328')
- 8 x HDBaseT Receiver
- 8 x Power Cable
- IR Remote Control
- RS-232 Cable (4.9')
- 16 x 3-Pin Terminal Connectors
- 9 x IR Blaster Cable (4.9')
- 10 x IR Receiver Cable (4.9')
- 18 x Mounting Ear
- Limited 1-Year Warranty
BZBGear BG-UM88 Specs
| Switching Type | IR Remote, Pushbutton, Software |
| Color Processing | 4:4:4 |
| Video Input Connectors | 8 x HDMI (HDMI 2.0) Female |
| Input Video Format | HDMI (12-Bit 4:4:4/4:2:2/4:2:0) DCI 4K: 60 fps UHD 4K: 60 fps 1080p: 60 fps |
| Audio Input Connectors | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female 1 x TOSLINK Stereo S/PDIF Female 1 x RCA Stereo S/PDIF Female |
| Input Audio Format | Analog |
| Embedded Audio Input | HDMI: 2-Channel (per Input) |
| Video Output Connectors | 8 x HDMI (HDMI 2.0) Female 8 x RJ45 (HDBaseT) Female |
| Output Video Format | HDMI (12-Bit 4:4:4) UHD 4K: 60 fps 1080p: 60 fps |
| Audio Output Connectors | 8 x 1/8" / 3.5 mm TRS Stereo Analog Female 8 x RCA Stereo S/PDIF Female |
| Output Audio Format | Analog |
| Embedded Audio Output | HDMI: 2-Channel (per Output) |
| Other I/O | 10 x 3.5 mm IR Input 9 x 3.5 mm IR Output 1 x RJ45 LAN Input/Output 8 x 3-Pin Euroblock RS-232 Output |
| HDCP Support | Version 2.2 |
| HDR Compatibility | HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma |
| DTS Compatibility | DTS, DTS 96/24, DTS Express, DTS-HD High Resolution, DTS-HD Master Audio |
| Dolby Compatibility | Dolby Digital, Dolby Digital Plus, Dolby TrueHD |
| Power Connector | 1 x NEMA 5-15R Input |
| Power Consumption | Power Supply: 100 to 240 VAC (128 W) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | 20 to 90% |
| Weight | 15.2 lb / 6.9 kg |
