Description
BZBGear BG-MFVS61 Overview
Switch up to four different HDMI video inputs while monitoring the program feed with the 6-Channel 3G-SDI/HDMI Video Mixer & Switcher with PiP/USB 3.0 Capture from BZBGear. Concert productions, events, houses of worship, virtual studios, educational institutions, and live sports programming are some use cases where the switcher could be utilized. Its portable form factor makes it a TV studio you can take anywhere and set up with minimal effort or additional equipment.
The switcher features two HDMI and four 3G-SDI inputs that can connect to cameras or other consumer or professional sources for switching up to 1080p60 video with embedded audio. You can output video via the 3G-SDI or HDMI multiview outputs and 3G-SDI or HDMI program outputs using scaling features, allowing you to view them all on the same screen with configurable PiP functionality. You can also output program video via the USB Type-C port to a computer for video capture and streaming applications. You can also mix the audio using the two analog stereo 3.5mm mic/line or 2RCA stereo inputs and outputs along with embedded audio. You can also remotely control the switcher via IP using software using the LAN port.

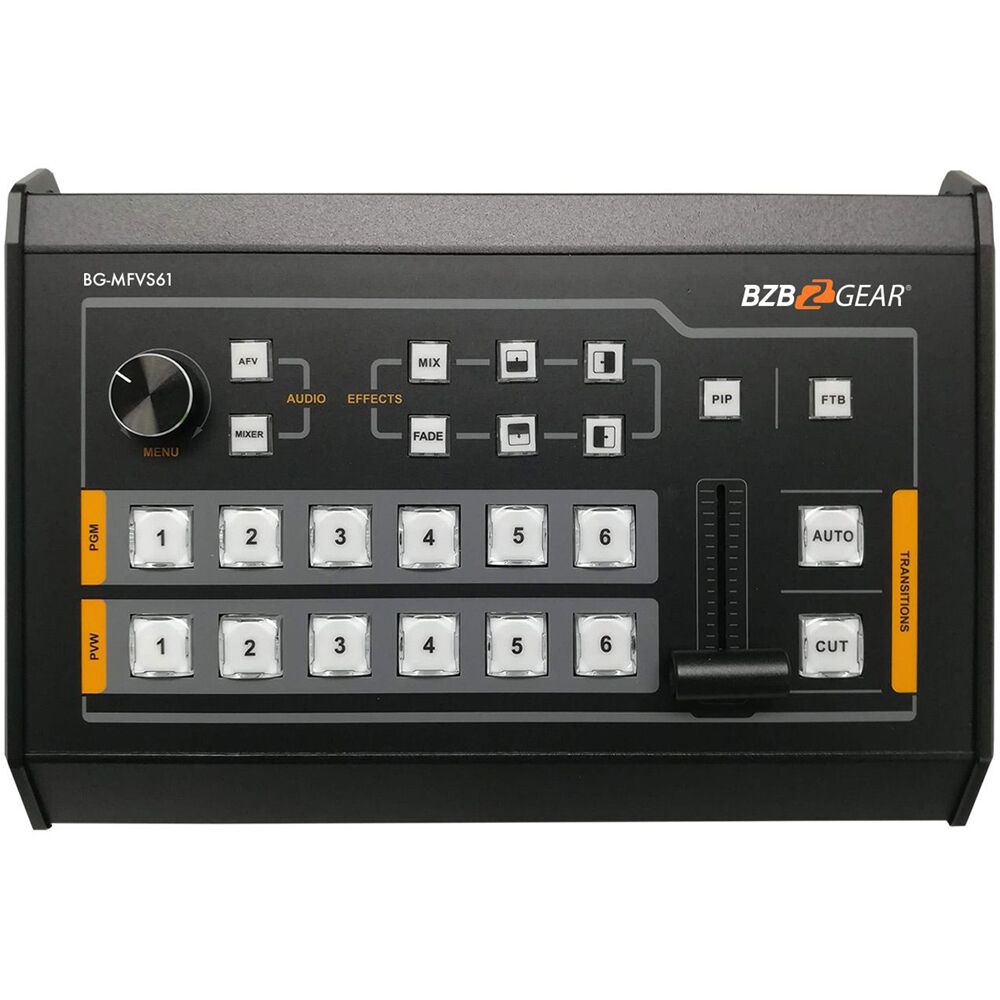

Its interface features source and destination buttons and a T-bar for transitions and cuts, as well as mix, fade, and wipe effects. The switcher features a tally interface that supports GPIO, mute, still frame, and fade-to-black (FTB) functionality. A power supply, a 3' USB Type-A to Type-C cable, and a padded carry case are included.
In the Box
- BZBGear 6-Channel 3G-SDI/HDMI Video Mixer & Switcher with PiP/USB 3.0 Capture
- Power Supply
- USB Type-A to Type-C Cable (3')
- Padded Carry Case
- Limited 3-Year Manufacturer Warranty
BZBGear BG-MFVS61 Specs
| Effect Types | 1 x Graphic, Transition |
| Graphics Memory | 32 Images |
| Audio Mixing | 2-Channel Mixing |
| Switching Type | Pushbutton, T-Bar |
| Processing Resolution | 1080p at 60 |
| Color Processing | YUV RGB |
| Number of Video Input Sources | 6 |
| Video Inputs | 2 x HDMI Female 4 x BNC (3G-SDI) Female |
| Input Video Format | HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps 576p 50 fps 576i / 625 lines 50 fps SDI 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps |
| Audio Inputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female 1 x 2RCA Stereo Analog Female |
| Input Audio Format | Analog |
| Embedded Audio Input | HDMI: 2-Channel (per Input) SDI: 2-Channel (per Input) |
| Video Output Channels | 6 |
| Video Outputs | 1 x HDMI Female (Program) 2 x BNC (3G-SDI) Female (Program) 1 x HDMI Female (Monitor) 1 x BNC (3G-SDI) Female (Monitor) 1 x BNC (3G-SDI) Female (Preview) 1 x USB-C (USB Video) Female |
| Output Video Format | HDMI / SDI 1080p at 24/25/30/50/60 fps 1080i 50/60 fps USB-C 1080p at 60 fps |
| Audio Outputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female 1 x 2RCA Stereo Analog Female |
| Output Audio Format | Analog |
| Embedded Audio Output | HDMI: 2-Channel (per Output) SDI USB-C: 2-Channel (per Output) |
| Multiview Output | 4-Way Multiview viaHDMI |
| Monitor Output | 1 x HDMI |
| Other I/O | 1 x DE-15/DB-15 Tally Input 1 x RJ45 LAN Input/Output |
| Video Standard Compliance | SMPTE 259M/292M/424M |
| HDCP Support | None |
| Wi-Fi | None |
| Bluetooth | None |
| Power I/O | 1 x Barrel (12 VDC) Input |
| Power Consumption | Device: 12 VDC at 1.8 A (22 W) |
| Operating Temperature | 12 to 92°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Dimensions | 13 x 9.6 x 2.6" / 33 x 24.4 x 6.7 cm |
| Weight | 2.2 lb / 1 kg |
| Package Weight | 5.085 lb |
| Box Dimensions (LxWxH) | 12.5 x 9.7 x 4.8" |
