Description

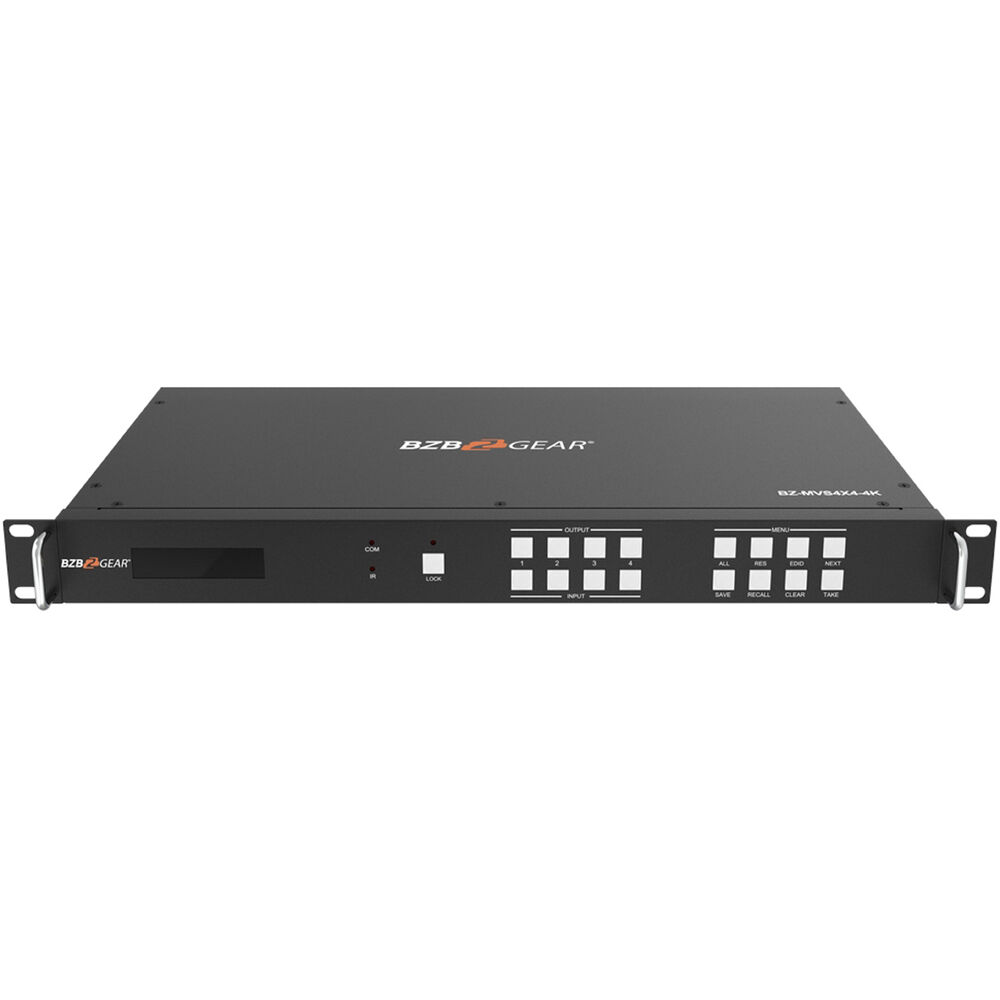

BZBGear BZ-MVS-4X4-4K Overview
Add a matrix switcher to your video wall, event space, or video distribution environment with this 4x4 HDMI 4K Video Wall Processor Matrix Switcher/Scaler from BZB Gear. The switching/scaling matrix allows you to connect up to four HDMI 2.0 sources with up to UHD 4K60 resolution to four individual 4K displays.
This unit supports HDCP 2.2, EDID management, and can be controlled via IR remote as well as via RS-232 or IP control over a LAN. There are also four terminal block analog audio inputs to insert audio into your HDMI signal, and there are four terminal block analog outputs to extract embedded audio from your HDMI inputs for output to a mixer or speaker system.
In the Box
- BZBGear 4x4 HDMI 4K Video Wall Processor Matrix Switcher/Scaler
- Power Cable
- IR Remote Control
- 4 x IR Receiver Cable (4.9')
- 4 x IR Blaster Cable (4.9')
- USB to RS-232 Cable
- 3-Pin Terminal Connector
- Cat 6 Cable
BZBGear BZ-MVS-4X4-4K Specs
| Switching Type | IR Remote, Pushbutton, Software |
| Color Processing | 4:4:4 |
| Video Inputs | 4 x HDMI (HDMI 2.0) Female |
| Input Video Format | HDMI (4:4:4 RGB, YCC) UHD 4K at 25/30/50/60 fps 1080p up to 50/60 fps 1080i up to 50/60 fps 720p up to 50/60 fps WUXGA (1920 x 1200) at 60 fps UXGA (1600 x 1200) at 60 fps 1280 x 768 at 60 fps SXVGA (1280 x 1024) at 60 fps XGA (1024 x 768) at 60 fps |
| Audio Inputs | 4 x Block 3-Pin Stereo Analog Female |
| Input Audio Format | Analog |
| Embedded Audio Input | HDMI: 2-Channel (per Input) |
| Video Outputs | 4 x HDMI (HDMI 2.0) Female |
| Output Video Format | HDMI (4:4:4 RGB, YCC) UHD 4K at 25/30/50/60 fps 1080p up to 50/60 fps 720p up to 50/60 fps WUXGA (1920 x 1200) at 60 fps UXGA (1600 x 1200) at 60 fps 1280 x 768 at 60 fps SXGA (1280 x 1024) at 60 fps XGA (1024 x 768) at 60 fps |
| Audio Outputs | 4 x Block 3-Pin Stereo Analog Female 4 x TOSLINK Stereo Female |
| Output Audio Format | Analog |
| Embedded Audio Output | HDMI: 2-Channel (per Output) |
| Other I/O | 4 x 1/8" / 3.5 mm IR Input 4 x 1/8" / 3.5 mm IR Output 1 x RJ45 LAN Input/Output 1 x Block 3-Pin RS-232 Input/Output |
| HDCP Support | Version 2.2 |
| Wi-Fi | None |
| Bluetooth | None |
| Power I/O | 1 x IEC C14 Input |
| Power Consumption | Power Supply: 100 to 240 VAC (60 W) |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | 10 to 50% |
| Rack Form Factor | 1 RU |
| Dimensions | 16.9 x 8.7 x 1.7" / 430 x 220 x 44 mm |
| Weight | 176.4 oz / 5 kg |
BZBGear BZ-MVS-4X4-4K Reviews
