BZBGear BG-UMV Overview

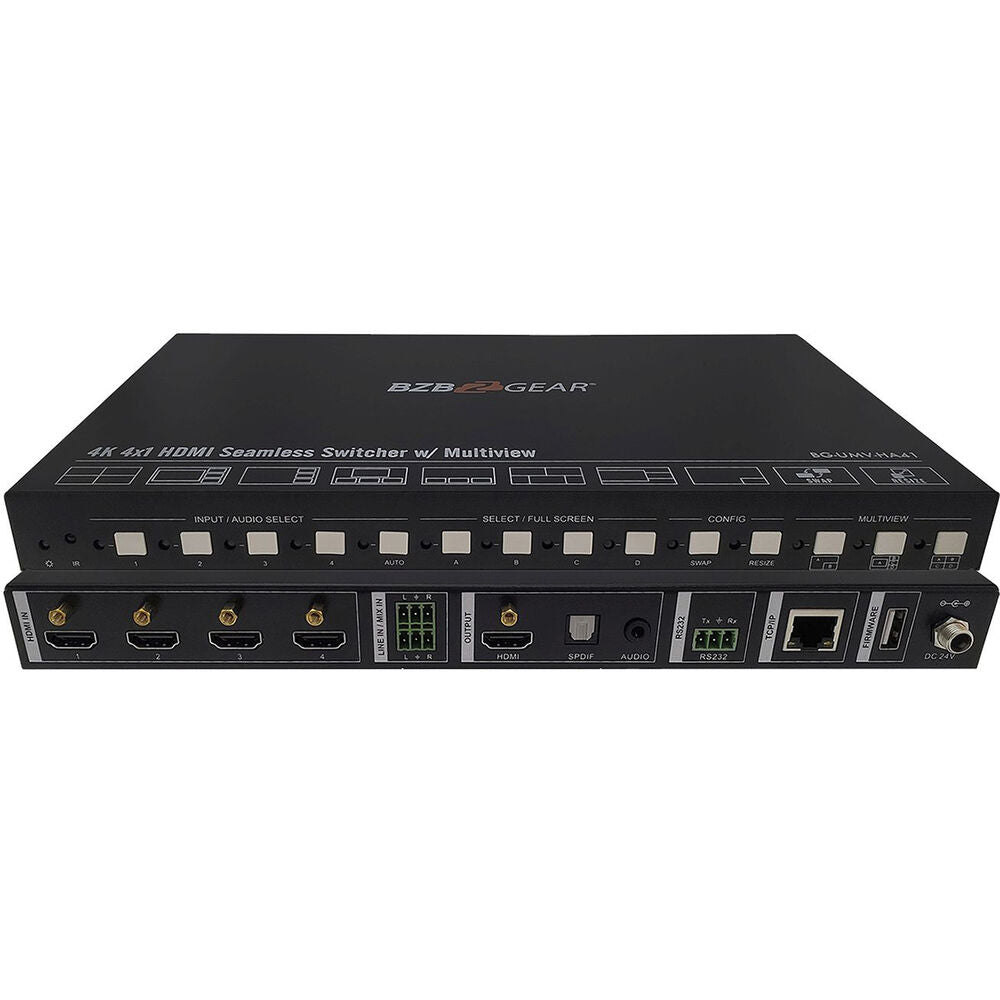

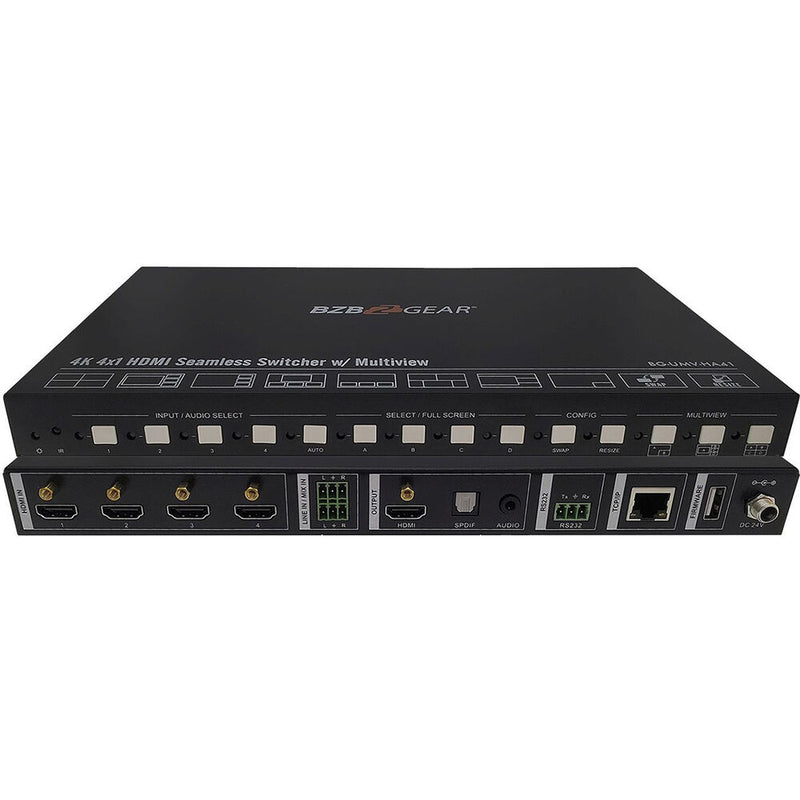

Switch and auto-scale up to four 4K HDMI sources with the 4x1 4K HDMI Seamless Switcher/Scaler with Audio and Multiview from BZBGear. The switcher features four HDMI inputs, which can be switched manually or automatically to the HDMI output. There are also two 3-pin terminal blocks to input 2-channel audio. Each input supports up to 4K30 4:4:4 video and output up to 4K30 RGB video.

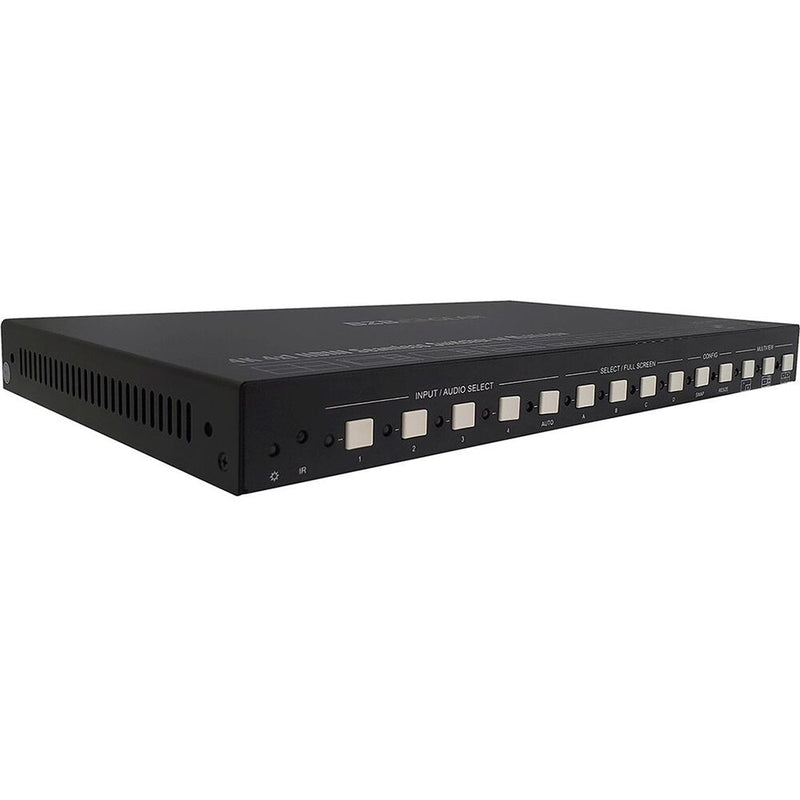

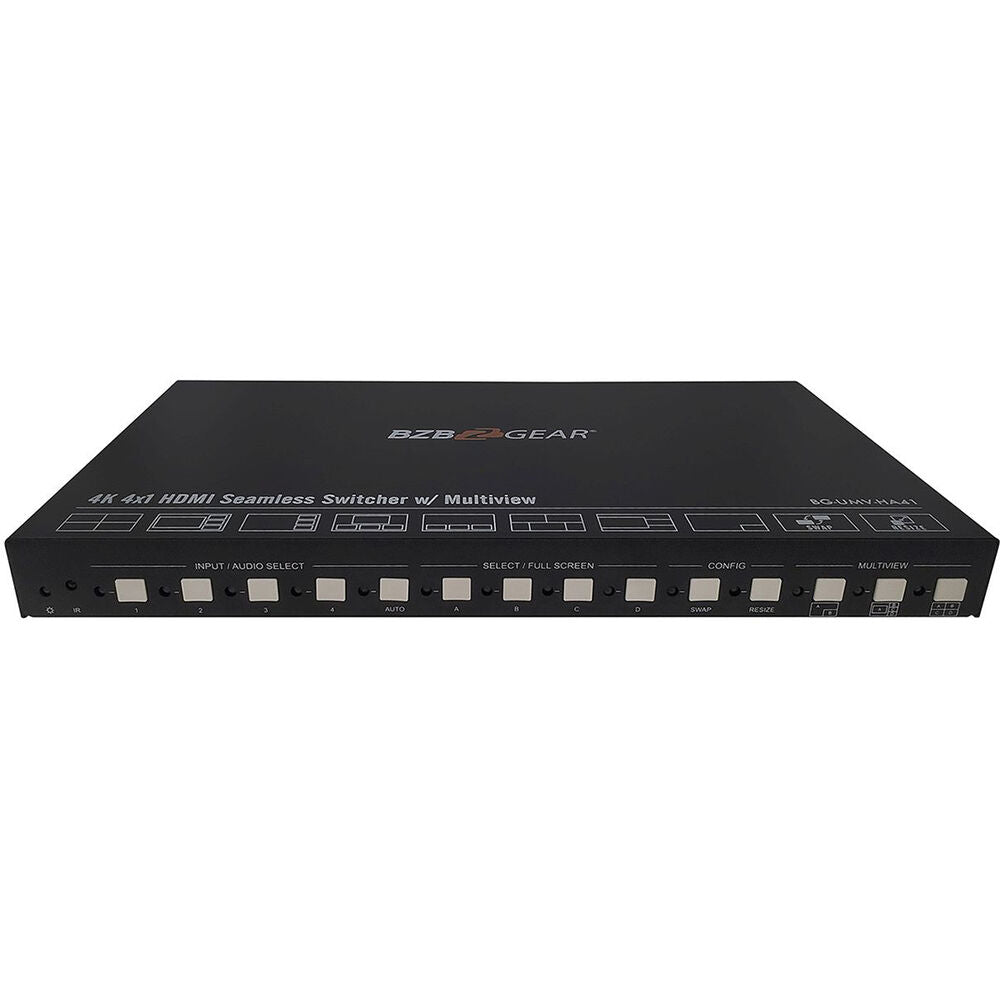

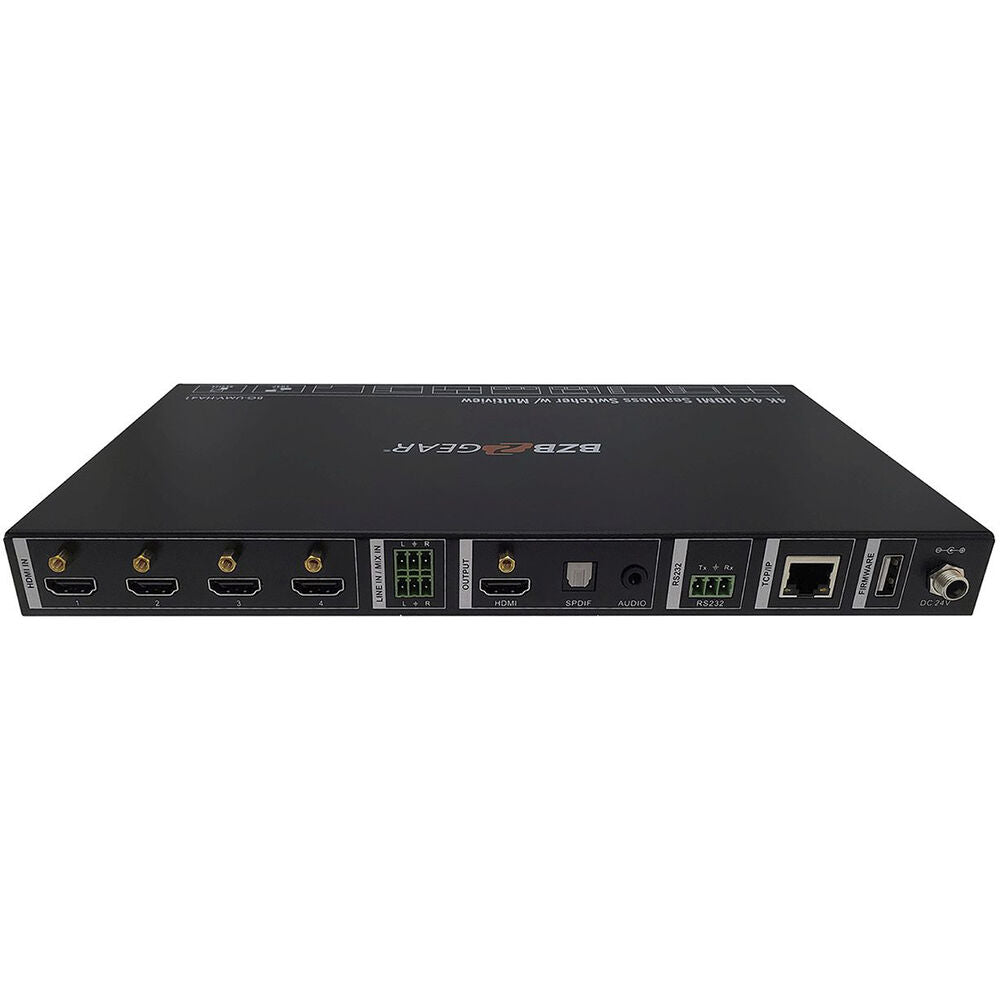

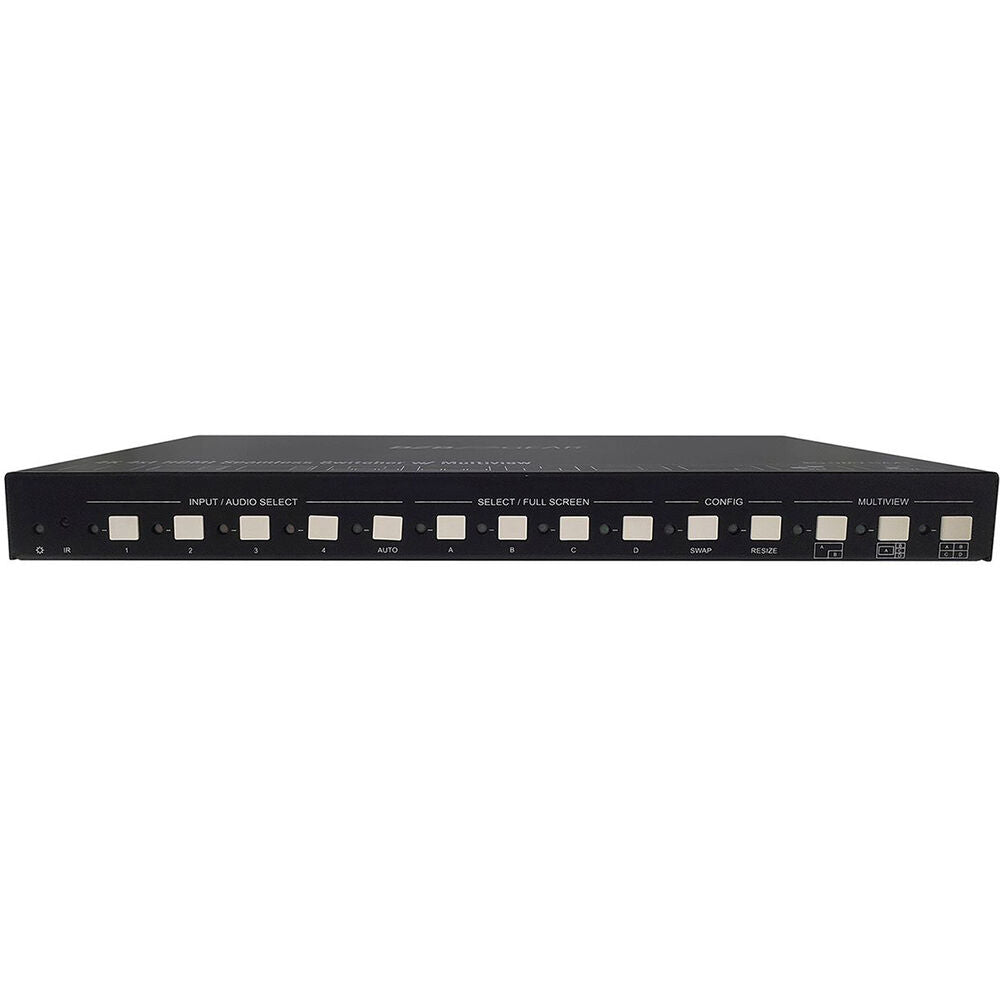

The switcher allows you to input line-level analog audio via its two 3-pin terminal blocks, and you can also de-embed audio for speakers or an audio mixer using the 3.5mm analog and TOSLINK S/PDIF digital outputs. The multiview function on the HDMI output allows you to view all four inputs on a single monitor, and the layout and window size can be adjusted. The switcher can be controlled via front-panel buttons, a web GUI, an IR remote control, or RS-232 serial control.
Key Features
Four HDMI inputs, one HDMI output
Supports resolutions up to 4K30 4:4:4
Multiview output to simultaneously display multiple inputs on a single monitor
3.5mm analog and TOSLINK digital outputs for audio de-embedding
Line-level audio mix input
IR remote, RS-232, web GUI, front-panel control options
Seamless switching between four HDMI inputs
Auto-scaling for each source input
Single window auto-switching
Cycle through windows using the swap button
Size and layout of windows can be customized
Windows have three different size options
![]()
UPC: 850023208026
In the Box
- BZBGear 4x1 4K HDMI Seamless Switcher/Scaler with Audio and Multiview
- IR Remote Control
- Power Adapter
- Set of Plastic Cushions
- 2 x Mounting Ear
- 4 x Mounting Screw
- 2 x 3-Pin Terminal Block
- RS-232 Cable
- 4 x Plastic Cushion
- Limited 3-Year Warranty
BZBGear BG-UMV Specs
Processing
| Switching Type |
IR Remote, Pushbutton, Software |
Input
| Video Input Connectors |
4 x HDMI (HDMI 1.4) Female |
| Input Video Format |
HDMI (4:4:4)
UHD 4K: 30 fps |
| Audio Input Connectors |
2 x 3-Pin Euroblock Stereo Analog Female |
| Embedded Audio Input |
HDMI: 2-Channel (per Input) |
Output
| Video Output Connectors |
1 x HDMI (HDMI 1.4) Female |
| Output Video Format |
HDMI
UHD 4K: 30 fps |
| Audio Output Connectors |
1 x TOSLINK Stereo S/PDIF Female
1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Embedded Audio Output |
HDMI |
Connectivity
| Other I/O |
1 x 3-Pin Euroblock RS-232 Input/Output
1 x RJ45 LAN Input/Output |
| HDCP Support |
Version 2.2 |
Power
| Power Connector |
1 x Barrel (24 VDC at 1.2 A) Input |
| Power Consumption |
Power Supply: 100 to 240 VAC (13 W) |
Environmental
| Operating Temperature |
23 to 131°F / -5 to 55°C |
| Storage Temperature |
-13 to 158°F / -25 to 70°C |
| Operating Humidity |
10 to 90% |
Packaging Info
| Package Weight |
4.43 lb |
| Box Dimensions (LxWxH) |
13.2 x 12.2 x 2.7" |
