BZBGear BG-EXHOC Overview
BZBGEAR Ultra Sleek 1080p and 4K HDR HDMI Extenders with IR Support
Lock On For Distance - BZBGEAR 4K 18Gbps HDMI Extender over Single Coax Cable

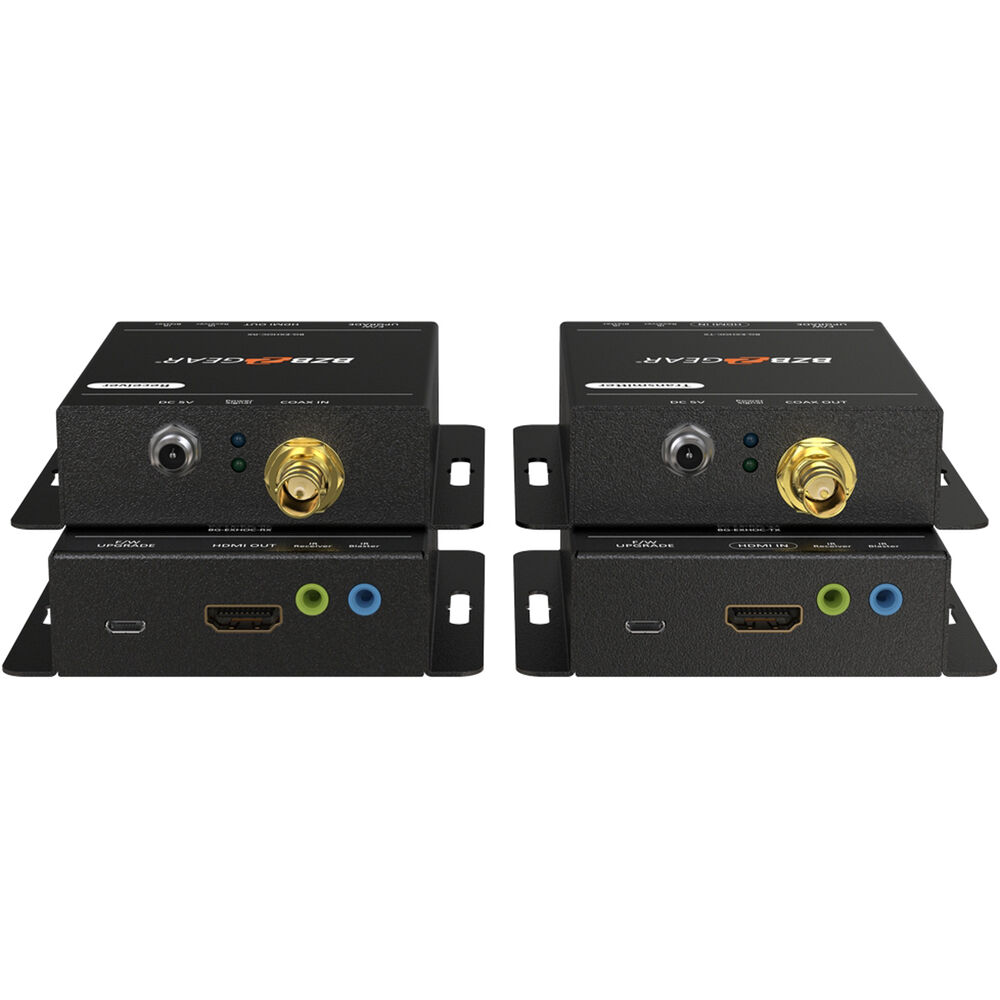

In an ultracompact design, the 4K HDMI 2.0 Extender over Single Coaxial Cable with Bidirectional IR from BZBGear carries up to an uncompressed 4K60 4:4:4 HDMI signal with embedded audio over a single coaxial cable up to 363' away. The transmitter and receiver pair supports HDMI 2.0 signals, HDCP 2.2 on input and output, and bidirectional IR passthrough.
The units also support multi-channel embedded audio formats, including Dolby TrueHD, DTS-HD, Dolby Digital Plus, and LPCM 7.1. Two power supplies are included to power each unit. Each unit features mounting holes on each side, so they can be mounted with optional hardware onto a wall or console.
Extend HDMI signal up to 4K60 4:4:4 up to 363' away over coaxial cable
Bidirectional IR passthrough
Automatic signal equalization
Belden 1694A coaxial cable is recommended for maximum performance
HDMI 2.0 and HDCP 2.2 compliance
Multi-channel audio support includes Dolby TrueHD, DTS-HD, Dolby Digital Plus, and LPCM 7.1
Audio sample rate supports 32, 44.1, and 48 KHz
Supports full-frequency IR signal from 20 to 60 kHz
Uncompressed HDMI over coaxial cable transmission
In the Box
- BZBGear 4K HDMI 2.0 Extender over Single Coaxial Cable with Bidirectional IR
- Transmitter
- Receiver
- 2 x Power Supply
BZBGear BG-EXHOC Specs

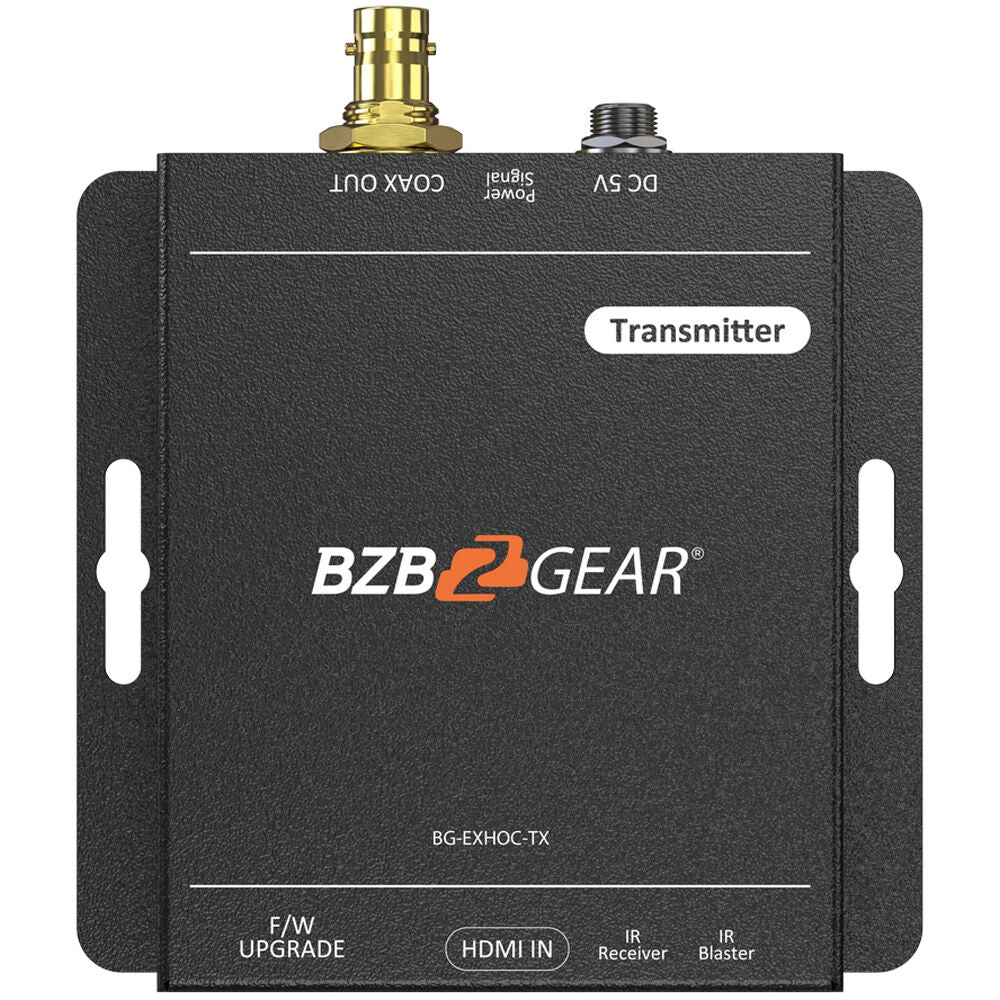

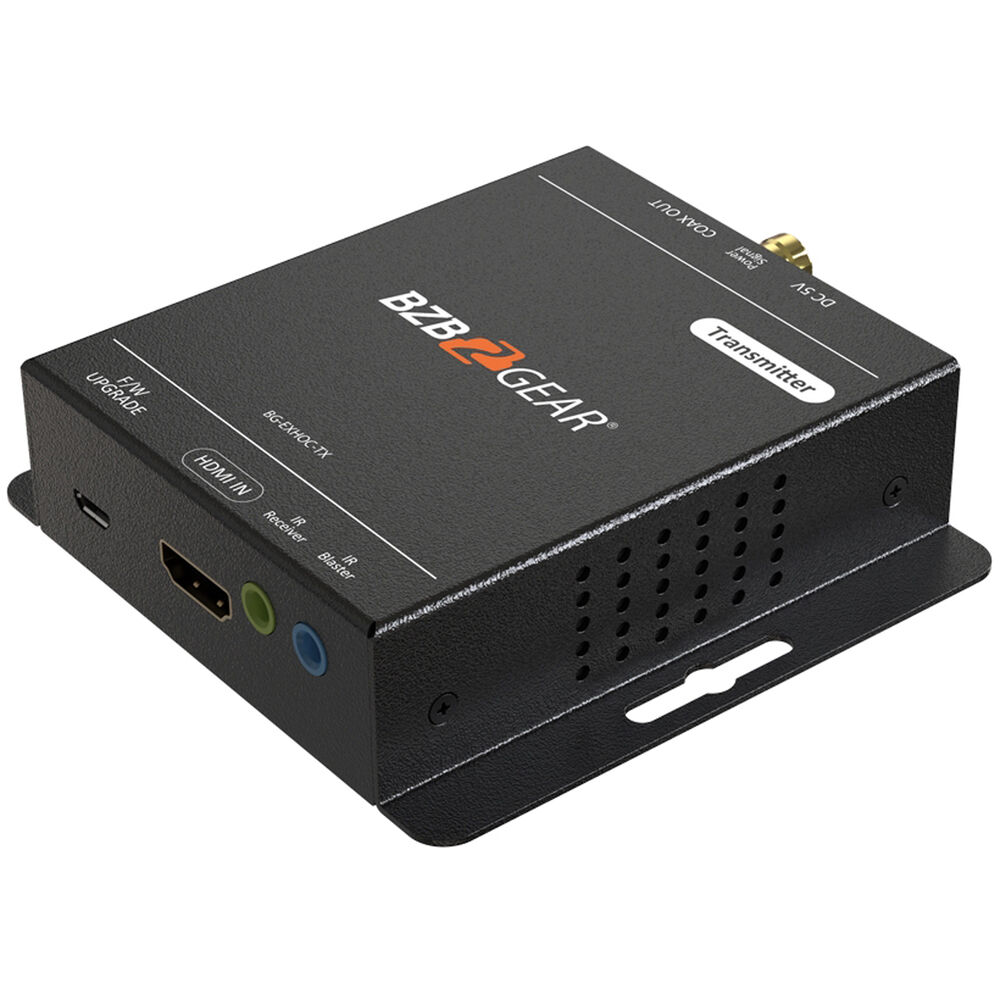

Transmitter Interfaces
Inputs |
1 x HDMI (HDMI 2.0) |
Embedded Audio Input |
HDMI |
Outputs |
1 x BNC |
Transmitter Other I/O |
1 x 1/8" / 3.5 mm IR Output 1 x 1/8" / 3.5 mm IR Input |

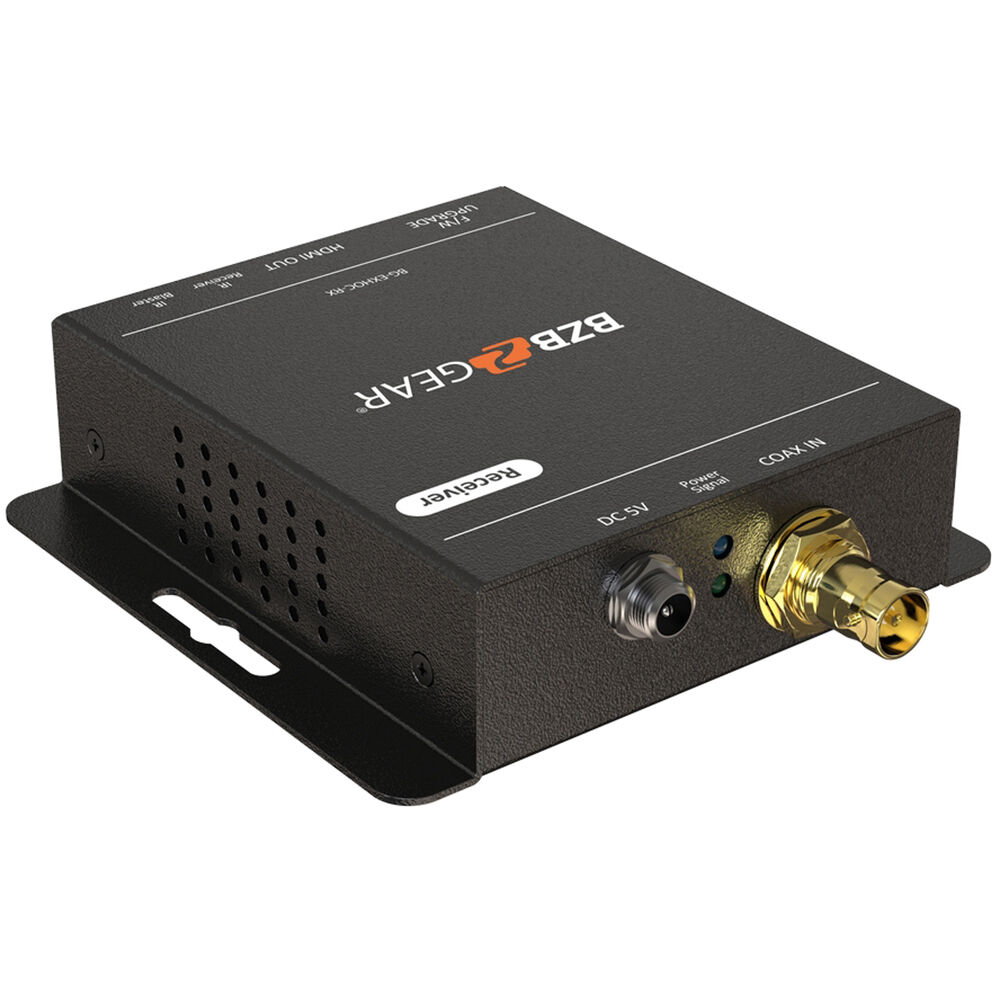

Receiver Interfaces
Inputs |
1 x BNC |
Outputs |
1 x HDMI (HDMI 2.0) |
Embedded Audio Output |
HDMI |
Receiver Other I/O |
1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output |
Transmission
Max Transmission Distance |
UHD 4K at 60 Hz: 363' / 110.6 m |
Video Format |
HDMI (8-Bit 4:4:4) UHD 4K: 60 fps |
DTS Compatibility |
DTS-HD Master Audio |
Dolby Compatibility |
Dolby Digital Plus, Dolby TrueHD |
Power
Transmitter Power Connector |
1 x Barrel (5 VDC) Input |
Receiver Power Connector |
1 x Barrel (5 VDC) Input |
Transmitter Power Consumption |
Device: (10 W) |
Receiver Power Consumption |
Device: (6 W) |
Environmental
Operating Temperature |
32 to 104°F / 0 to 40°C |
Storage Temperature |
-4 to 140°F / -20 to 60°C |
Operating Humidity |
20 to 90% |
General
Transmitter Dimensions |
3.8 x 3.5 x 1" / 96 x 90 x 25 mm |
Receiver Dimensions |
3.8 x 3.5 x 1" / 96 x 90 x 25 mm |
Transmitter Weight |
4.5 oz / 127 g |
Receiver Weight |
4.5 oz / 127 g |
Packaging Info
Package Weight |
2.475 lb |
Box Dimensions (LxWxH) |
10.6 x 6.9 x 3.8" |
