Description

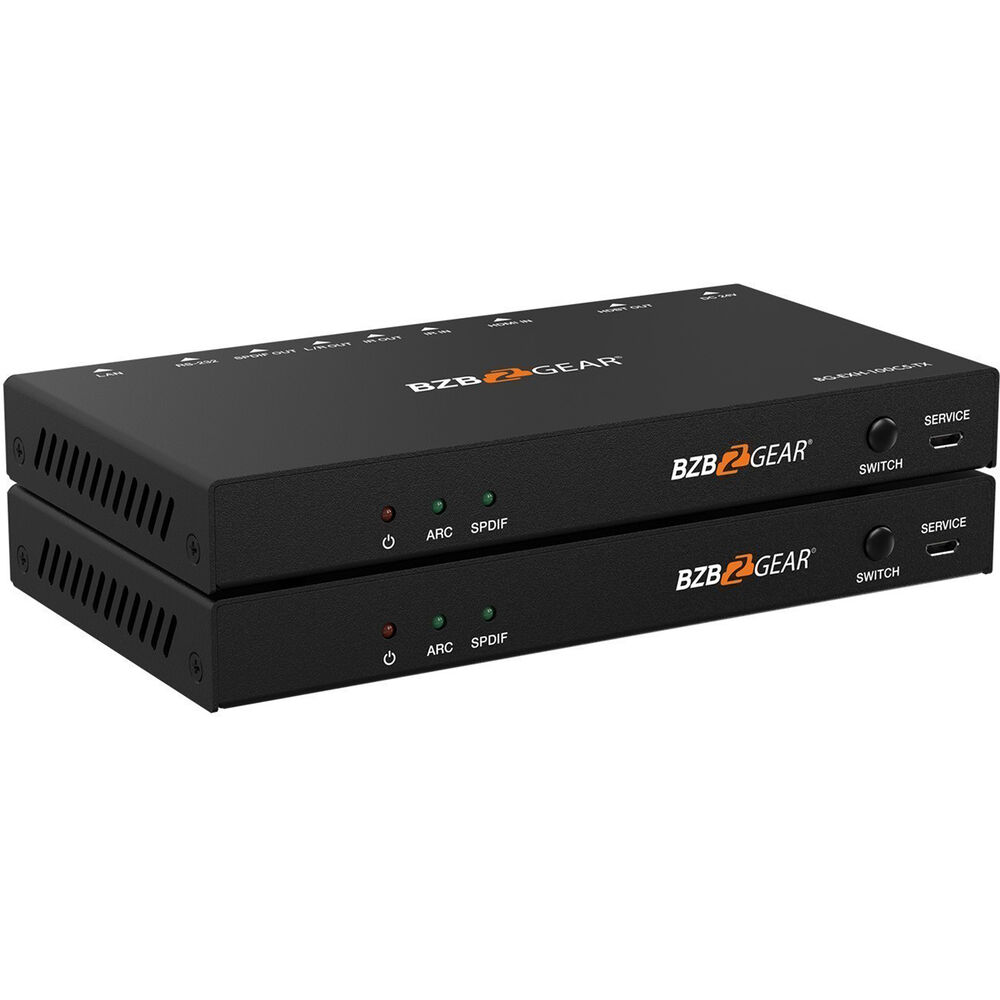

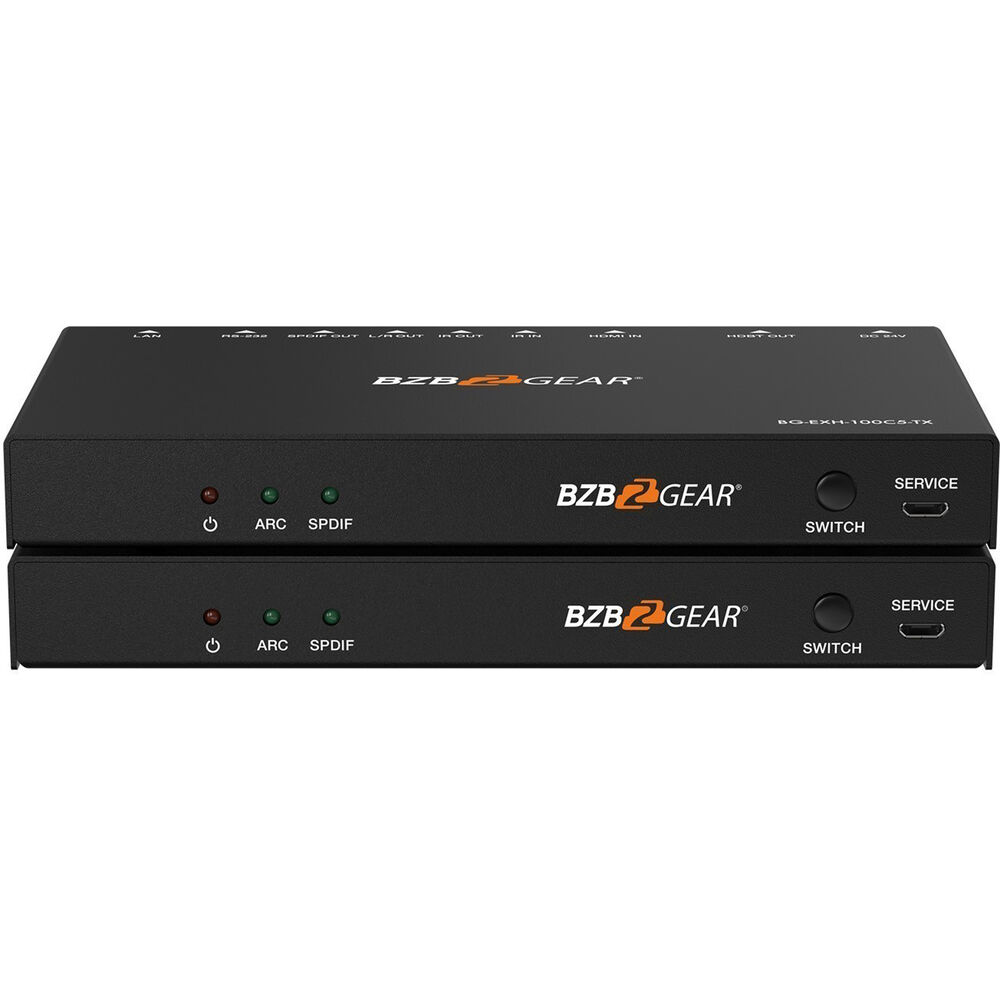

BZBGEAR EXH-100C5 Overview
Guides & Manuals
BZBGEAR EXH-100C5 Specs

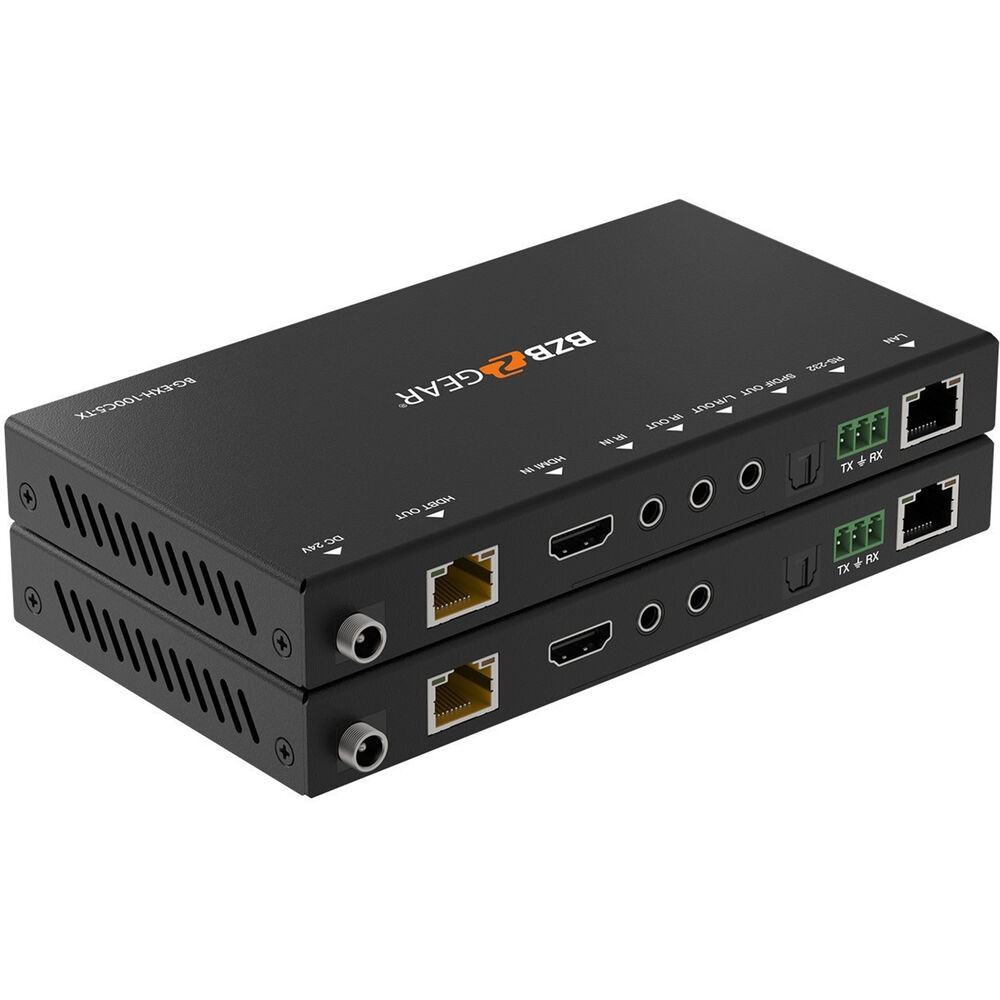

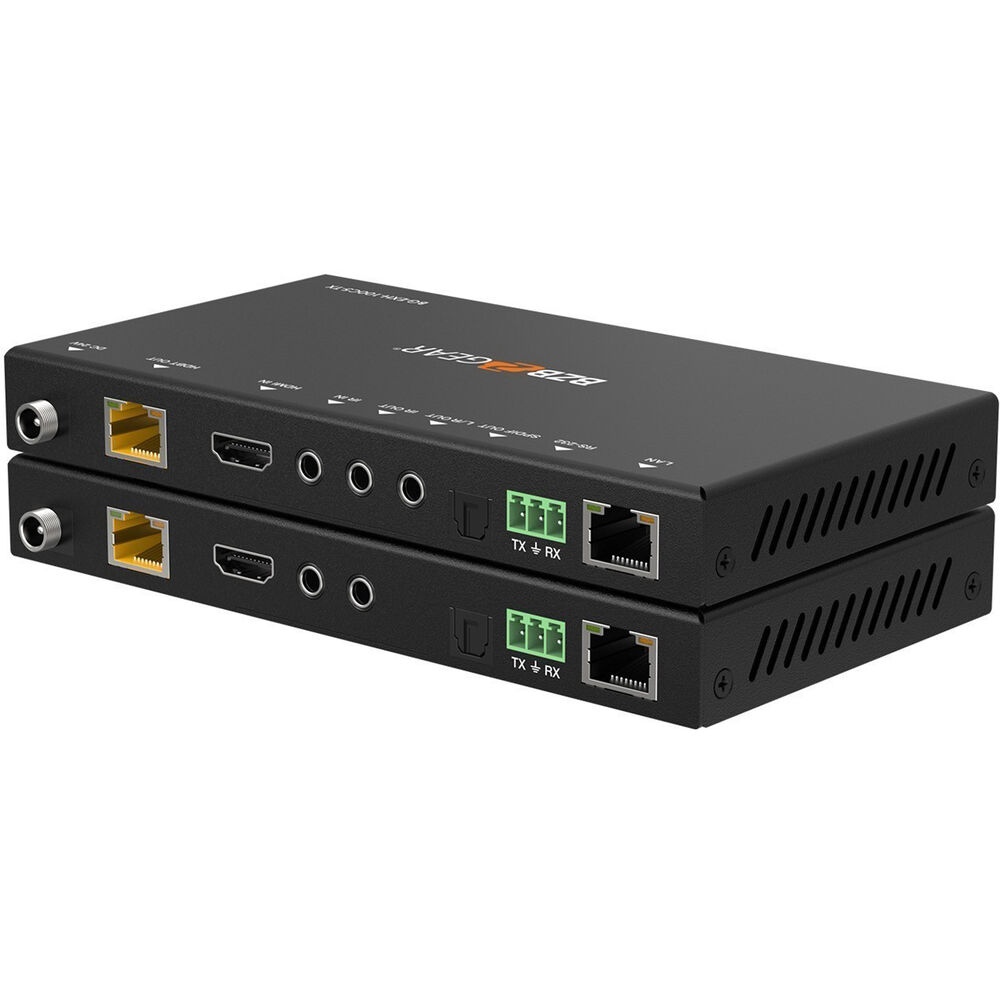

Transmitter Interfaces
| Inputs |
1 x HDMI
|
| Outputs |
1 x RJ45 (HDBaseT)
1 x TOSLINK (S/PDIF) 1 x RJ45 (LAN) |
| Transmitter Other I/O |
1 x 1/8" / 3.5 mm IR Input
1 x 1/8" / 3.5 mm IR Output 1 x 1/8" / 3.5 mm Audio Line Output 1 x Block 3-Pin RS-232 1 x Mini-USB Update |
Receiver Interfaces
| Inputs |
1 x RJ45 (HDBaseT)
1 x TOSLINK (S/PDIF) |
| Outputs |
1 x HDMI
1 x RJ45 |
| Receiver Other I/O |
1 x 1/8" / 3.5 mm IR
1 x 1/8" / 3.5 mm IR Output 1 x Block 3-Pin RS-232 1 x Mini-USB Update |
Standards
| HDR Compatibility |
HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma
|
| HDCP Support |
Yes, Version 2.2
Yes, Version 1.4 |
| EDID Support |
Yes
|
Transmission
| Max Transmission Distance |
UHD 4K:
295.3' / 90 m 1080p: 328.1' / 100 m |
| Video Format |
HDMI (8/10/12-Bit 4:2:2/4:2:0)
UHD 4K: 50/60 fps 1080p 1080i 720p 480p 480i HDMI (8-Bit 4:4:4) UHD 4K: 60 fps |
| PC Resolutions |
1920 x 1200
|
| DTS Compatibility |
DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X
|
| Dolby Compatibility |
Dolby Digital, Dolby Digital Plus, Dolby TrueHD
|
| Supported Cable Types |
Cat 6/6a
|
Power
| Transmitter Power Connector |
1 x Barrel (24 VDC) Input
|
| Receiver Power Connector |
1 x Barrel (24 VDC) Input
|
| Transmitter Power Consumption |
Power Supply: 100 to 240 VAC
Device: 24 VDC at 1 A (13 W) |
| Receiver Power Consumption |
Power Supply: 100 to 240 VAC
Device: 24 VDC at 1 A (13 W) |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
20 to 90% (Non-Condensing)
|
General
| Transmitter Dimensions |
6.4 x 3.5 x 0.6" / 163 x 90 x 16 mm
|
| Receiver Dimensions |
6.4 x 3.5 x 0.6" / 163 x 90 x 16 mm
|
| Transmitter Weight |
6 oz / 170 g
|
| Receiver Weight |
5.8 oz / 165 g
|
Packaging Info
| Package Weight |
2.49 lb
|
| Box Dimensions (LxWxH) |
10.6 x 8.5 x 2.8"
|
