Description

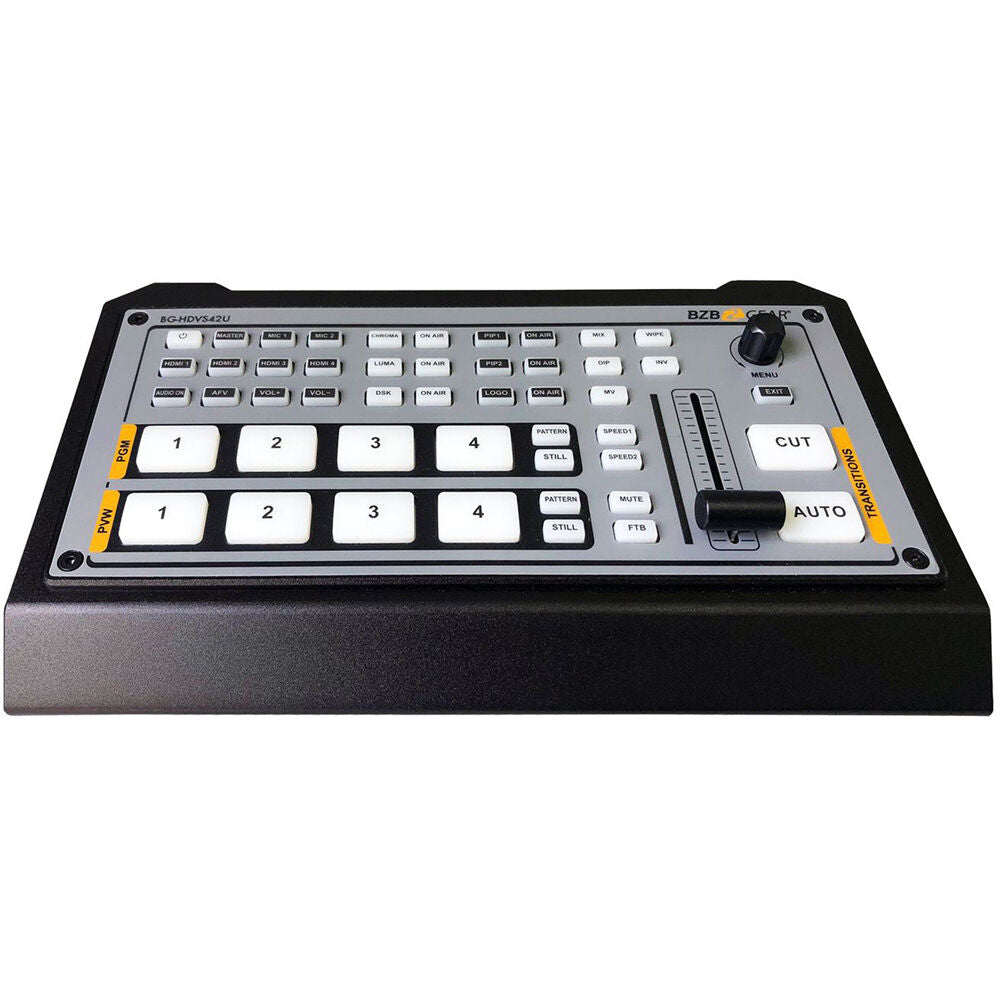

BZBGear BG-HDVS42U Overview
Switch up to four different HDMI video inputs while monitoring the program feed with the 4-Channel Live Streaming Video Switcher/Audio Mixer from BZBGear. Concert productions, events, houses of worship, virtual studios, educational institutions, and live sports programming are some use cases where the switcher could be utilized. Its portable form factor makes it a TV studio you can take anywhere and set up with minimal effort or additional equipment.
You can output the four HDMI inputs via one HDMI multiview and one HDMI program output using scaling features, allowing you to view them all on the same screen with configurable PiP functionality. You can also output program video via the USB Type-C port to a computer for video capture and streaming applications. The switcher features four HDMI inputs that can connect to cameras or other consumer or professional sources for switching up to 1080p60 video with embedded audio. You can also mix the audio using the two analog stereo 3.5mm mic/line inputs and output along with the embedded audio. You can also remotely control the switcher via IP using software using the LAN port.

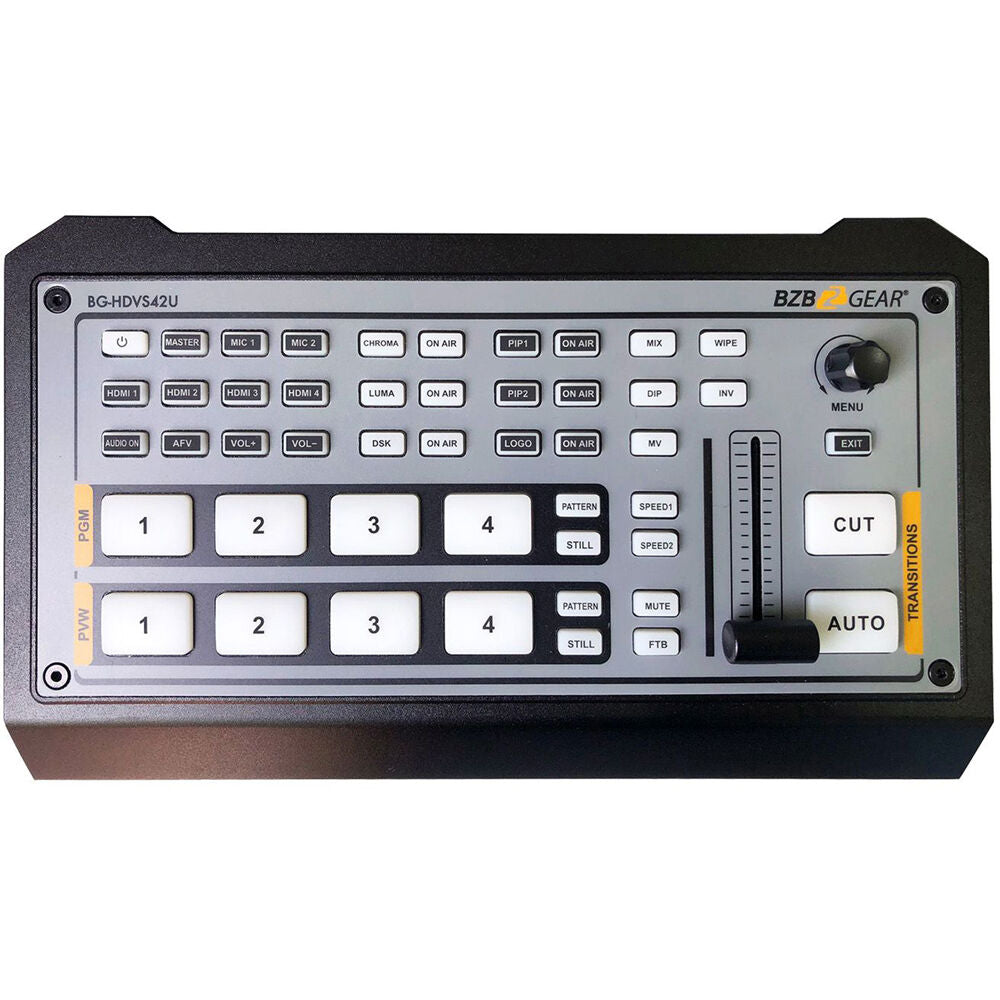

Its interface features source and destination buttons and a T-bar for transitions and cuts, as well as mix, fade, and wipe effects. It also features upstream luma key, chroma key, picture-in-picture (PiP), and picture-over-picture (PoP), as well as downstream keying and logo overlay. You can capture up to 16 screenshots and store up to 16 images using the USB Type-A input, and it supports external disks up to 256GB in capacity. It also features two color generators and one pattern generator.
The switcher features a tally interface that supports GPIO, mute, still frame, and fade-to-black (FTB) functionality. A power supply, USB Type-A to Type-C cable, and a DB-15 tally connector are included.
Key Features
In the Box
- BZBGear 4-Channel Live Streaming Video Switcher/Audio Mixer
- Power Supply
- USB Type-A to Type-C Cable
- Tally Connector
- Limited 3-Year Warranty
BZBGear BG-HDVS42U Specs
| Available M/E Layers | 2 M/E |
| Effect Types | 1 x Graphic, Transition, Chroma Key, Alpha Key, Luma Key |
| Graphics Memory | 32 Images |
| Downstream Keys | 1 x Chroma, Luma, DVE |
| Generators | 2 x Color 1 x Pattern |
| Audio Mixing | 2-Channel Mixing |
| Switching Type | Pushbutton, Software, T-Bar |
| Processing Resolution | 1080p |
| Color Processing | YUV RGB |
| Number of Video Input Sources | 4 |

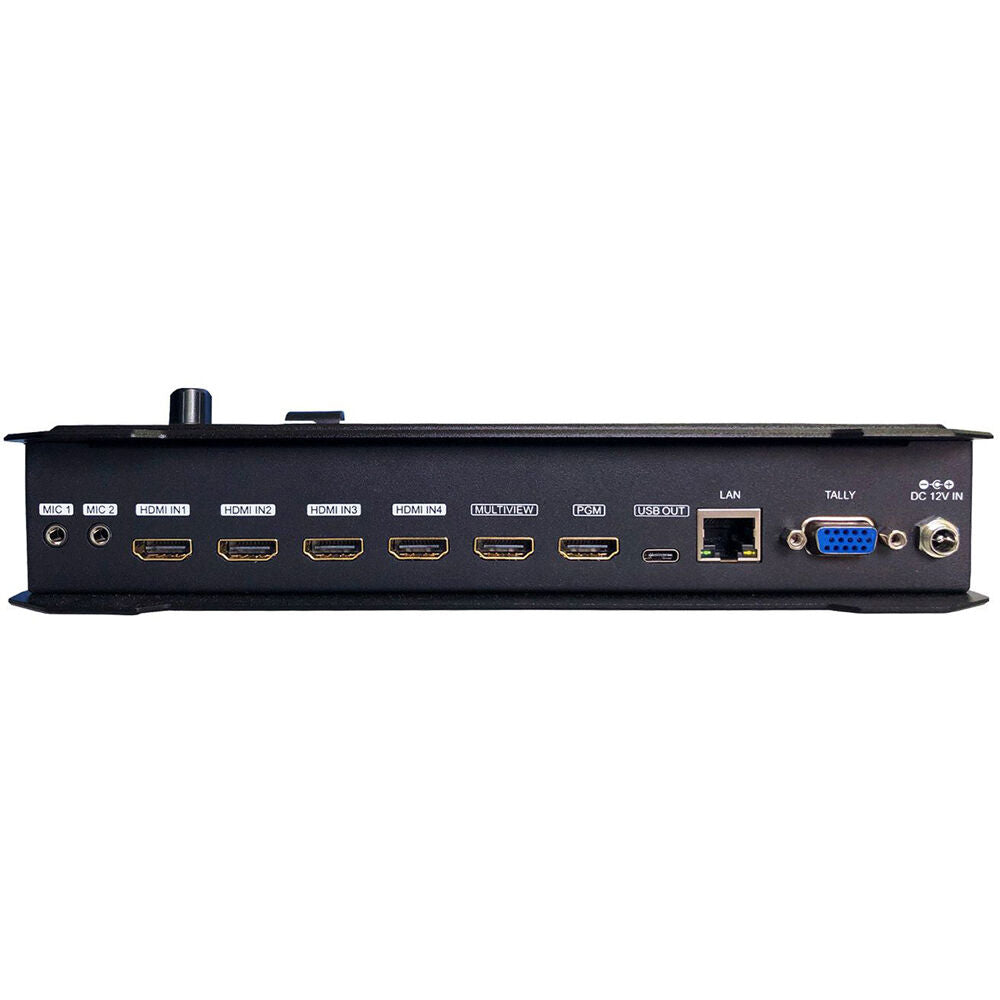

| Video Input Connectors | 4 x HDMI Female |
| Input Video Format | HDMI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps 576p: 50 fps PAL: 50 fps 480p: 59.94/60 fps NTSC: 59.94/60 fps |
| Audio Input Connectors | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog |
| Embedded Audio Input | HDMI: 2-Channel (per Input) |
| Video Output Channels | 2 |
| Video Output Connectors | 1 x HDMI Female (Program) 1 x HDMI Female (Monitor) 1 x USB Type-C (USB Video) Female |
| Output Video Format | HDMI 1080p: 24/25/30/50/60 fps 1080i: 50/60 fps USB Type-C 1080p: 60 fps |
| Audio Output Connectors | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output) |
| Output Audio Format | Analog |
| Embedded Audio Output | HDMI: 2-Channel (per Output) USB Type-C: 2-Channel (per Output) |
| Multiview Output | 4-Way Multiview viaHDMI |
| Monitor Output | 1 x HDMI |
| Other I/O | 1 x DE-15/DB-15 Tally Input 1 x RJ45 LAN Input/Output 1 x USB Type-A Firmware, Service Input |
| Video Standard Compliance | SMPTE 259M/292M/424M |
| HDCP Support | None |
| Compatible Services | Facebook Live, Livestream, Skype, Twitch, YouTube Live |

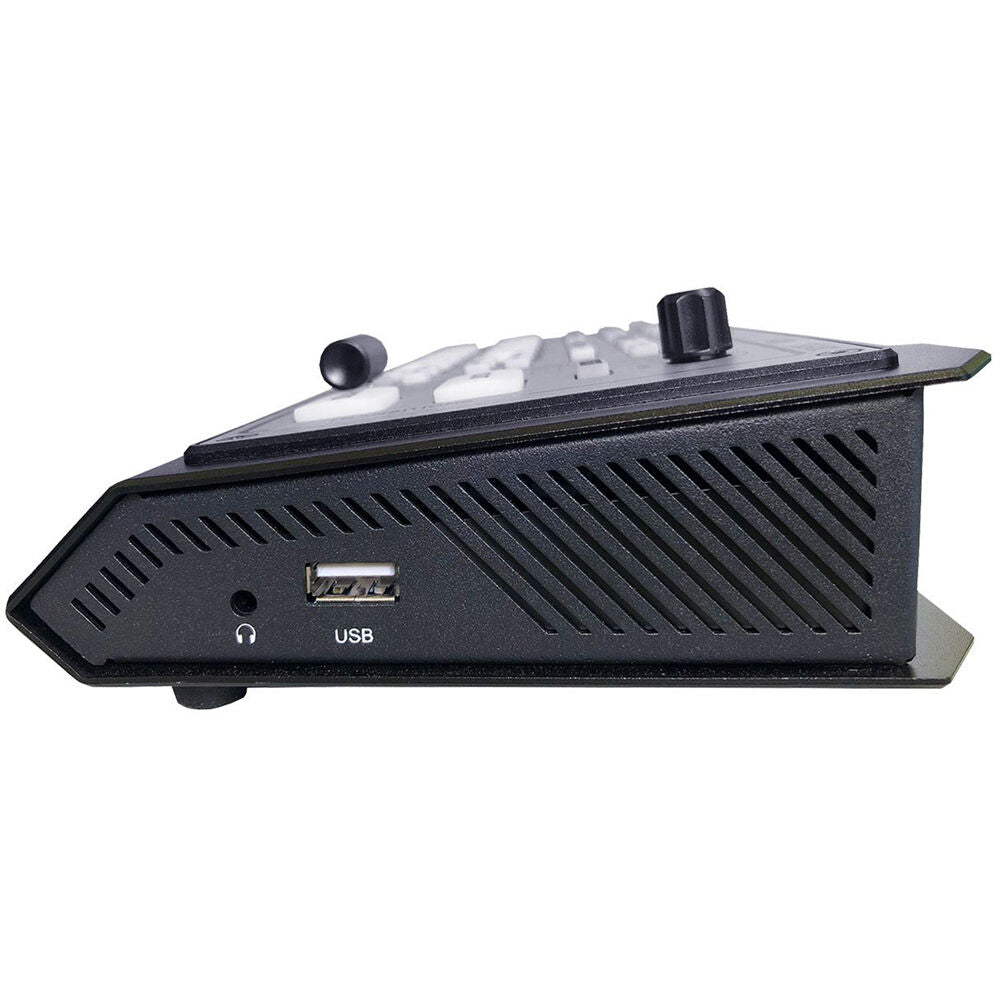

| Recording Media | 1 x USB 2.0 Type-A (External Drives) |
| Power Connector | 1 x Barrel (7 to 24 VDC) Input |
| Power Consumption | Device: 12 VDC at 1 A (12 W) Power Supply: 12 VDC at 2 A |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Dimensions | 9.63 x 5.64 x 1.75" / 24.45 x 14.32 x 4.45 cm |
| Weight | 2.27 lb / 1.03 kg |
| Package Weight | 3.28 lb |
| Box Dimensions (LxWxH) | 13.1 x 7.8 x 3.5" |
