Description
BZBGear 3GSH Overview

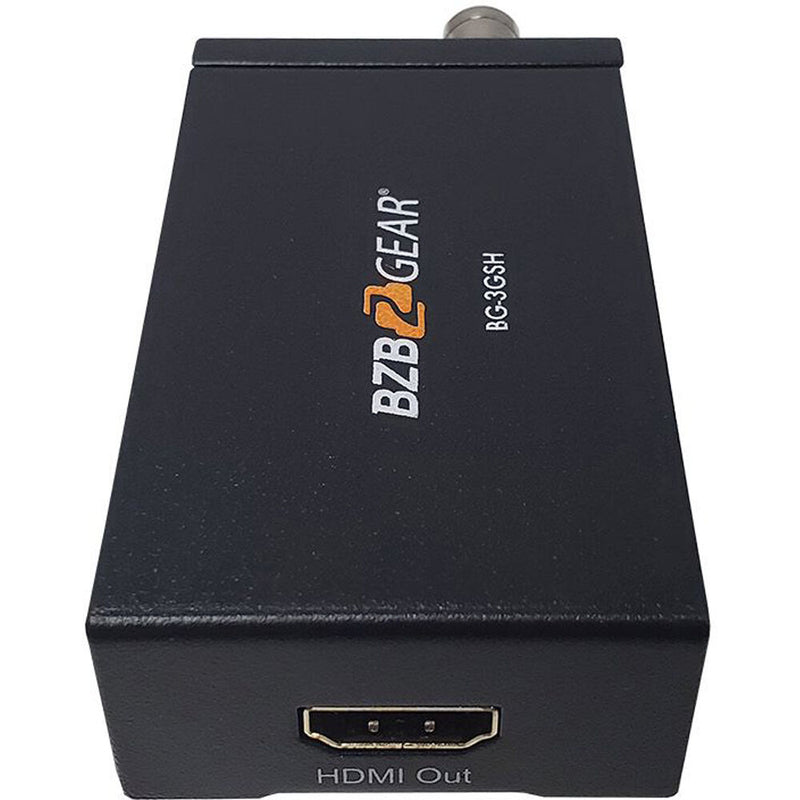

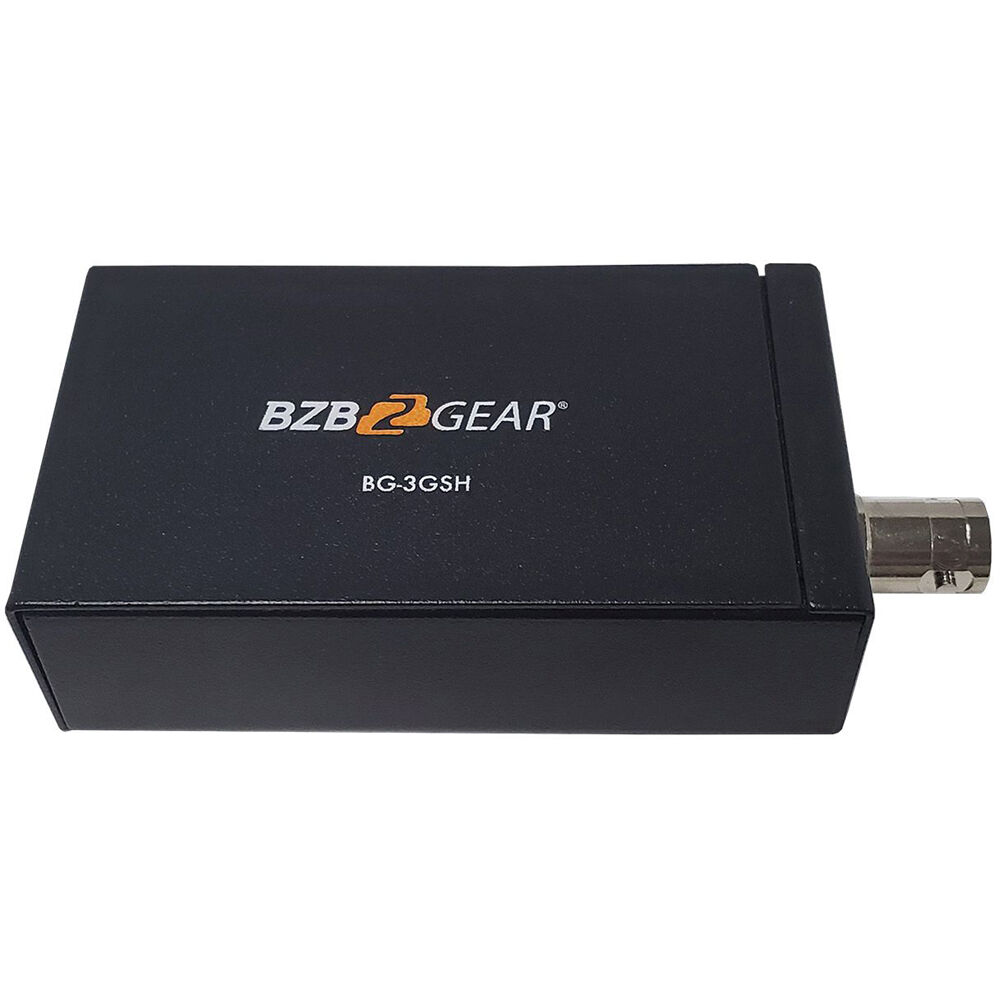

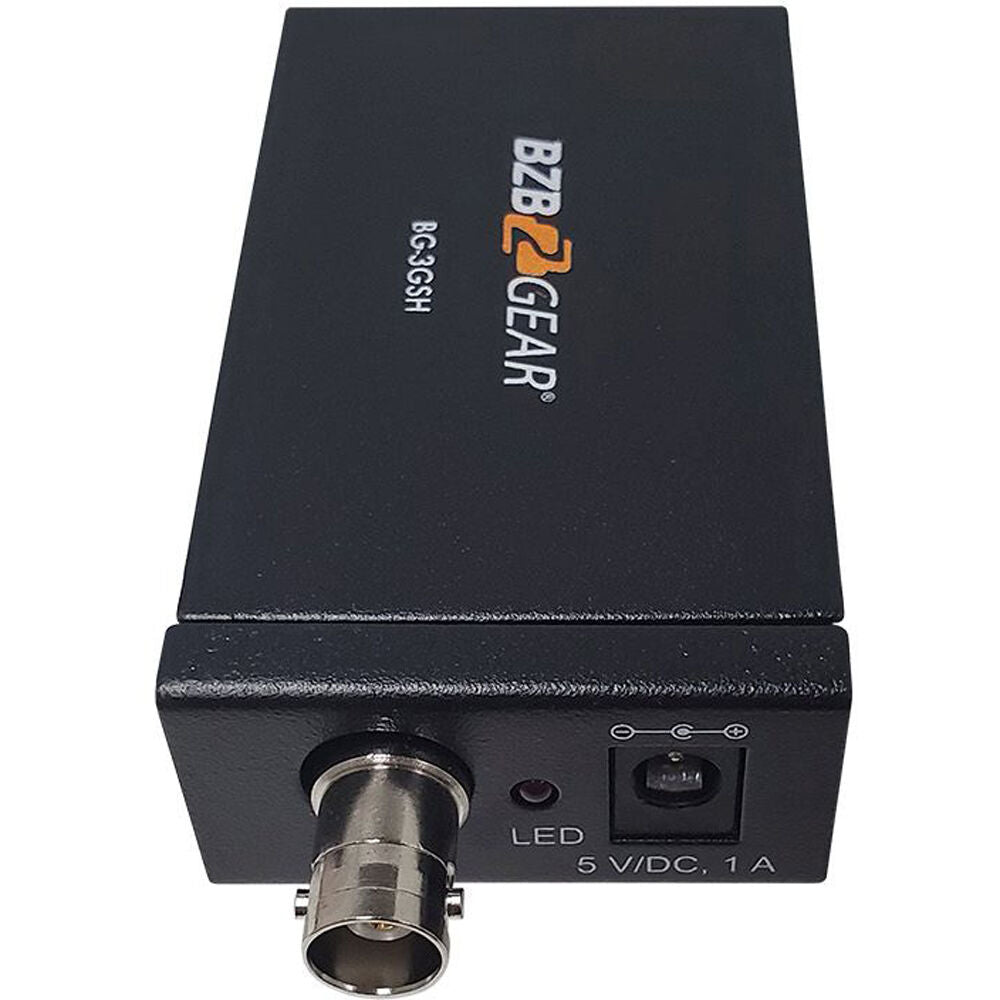

Compact and rugged, the 3G-SDI to HDMI Converter from BZBGear enables you to use HDMI monitors and televisions for production monitoring when using an SDI video source. This compact converter has one SD/HD/3G-SDI input and one HDMI output and it supports video resolutions up to 1080p60 10-bit 4:2:2. The converter supports SDI input data rates up to 2.97 Gb/s and can equalize and re-clock video across long distances when daisy-chaining with optional units.
Key Features
Operation at 2.970 Gb/s, 1.485 Gb/s, and 270 Mb/s
Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, and SMPTE 259M-CE
Integrated audio de-embedder for a maximum of 8-channel, 48 kHz audio
Equalized and re-clocked loop output
Conversion from SMPTE 425M level B to Level A 1080p50/59.94/60 4:2:2 10-bit
Connect with other units to extend your signal over long distances
UPC: 850023208170
In the Box
- BZBGear 3G-SDI to HDMI Converter
- Power Adapter
BZBGear 3GSH Specs

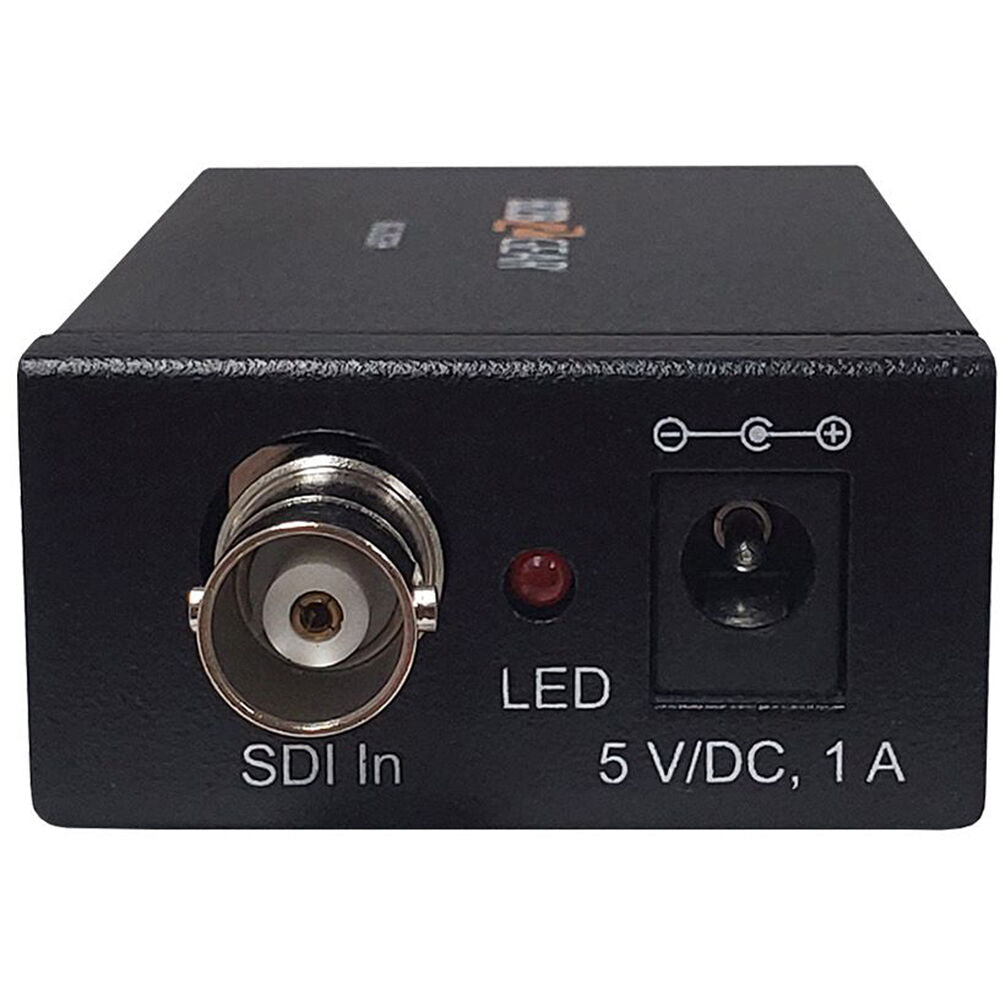

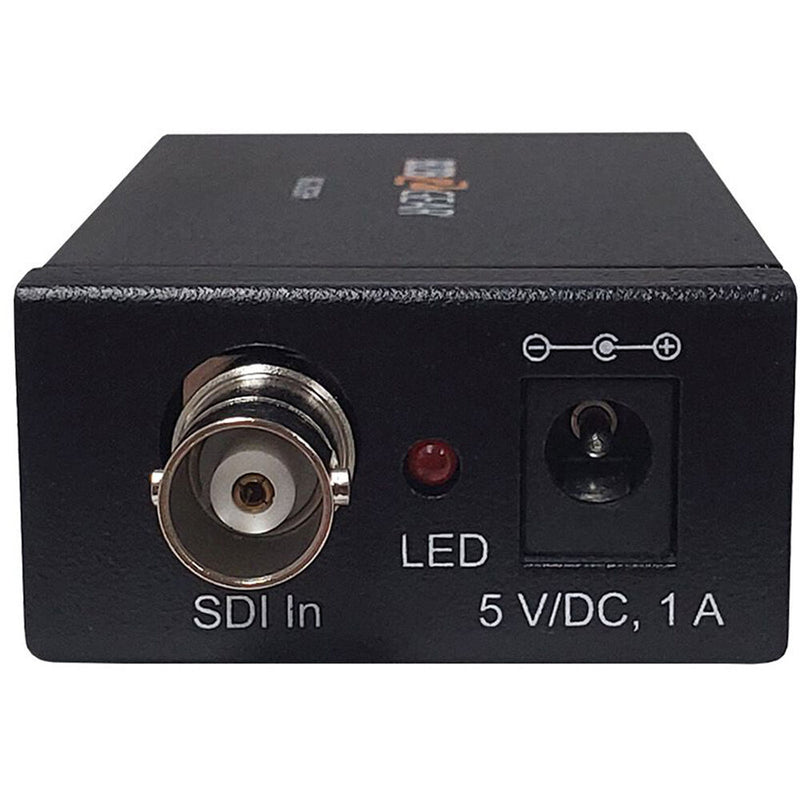

| Video Inputs | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) |
| Audio Inputs | None |

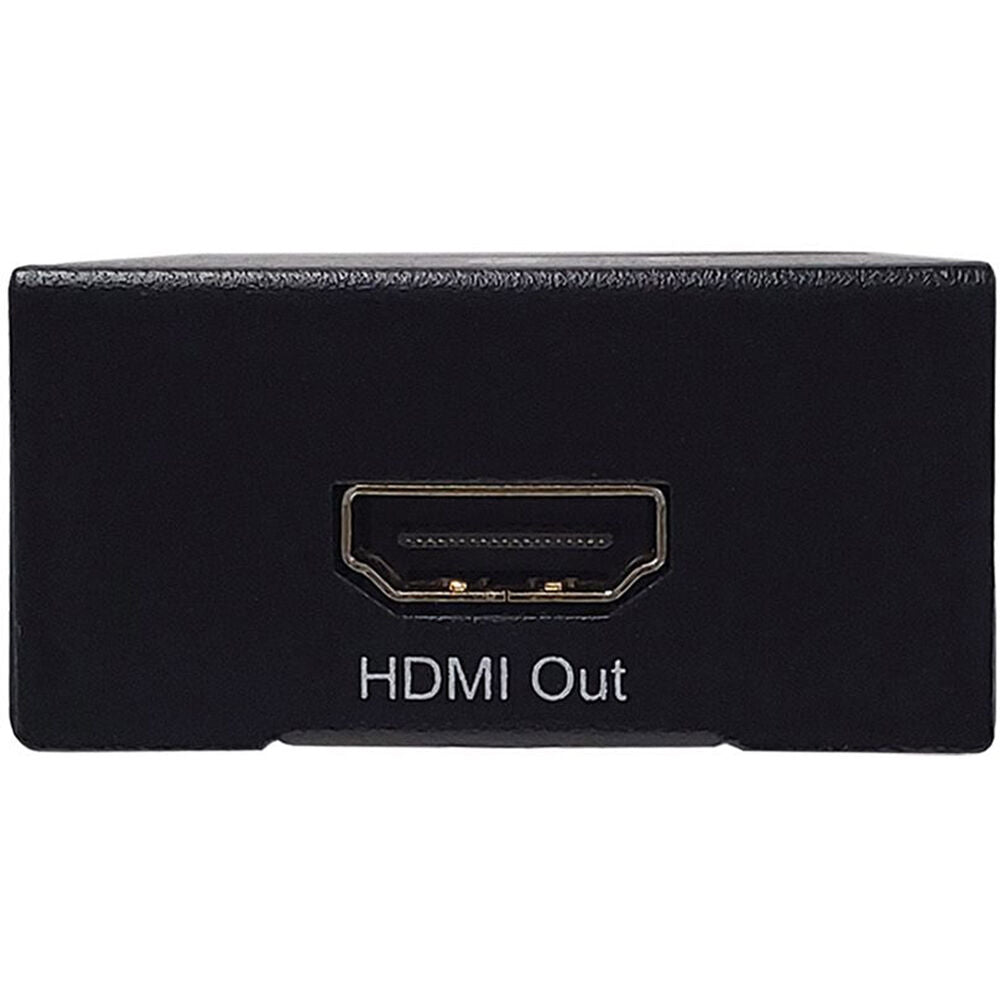

| Video Outputs | 1 x HDMI |
| Audio Outputs | None |
| Other I/O | 1 x USB-C Input |
| Expansion Slots | None |
| Input Video Format | SDI DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 59.94 fps 576i / 625 lines 50 fps |
| Output Video Format | HDMI 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 59.94 fps 576i / 625 lines 50 fps |
| Embedded Audio | SDI/HDMI |
Standards
| Video Standard Compliance | SMPTE 259M-C/292M/424M/425M/425M-A/425M-B |
| HDR Compatibility | None |
Hardware
| Tally Light | Yes |
| Wi-Fi | None |
Power
| Power I/O | 1 x Barrel (5 to 12 VDC) Input |
| Power Consumption | 5 W |
Environmental
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% |
General
| Dimensions | 3.1 x 1.6 x 1" / 80 x 41 x 25 mm |
| Weight | 5.3 oz / 150 g |
Packaging Info
| Package Weight | 0.48 lb |
| Box Dimensions (LxWxH) | 5.9 x 3.9 x 1.8" |
