Description
BZBGEAR 8K-22MA Overview

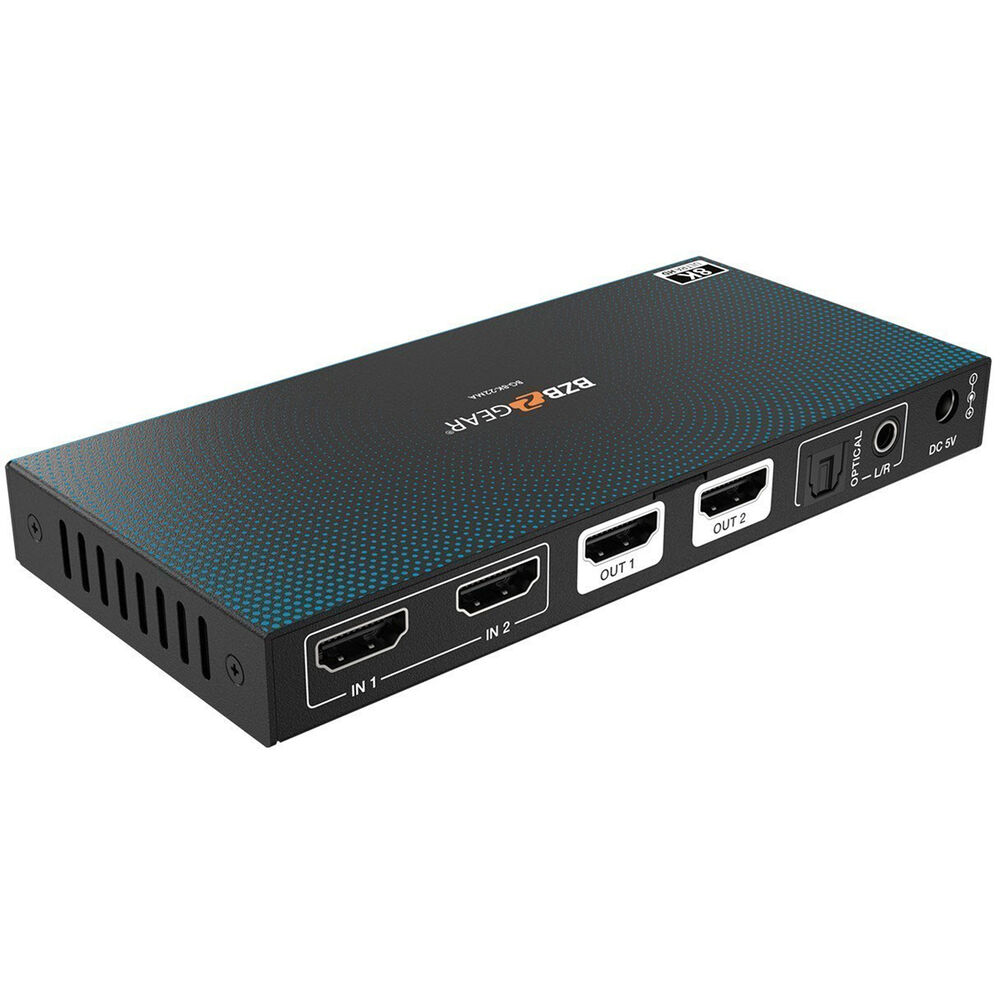

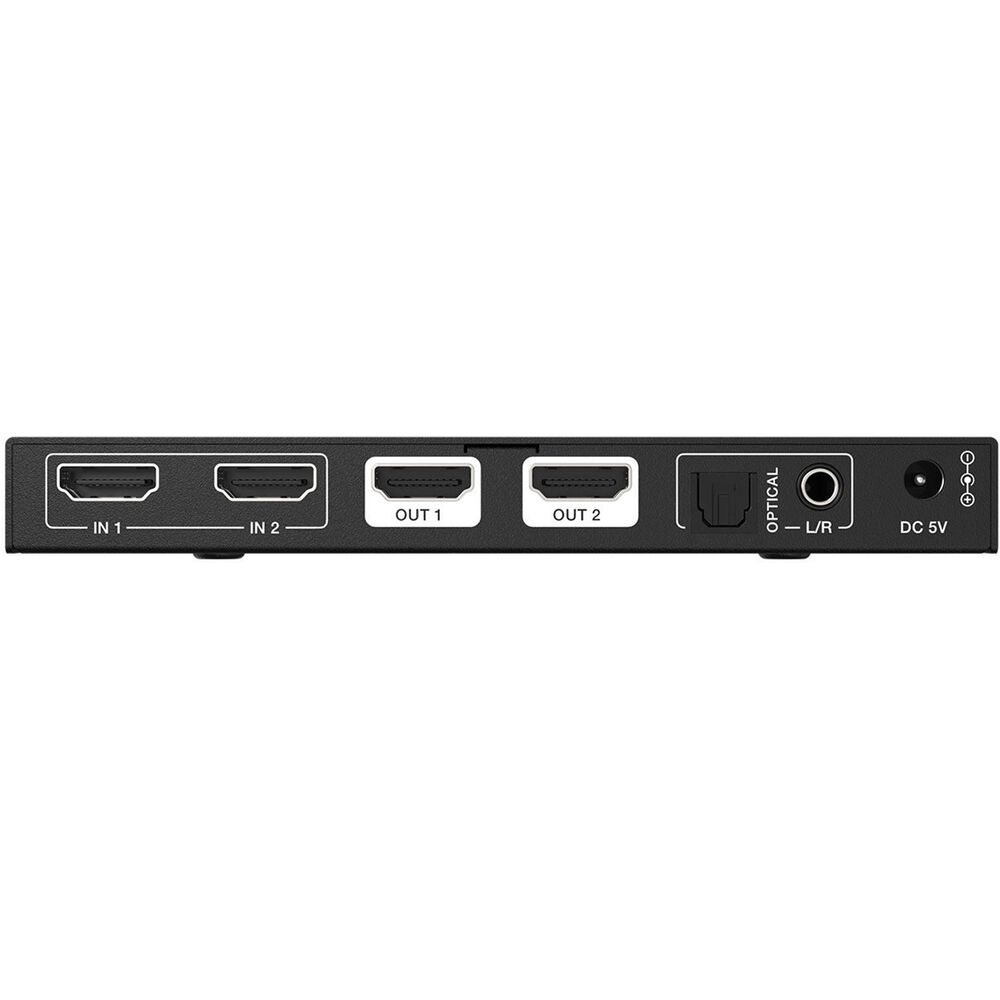

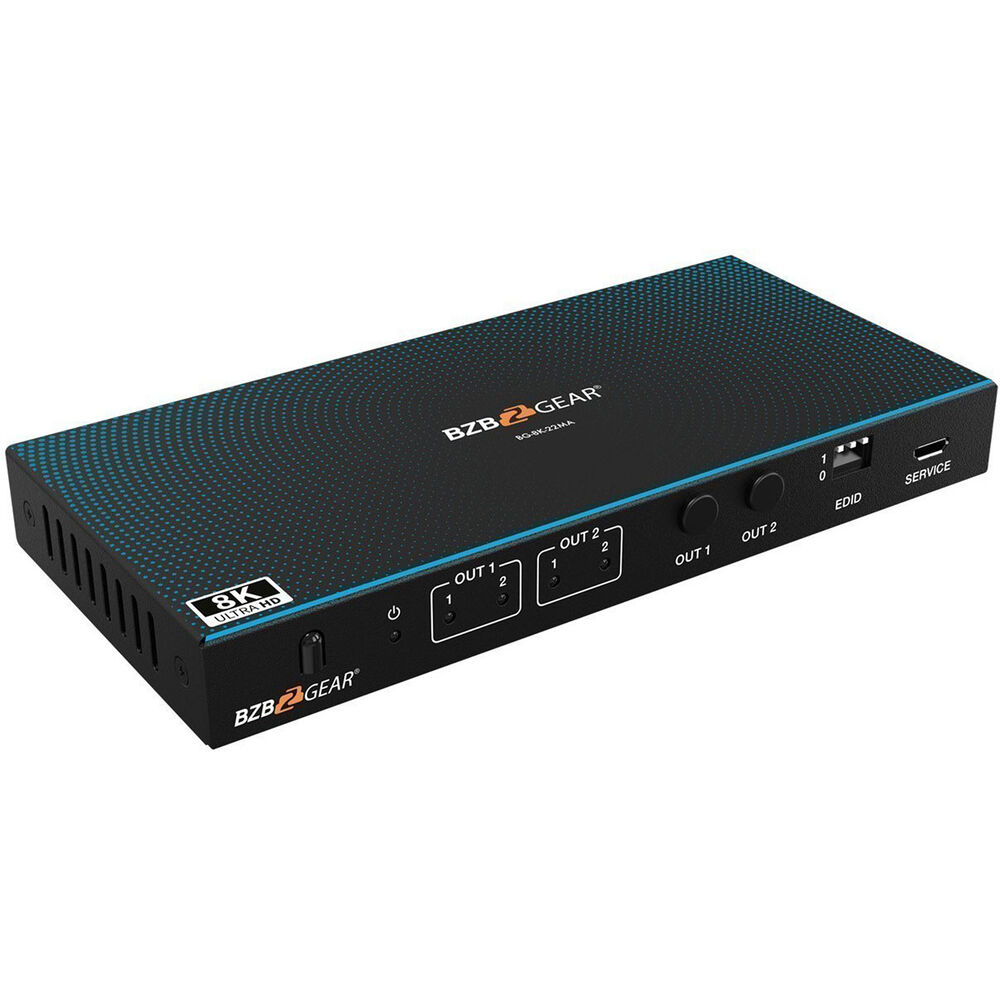

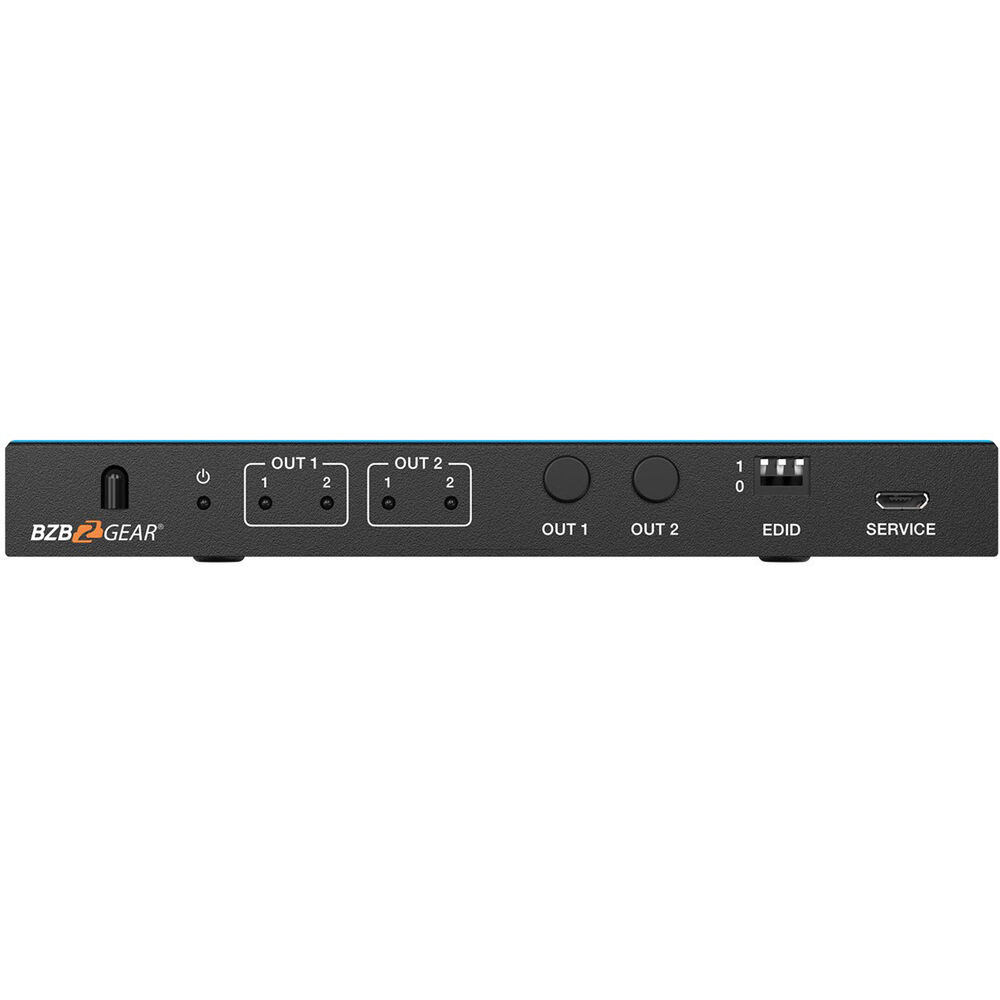

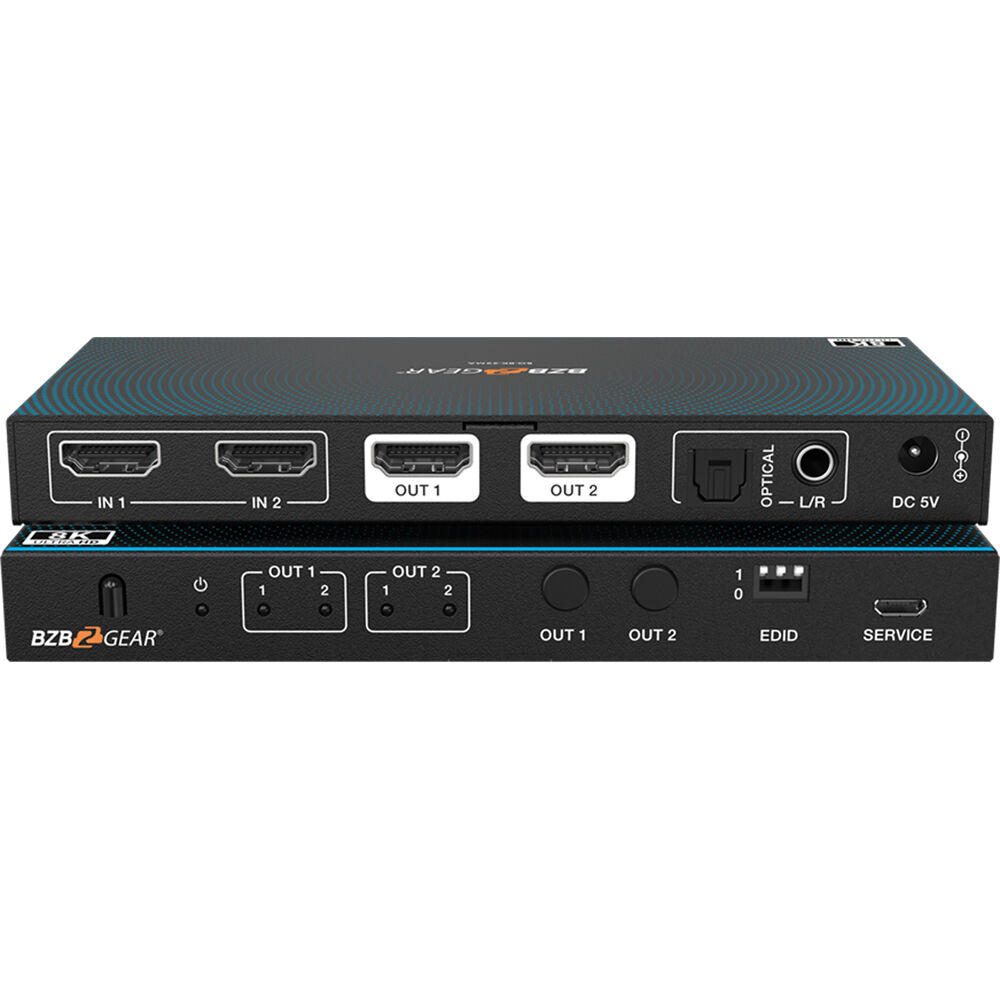

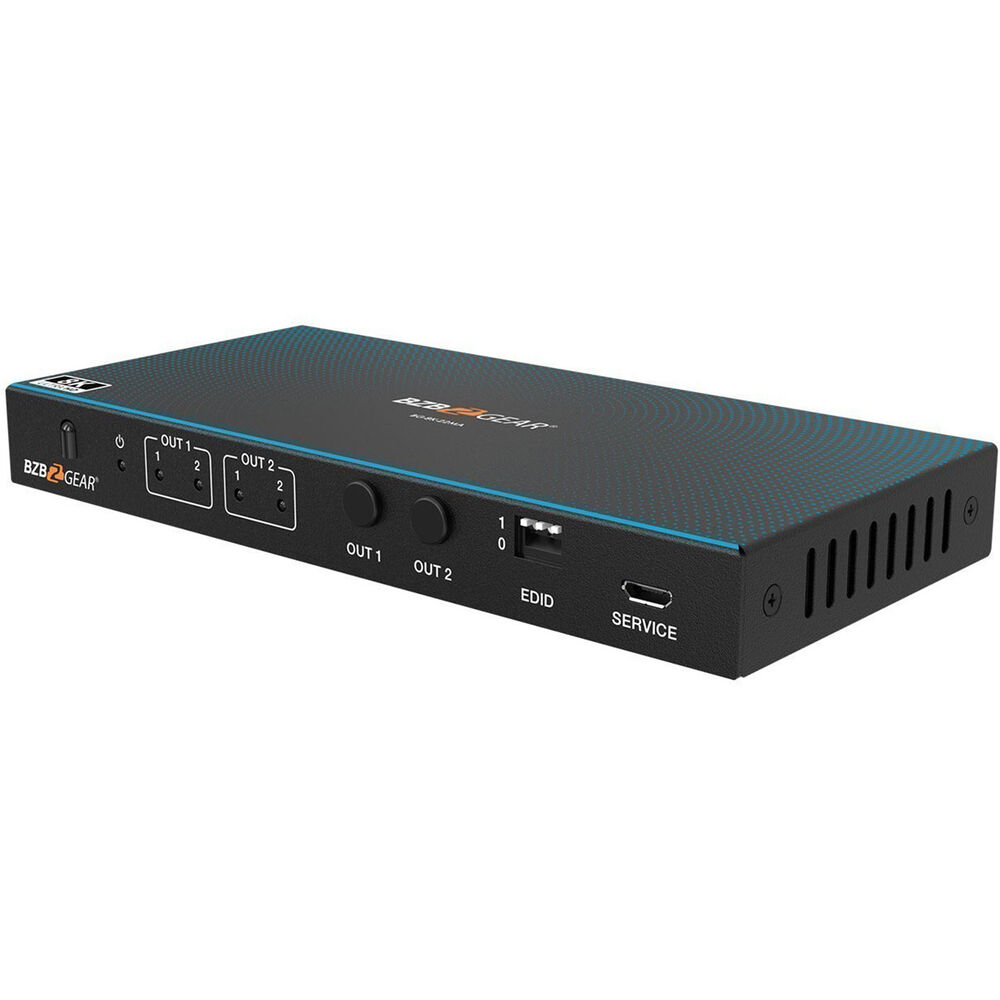

Switch between HDMI inputs and send the output to separate displays with this 2x2 8K60 HDMI 2.1 Matrix Switcher with Audio De-Embedder from BZBGear. Boasting HDMI 2.1 and audio de-embedding support, this high-performance switcher features two HDMI inputs and two HDMI outputs that handle resolutions up to 8K60 with 4:4:4 chroma subsampling and support for various flavors of HDR.
The unit is designed for professional video applications, but it is also ideal for gaming thanks to its support for 4K resolution at up to 120 Hz, which provides reliable imaging with reduced motion blur during fast-paced games. Solid EDID management ensures wide compatibility with different display devices, and the audio de-embedding function allows users to extract audio from the HDMI sources and route that to their preferred, external audio system.
- HDMI 2.1 and HDCP 2.3 compliant
- Supports 40Gb/s video bandwidth
- Supports video resolution up to 8K60 4:2:0 10-bit, 8K30 4:4:4 10-bit, 4K120 4:4:4 10-bit
- VRR, FVA, ALLM supported
- Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
- Supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Built-in equalizer, retiming, and driver
- Advanced EDID management
- Supports audio de-embedding function (output through the optical and analog ports)
- Supports IR remote control and front-panel button switching
- Compact design for easy and flexible installation
In the Box
- BZBGEAR 2x2 8K60 HDMI 2.1 Matrix Switcher with Audio De-Embedder
- IR Remote
- 5 VDC, 2A Multinational Power Supply
- Limited 3-Year Manufacturer Warranty
Guides & Manuals
BZBGEAR 8K-22MA Specs
| Switching Type |
IR Remote, Pushbutton
|
| Processing Resolution |
8K at 60
|
| Color Processing |
10-Bit 4:2:0 YUV
10-Bit 4:4:4 YCbCr 10-Bit 4:4:4 RGB |
| Video Inputs |
2 x HDMI Female
|
| Input Video Format |
HDMI
8K up to 60 fps |
| Embedded Audio Input |
HDMI: 8-Channel (per Input)
|
| Video Outputs |
2 x HDMI Female
|
| Output Video Format |
HDMI
8K up to 60 fps |
| Audio Outputs |
1 x TOSLINK 8-Channel S/PDIF Female
1 x 1/4" TRS Stereo Analog Female |
| Output Audio Format |
S/PDIF
Analog |
| Embedded Audio Output |
HDMI
|
| Other I/O |
1 x Micro-USB Service
|
| HDCP Support |
Version 2.3
|
| HDR Compatibility |
HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma
|
| DTS Compatibility |
DTS, DTS-HD High Resolution, DTS-HD Master Audio
|
| Dolby Compatibility |
Dolby Digital, Dolby Digital Plus, Dolby TrueHD
|
| Wi-Fi |
Yes
|
| Bluetooth |
Yes
|
| Power I/O |
1 x Barrel (5 VDC at 2 A) Input
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
20 to 90% (Non-Condensing)
|
| Certifications |
CE, FCC, UL
*as per Manufacturer |
| Dimensions |
5.7 x 2.7 x 0.67" / 144.8 x 68.6 x 17.02 mm
|
| Weight |
9.5 oz / 268 g
|
| Package Weight |
1.08 lb
|
| Box Dimensions (LxWxH) |
9.2 x 4.8 x 2.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
