Description

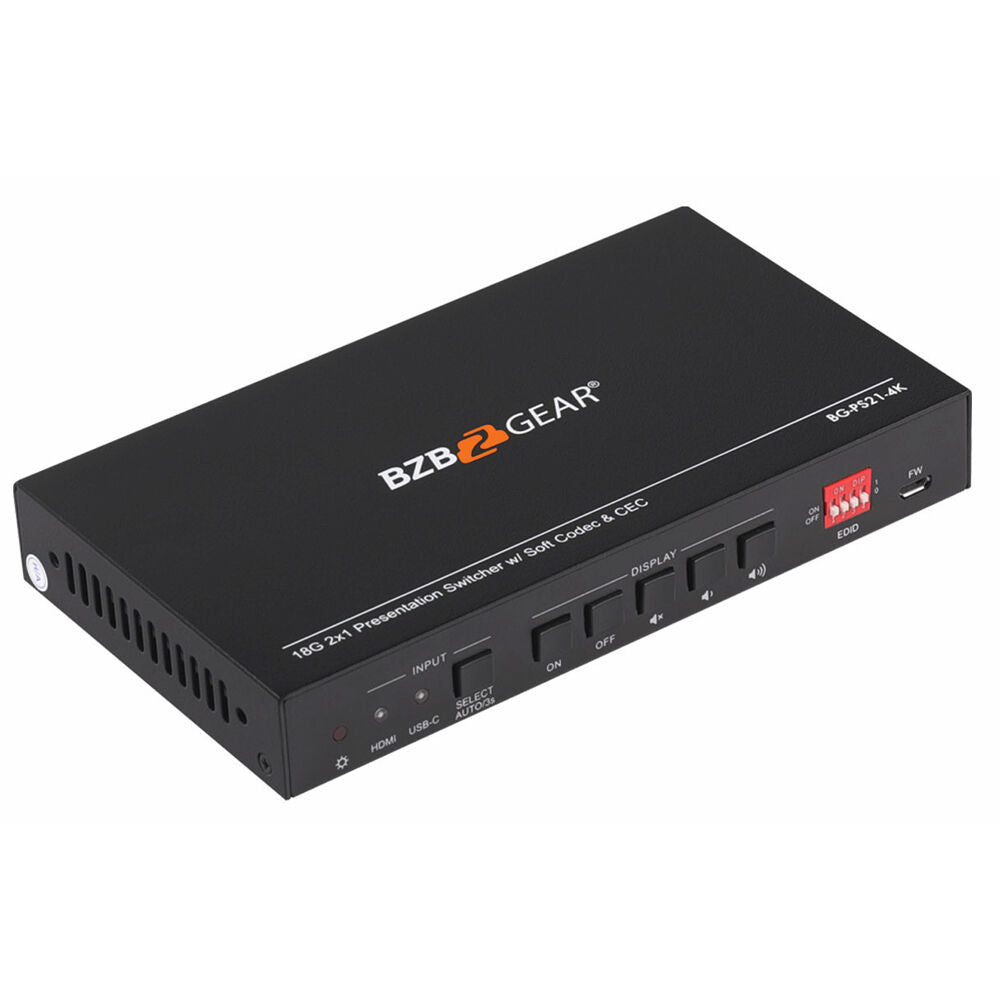

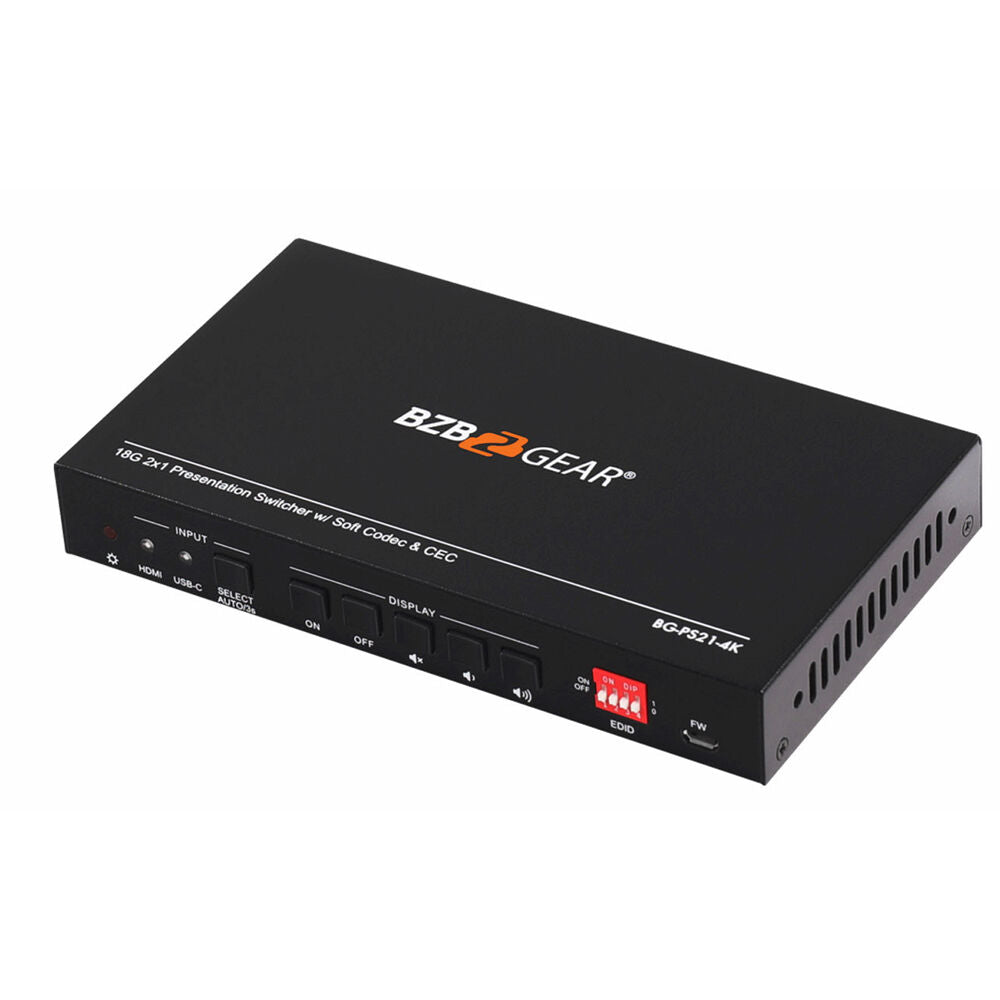

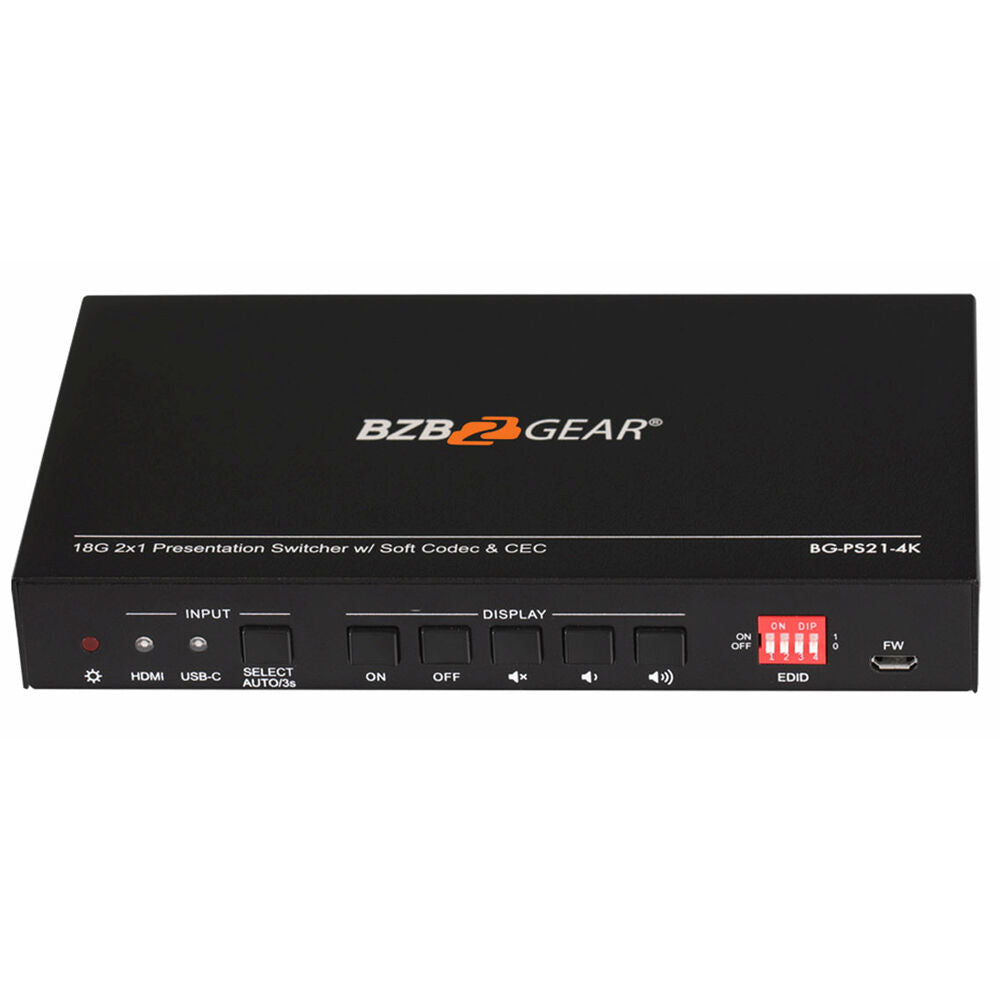

BZBGear PS21-4K Overview
Control up to two computers or video sources using the 2-Port 4K HDMI/USB Type-C KVM Presentation Switcher with HDMI Output from BZB Gear. This KVM switch comes fully compliant with HDCP 2.2 and HDMI 2.0 standards, making it compatible with a wide variety of HDMI sources supporting resolutions up to UHD 4K60.

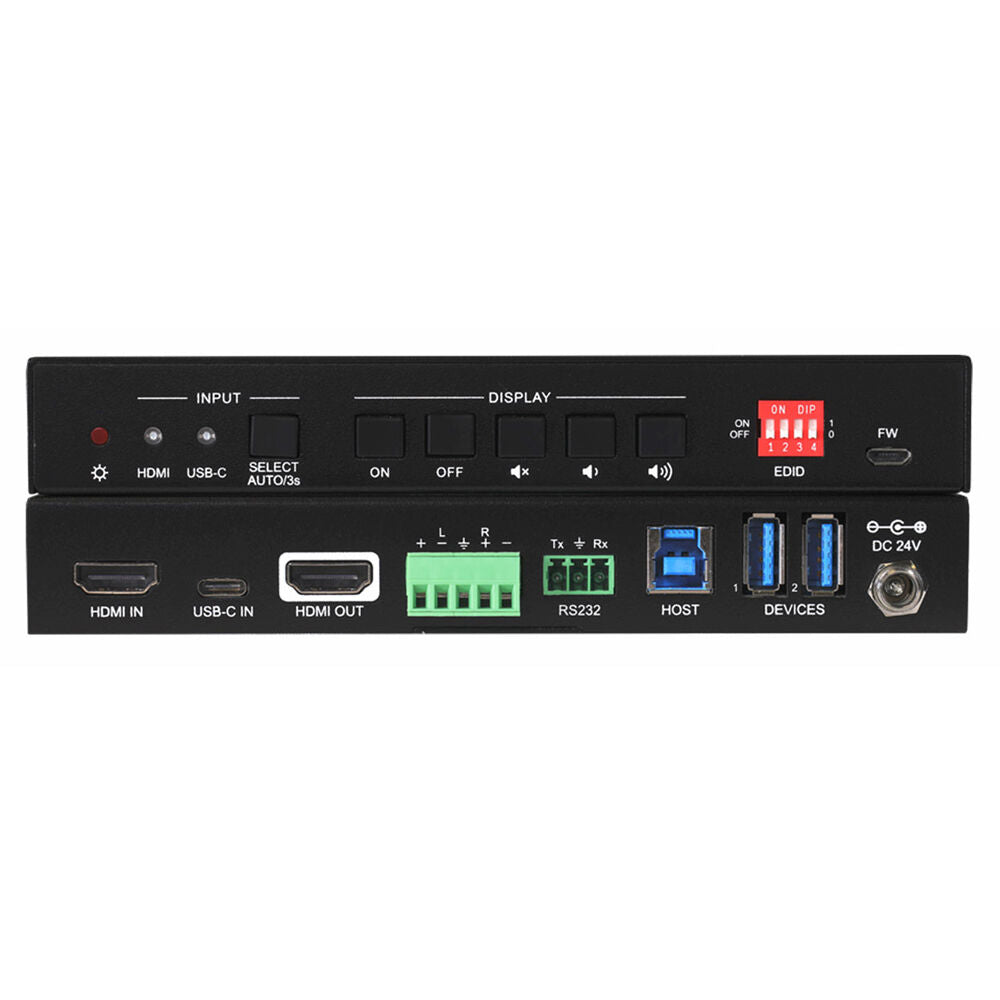

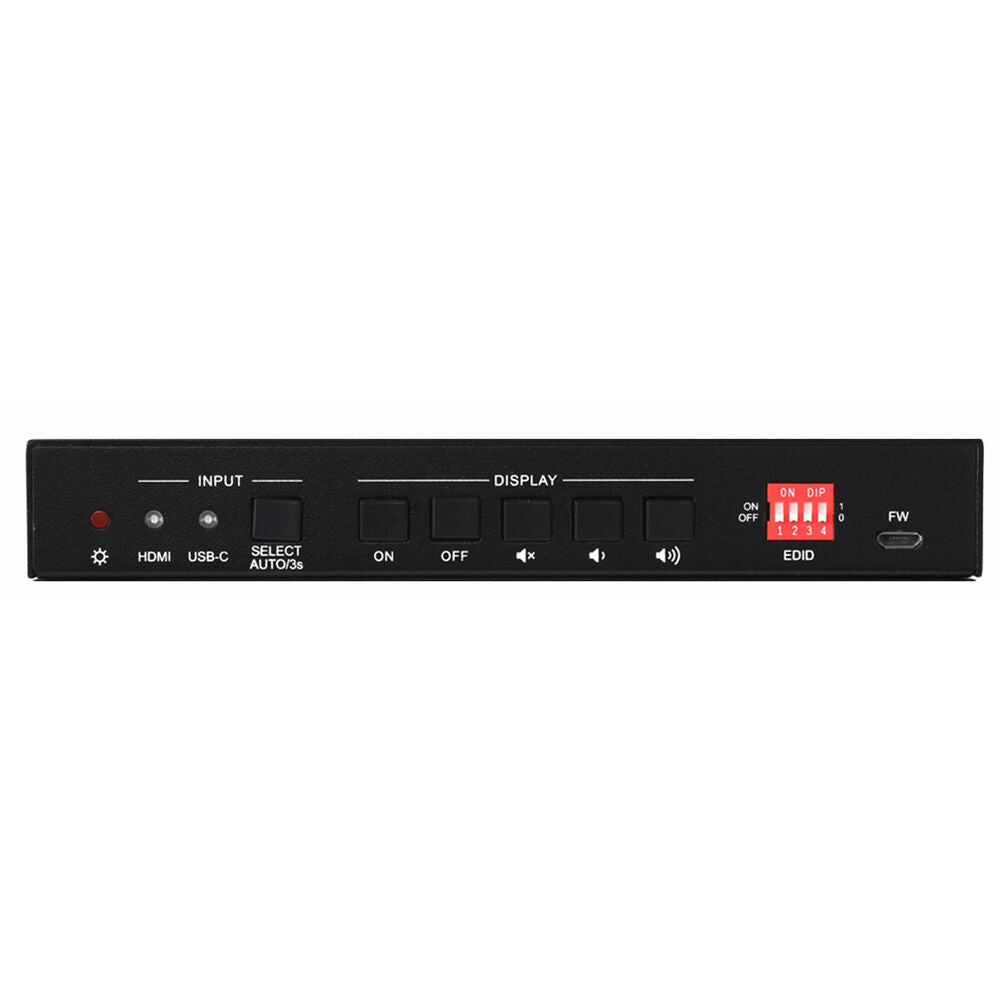

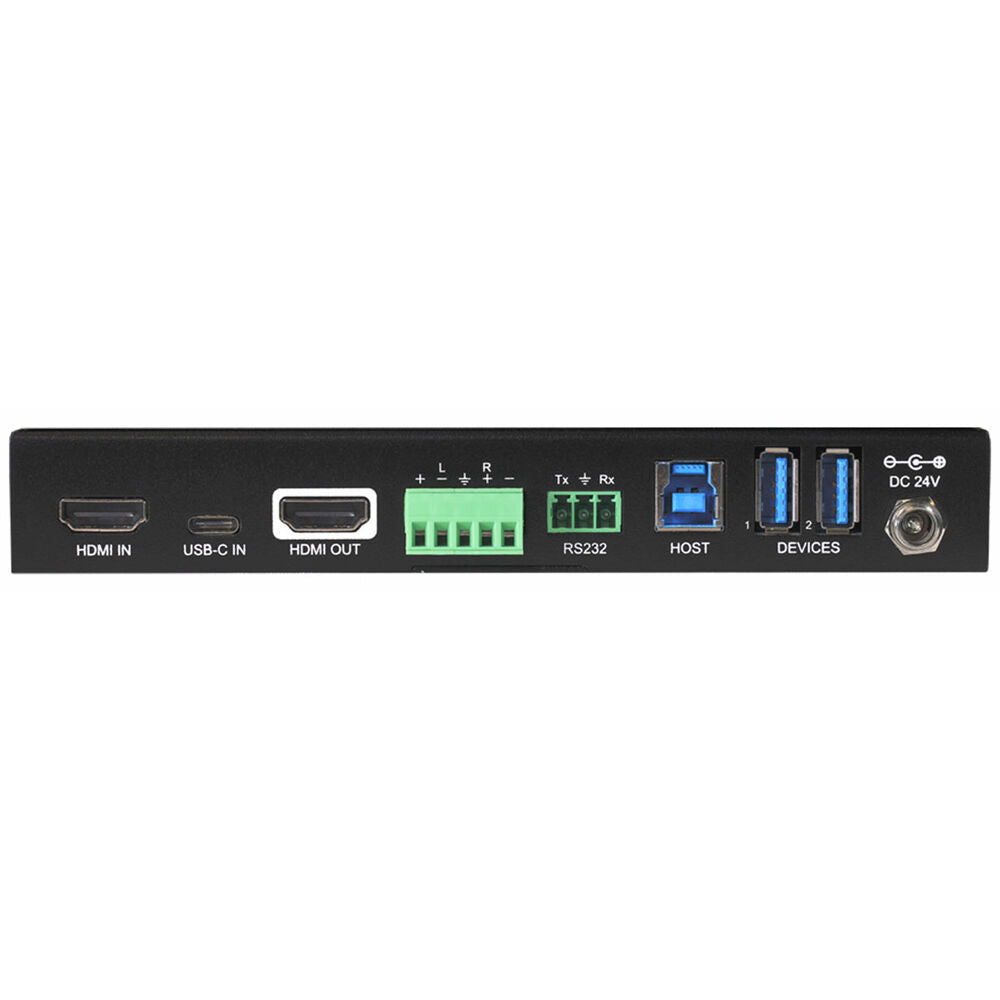

The switch features a USB Type-B host connector and two USB Type-A keyboard and mouse ports for your control and data. You can switch two video sources up to UHD 4K60 between USB 3.1 Gen 1 Type-C and HDMI Type A inputs and output video to an HDMI output. The KVM can be controlled via front-panel buttons or via an optional RS-232 serial controller. The embedded audio can be de-embedded using the 5-pin terminal block to external speakers or an audio mixer. The USB Type-C port can also deliver up to 40W power to charge the connected device.
Features
In the Box
- BZBGear 2-Port 4K HDMI/USB Type-C KVM Presentation Switcher with HDMI Output
- 2 x Rack Ear
- 4 x Screw
- 4 x Plastic Cushion
- 5-Pin Terminal Block
- 3-Pin Terminal to DB9 RS-232 Cable
- Power Adapter
- Power Cord
- Limited 2-Year Warranty
BZBGear PS21-4K Specs
| Switching Type | Mechanical Switch |
| Video Input Connectors | 1 x HDMI Female 1 x USB 3.0 Female |
| Input Video Format |
HDMI (8-Bit 4:4:4) UHD 4K: 60 fps |
| Embedded Audio Input | HDMI: 2-Channel (per Input) |
| Video Output Connectors | 1 x HDMI (HDMI 2.0) Female |
| Output Video Format |
HDMI (8-Bit 4:4:4) UHD 4K: 60 fps |
| Audio Output Connectors | 1 x 5-Pin Euroblock Stereo Analog Female |
| Output Audio Format | Analog |
| Embedded Audio Output | HDMI: 2-Channel |
| Other I/O | 1 x 3-Pin Euroblock RS-232 Input 1 x USB Type-B Control Input 2 x USB Type-A Control Input |
| HDCP Support | Version 2.2 |
| Power Connector | 1 x Barrel (24 VDC up to 2.7 A) Input 1 x USB Type-C Output |
| Power Consumption | Power Supply: 100 to 240 VAC (54 W) |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Storage Temperature | -13 to 158°F / -25 to 70°C |
| Operating Humidity | 10 to 90% |
| Weight | 8.6 oz / 245 g |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 52273.2 |
| 3-5 | ₹ 51739.8 |
| 5-10 | ₹ 50673.0 |
| 10+ | ₹ 49606.2 |
Bulk discount will be automatically applied during checkout based on quantity.
