Description
BZBGear BG-UDAIC-E18 Overview

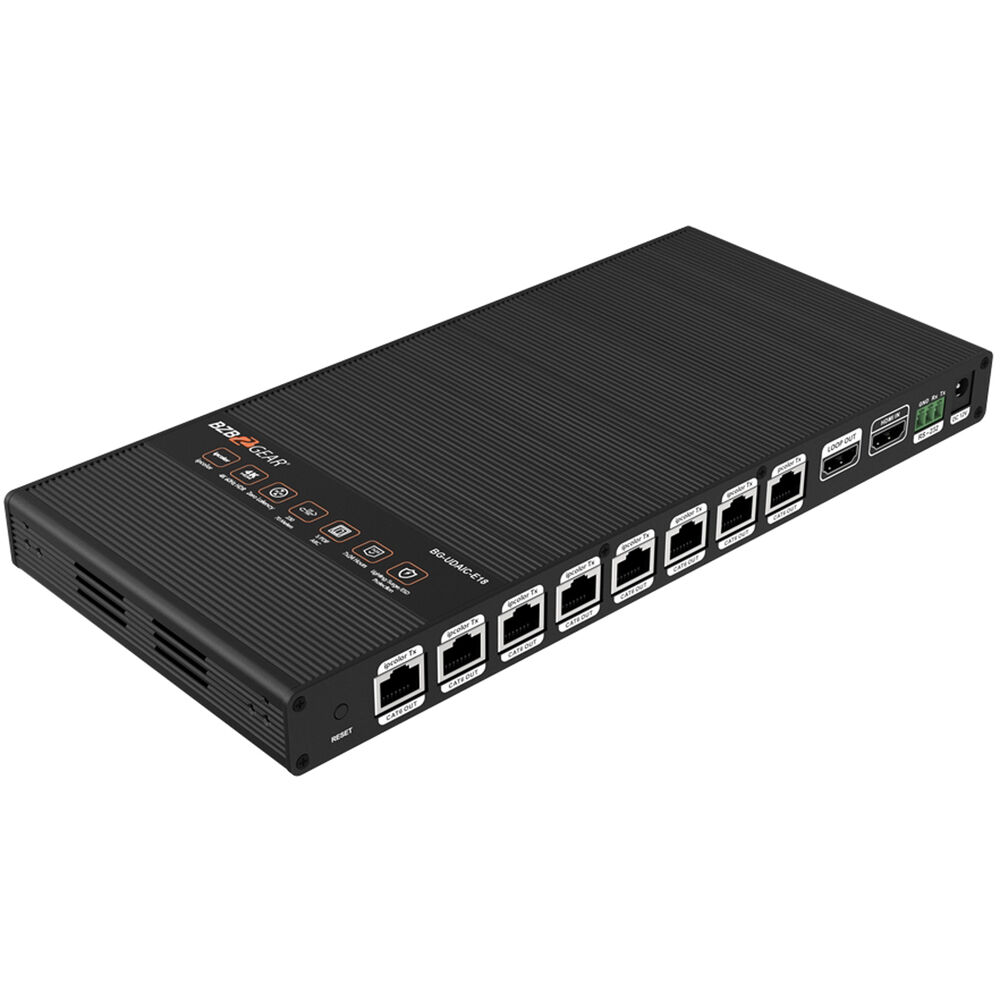

Add a distribution matrix to extend video to multiple 4K displays in your event space or video distribution environment with this 1x8 4K60 UHD 18 Gb/s HDMI Splitter/Distribution Amplifier from BZB Gear. The splitter/distribution matrix allows you to connect one HDMI 2.0 source and split up to UHD 4K60 resolution to eight individual 4K HDMI displays. The eight HDBaseT outputs allow you to extend 4K60 video up to 230' away using Cat 7/6/6a cables and the included receivers, and an HDMI output allows you to utilize a local loop-out monitor. Each receiver features an HDBaseT input, an HDMI output, optical audio output to speakers, IR ports, and RS-232 pass-through.
This distribution unit supports ARC audio return channel, HDCP 2.2, EDID management, and bidirectional IR, and it can be controlled via IR remote or RS-232. There are optical outputs on each receiver to extract embedded audio from your HDMI inputs for output to a mixer or speaker system. The receivers and transmitter units are powered using included power adapters.

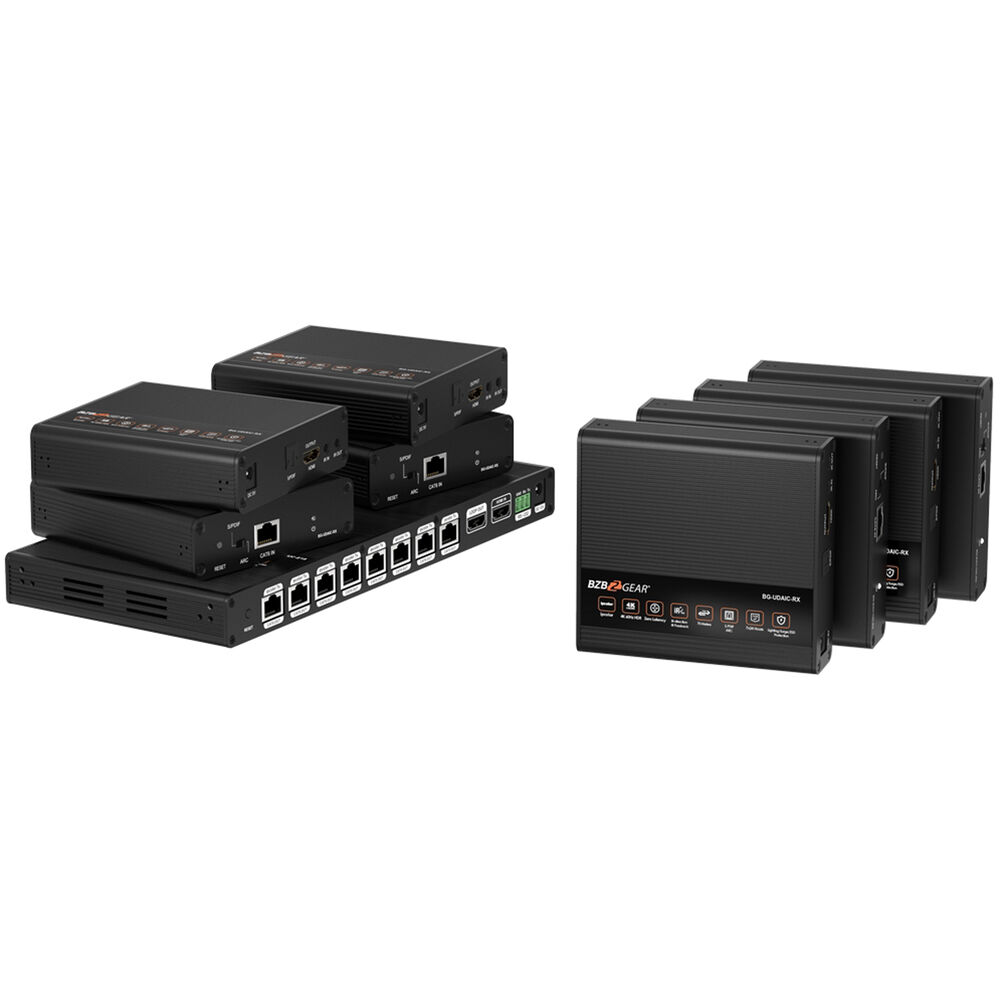

In the Box
- BZBGear 1x8 4K60 UHD 18 Gb/s HDMI Splitter/Distribution Amplifier (230')
- 8 x HDBaseT Receiver
- Splitter Power Adapter
- 8 x Receiver Power Adapter
- 3-Pin Terminal BLock
- IR Blaster Cable
- 8 x IR Receiver Cable
- Mounting Bracket Set
- Screw Set
Guides & Manuals
BZBGear BG-UDAIC-E18 Specs
| Input | 1 x HDMI (HDMI 2.0) Female |
| Embedded Audio | HDMI |

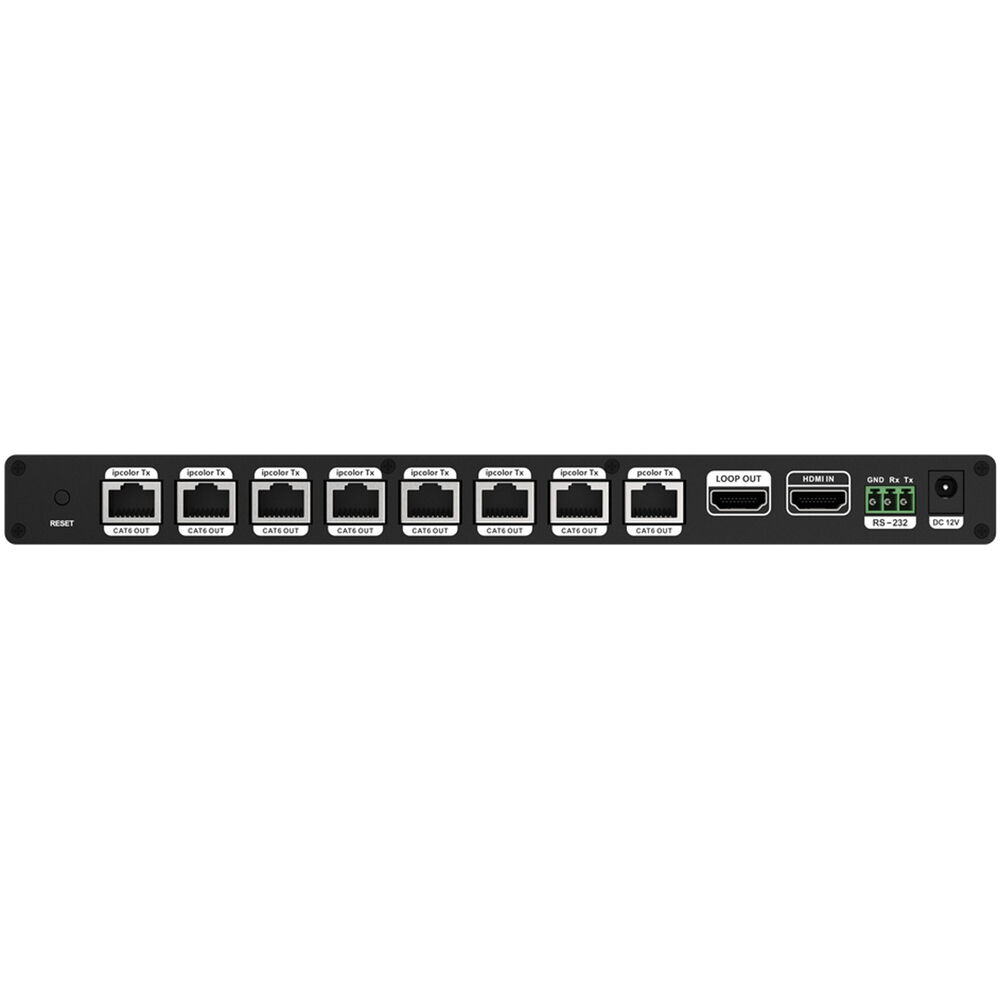

| Output | 1 x HDMI (HDMI 2.0, Looping) Female 8 x RJ45 (HDBaseT) Female |
| Other I/O | 1 x Block 3-Pin (RS-232) Input/Output |
| HDR Compatibility | None |
| HDCP Support | Version 2.2 |
| EDID Support | Yes |
| Audio Decoding | DTS-HD, Dolby Digital, LPCM |
| Max Transmission Distance | 230' / 70.1 m (via Cat 6/6a/7) |
| Video Format | HDMI DCI 4K: 24/25 fps UHD 4K: 24/25/30/50/60 fps 1080p: 50/60 fps 1080i: 50/60 fps 720p: 50/60 fps 480p: 60 fps NTSC: 60 fps 576p: 50 fps PAL: 50 fps |
| PC Resolutions | HDMI: 1360 x 768 HDMI: 1366 x 768 HDMI: 1600 x 900 HDMI: 1024 x 768 HDMI: 800 x 600 HDMI: 1280 x 960 HDMI: 1280 x 800 HDMI: 1280 x 768 HDMI: 1680 x 1050 |
| Maximum Data Rate | 18 Gb/s |
| Power Connector | 1 x Barrel (12 VDC at 2 A) Input |
| Power Consumption | Device: 12 VDC at 3 A (24 W) |
| ESD Protection | Yes |
| Operating Temperature | 12 to 92°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | 0 to 90% |
| Rack Form Factor | 1 RU |
| Material of Construction | Aluminum |
| Dimensions | 10.2 x 4.7 x 0.9" / 260.0 x 120.0 x 23.5 mm |
| Weight | 1.6 lb / 724 g |
