Description

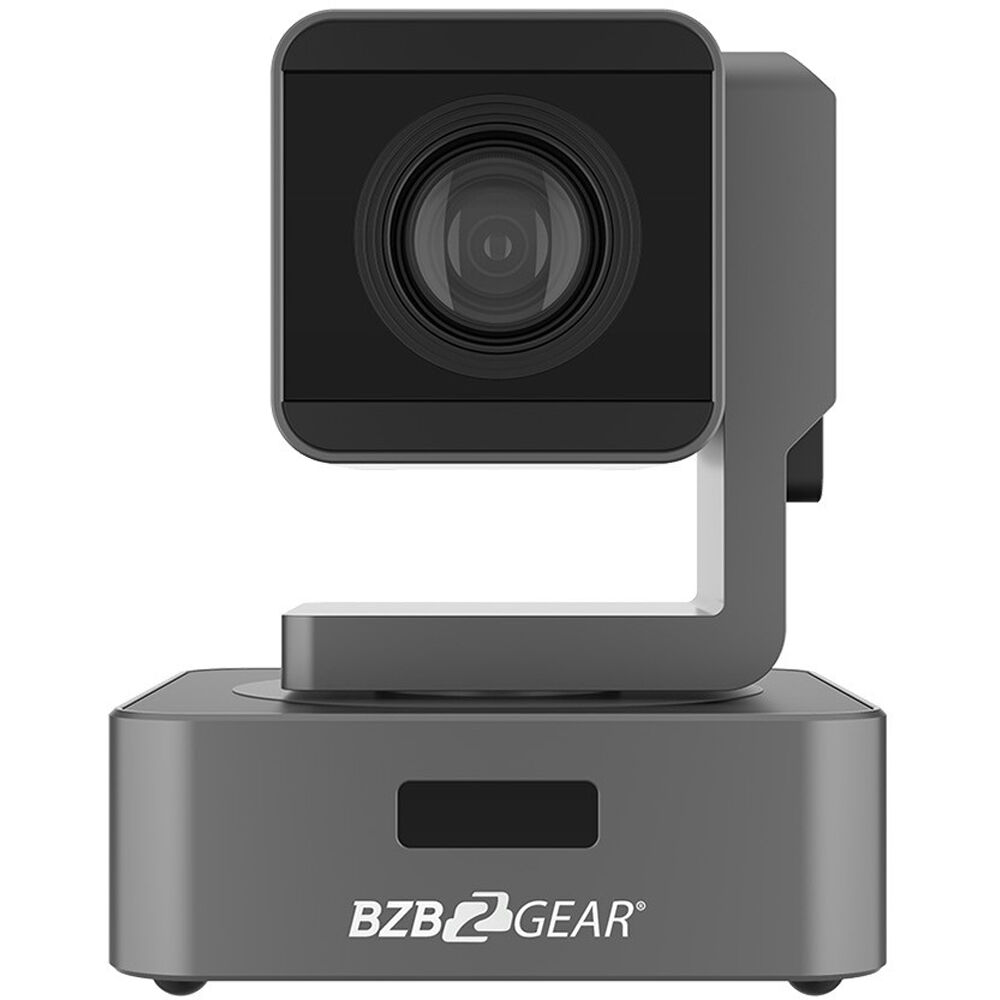

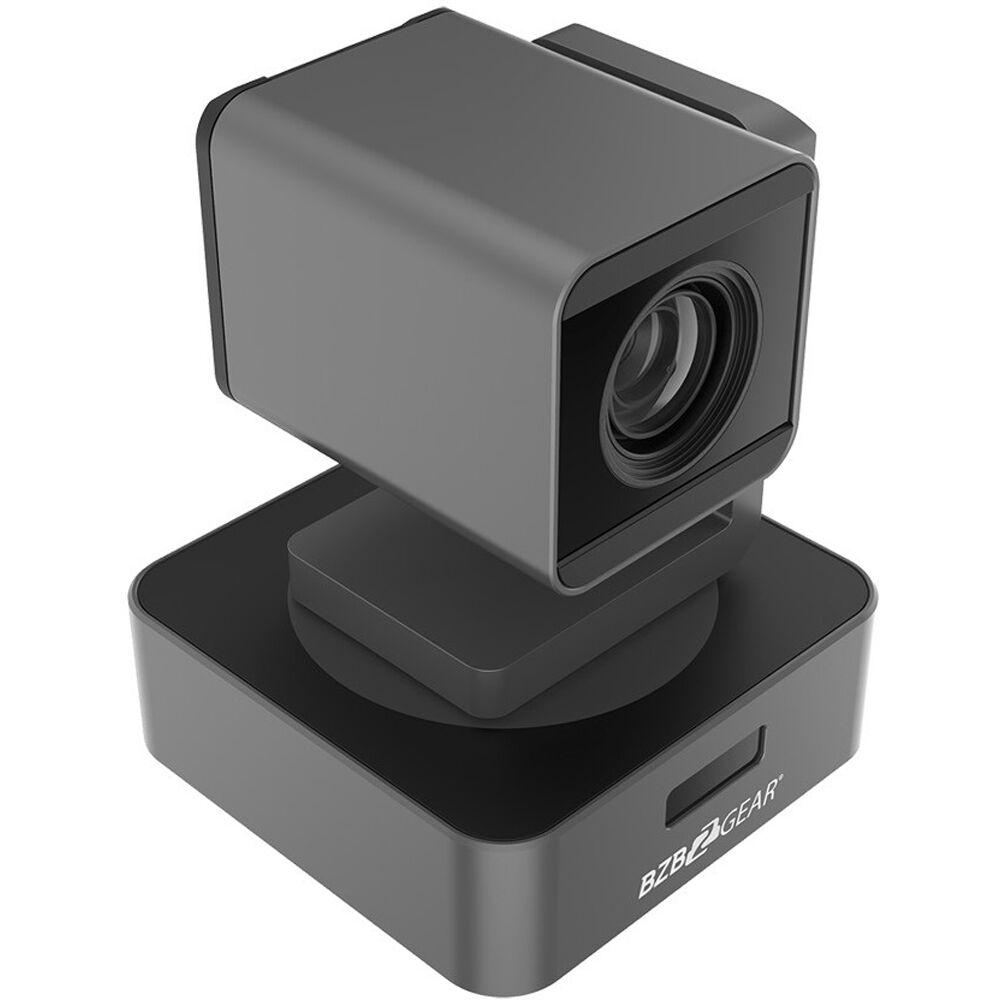

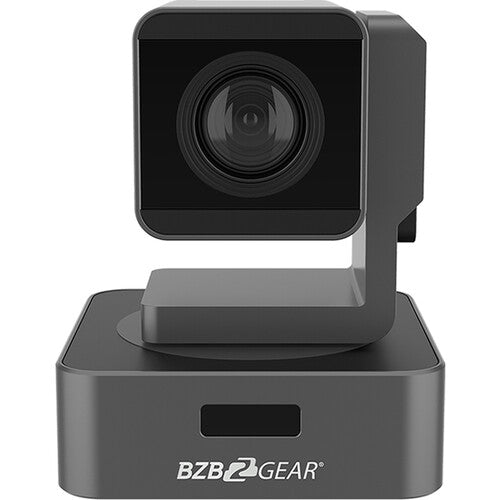

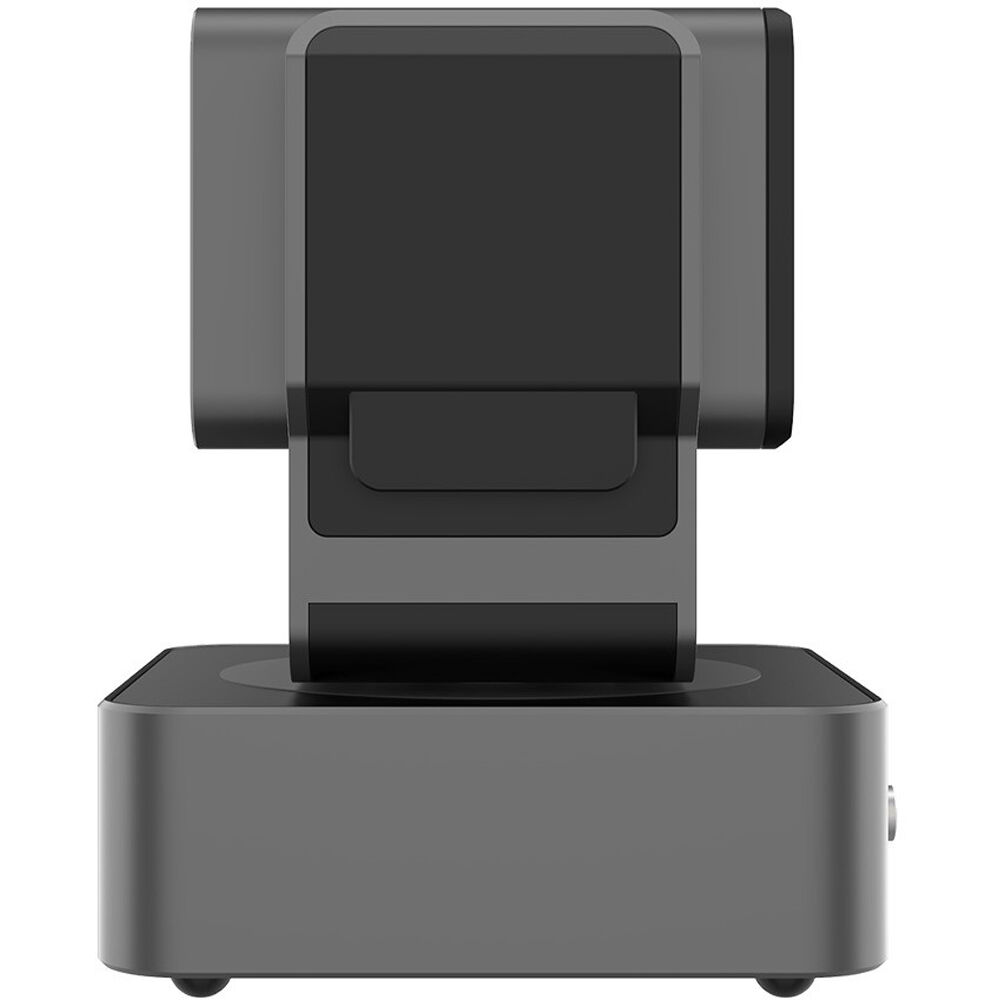

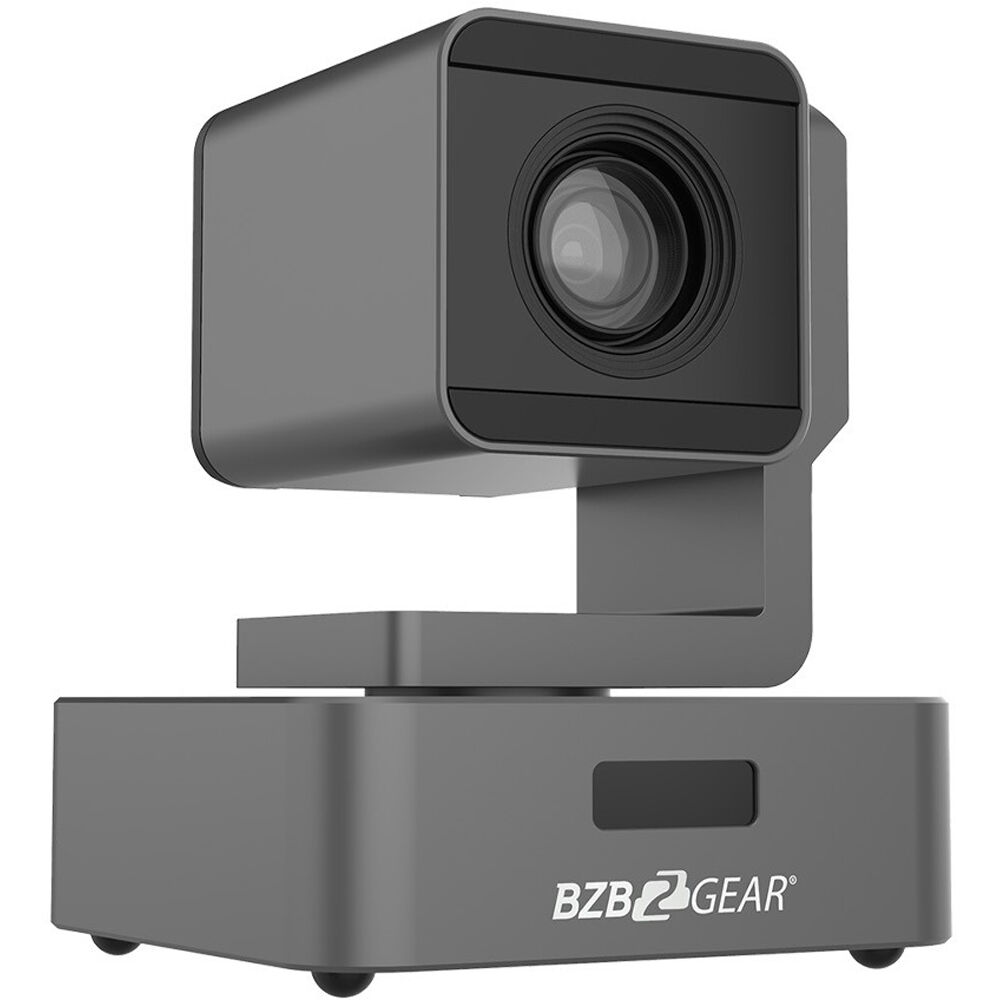

BZBGEAR BG-VPTZN Overview
Add a high-quality, multifunction PTZ camera to your conference room, event space, education environment, or house of worship with the 1080p HDMI/SDI/USB & NDI|HX2 Live Streaming PTZ Camera with 30x Zoom & PoE from BZB Gear. The camera features a 2.7MP 1/2.8" CMOS sensor and outputs up to 1080p video over HDMI, SDI, USB 3.0, USB 2.0, or uses RSMP/RTSP protocols to stream video and audio to the Internet. The camera also supports NDI|HX2 streaming and control for efficient compression and low latency while maintaining high-quality video on any NDI network.
The camera supports video transmission over H.265 and H.264 compression formats. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems. You can also manage the unit via IP using VISCA-over-IP/ONVIF or by using its RS-232/RS-485 serial port with a separately available serial PTZ controller. You can power the camera with the included power adapter, or you can utilize your existing PoE (Power-over-Ethernet) LAN to save cable runs.
Equipped with a 30x optical zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look, and it has a wide field of view for capturing large meeting rooms. It features an RJ45 Ethernet output that can transmit up to 1080p video to any RTSP/RTMP streaming network, so you can broadcast live directly to internet streaming sites. The camera also supports 3.5mm stereo audio input, allowing you to capture and embed audio into the video signal.
In the Box
- BZBGEAR 1080p HDMI/SDI/USB & NDI HX2 Live Streaming PTZ Camera with 30x Zoom & PoE
- Power Adapter
- IR Remote Control
- RS-232 to DB-9 Adapter
- Limited 3-Year Manufacturer Warranty
Guides & Manuals
BZBGEAR BG-VPTZN Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.7 Megapixel (1920 x 1080)
|
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1 Second
|
| Optical Zoom Ratio |
30x
|
| External Recording Modes |
SDI/BNC / HDMI / RJ45 / USB
1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 25/29.97/50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264, H.265, NDI, NDI|HX, ONVIF, RTMP, RTSP, TCP
1920 x 1080 1280 x 720 |
| Supported Control Protocols |
IP
Pelco-D Pelco-P RS-232 RS-485 VISCA |
| PoE Support |
PoE 802.3af
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.7 Megapixel (1920 x 1080)
|
| IR Cut Filter |
No
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1 Second
|
| Minimum Illumination |
0.005 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| Focal Length |
5.2 to 148.4mm
|
| Optical Zoom Ratio |
30x
|
| Field of View |
Horizontal: 65.4°
|
| Maximum Aperture |
f/1.3 to 4.8
|
| External Recording Modes |
SDI/BNC / HDMI / RJ45 / USB
1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 25/29.97/50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264, H.265, NDI, NDI|HX, ONVIF, RTMP, RTSP, TCP
1920 x 1080 1280 x 720 |
| Presets |
255 via IP, RS-232, VISCA
9 via IR |
| Move Speed |
Pan: 0.1 to 180°/sec
Tilt: 0.1 to 120°/sec |
| Movement Range |
Pan: 356° (-178 to 178°)
Tilt: 120° (-30 to 90°) |
| Supported Control Protocols |
IP
Pelco-D Pelco-P RS-232 RS-485 VISCA |

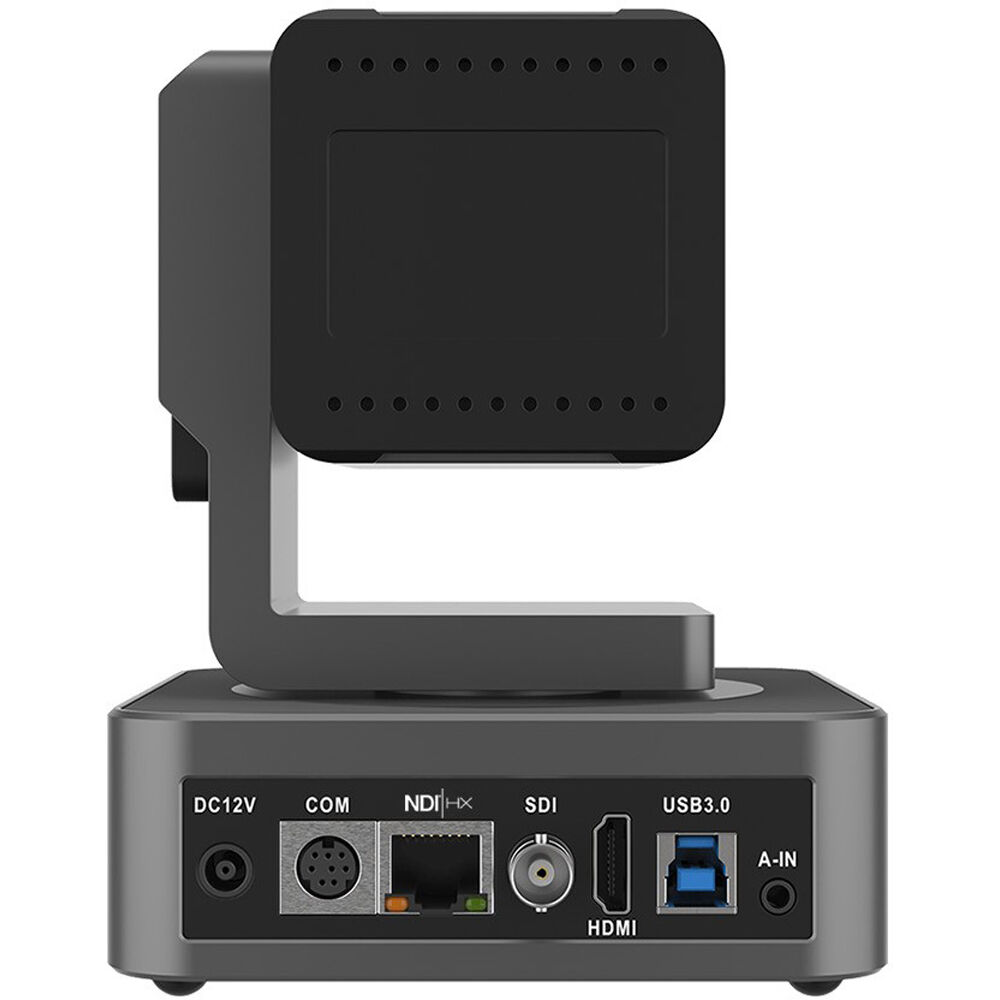

| Video I/O |
1 x HDMI Output
1 x BNC (3G-SDI) Output 1 x USB-B 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O |
1 x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1 x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Input
1 x RJ45 (LAN, NDI) Input/Output |
| PoE Support |
PoE 802.3af
|
| Power I/O |
1 x Barrel (12VDC up to 2 A) Input
|
| Power Consumption |
Power Supply: 100 to 240 VAC 12 W
|
| Operating Temperature |
14 to 122°F / -10 to 50°C
|
| Storage Temperature |
14 to 140°F / -10 to 60°C
|
| Material of Construction |
Aluminum
|
| Dimensions (W x H x D) |
4.7 x 5.7 x 4.7" / 120 x 145 x 120 mm
|
| Weight |
3.5 lb / 1.6 kg
|
