BZBGear BG-KIT3CAMMODEL-W20X30FT Overview
BZBGEAR BG-VPTZ-HSU3 PTZ Camera with USB 3.0, 3G-SDI, HDMI, and IP for Live Streaming
Firmware Update for BZBGEAR's BG-VPTZ-10HSU3 Series Live Streaming PTZ Cameras
How to Network a PTZ Camera | BG-VPTZ-HSU3 IP Setup Live Stream Video over LAN
BZBGEAR PTZ Camera for Live Streaming Outputs HDMI, 3G-SDI, USB 3.0, and IP Simultaneously
BZBGEAR BG-VPTZ-HSU3 PTZ Camera - USB 3.0, 3G-SDI, HDMI, and IP Live Streaming
By Photo's
Jennifer Hahn
Add a PTZ camera to your education, corporate, event, or house of worship media setup with this 1080p HDMI/SDI/USB 20x Zoom PTZ Camera, Wall Mount & 33' USB Cable Kit from BZBGear. The kit includes a gray 1080p HDMI/SDI/USB PTZ streaming camera with 20x optical zoom, a heavy-gauge steel wall mount, and a high-speed 33' long USB 3.0 Type-A cable for connection to your switcher or computer.
Key Features
Wide Applications
Remote learning, lectures, webcasting, video conferencing, remote training, remote medicine, interrogation, and emergency command systems
Control Protocols
Built-in VISCA, PELCO P/D, ONVIF with support for RS-485, RS-232, LAN (VISCA over IP), and IR remote control
Simultaneous Multi-Interface Video Output
3G-SDI, HDMI, and USB 3.0 (with cables 10' or shorter) as well as LAN IP streaming using TCP/IP, HTTP, DDNS, UDP, RTSP, RTMP, SMTP, UPnP, or SNMP protocols
All-Aluminum High-Stability Chassis
Ultra-quiet pan/tilt design, horizontal ±178 degrees, vertical -30~+90° rotation, high-precision stepper motor drive with 0.01° accuracy
Audio Input
Built-in 3.5mm analog audio input interface and G.711, G.722, G.722.1, G.728, and G.722.1C AAC audio encoding (supports line-in audio function through IP stream only)
Advanced 2D/3D Noise Reduction Technology
Further reduce noise while ensuring image sharpness
Smart Menu and WebGUI Interface
Easy to enter Menu for preview and setting changes
20x Optical Zoom
Advanced video image processing & full HD 1/2.8" CMOS sensor, maximum resolution up to 1080p60
Flexible Installation Options
Supports image mirror and flip function with ceiling, wall, tripod, and desk-mounting installations
Multiple Presets
The IR remote allows for 9 presets and serial or IP control
UPC: 850009357830

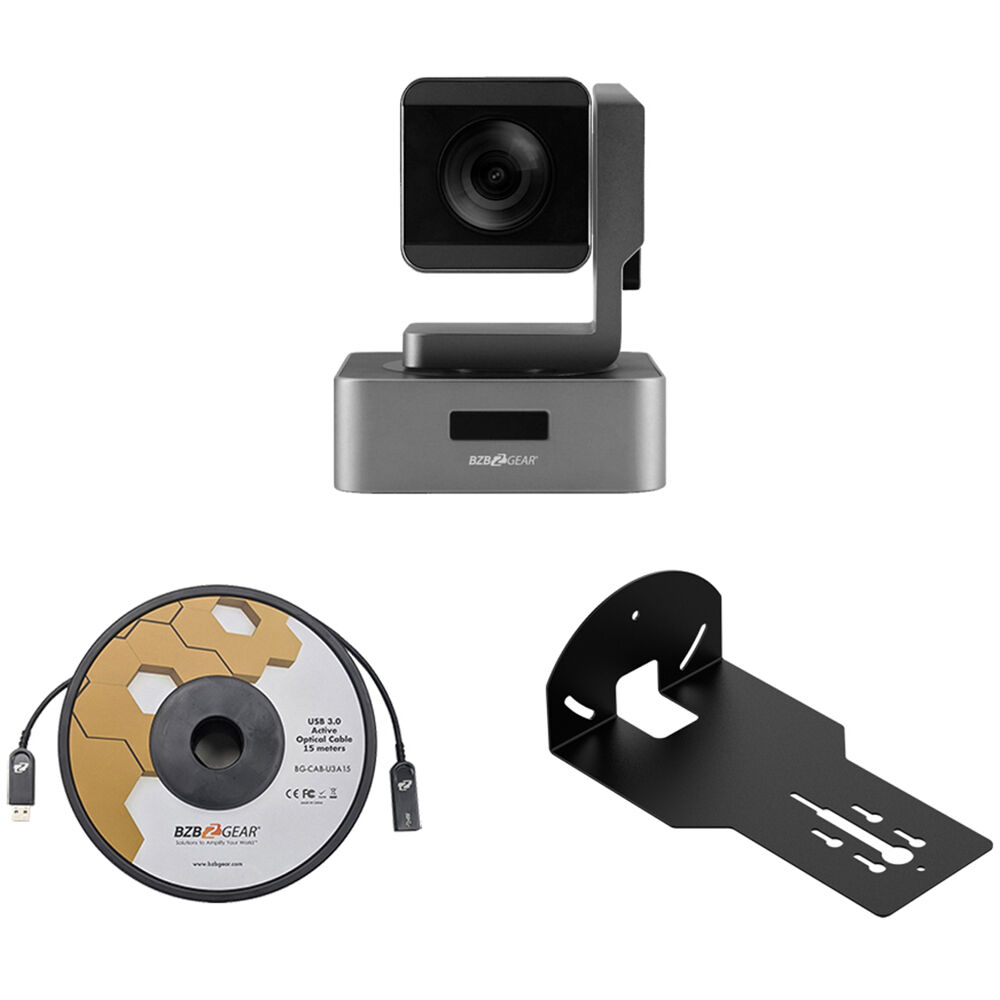

In the Box

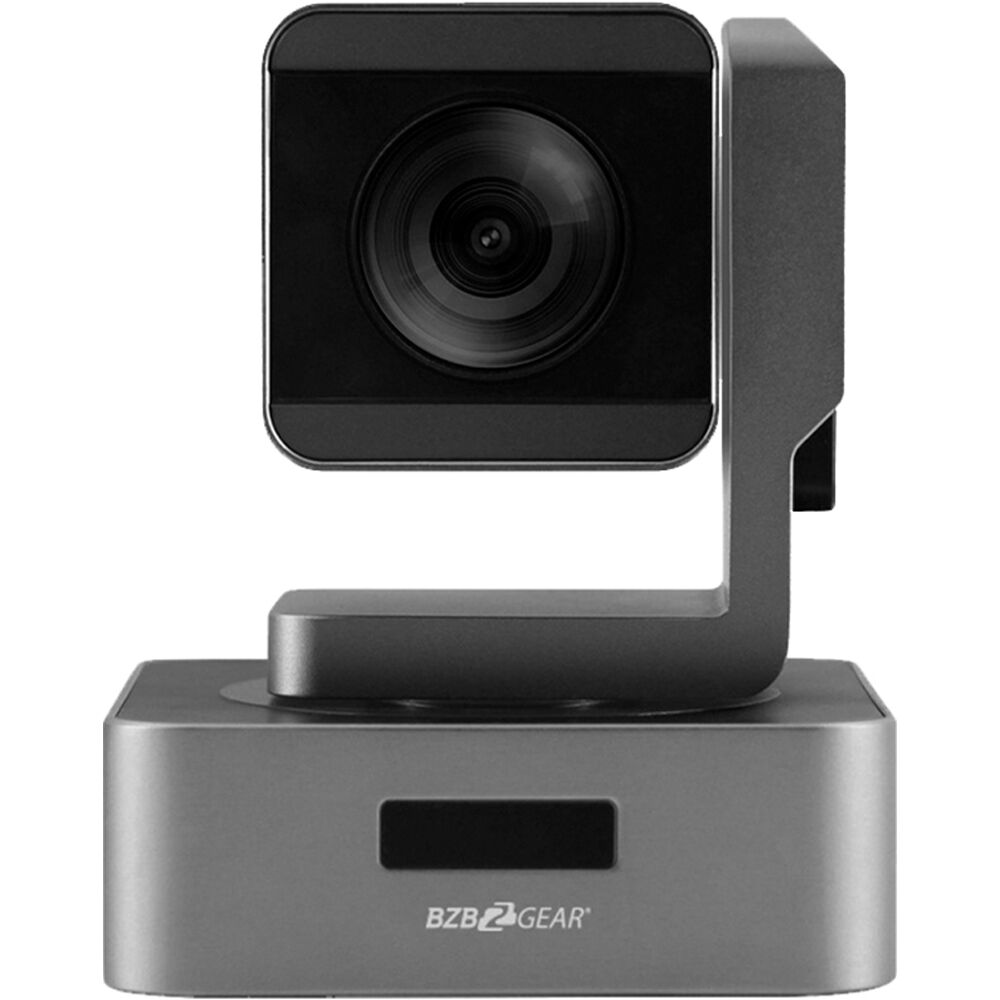

- BZBGear 1080p HDMI/SDI/USB Live Streaming PTZ Camera with 20x Zoom & PoE (Gray)
- Power Adapter
- IR Remote Control
- RS-232 Adapter

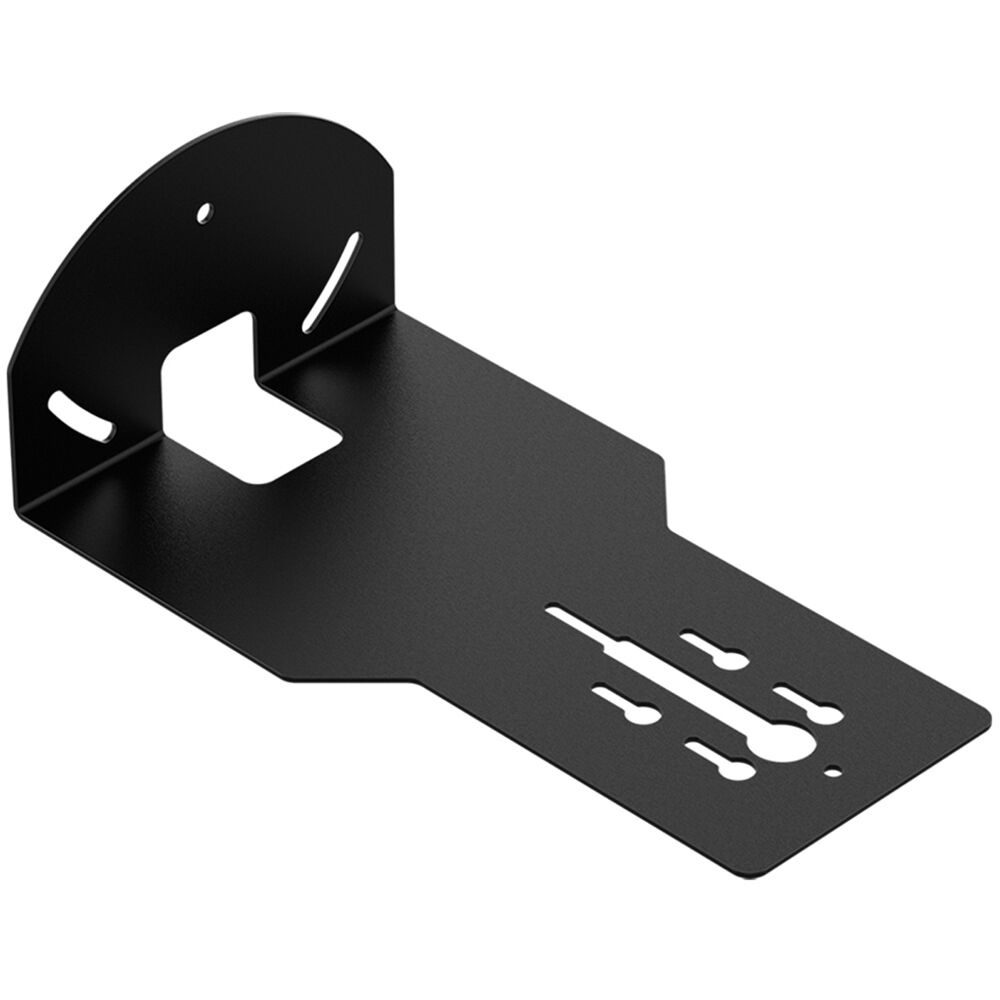

- BZBGear Metal Wall Mount Bracket for VPTZ Series Cameras

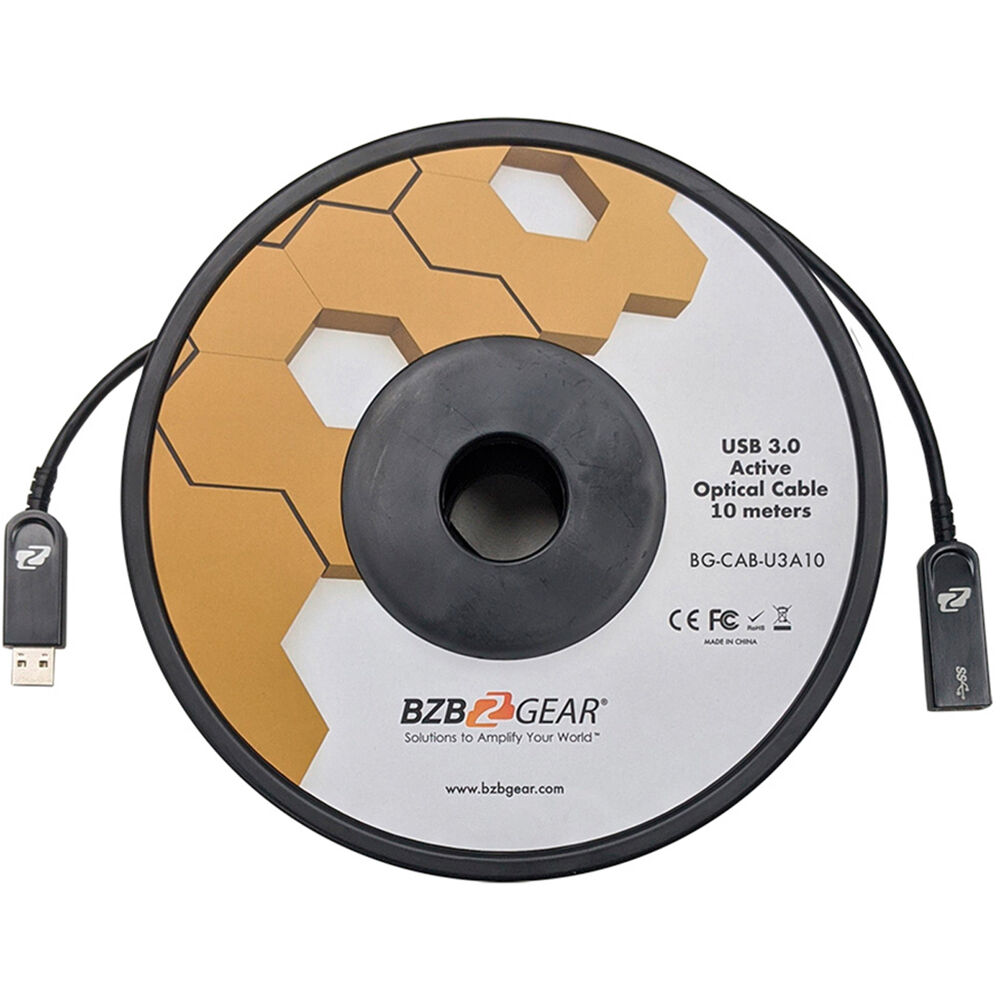

- USB 3.0 AM/AF Active Optical Extension Cable (33')
BZBGear BG-KIT3CAMMODEL-W20X30FT Specs
Imaging
| Sensor Type | 1/2.8"-Type CMOS Sensor |
| Sensor Resolution | Effective: 2.7 Megapixel (1920 x 1080) |
| IR Cut Filter | No |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/10000 to 1 Second |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
Lens
| Focal Length | 5.1 to 51mm |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 12x |
| Field of View | Horizontal: 2.9 to 72° |
| Maximum Aperture | f/1.6 to 2.8 |
Video Capture
| External Recording Modes | SDI/BNC / HDMI / RJ45 / USB 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 25/29.97/50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps |
| Embedded Audio | HDMI/SDI: 2-Channel |
| Broadcast Output | NTSC |
| IP Streaming | H.264, H.265, MJPEG, ONVIF, RTMP, RTSP, TCP 1920 x 1080 1280 x 720 |
Control
| Presets | 255 via IP, RS-232, VISCA 9 via IR |
| Move Speed | Pan: 0.1 to 180°/sec Tilt: 0.1 to 120°/sec |
| Movement Range | Pan: 356° (-178 to 178°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP Pelco-D Pelco-P RS-232 RS-485 VISCA |
Interface
| Video I/O | 1 x HDMI Output 1 x BNC (3G-SDI) Output 1 x USB-B 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1 x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Input 1 x RJ45 (LAN) Input/Output |
Power
| Power I/O | 1 x Barrel (12VDC up to 2 A) Input |
| Power Consumption | Power Supply: 100 to 240 VAC 12 W |
Environmental
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
General
| OS Compatibility | Windows macOS 11 *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| App Compatible | Yes: iOS Only App Name: BZBGEAR Cameras Control Functionality: Adjust Settings, Remote Control, View Live Feed *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Dimensions (W x H x D) | 4.7 x 5.7 x 4.7" / 120 x 145 x 120 mm |
| Weight | 3.5 lb / 1.6 kg |
Packaging Info
| Package Weight | 4.275 lb |
| Box Dimensions (LxWxH) | 10.1 x 9.1 x 8.1" |
