Description

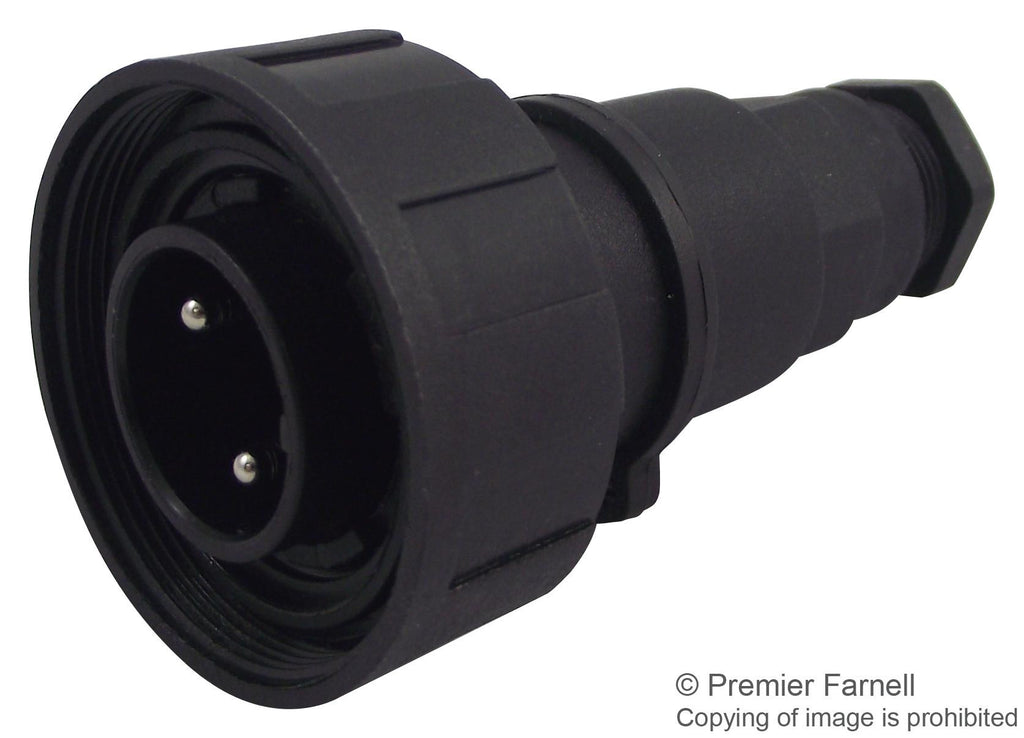

The PX0736/P from Bulgin is a standard Buccaneer, black colour circular flex cable plug connector with 2 pin contacts. This connector has compact design and easy assembly. No special tools are required for screw termination. It mates with in-line flex or panel mounting female connectors.
- Screw locking ring
- Standard cable acceptance from 6mm to 8mm
- IP68 and IP69K degree of protection
- Current rating of 12A
- Voltage rating of 277VAC / VDC
- UL, CSA, CCC and VDE?approved
- Contact resistance is less than 10mohm
- Operating temperature range from -20°C to 70°C
- UL94 HB rated glass filled polyamide body moulding
- Nickel plated brass contacts
Applications
Industrial
Product details
| Contact Material | Brass |
| Circular Connector Shell Style | Cable Mount Plug |
| Contact Plating | Nickel |
| Connector Body Material | Nylon (Polyamide), Glass Filled Body |
| Coupling Style | - |
| No. of Contacts | 2Contacts |
| Product Range | Buccaneer Standard Series |
| Connector Body Plating | - |
| Circular Contact Type | Screw Pin |
Other details
| Brand | BULGIN |
| Part Number | PX0736/P |
| Quantity | Each |
| Technical Data Sheet EN |  |
