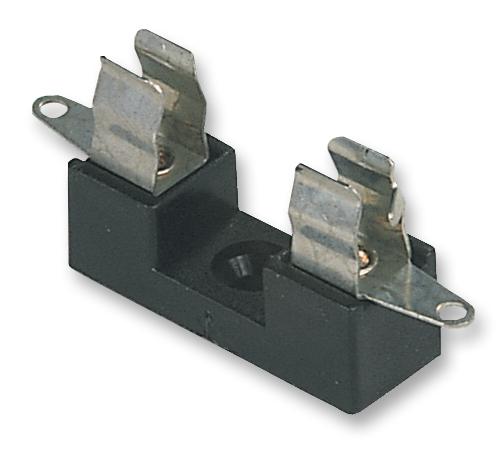

The FX0360 is a 6.3A/250V base mount Cartridge Fuse Holder with glass filled nylon base, phosphor bronze/tin-plated contacts and solder lug terminals. This fuse holder features protection category PC1 with no integral protection against electric shock.
- Central countersunk fixing hole
- >10�MR at 500VDC Insulation resistance
- 2kV at 50Hz AC Breakdown
- <10mR Contact resistance
- -20 to 85°C Operating temperature range
- UL94HB Flammability rating
Applications
Safety
Product details
| Fuse Holder Type |
Cartridge Fuse Holder |
| Fuse Current |
6.3A |
| Fuse Size Held |
5mm x 20mm |
| Holder Terminals |
Solder Lug |
| No. of Fuses |
1Fuses |
| Product Range |
- |
| Voltage Rating VAC |
250V |
| Voltage Rating V DC |
250V |
Other details
| Brand |
BULGIN LIMITED |
| Part Number |
FX0360 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD Multiple Formats EN |
|
