Description

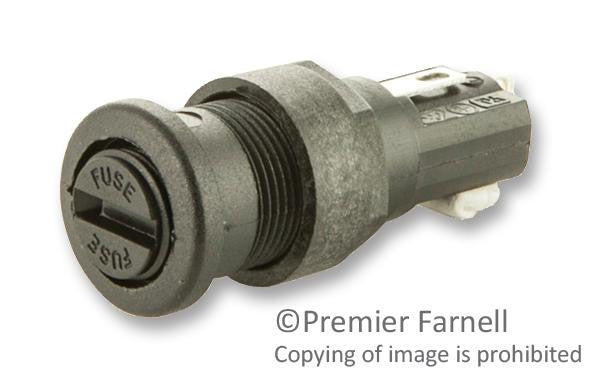

The FX0455 is a 16A/250V panel mount Cartridge Fuse Holder with polyester body, nylon cap, glass filled nylon nut, brass/silver-plated contacts, solder lug termination, D-type fixing style and screw cap/screwdriver release fuse carrier. This fuse holder features protection category PC2 with integral protection against electric shock.
- Low profile fixing
- 2.5W Maximum power dissipation (at 23�C)
- >10�MR at 500VDC Insulation resistance
- 7kV at 50Hz AC Breakdown
- <10mR Contact resistance
- -20 to 85�C Operating temperature range
- UL94V-0 Flammability rating
Applications
Safety
Product details
| Fuse Holder Type | Cartridge Fuse Holder |
| Voltage Rating V AC | 250V |
| Fuse Current | 10A |
| No. of Fuses | 1Fuses |
| Product Range | - |
| Holder Terminals | Solder Lug |
| Voltage Rating V DC | - |
| Fuse Size Held | 5mm x 20mm |
Other details
| Brand | BULGIN |
| Part Number | FX0455 |
| Quantity | Each |
| Technical Data Sheet EN |  |
