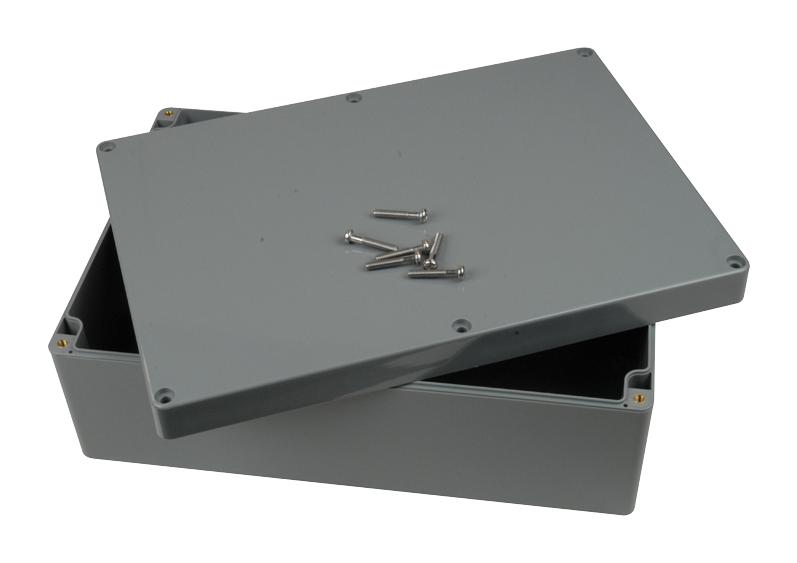

The PN-1335-DG is a NEMA 4X Box made of ABS (acrylonitrile butadiene styrene) with dark gray finish. This PN-series box is offered in style-3 version. Wall mounting holes and cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust. Ideal for PCB enclosures, junction boxes and other applications in the electrical and electronic industries.
- UL94HB Flammability rating
- 0 to 80°C Service temperature range
- IP65 Protection rating
- Internal bosses allow mounting of PCBs horizontally or for connection of terminals
- Cover screws are M-4 stainless steel, non-magnetic and fasten into threaded brass inserts
- Silicone sponge gasket
Applications
Industrial
Product details
| Enclosure Type |
Junction Box |
| Enclosure Material |
ABS |
| External Height - Metric |
95mm |
| External Width - Metric |
185.01mm |
| External Depth - Metric |
265.02mm |
| IP Rating |
IP65 |
| Body Colour |
Grey |
| NEMA Rating |
NEMA 1, 2, 3, 4, 4X, 12, 13 |
| External Height - Imperial |
3.74" |
| External Width - Imperial |
7.28" |
| External Depth - Imperial |
10.43" |
| Product Range |
PN Series |
Other details
| Brand |
BUD INDUSTRIES |
| Part Number |
PN-1335-DG |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
| 3D Product Image EN |
|
