Description
- Dual-Axis Hinge
- 0-360° Azimuth Scale
- 1° Resolution, 0.5° Accuracy
- Rare Earth Magnet
- Waterproof Housing
- Dual-Axis Bubble Level
- Magnetic Declination Adjustment
- Adjustable Needle Locking Mechanism
- Anodized Aluminum Construction
- Made in the USA

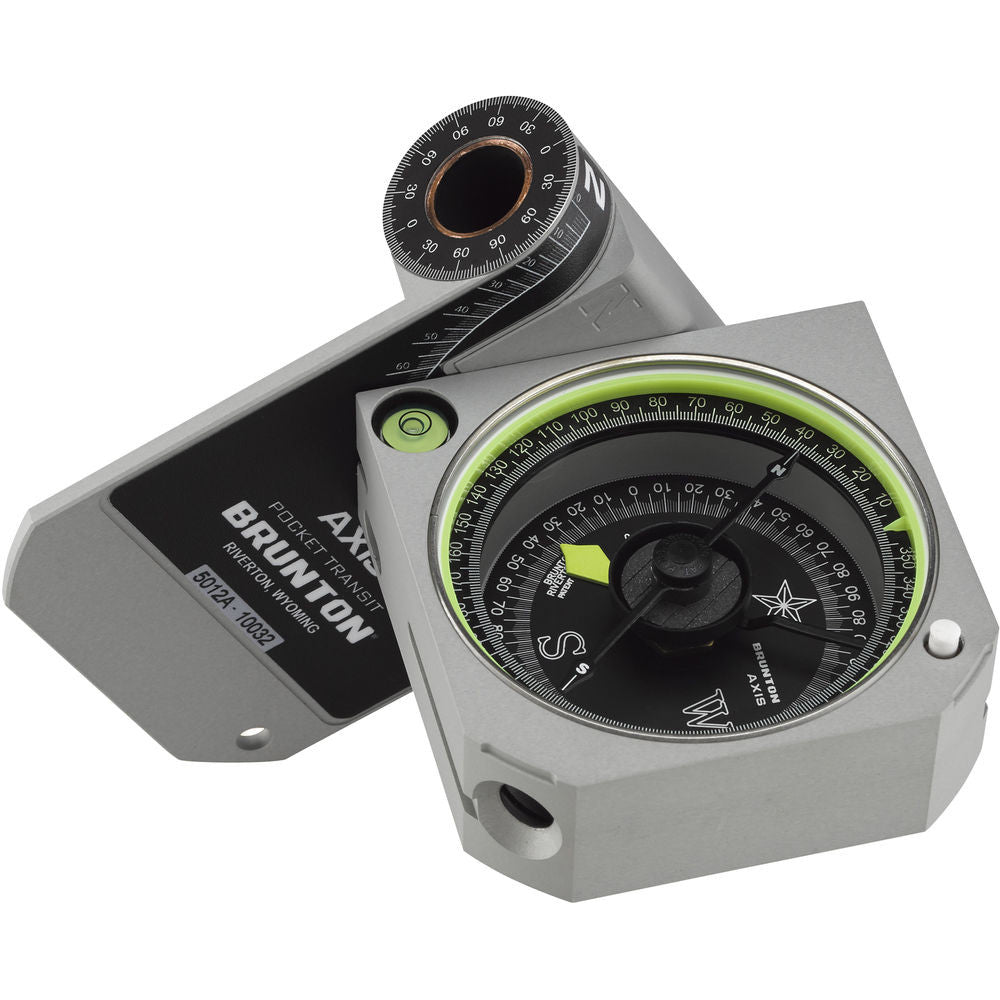

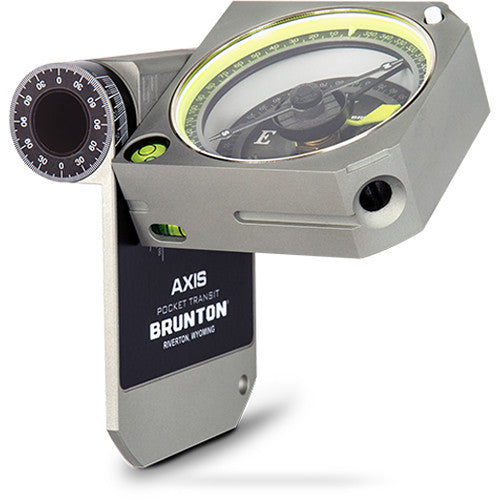

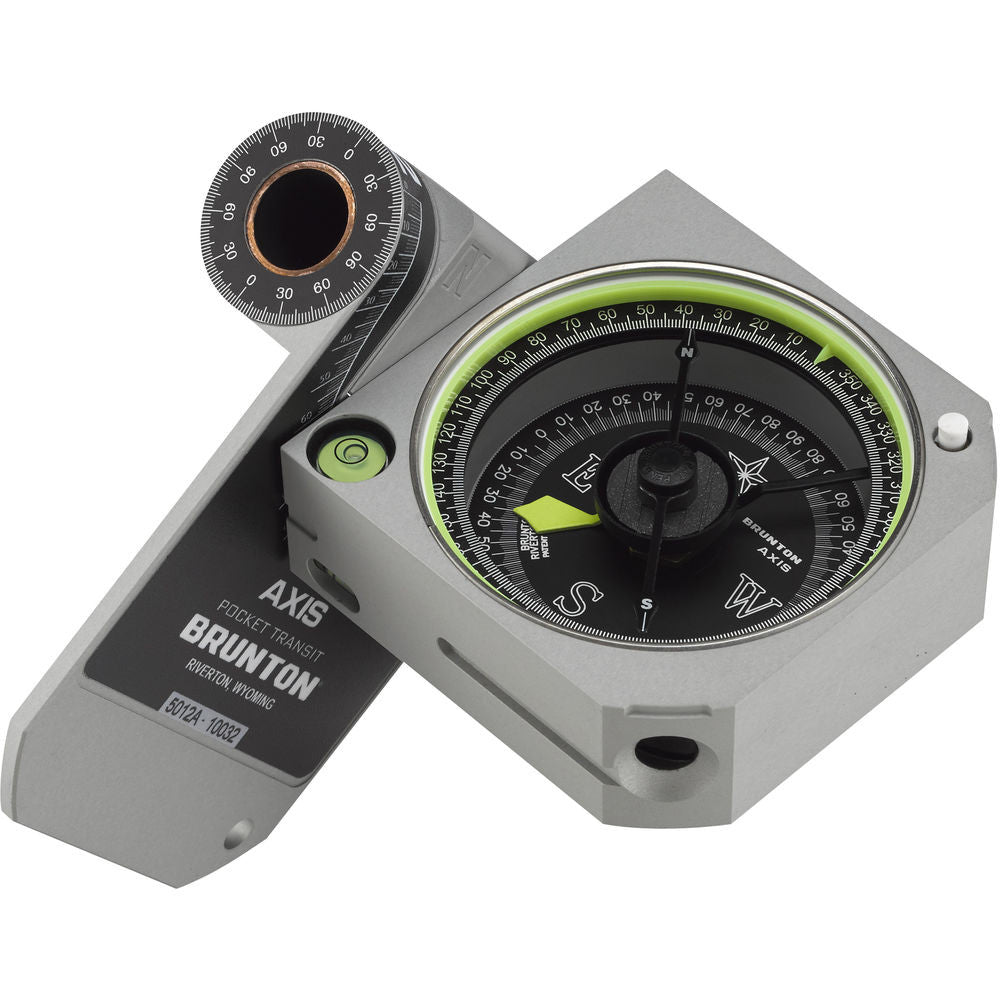

The Axis 0-360 Pocket Transit from Brunton is designed especially for easier geological measurements. Its innovative dual-axis, hollow hinge allows for intuitive, efficient, accurate measurements of planes, lines, bearings, and vertical angles.
Only one measurement configuration is needed for strike & dip, trend & plunge, and bearing and vertical angle, making your measurements more accurate and efficient. The innovative lid protractor and rotation around the minor axis enables accurate, simultaneous measurement of trend & plunge on any surface, including overhangs.
The axis employs a rare earth magnet on a sapphire jewel suspension and features an adjustable needle locking mechanism, high-visibility north and south markings, and induction damping for quick stabilization. The housing is hard anodized billet aluminum and is O-ring sealed to provide a waterproof performance.
- Function and Handling
-
- Sapphire jewel bearing
- 0-360° scale
- Dual-axis hinge for quick, easy measurements of planes, lines, bearings, and vertical angles
- Adjustable needle locking mechanism
- Induction dampened, low center of gravity needle
- Hard anodized aluminum billet body
- Adjustable magnetic declination
- Horizontal and vertical axis bubble levels
| Accuracy | Compass bearing: 0.5° with 1° graduations Inclinometer: 0.5° with 1° graduations Dip angle: 1° with 2° graduations Plunge angle: 0.5° with 1° graduations |
| Dimensions | 3.9 x 2.8 x 1.2" / 9.9 x x 7.1 x 3.0 cm |
| Weight | 12.5 oz / 354 g |
| Packaging Info | |
|---|---|
| Package Weight | 1.35 lb |
| Box Dimensions (LxWxH) | 5.8 x 5.7 x 3.0" |
- Limited Lifetime Warranty
