Broncolor LED F160 Overview
-
1Description
-
2Broncolor F160 LED Monolight
-
3Broncolor Li-Ion Battery 36V XLR
-
4Broncolor Charger for Li-Ion Battery 36V XLR
-
5Broncolor V-Mount Stand Clamp for Li-Ion Battery 36V XLR
-
6Broncolor Umbrella Reflector for F160 LED Monolight
-
7Broncolor L40 Standard Reflector for Siros and Siros L
The LED F160 Versatility Kit from Broncolor combines the versatile F160 LED monolight with a V-mount battery for use in locations where mains power is not available. It includes a standard reflector and an umbrella reflector for more ways to modify the light output.

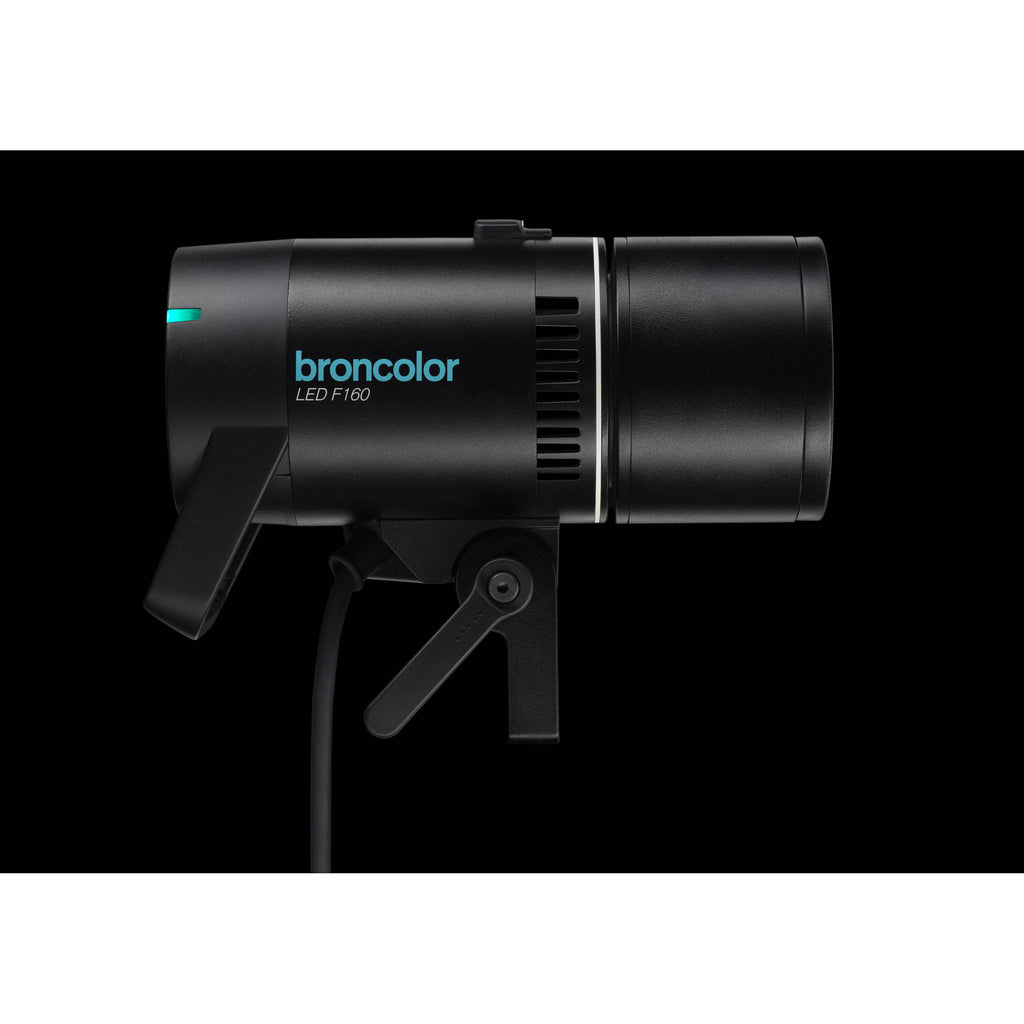

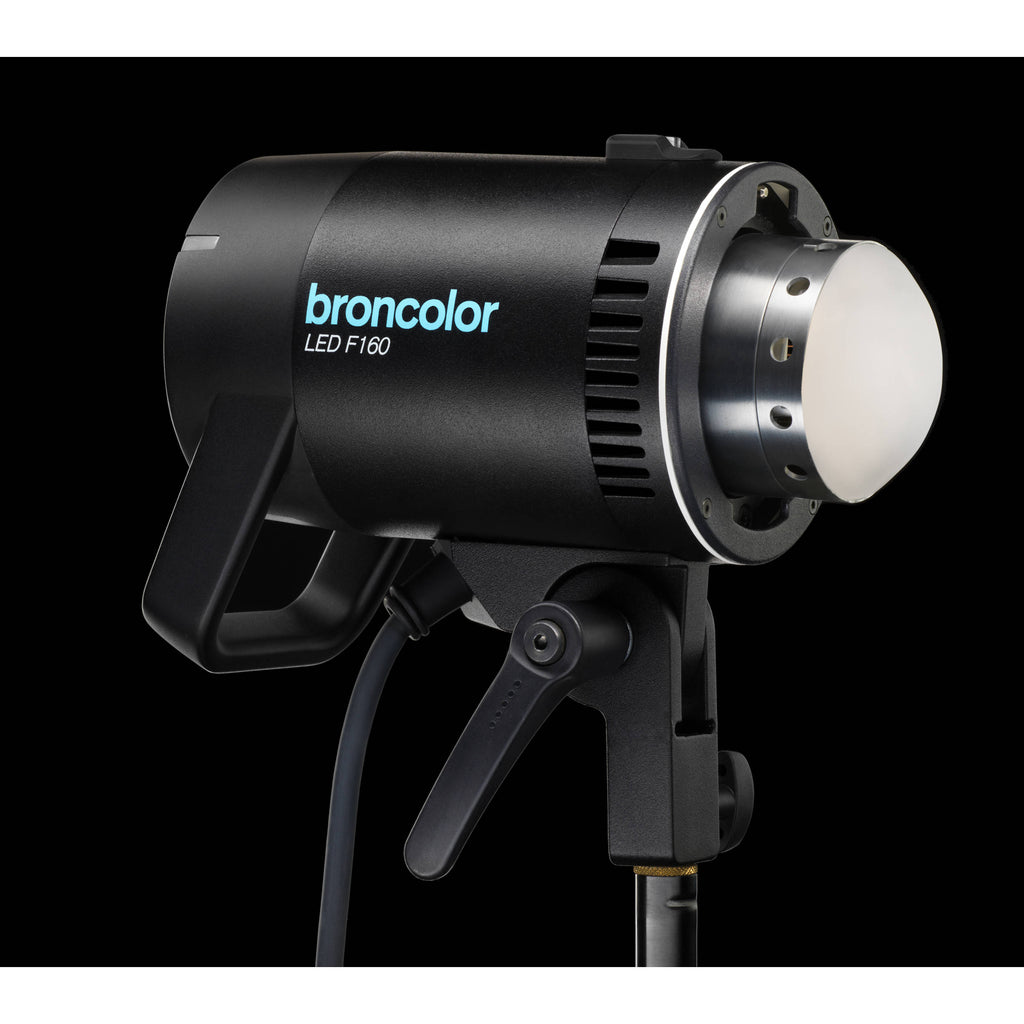

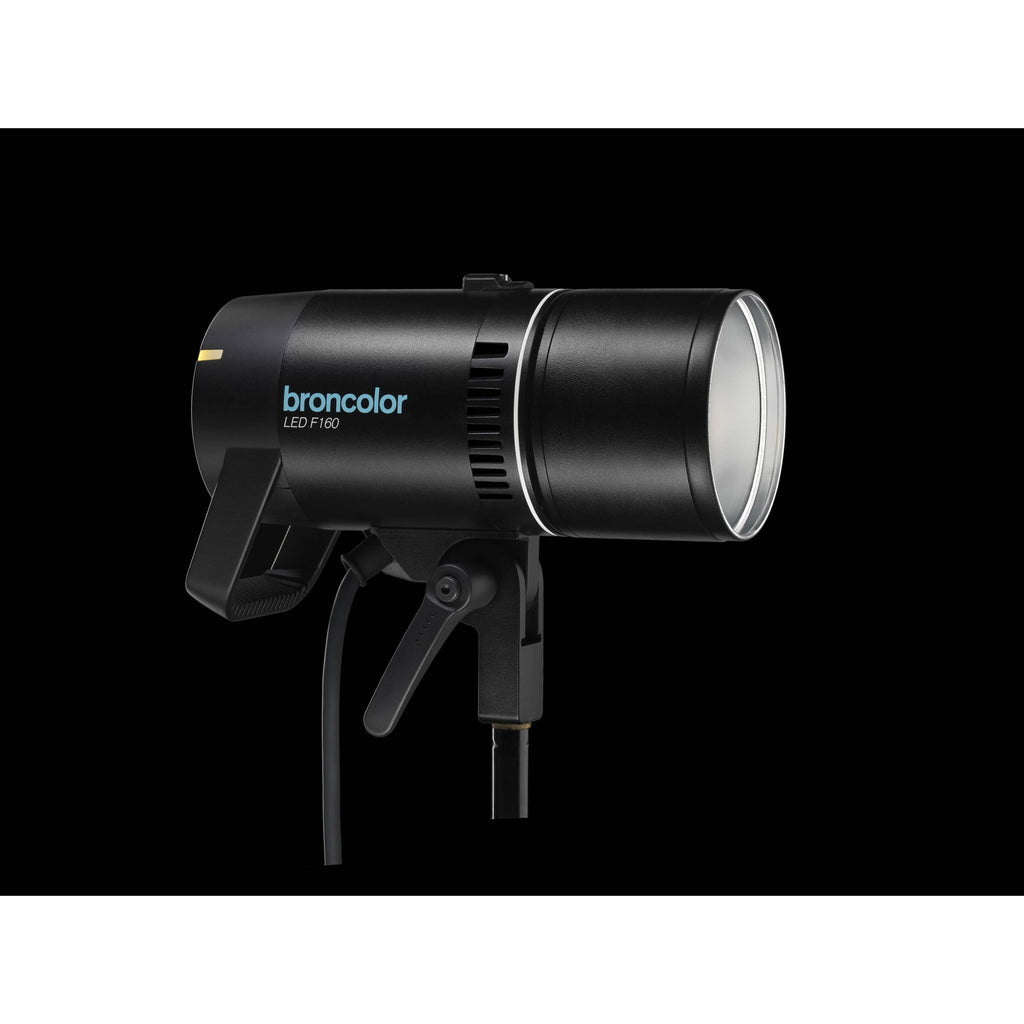

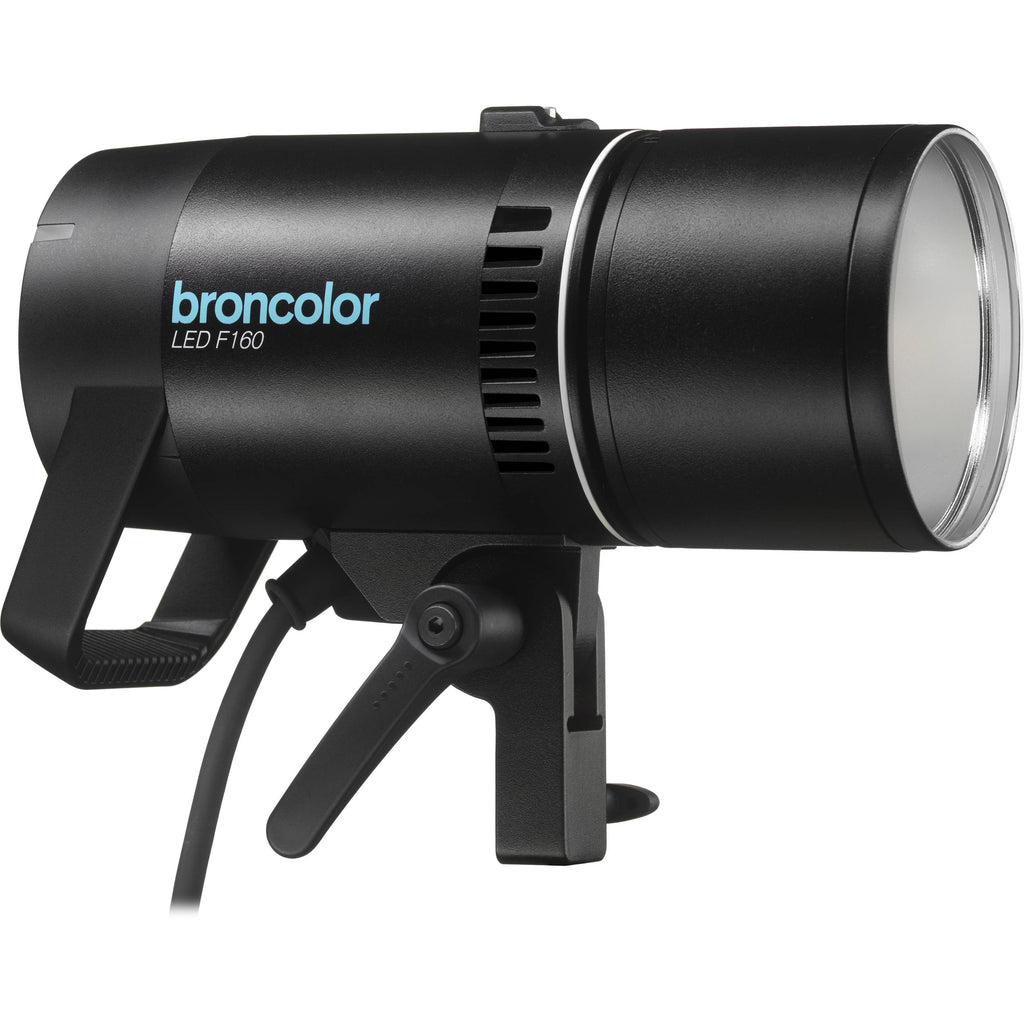

Broncolor F160 LED Monolight
With the features and specs that you would expect from a company of Broncolor's repute, the F160 LED Monolight is a compact light source that outputs the rough tungsten equivalent of 600W. You expect precise and accurate color control from Broncolor but they've really pushed the envelope with a CRI rating of 97 throughout its variable color range of 2800 to 6800K and a very impressive 98.6 rating at 5500K. There's also Magenta / Green control and dimming from 0 to 100%. While you can make these adjustments locally on the fixture, you can also make them remotely via onboard Wi-Fi, or with DMX with the purchase of an optional module. Other convenience features include a daylight / tungsten shift key, easily readable OLED display, and a 100 to 240 VAC power supply for worldwide use. The F160 is also compatible with the full line of Broncolor light shapers.
Broncolor's Vision in Light
Designed as a point light source, the LED F160 features a groundbreaking diffusion element that allows it to match the light characteristics of Broncolor flash heads as well as compatibility with all Broncolor light shapers.
Broncolor's Vision in Experience
With a robust housing and thoughtfully designed ergonomics, the LED F160 has been built to naturally integrate into the photographer's workflow. Remote adjustment is available over its integrated Wi-Fi and the bronControl app or an optional DMX module.
Vision in Color
The color rendition of the LED F160 is held to the same high specifications that have established Broncolor as the trusted standard in photographic lighting. At 5500K it produces as CRI of 98.6 and throughout its color range of 2800 to 6800K, average CRI ratings are above 97.
Other Benefits
12,000 lumen output
Constant power over the whole color temperature range
Shift-key daylight / tungsten
Green / magenta setting (tint)
Manual focusing device
Compact housing
Focusable
DMX (Digital Multiplex) and RDM (Remote Device Management) function with optional DMX module
Cognition lights

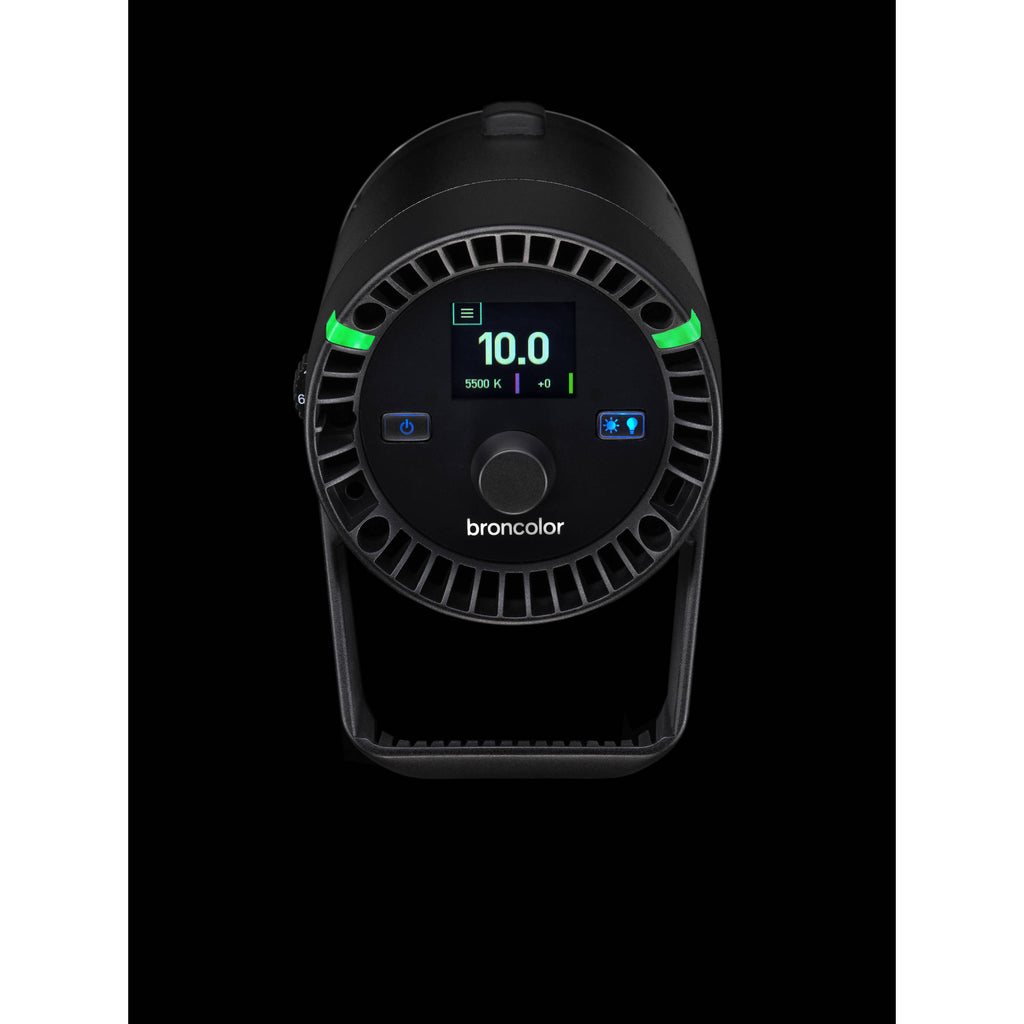

OLED display with high contrast and superior readability
Broncolor Li-Ion Battery 36V XLR
Designed to run the LED F160 or Scope D50, the Li-Ion Battery 36V XLR from Broncolor will run the lamp heads for 30 minutes on a 90 minute charge in situations where AC power is unavailable. The battery is IATA approved for air transport.
Broncolor Charger for Li-Ion Battery 36V XLR
The Charger for Li-Ion Battery 36V XLR from Broncolor will charge the battery for the LED F160 and Scope D50 lampheads in 90 minutes.
Broncolor V-Mount Stand Clamp for Li-Ion Battery 36V XLR
The V-Mount Stand Clamp for Li-Ion Battery 36V XLR from Broncolor supports the battery used for the LED F160 and the Scope D50 LED lamp heads on a lightstand or boom.
Broncolor Umbrella Reflector for F160 LED Monolight
The Umbrella Reflector for F160 LED Monolight from Broncolor is a bayonet-mount light-shaping tool that is designed for umbrellas and long throw work where you desire a more focused beam of light.
Broncolor L40 Standard Reflector for Siros and Siros L
The Broncolor L40 Standard Reflector for Siros and Siros L monolights is a general purpose reflector for these monolights. The L40 reflector accepts optional accessory honeycomb grids and barndoors for added light shaping capability.
In the Box
- Broncolor F160 LED Monolight
- Broncolor Li-Ion Battery 36V XLR
- Broncolor Charger for Li-Ion Battery 36V XLR
- Broncolor V-Mount Stand Clamp for Li-Ion Battery 36V XLR
- Broncolor Umbrella Reflector for F160 LED Monolight
- Broncolor L40 Standard Reflector for Siros and Siros L
- Carrying Case
Table of Contents
- Description
- Broncolor F160 LED Monolight
- Broncolor Li-Ion Battery 36V XLR
- Broncolor Charger for Li-Ion Battery 36V XLR
- Broncolor V-Mount Stand Clamp for Li-Ion Battery 36V XLR
- Broncolor Umbrella Reflector for F160 LED Monolight
- Broncolor L40 Standard Reflector for Siros and Siros L
Broncolor F160 LED Monolight Specs
Light Fixture
| Lumens |
12000 |
| Color Temperature |
2800 to 6800K |
| Color Accuracy Standard |
CRI 98.6 at 5500K |
| Dimming |
Yes, 0 to 100% (Stepped) |
| Display |
OLED |
Mounting
| Yoke Mount |
None |
| Fixture Mount |
5/8" Receiver |
| Accessory Mount |
None |
Remote Operation
| Remote Control Type |
DMX, Wi-Fi
|
Power
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Source |
AC Adapter |
Packaging Info
| Package Weight |
10.5 lb |
| Box Dimensions (LxWxH) |
15.7 x 11.8 x 7.8" |
Broncolor Li-Ion Battery 36V XLR Specs
General
| Battery Runtime |
30 Minutes |
| Recharge Time |
90 Minutes |
Battery
| Battery Capacity |
93.6 Wh |
| Chemistry |
Lithium-Ion |
Packaging Info
| Package Weight |
1.655 lb |
| Box Dimensions (LxWxH) |
6 x 5.4 x 3.6" |
Broncolor Charger for Li-Ion Battery 36V XLR Specs
Broncolor V-Mount Stand Clamp for Li-Ion Battery 36V XLR Specs
Broncolor Umbrella Reflector for F160 LED Monolight Specs
Power
| Item Type |
Umbrella Reflector |
| Interior Color |
Silver |
| Light Compatibility |
Direct Attachment (Requires No Bracket/Speed Ring) with Broncolor Mount |
| Accepts Grids |
No |
| Light Loss/Gain |
None |
| Materials |
Aluminum |
Broncolor L40 Standard Reflector for Siros and Siros L Specs
Packaging Info
| Package Weight |
1.16 lb |
| Box Dimensions (LxWxH) |
8.35 x 7.75 x 5.2" |
