Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| LED Colour:
Blue
|
| LED Mounting:
SMD
|
| LED Case Size:
0805 [2012 Metric]
|
| Forward Current If:
20mA
|
| Forward Voltage:
3.3V
|

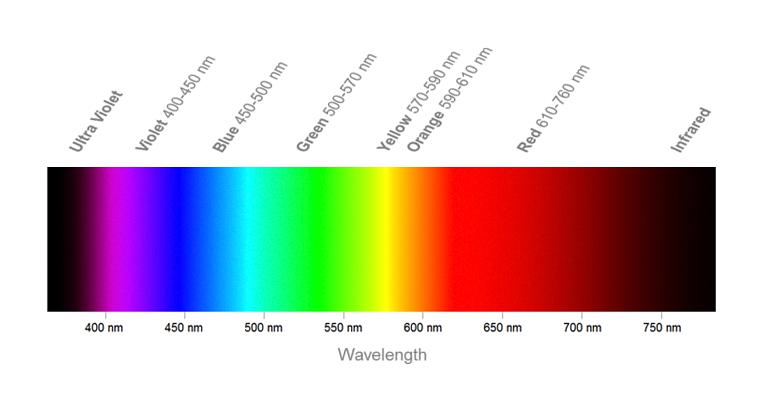

| Wavelength Typ:
470nm
|
| Luminous Intensity:
35mcd
|
| Viewing Angle:
170°
|
| Lens Shape:
Rectangular
|
| Product Range:
-
|
| Automotive Qualification Standard:
-
|
| MSL:
MSL 2A - 4 weeks
|
Other details
| Brand |
BROADCOM |
| Part Number |
HSMN-C170 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

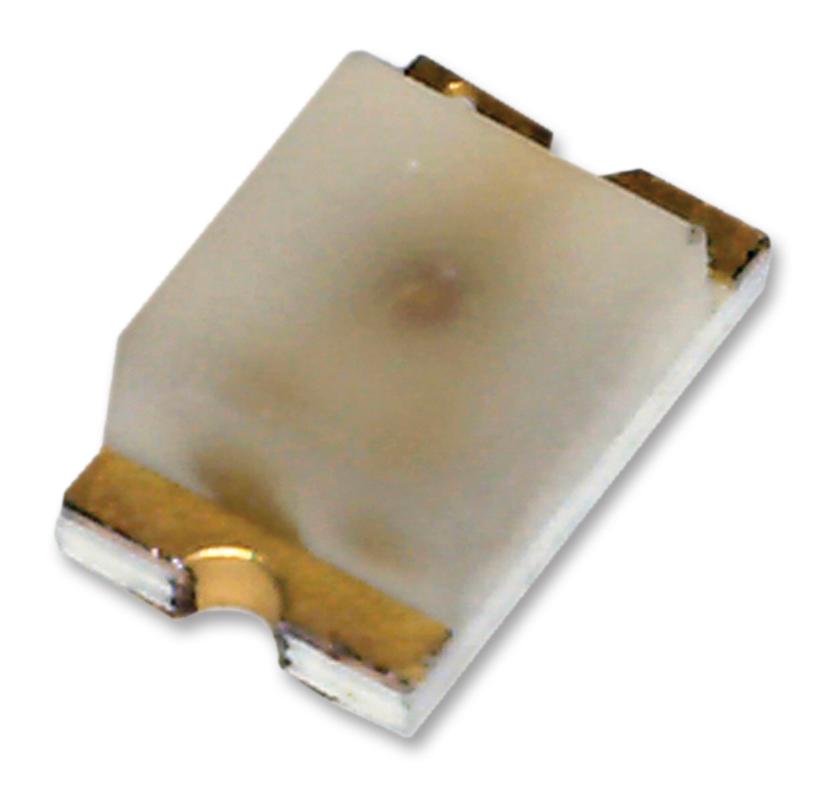

![BROADCOM HSMN-C170 LED, Blue, SMD, 0805 [2012 Metric], 20 mA, 3.3 V, 470 nm](http://www.tanotis.com/cdn/shop/files/24d86e97adb7ca89da52ab5859045461_{width}x.jpg?v=1706910654)
