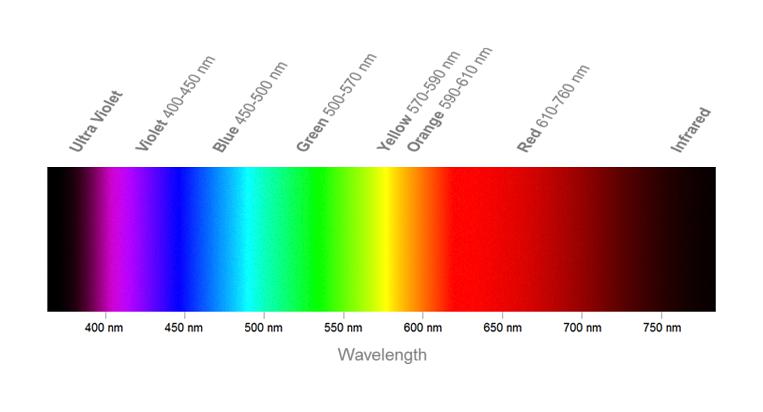

Broadcom HSMN-A161-N00J1 HSMN-A161-N00J1 LED Blue SMD PLCC-2 20 mA 3.4 V 470 nm

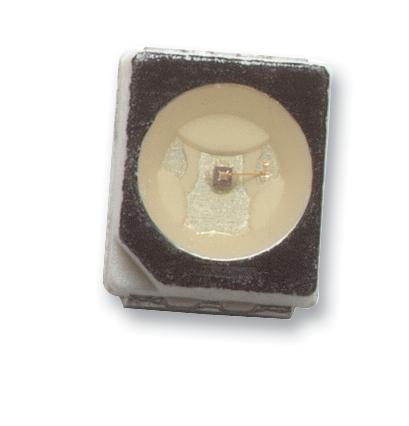

The HSMN-A161-N00J1 is a PLCC-2 blue SMD LED Indicator with black surface tinted lens, made of InGaN. This SMT LED offers high reliability performance and is designed to work under a wide range of environmental conditions. The high reliability feature makes them ideally suited to be used under harsh interior signs application conditions. This SMT LED package comes with a black surface and tinted which is specially designed for signs application to minimize ambient reflection to improve contrast. This LED is compatible with IR solder reflow process. Due to the high reliability feature of this product, this can also be mounted using through-the-wave soldering process. The super wide viewing angle at 120° makes it ideally suited for panel, push button or general backlighting in automotive interior, office equipment, industrial equipment and home appliances. The flat top emitting surface makes it easy for this LED to mate with light pipes.

• High reliability
• High brightness using dice technology
• Compatible with both IR and TTW soldering process

Applications

LED Lighting, Signalling, Industrial, Automotive

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	BROADCOM
Part Number	HSMN-A161-N00J1
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
EOL Notices EN
Product Change Notice EN
