Description

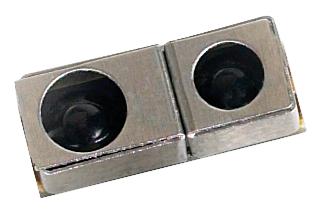

The HSDL-9100 is an analog-output reflective sensor with an integrated high efficiency infrared emitter and photodiode housed in a small form SMD package. The small size makes it ideal for space-constrained mobile applications such as mobile phones and PDAs. It provides a long detection range (60mm) and offers programmability for easy design into a variety of portable devices. This innovative Proximity Sensor performs reliably within the temperature range of -25°C to 85°C.
- Excellent optical isolation resulting in near zero optical cross-talk
- High efficiency emitter and high sensitivity photodiode for high signal-to-noise ratio
- Detects objects from near zero to 60mm
- Low dark current
- Guaranteed temperature performance
Communications & Networking, Industrial, Consumer Electronics
Other details
| Brand | BROADCOM |
| Part Number | HSDL-9100-021 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Application Note EN | |
| Product Change Notice EN | |
