Description

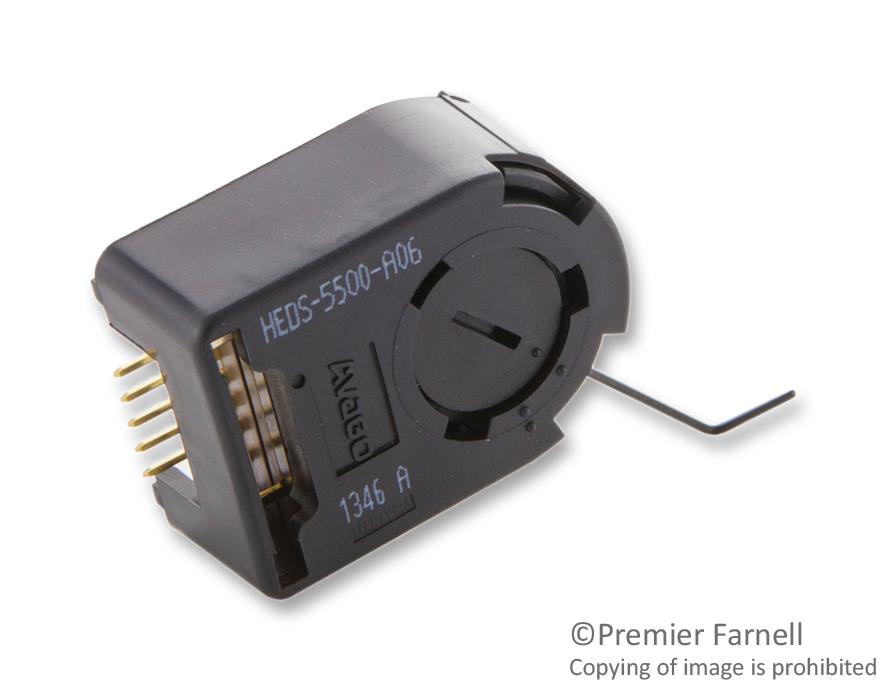

The HEDS-5500#A06 from Avago Technologies is a high performance, low cost, two channel optical incremental encoder. These encoders emphasize high reliability, high resolution and easy assembly. The encoder contains a lensed LED source, an integrated circuit with detectors, output circuitry and a codewheel which rotates between the emitter and detector IC. Typical applications include printers, plotters, tape drives, positioning, tables and automatic handlers.
- Two channel quadrature output
- No signal adjustment required
- External mounting ears available
- Resolutions up to 1024 counts per revolution
- Small size -40°C to 100°C operating temperature
- TTL compatible
- Single 5V supply
- Velocity of 30,000rpm
- Acceleration is 250,000rad/sec2
- Count frequency of 100KHz
Industrial, Consumer Electronics
Footnotes These encoders are not recommended for use in safety applications. Warnings ESD sensitive device, take proper precaution while handling the device.Other details
| Brand | BROADCOM |
| Part Number | HEDS-5500#A06 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
