| ₹ 1618.26 includes GST and import duties. | |
| B2B customers can avail ₹ 246.78 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

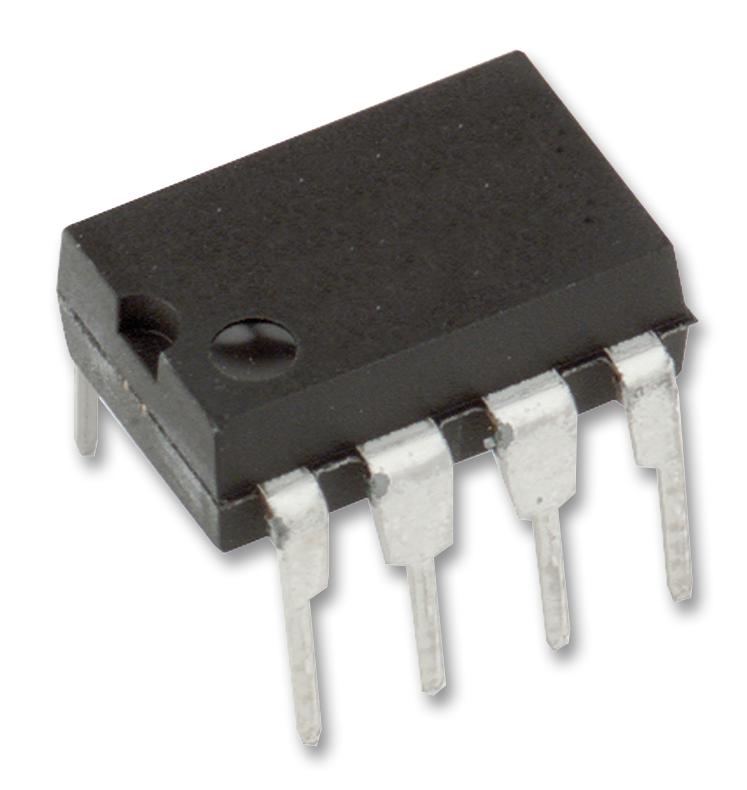

The HCPL-7800A-000E is an Isolation Amplifier for current sensing in electronic motor drives. The high CMR capability of isolation amplifier provides the precision and stability needed to accurately monitor motor current in high noise motor control environments, providing for smoother control in various types of motor control applications. In a typical implementation the motor current flows through an external resistor and the resulting analogue voltage drop is sensed by the amplifier. A differential output voltage is created on the other side of the amplifier optical isolation barrier. It is designed to ignore very high common-mode transient slew rates.
- 15kV/µs Common-mode rejection at VCM = 1000V
- Advanced sigma-delta A/D converter technology
- Compact and auto-insertable
- Fully differential circuit topology
Motor Drive & Control, Power Management, Industrial
Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | BROADCOM |
| Part Number | HCPL-7800A-000E |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1585.89 |
| 3-5 | ₹ 1569.71 |
| 5-10 | ₹ 1537.35 |
| 10+ | ₹ 1504.98 |
Bulk discount will be automatically applied during checkout based on quantity.
