Isolation amplifier designed for current sensing in electronic motor drives. It is suitable for use in motor phase and rail current sensing, inverter current sensing, switched mode power supply signal isolation, general purpose current sensing and monitoring and general purpose analogue signal isolation.
- Fully differential circuit topology
- Advanced Sigma-Delta A/D converter technology
- Compact, auto-insertable
- 15KV/µs common-mode rejection at VCM = 1000V
- 0.3mV input offset voltage
- 100KHz bandwidth and 0.004% nonlinearity
- Worldwide safety approval: UL 1577 (3750VRMS/1 min.) and CSA, IEC/EN/DIN EN 60747-5-2
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
BROADCOM |
| Part Number |

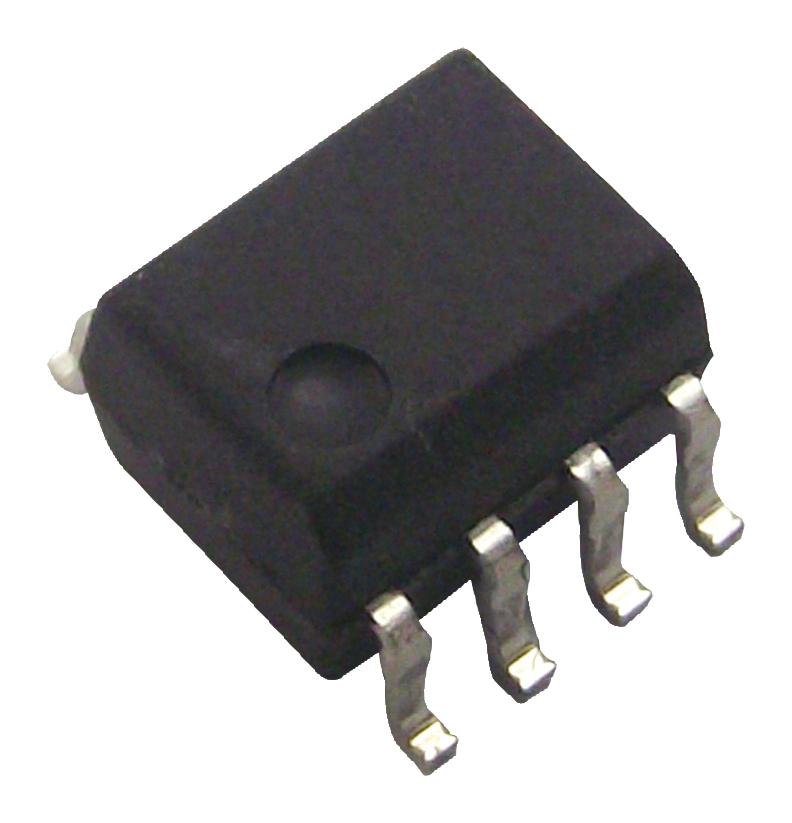

HCPL-7800-500E |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Technical Data Sheet EN |
|
