Description
Product Overview

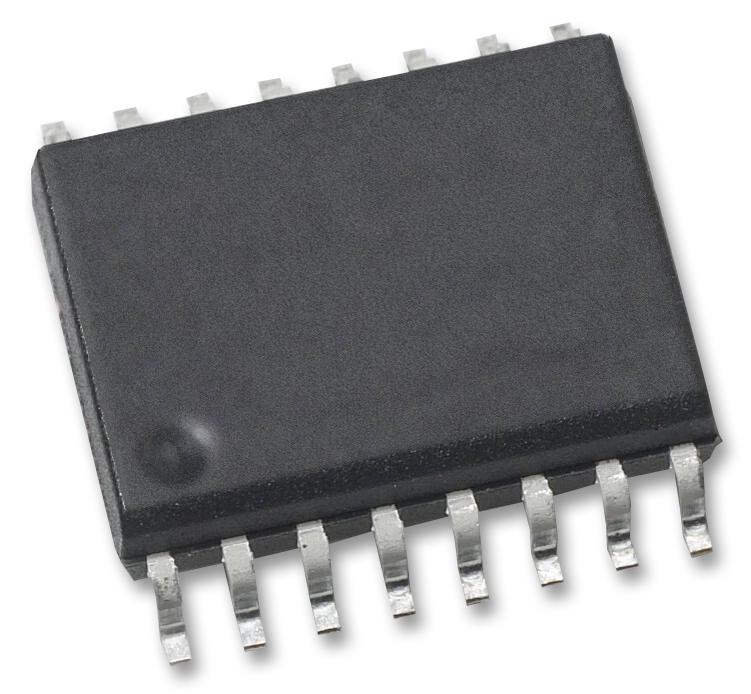

The HCPL-316J is a highly integrated power control device that incorporates all the necessary components for a complete, isolated IGBT gate drive circuit with fault protection and feedback into one SO-16 package. TTL input logic levels allows direct interface with a microcontroller, and an optically isolated power output stage drives IGBTs with power ratings of up to 150A and 1200V.
- Drive IGBTs up to I<sub>C</sub>=150A, V<sub>CE</sub>=1200V
- Optically isolated, FAULT status feedback
- CMOS/TTL compatible
- 500ns maximum switching speeds
- 'Soft' IGBT turn-off
- Integrated fail-safe IGBT protection
- User configurable: Inverting, Non-inverting, Auto-shutdown
- Wide operating V<sub>CC</sub> range; 15 to 30 volts
- -40°C to +100°C operating temperature range
- 15kV/µs minimum common mode rejection (CMR) @ V<sub>CM</sub>=1500V
Product details
Other details
| Brand | BROADCOM |
| Part Number | HCPL-316J-000E |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 775.53 |
| 3-5 | ₹ 767.62 |
| 5-10 | ₹ 751.79 |
| 10+ | ₹ 735.96 |
Bulk discount will be automatically applied during checkout based on quantity.
