| ₹ 739.73 includes GST and import duties. | |
| B2B customers can avail ₹ 112.81 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

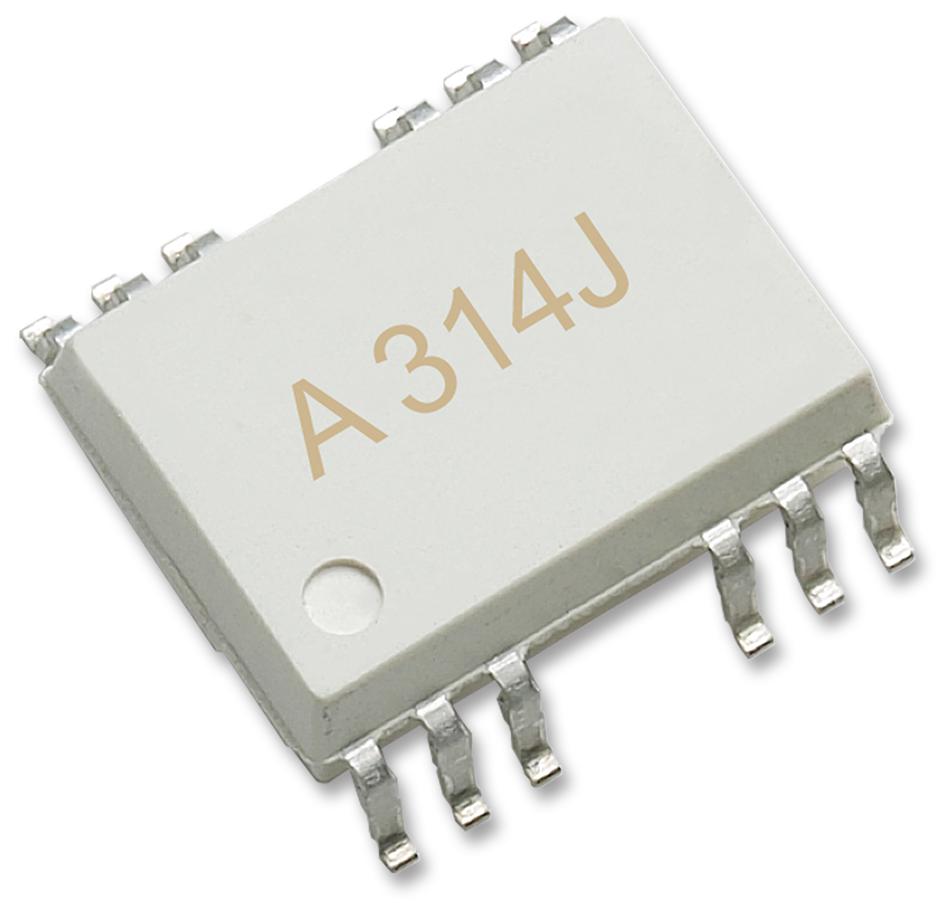

The HCPL-314J-500E is a 0.4A output current IGBT Gate Drive Optocoupler consists of an AlGaAs LED optically coupled to an integrated circuit with a power output stage. This optocouplers is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. A high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and current supplied by this optocoupler makes it ideally suited for directly driving small or medium power IGBTs.
- High speed response
- -40 to 100°C Wide operating temperature range
Applications
Motor Drive & Control, Power Management
Warnings
It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage and/or degradation which may be induced by ESD. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| No. of Channels: 2 Channel |
| Optocoupler Case Style: SOIC |
| No. of Pins: 16Pins |
| Isolation Voltage: 5kV |
| Product Range: - |
Other details
| Brand | BROADCOM |
| Part Number | HCPL-314J-500E |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 724.94 |
| 3-5 | ₹ 717.54 |
| 5-10 | ₹ 702.74 |
| 10+ | ₹ 687.95 |
Bulk discount will be automatically applied during checkout based on quantity.
