| ₹ 471.48 includes GST and import duties. | |
| B2B customers can avail ₹ 71.9 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

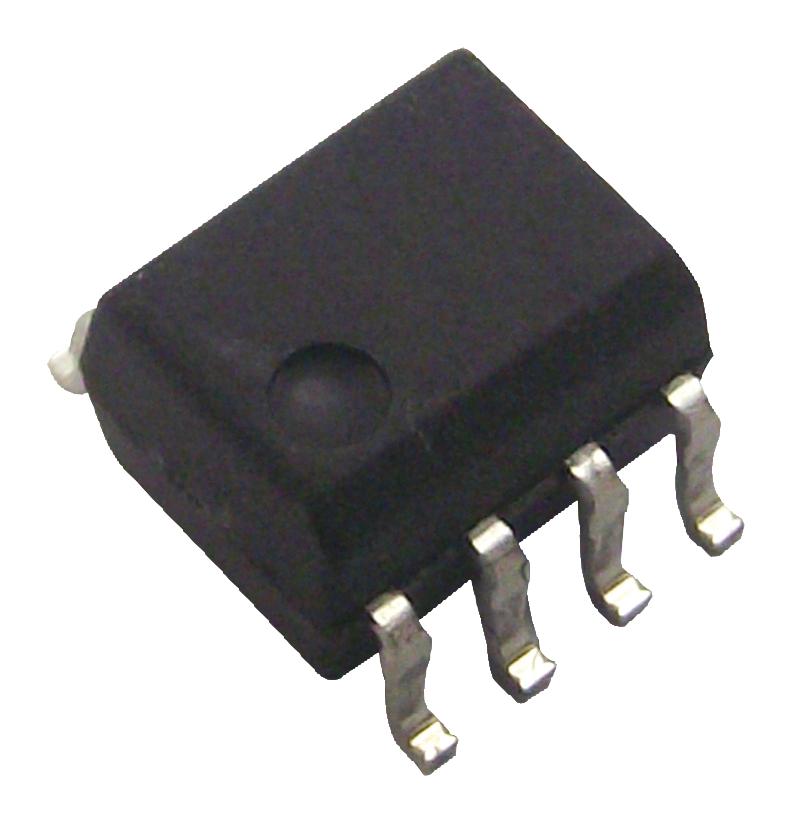

The HCPL-3120-500E is a 2A output current IGBT Gate Drive Optocoupler contains a GaAsP LED. The LED is optically coupled to an integrated circuit with a power output stage. It is ideally suited for driving power IGBTs and MOSFETs used in motor control inverted applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. This series can be used to drive a discrete power stage which drives the IGBT gate.
- Eliminates need for negative gate drive
- Undervoltage lock-out protection (UVLO) with hysteresis
- 500ns Maximum switching speeds
- -40 to 100°C Industrial temperature range
Motor Drive & Control, Power Management, Industrial
Warnings It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage and/or degradation which may be induced by ESD. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | BROADCOM |
| Part Number | HCPL-3120-500E |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 462.05 |
| 3-5 | ₹ 457.34 |
| 5-10 | ₹ 447.91 |
| 10+ | ₹ 438.48 |
Bulk discount will be automatically applied during checkout based on quantity.
